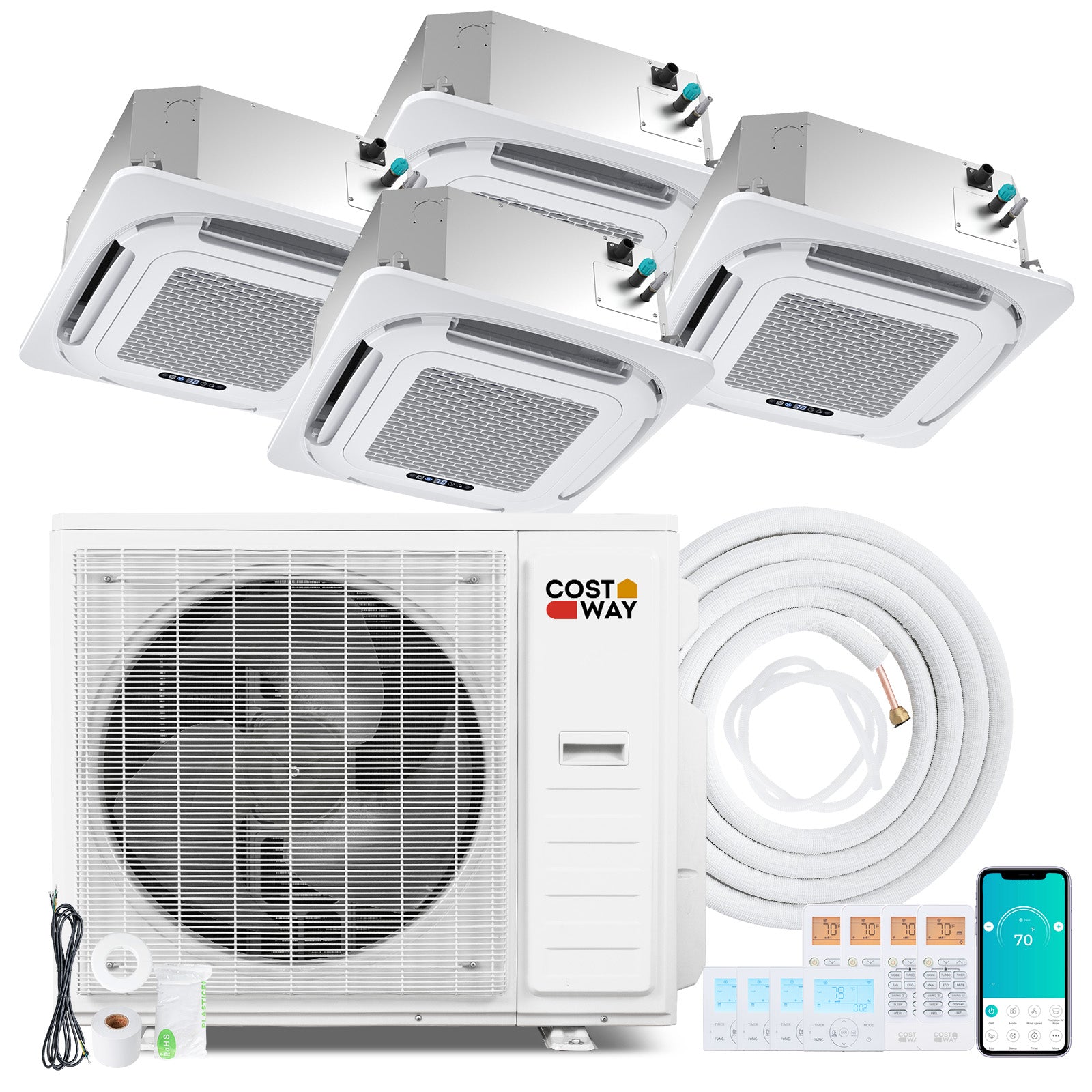

22.5 SEER2 Ceiling Cassette Mini Split AC, 35000 BTU, 4 Zone, White

Experience efficient year-round comfort with this 4-zone 35000 BTU ceiling cassette mini split AC system, featuring inverter technology, R454B refrigerant, and smart controls for homes and offices.

Overview:

• Provides flexible temperature control in four independent zones for personalized comfort.
• Ideal for homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.
• Features a ceiling-mounted design for a clean, built-in look that saves wall space.
• Engineered to operate in harsh conditions, cooling at up to 55°C and heating down to -25°C.
• Note: Professional installation is required for safe and proper setup.

Highlights:

• Independent temperature control in 4 areas for customized comfort.
• Inverter technology delivers outstanding energy efficiency and stable temperatures.
• R454B refrigerant supports a more future-friendly approach with lower global warming potential.
• Stay comfortable year-round with 7 modes and 8 fan speeds for precise airflow adjustment.
• Control your comfort via app, voice, remote, or wall thermostat from anywhere.
• Chassis electrical heating prevents freezing in colder weather for reliable operation.
• Versatile application for homes, offices, or commercial spaces.
• Ceiling cassette creates a clean and built-in look while saving wall space.
• 360° airflow spreads air evenly across the room to reduce hot and cold spots.
• 24-hour timer for scheduled temperature changes to optimize energy use.
• Self-clean function supports fresher operation and long-term performance.
• Whisper quiet operation as low as 32 dB for peaceful sleep and focused work.
• Child lock adds peace of mind for families with young children.

Features:

• Powerful multi-zone cooling and heating with 35000 BTU capacity for individual temperature adjustment across 4 zones.
• Ceiling-mounted design saves wall space and spreads air evenly with 8-way 360° airflow.
• Engineered to keep working in harsh conditions, cooling even at 55°C and heating even at -25°C.
• Built-in chassis electrical heating system prevents freezing in colder weather.
• Lower energy consumption with a 22.5 SEER2 rating for cost-effective operation.
• Utilizes R454B refrigerant with lower global warming potential for an eco-friendly approach.
• Incorporates inverter technology to maintain stable temperatures while reducing energy costs.
• Smart control with Wi-Fi enabled for app control plus voice control, remote, and wall thermostat support.
• Choose from 7 modes: auto, cool, heat, dry, fan, Eco, and sleep for versatile operation.
• Fine-tune airflow with 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Set a 24-hour timer for scheduled temperature changes to optimize comfort and efficiency.
• Quiet operation as low as 32 dB for peaceful sleep and focused work environments.
• Self-clean function helps keep the interior fresher and supports long-term performance.
• Wide use and exceptional versatility for various indoor settings and compatible with multiple indoor unit types.
• Note: Professional installation is required for safe and proper setup.

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59 inches x 25.59 inches x 11.85 inches (65.0 cm x 65.0 cm x 30.1 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches x 14.96 inches x 27.52 inches (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches x 16.57 inches x 31.61 inches (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches x 18.43 inches x 33.58 inches (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of 9K Indoor Unit: 31.9 pounds (14.5 kg).
• Net Weight of 12K Indoor Unit: 31.9 pounds (14.5 kg).
• Net Weight of 18K Indoor Unit: 31.9 pounds (14.5 kg).
• Net Weight of 18K Outdoor Unit: 92.6 pounds (42.0 kg).
• Net Weight of 27K Outdoor Unit: 119 pounds (54.0 kg).
• Net Weight of 35K Outdoor Unit: 145.5 pounds (66.0 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2 inch (1.27 cm).

Specifications:

• Color: White for a sleek and modern appearance.
• Material: Cold-rolled steel sheet, copper, and aluminum for durability and efficiency.
• Multi Zone Combination: 4 zones for independent temperature control.
• Voltage: 208-230V for standard electrical compatibility.
• Frequency: 60Hz for reliable operation in compatible regions.
• Temperature Setting Range: 16°C to 31°C (approximately 61°F to 88°F) for precise comfort control.
• Refrigerant: R454B with lower global warming potential.
• Indoor Unit Noise Level: 32 dB for whisper quiet operation.
• Max Remote Control Distance: 39.2 feet (12.0 meters) for convenient adjustments.
• Coverage Area (9K): 450 square feet (41.8 square meters).
• Coverage Area (12K): 750 square feet (69.7 square meters).
• Coverage Area (18K): 1250 square feet (116.1 square meters).
• Dehumidification Capacity (9K): 55.8 pints per day (26.5 liters per day).
• Dehumidification Capacity (12K): 81.2 pints per day (38.6 liters per day).
• Dehumidification Capacity (18K): 111.6 pints per day (53.0 liters per day).
• Maximum Air Flow Volume (9K): 194 CFM (329 m³/h).
• Maximum Air Flow Volume (12K): 212 CFM (360 m³/h).
• Maximum Air Flow Volume (18K): 260 CFM (441 m³/h).
• SEER2 Rating (18K): 24 for high energy efficiency.
• SEER2 Rating (27K): 24 for high energy efficiency.
• SEER2 Rating (35K): 22.5 for excellent energy efficiency.
• HSPF2 Rating (18K): 10.5 for efficient heating performance.
• HSPF2 Rating (27K): 10.5 for efficient heating performance.
• HSPF2 Rating (35K): 10 for reliable heating performance.

Package Includes:

• 1 x Outdoor Unit for central operation.
• 4 x Indoor Unit for multi-zone coverage.
• 4 x Copper Connection Pipe - Gas Pipe for secure refrigerant flow.
• 4 x Copper Connection Pipe - Liquid Pipe for efficient cooling and heating.
• 4 x Communication Wire for connectivity between units.
• 2 x Drain Hose for proper condensation management.
• 4 x Remote Control & Holder for easy adjustments.
• 4 x Wall Thermostat for additional control options.
• 4 x Wall Sleeve for installation support.
• 8 x Wall Cap for finishing touches.
• 8 x Tape for sealing and securing.
• 8 x Putty for insulation and sealing.
• 4 x Screw Kit for assembly and mounting.
• 4 x Mounting Foot Pad for stable outdoor unit placement.
• 9 x User Guide for setup and operation instructions.
