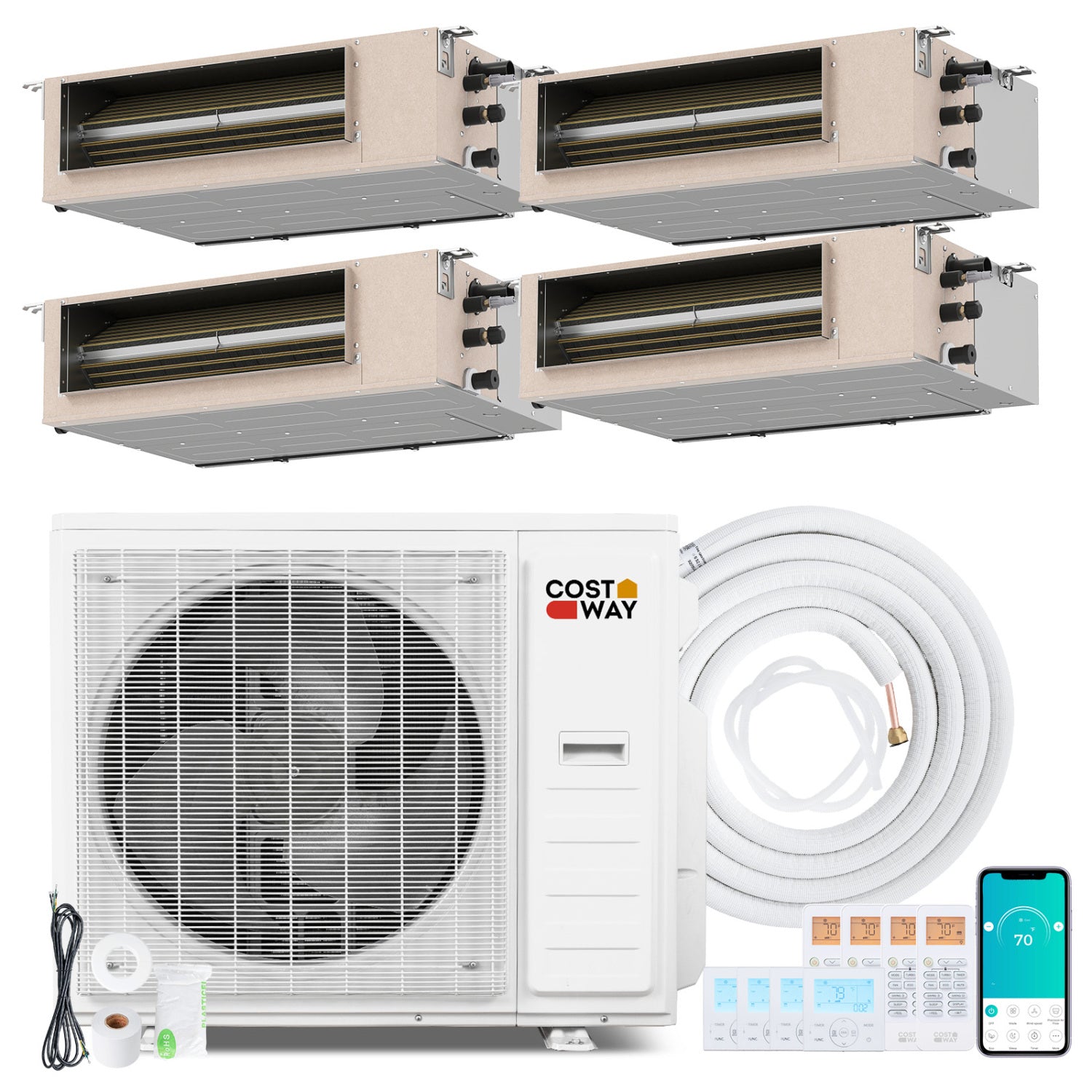

22.5 SEER2 Concealed Ducted Mini Split AC, 35000 BTU, 4 Zone, White

Experience discreet and efficient climate control with this 4-zone 35000 BTU concealed ducted mini split system. Featuring inverter technology and R454B refrigerant, it provides powerful heating and cooling across multiple areas while saving energy. Ideal for homes, offices, and light commercial spaces, this wifi-enabled unit offers smart control, quiet operation, and versatile modes for year-round comfort.

Overview:

• Provides discreet comfort across multiple zones with a concealed ducted design
• Ideal for homes, offices, and light commercial spaces like living rooms, bedrooms, restaurants, and more
• Features advanced inverter technology for steady temperatures and energy savings
• Note: Professional installation is required

Highlights:

• Adjust temperature independently across 4 zones for optimal comfort
• Inverter technology maintains steadier temperatures with smarter energy use
• R454B refrigerant supports more responsible, forward-looking operation
• Built-in versatility for every situation with 7 modes and 8 fan speeds
• Enjoy peaceful sleep without distractions with sleep mode and screen off function
• Effortless convenience with smart control options and wifi connectivity
• Chassis electrical heating ensures reliable performance in colder conditions
• 4D auto swing for balanced and even air distribution
• Ducted design keeps your space neat and discreet
• Self-clean function makes maintenance a breeze
• 24-hour timer for set-and-forget scheduling
• Child lock helps prevent unwanted changes

Features:

• Multi-zone climate control with 35000 BTU concealed ducted mini split AC providing powerful and balanced heating and cooling across 4 zones

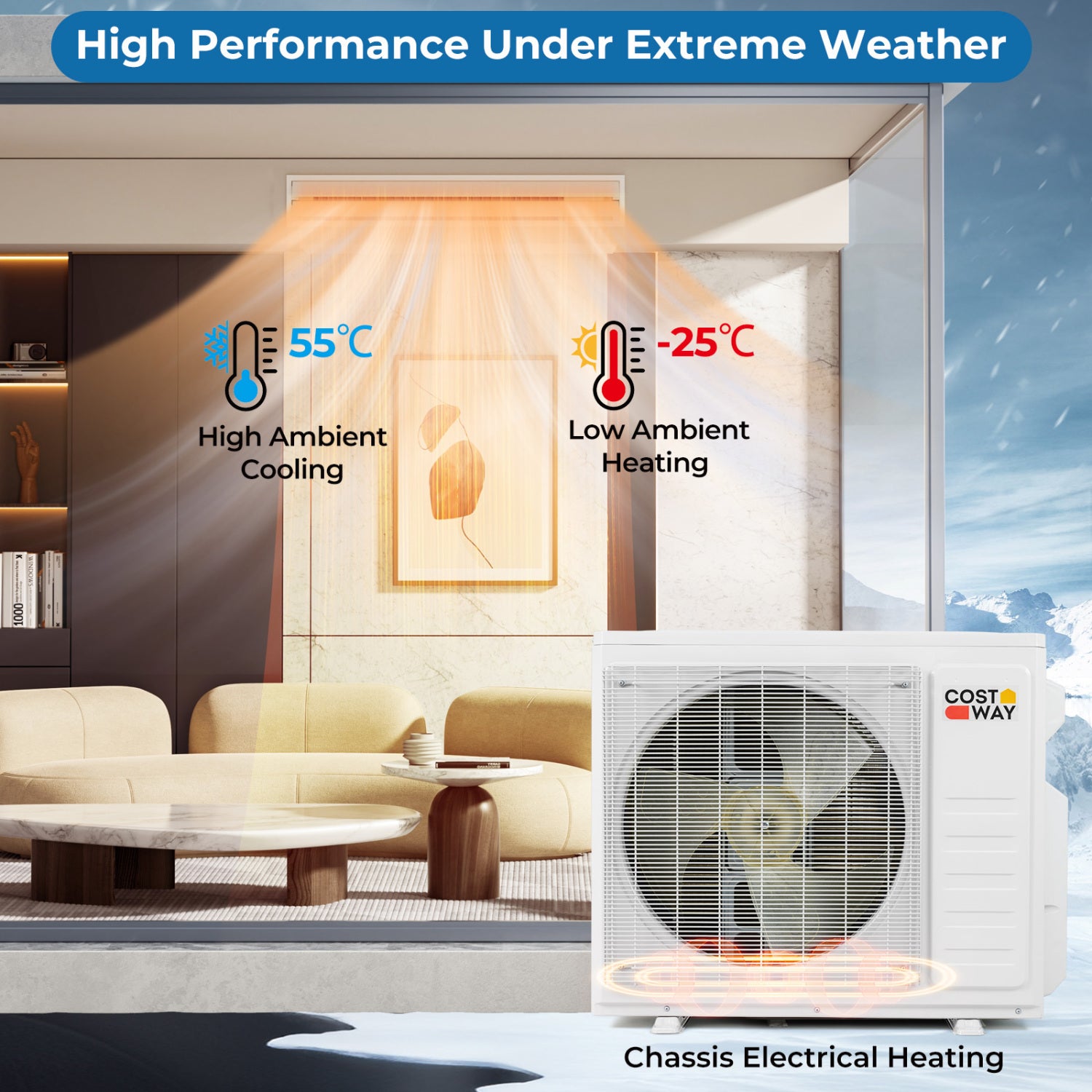

• Outdoor unit features chassis electrical heating to ensure reliable operation in tough weather with -25℃ low ambient heating and 55℃ high ambient cooling
• Advanced inverter technology maintains steady temperatures with less energy waste, helping reduce cycling and improve comfort
• 22.5 SEER2 rating and R454B refrigerant for efficient year-round use
• Wifi enabled ducted mini split AC unit allows use of included remote, wall thermostat, smart app or voice commands for simple daily operation
• Compatible with Alexa and Google Assistant
• 24H timer allows for scheduled operation
• Child lock keeps settings secure
• 7 modes to choose from: auto, cool, heat, dry, fan, ECO, sleep
• 8 fan speeds for precise comfort
• 4D auto swing improves room coverage
• Self-clean function helps keep air paths fresher over time
• Runs with low sound levels as low as 28 dB, offering a peaceful environment for busy households and workplaces
• Ideal for household & light commercial use, including living room, bedroom, office, restaurant and more
• Note: Professional installation is required

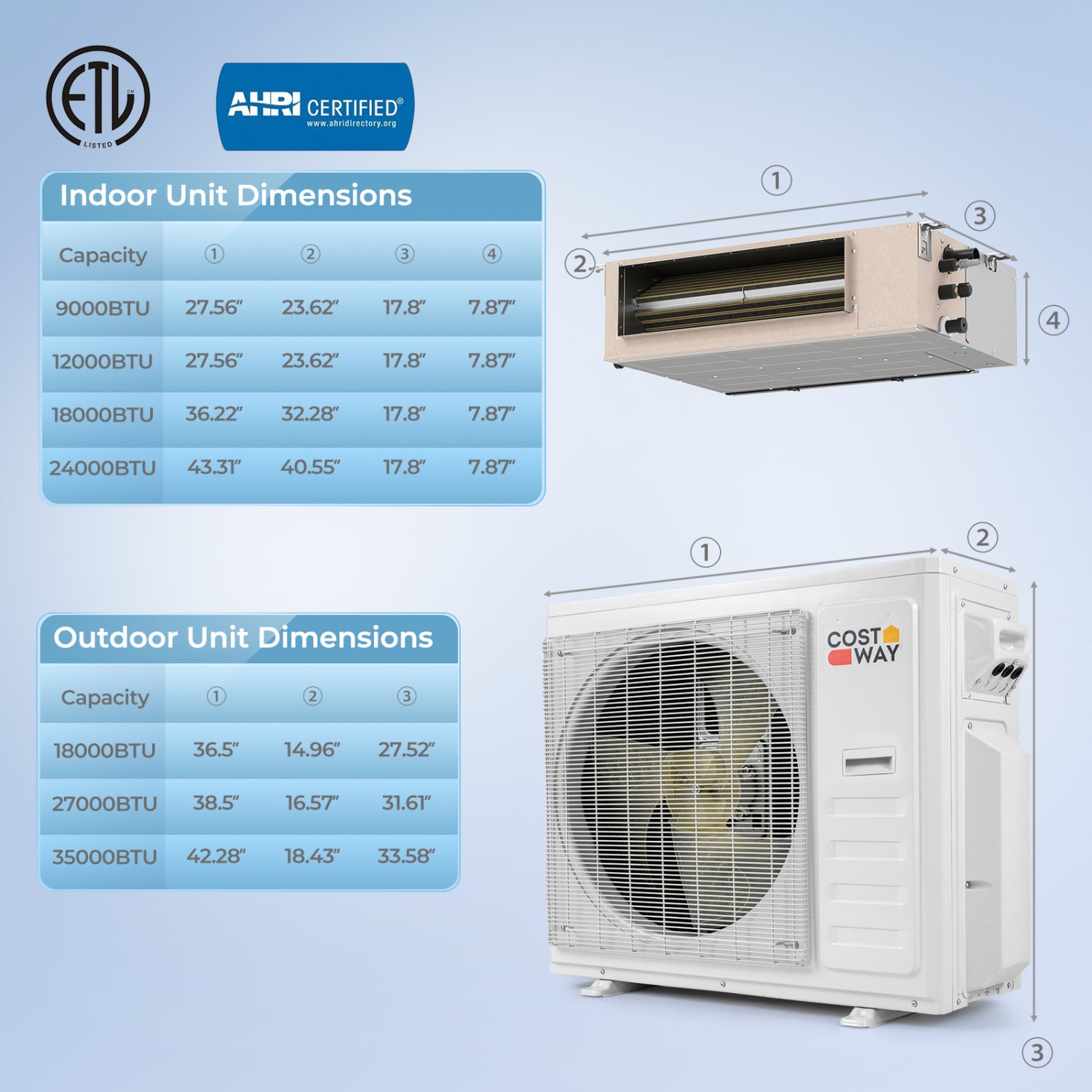

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm)
• Indoor Unit Dimensions (12K): 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm)
• Indoor Unit Dimensions (18K): 36.22" x 17.8" x 7.87" (92 cm x 45.2 cm x 20 cm)
• Indoor Unit Dimensions (24K): 43.31" x 17.8" x 7.87" (110 cm x 45.2 cm x 20 cm)
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm)
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm)
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm)
• Diameter of Liquid Pipe: 1/4" (0.64 cm)
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm)
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm)
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm)
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm)
• Net Weight of 9K Indoor Unit: 33.1 lbs (15 kg)
• Net Weight of 12K Indoor Unit: 33.1 lbs (15 kg)
• Net Weight of 18K Indoor Unit: 39.7 lbs (18 kg)
• Net Weight of 24K Indoor Unit: 50.7 lbs (23 kg)
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42 kg)
• Net Weight of 27K Outdoor Unit: 119 lbs (54 kg)
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66 kg)

Specifications:

• Colour: White
• Material: Cold-rolled Steel Sheet, Copper, Aluminum
• Multi Zone Combination: 4
• Voltage: 208-230V
• Frequency: 60Hz
• Temperature Setting Range: 16℃~31℃
• Refrigerant: R454B
• Indoor Unit Noise Level: 28 dB
• Max Remote Control Distance: 39.2 ft
• Coverage Area-9K: 450 Sq.Ft
• Coverage Area-12K: 750 Sq.Ft
• Coverage Area-18K: 1250 Sq.Ft
• Coverage Area-24K: 1500 Sq.Ft
• Dehumidification Capacity-9K: 55.8 Pints/Day
• Dehumidification Capacity-12K: 81.2 Pints/Day
• Dehumidification Capacity-18K: 111.6 Pints/Day
• Dehumidification Capacity-24K: 131.9 Pints/Day
• Maximum Air Flow Volume-9K: 335 CFM/570 m³/h
• Maximum Air Flow Volume-12K: 360 CFM/610 m³/h
• Maximum Air Flow Volume-18K: 500 CFM/850 m³/h
• Maximum Air Flow Volume-24K: 741 CFM/1260 m³/h
• 18K SEER2: 24
• 27K SEER2: 24
• 35K SEER2: 22.5
• 18K HSPF2: 10.5
• 27K HSPF2: 10.5
• 35K HSPF2: 10

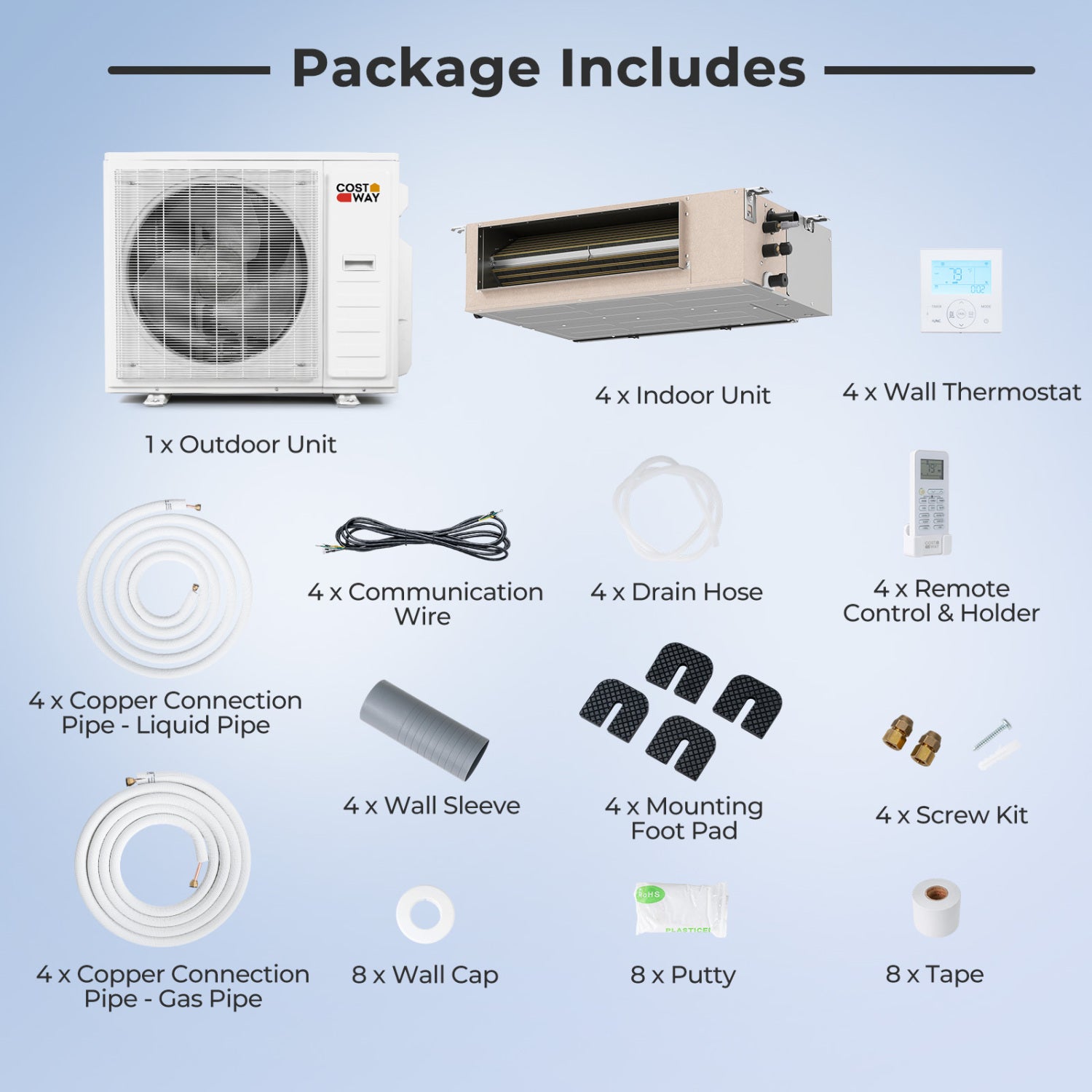

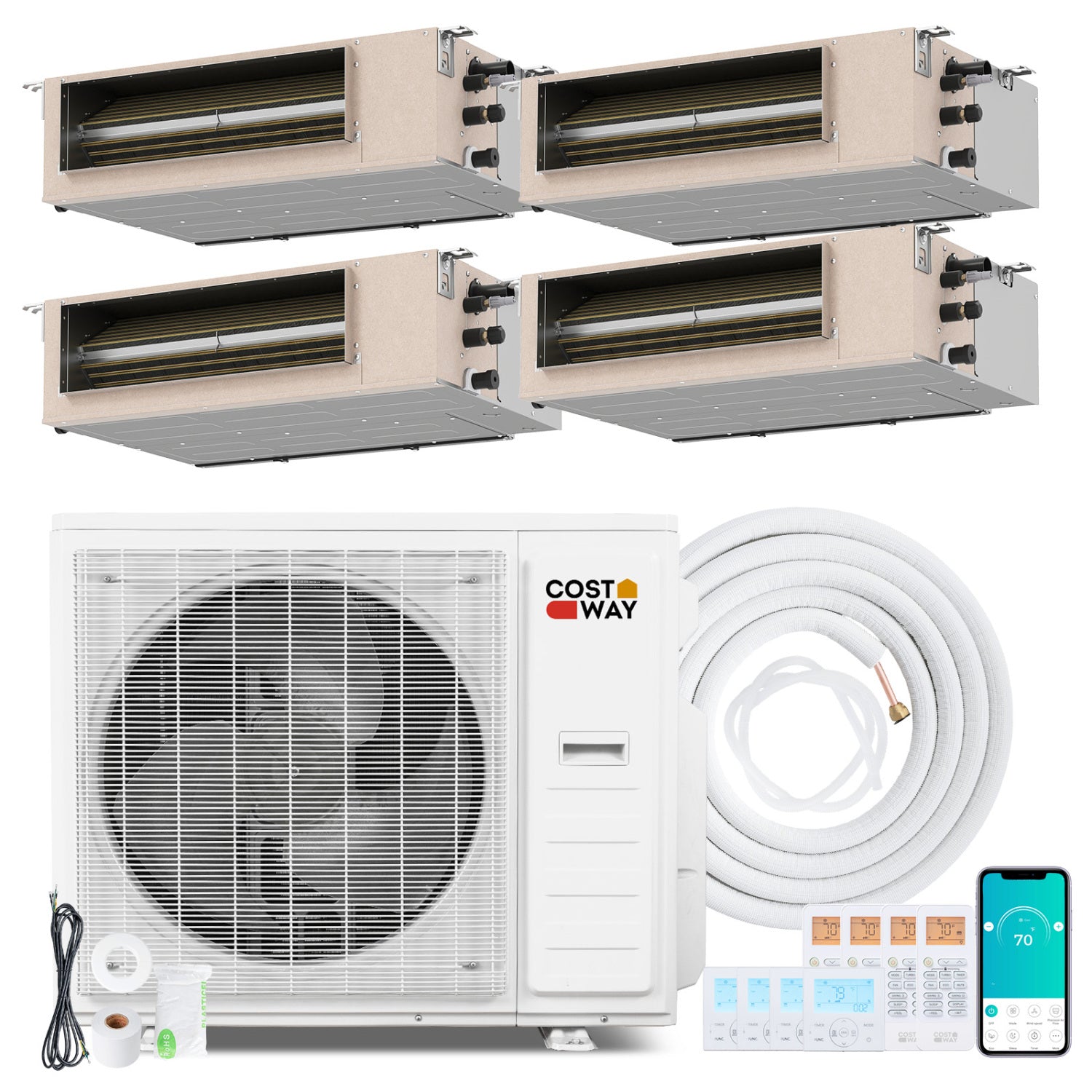

Package Includes:

• 1 x Outdoor Unit
• 4 x Indoor Unit
• 4 x Copper Connection Pipe - Gas Pipe
• 4 x Copper Connection Pipe - Liquid Pipe
• 4 x Communication Wire
• 4 x Drain Hose
• 4 x Remote Control & Holder
• 4 x Wall Sleeve
• 8 x Wall Cap
• 8 x Tape
• 8 x Putty
• 4 x Screw Kit
• 4 x Mounting Foot Pad
• 9 x User Guide
