27000 BTU 2 Zone 24 SEER2 Concealed Ducted Mini Split AC, White

Experience efficient multi-zone climate control with this 27000 BTU concealed ducted mini split system, featuring inverter technology for energy savings, R454B refrigerant, and smart connectivity for homes and light commercial spaces.

Overview:

• Provides discreet and comfortable heating and cooling across 2 zones with a ducted design for a neat appearance.
• Ideal for use in homes, offices, living rooms, bedrooms, restaurants, and other light commercial areas.
• Unique aspects include advanced inverter technology, 7 operating modes, 8 fan speeds, and self-clean function for low maintenance.
• Special note: Professional installation is required for safe and proper operation.

Highlights:

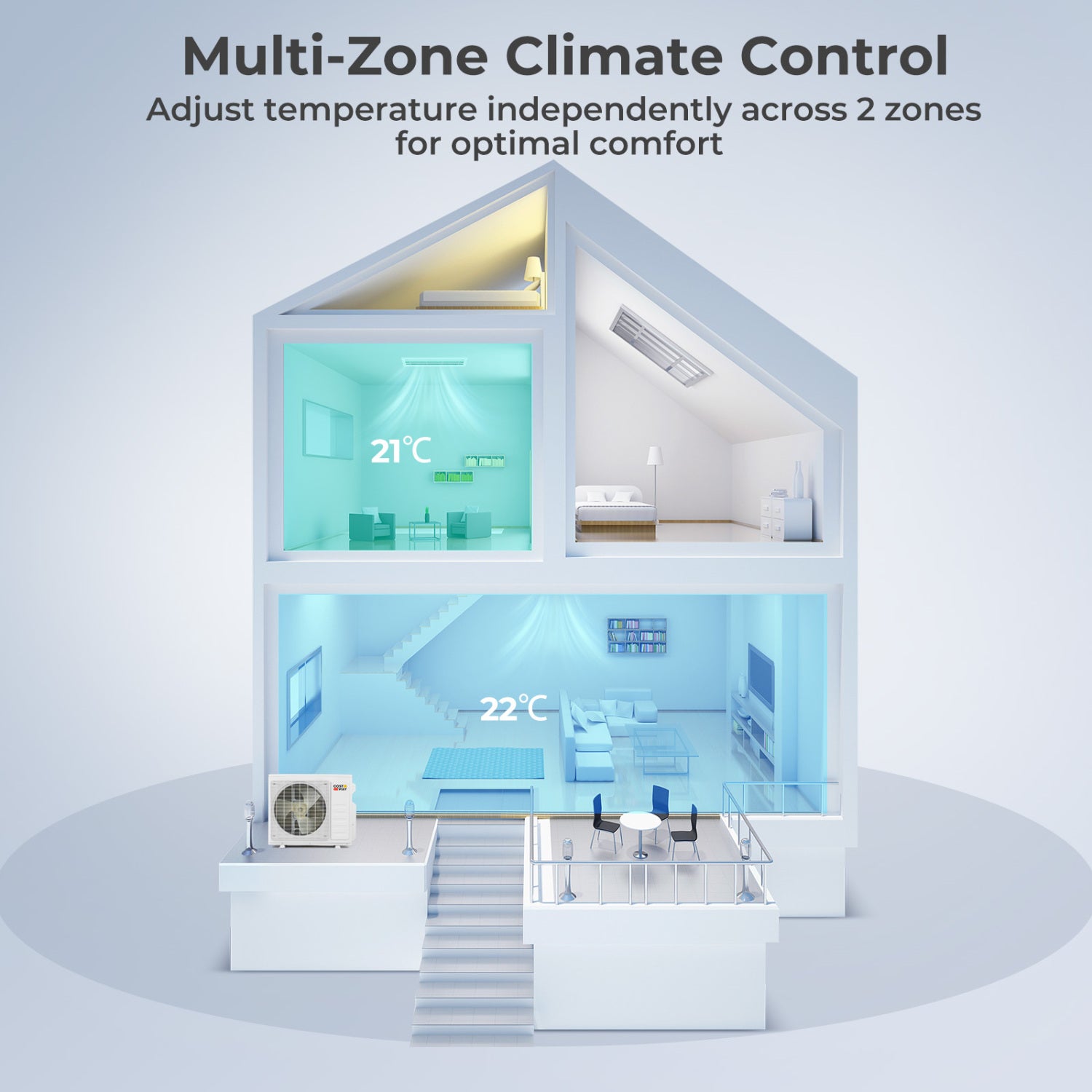

• Adjust temperature independently across 2 zones for optimal comfort.
• Inverter technology maintains steadier temperatures with smarter energy use.
• R454B refrigerant supports more responsible, forward-looking operation.
• Built-in versatility for every situation with 7 modes and 8 fan speeds.
• Enjoy peaceful sleep without distractions with sleep mode and screen off function.
• Effortless convenience with smart control options and wifi connectivity.
• Chassis electrical heating ensures reliable performance in colder conditions.
• 4D auto swing for balanced and even air distribution.
• Ducted design keeps your space neat and discreet.
• Self-clean function makes maintenance a breeze.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.

Features:

• Multi-zone climate control with 27000 BTU capacity for powerful heating and cooling across 2 zones.

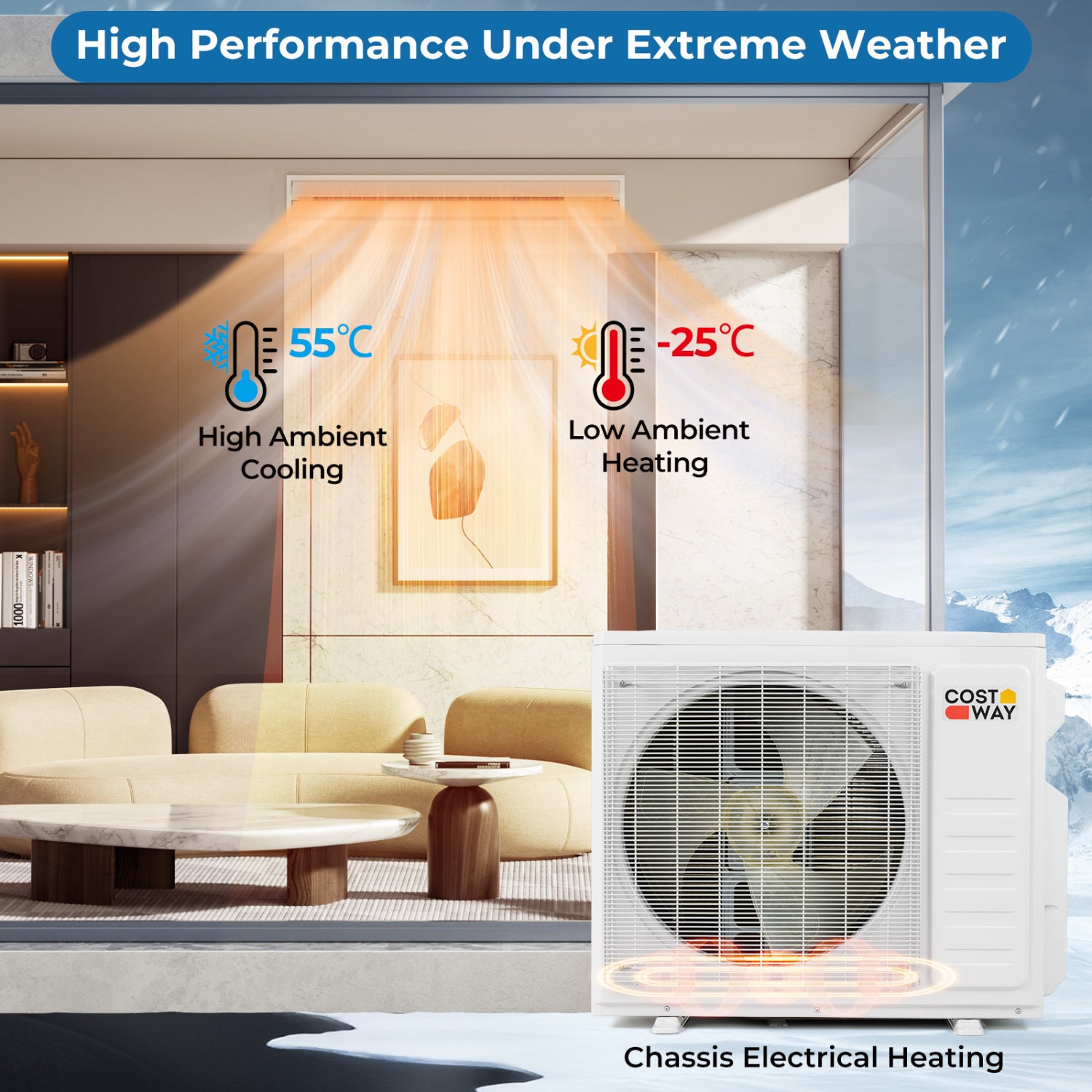

• Outdoor unit features chassis electrical heating for reliable operation in tough weather with -25℃ low ambient heating and 55℃ high ambient cooling.
• Advanced inverter technology maintains steady temperatures with less energy waste, reducing cycling and improving comfort.
• 24 SEER2 rating and R454B refrigerant for efficient year-round use.
• Wifi enabled for control via included remote, wall thermostat, smart app, or voice commands (compatible with Alexa and Google Assistant).
• 24-hour timer allows for scheduled operation.
• Child lock keeps settings secure.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds for precise comfort.
• 4D auto swing improves room coverage.
• Self-clean function helps keep air paths fresher over time.
• Quiet operation with low sound levels as low as 28 dB for a peaceful environment.
• Ideal for household and light commercial use, including living room, bedroom, office, restaurant, and more.
• Special note: Professional installation is required.

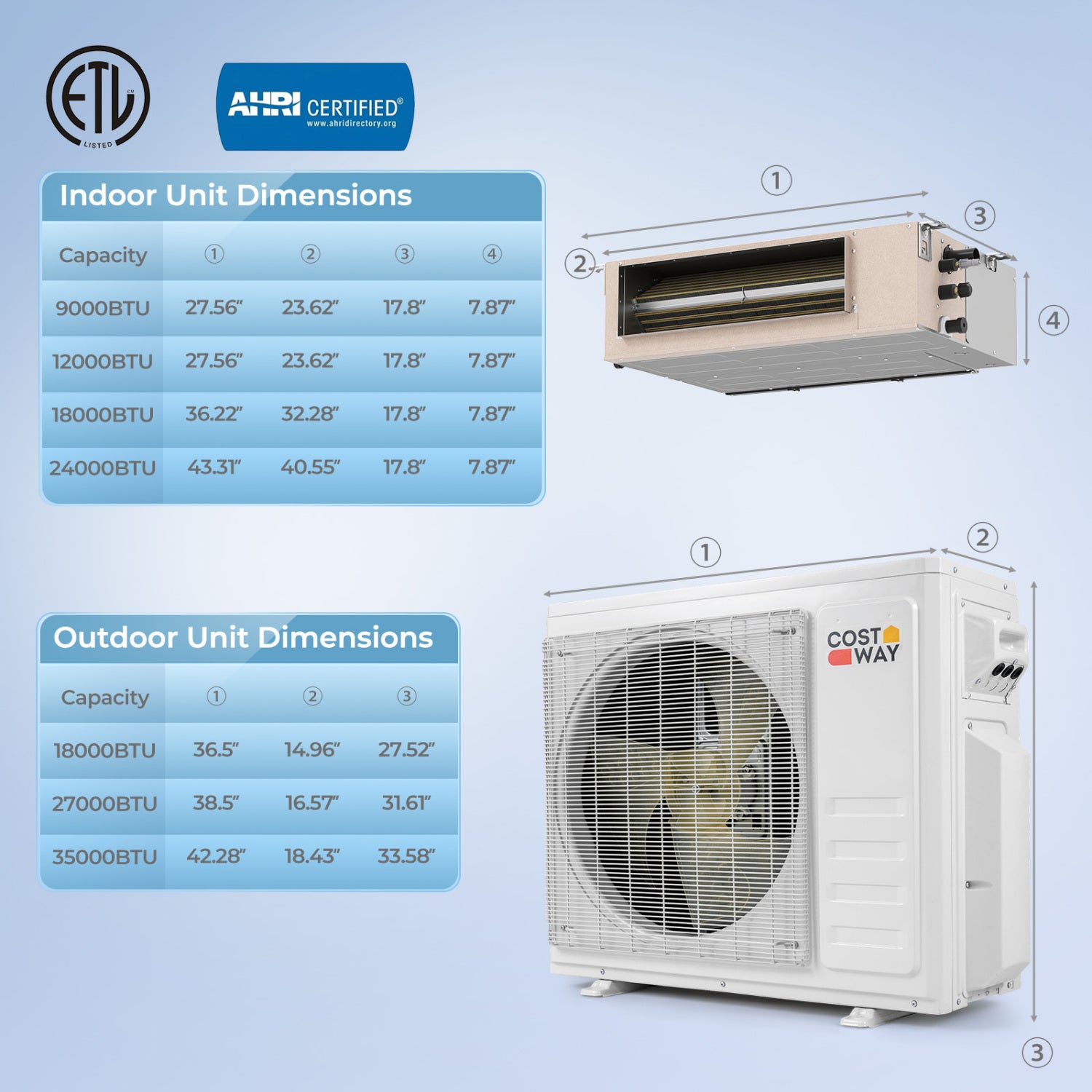

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (12K): 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (18K): 36.22" x 17.8" x 7.87" (92 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (24K): 43.31" x 17.8" x 7.87" (110 cm x 45.2 cm x 20 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of 9K Indoor Unit: 33.1 lbs (15 kg).
• Net Weight of 12K Indoor Unit: 33.1 lbs (15 kg).
• Net Weight of 18K Indoor Unit: 39.7 lbs (18 kg).
• Net Weight of 24K Indoor Unit: 50.7 lbs (23 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 2.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.2 ft (12 m).
• Coverage Area-9K: 450 Sq.Ft (41.8 m²).
• Coverage Area-12K: 750 Sq.Ft (69.7 m²).
• Coverage Area-18K: 1250 Sq.Ft (116.1 m²).
• Coverage Area-24K: 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity-9K: 55.8 Pints/Day (26.4 L/Day).
• Dehumidification Capacity-12K: 81.2 Pints/Day (38.4 L/Day).
• Dehumidification Capacity-18K: 111.6 Pints/Day (52.8 L/Day).
• Dehumidification Capacity-24K: 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume-9K: 335 CFM/570 m³/h.
• Maximum Air Flow Volume-12K: 360 CFM/610 m³/h.
• Maximum Air Flow Volume-18K: 500 CFM/850 m³/h.
• Maximum Air Flow Volume-24K: 741 CFM/1260 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

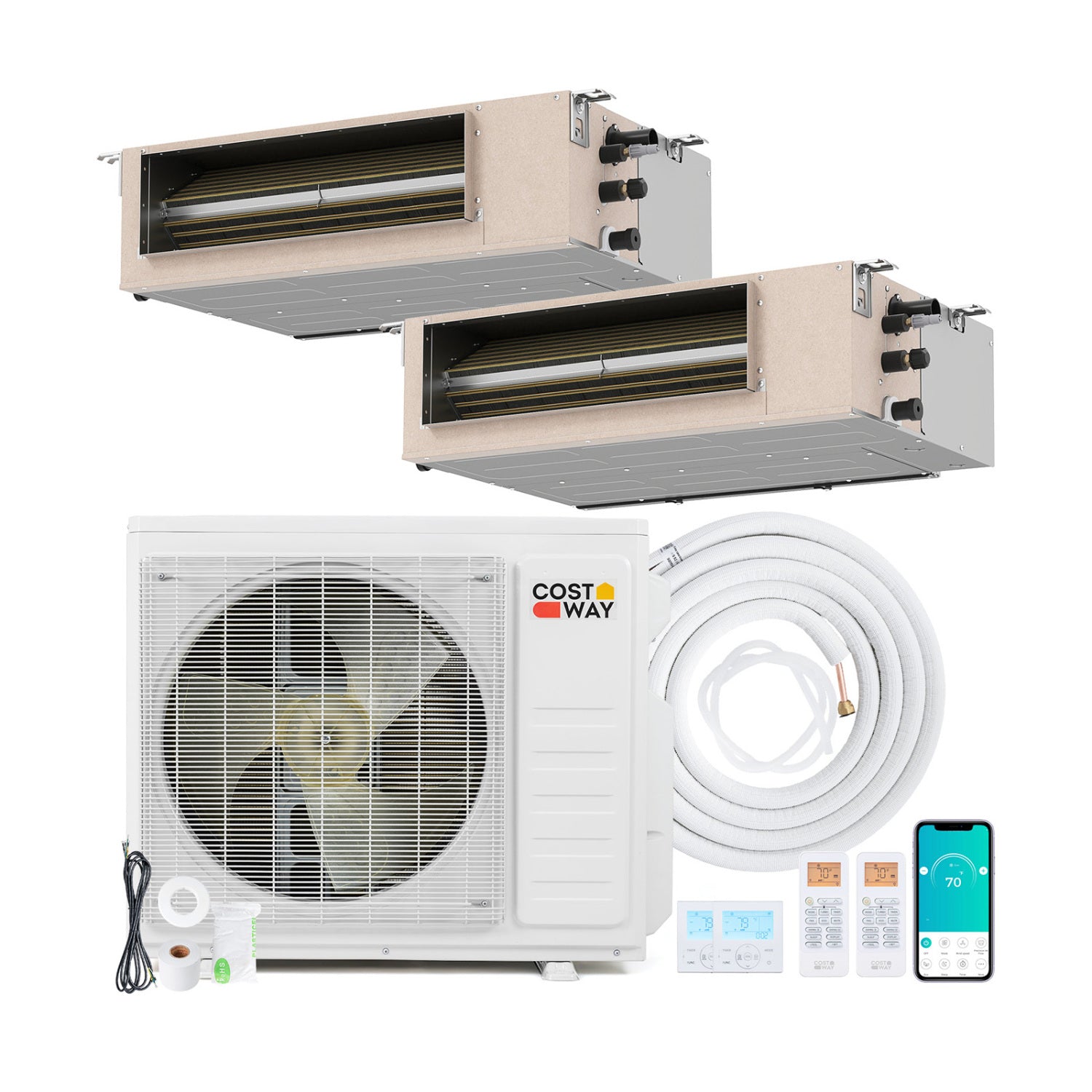

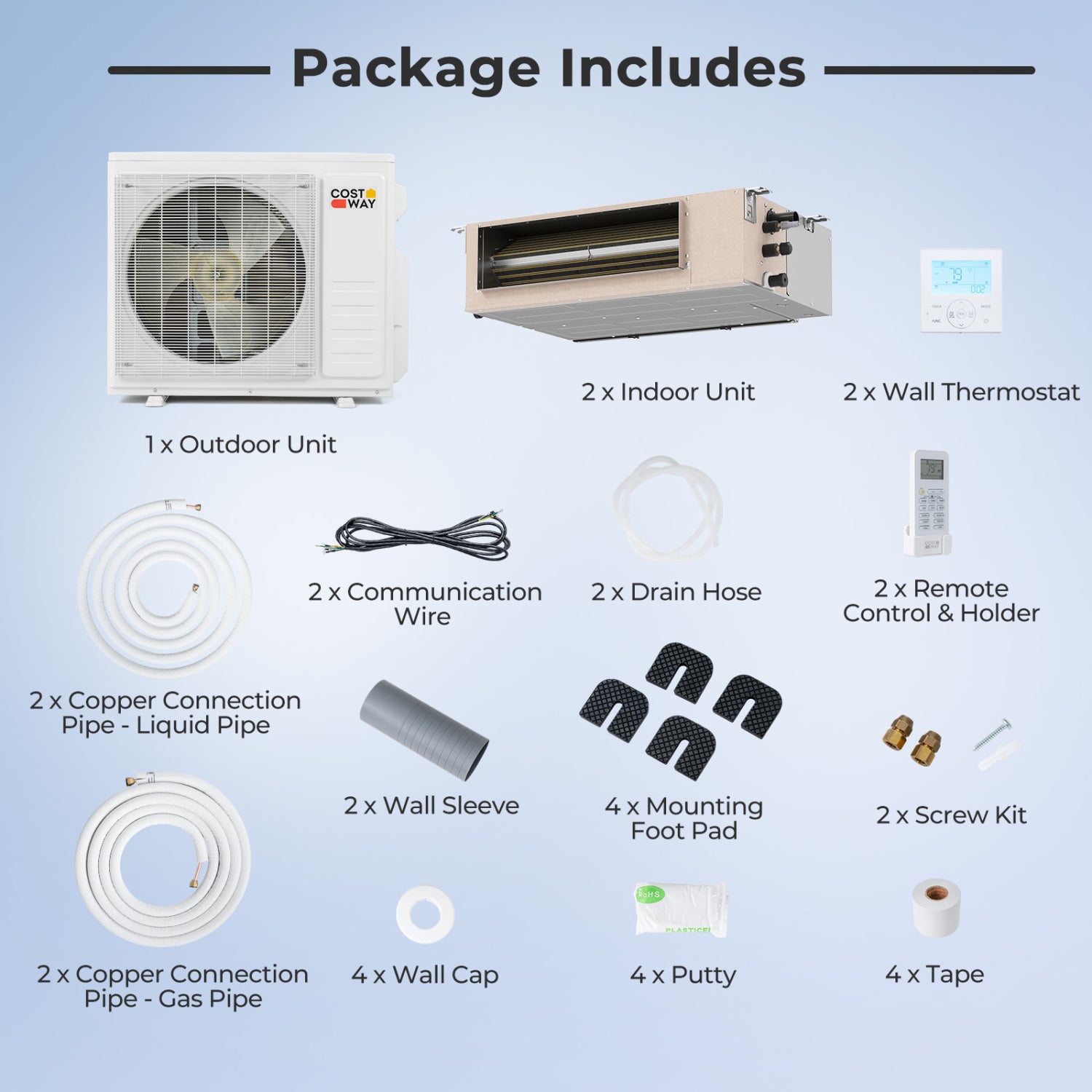

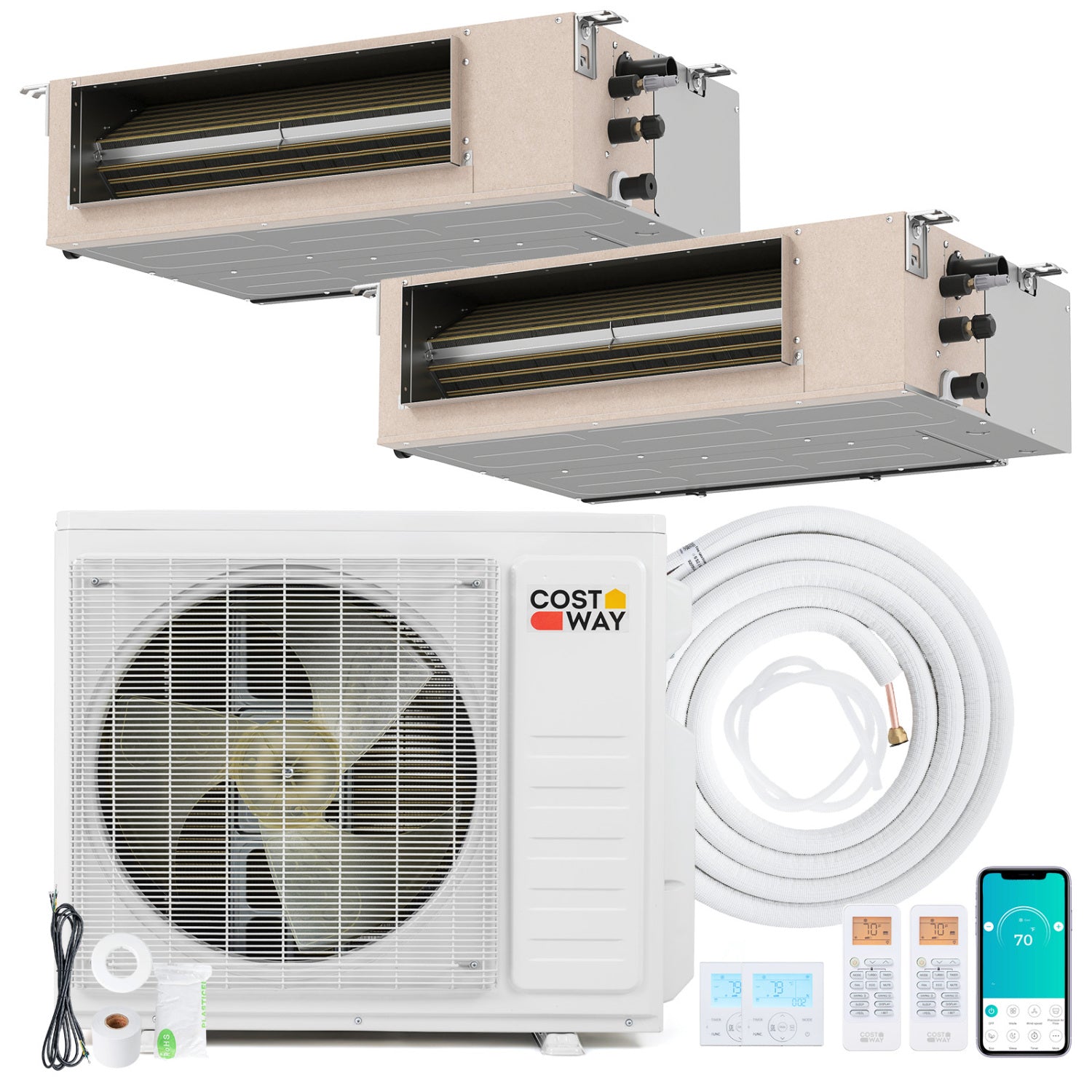

Package Includes:

• 1 x Outdoor Unit.
• 2 x Indoor Unit.
• 2 x Copper Connection Pipe - Gas Pipe.
• 2 x Copper Connection Pipe - Liquid Pipe.
• 2 x Communication Wire.
• 2 x Drain Hose.
• 2 x Remote Control & Holder.
• 2 x Wall Sleeve.
• 4 x Wall Cap.
• 4 x Tape.
• 4 x Putty.
• 2 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.
