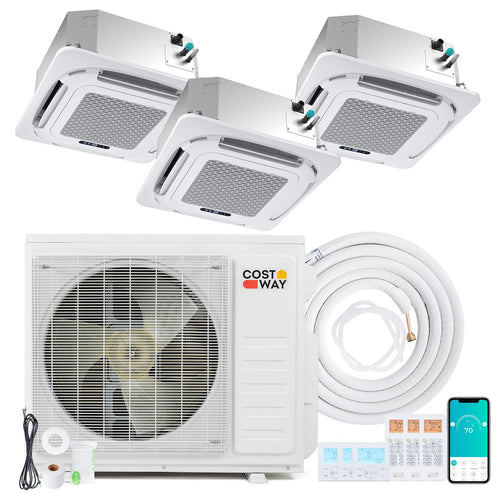

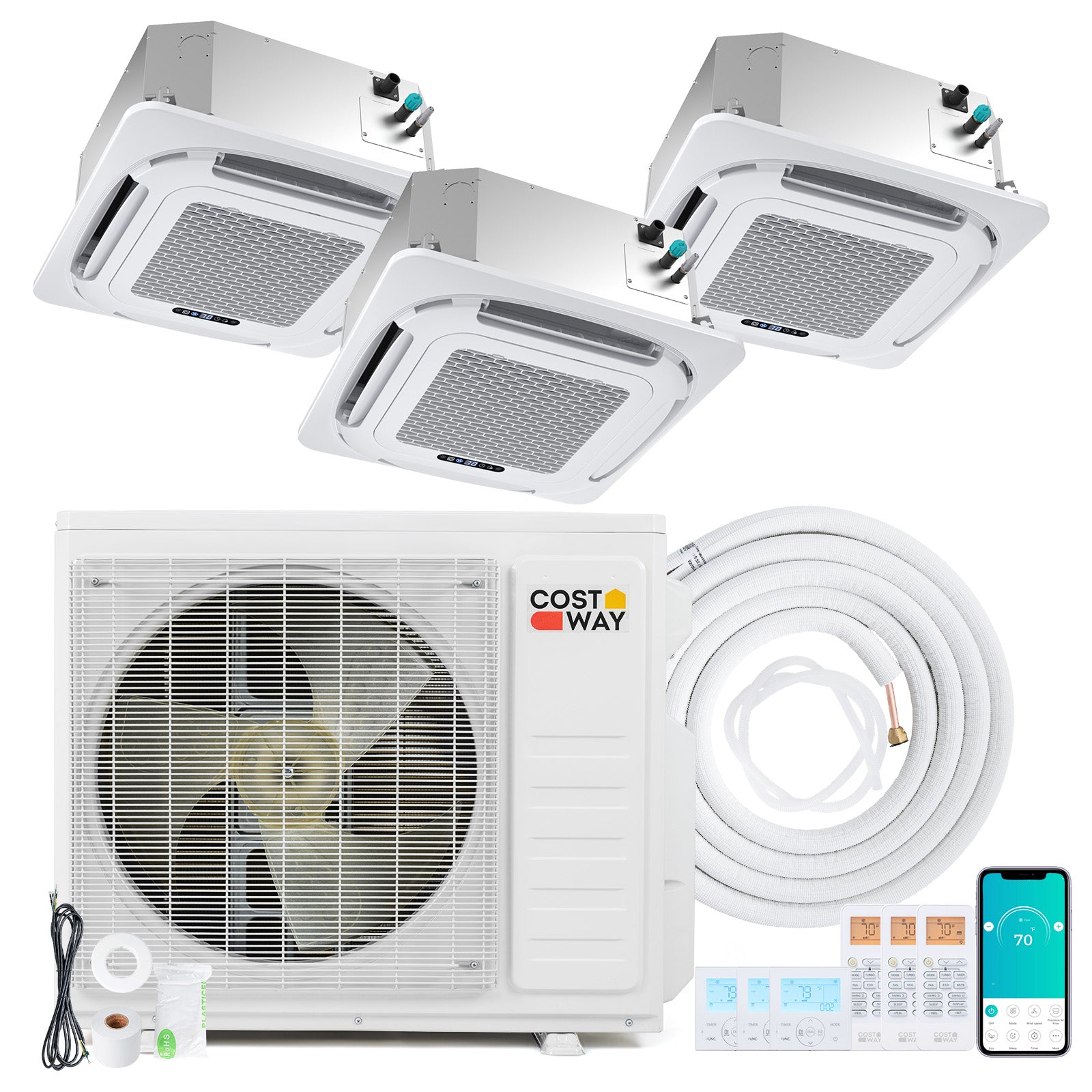

27000 BTU 3 Zone Ceiling Cassette Mini Split AC, 12K + 12K + 12K, White

Enjoy year-round comfort with this 3-zone 27000 BTU ceiling cassette mini split AC system, featuring inverter technology for energy efficiency, smart app and voice control, and whisper-quiet 360° airflow. Ideal for homes, offices, and commercial spaces, it provides flexible cooling and heating with professional installation required.

Overview:

• Provides flexible comfort with independent temperature control in 3 zones using a ceiling cassette design for a clean, built-in look.
• Ideal for homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.
• Features inverter technology for energy efficiency, R454B refrigerant for a future-friendly approach, and versatile compatibility with various indoor unit types.
• Note: Professional installation is required for safe and proper setup.

Highlights:

• Enjoy independent temperature control in 3 areas for personalized comfort.
• Inverter technology provides outstanding energy efficiency, reducing energy costs.
• R454B refrigerant supports a more future-friendly approach with lower global warming potential.
• Stay comfortable year-round with 7 modes and 8 fan speeds for precise adjustments.
• Control your comfort via the app, voice, remote, or wall thermostat from anywhere.
• Chassis electrical heating prevents freezing in colder weather, ensuring reliable operation.
• Versatile application for homes, offices, or commercial spaces with wide compatibility.
• Ceiling cassette creates a clean and built-in look, saving wall space.
• 360° airflow spreads air evenly across the room, reducing hot and cold spots.
• 24-hour timer for scheduled temperature changes, enhancing convenience.
• Self-clean function supports fresher operation and long-term performance.
• Whisper quiet operation as low as 32 dB for peaceful sleep and focused work.
• Child lock adds peace of mind for families, ensuring safe use.

Features:

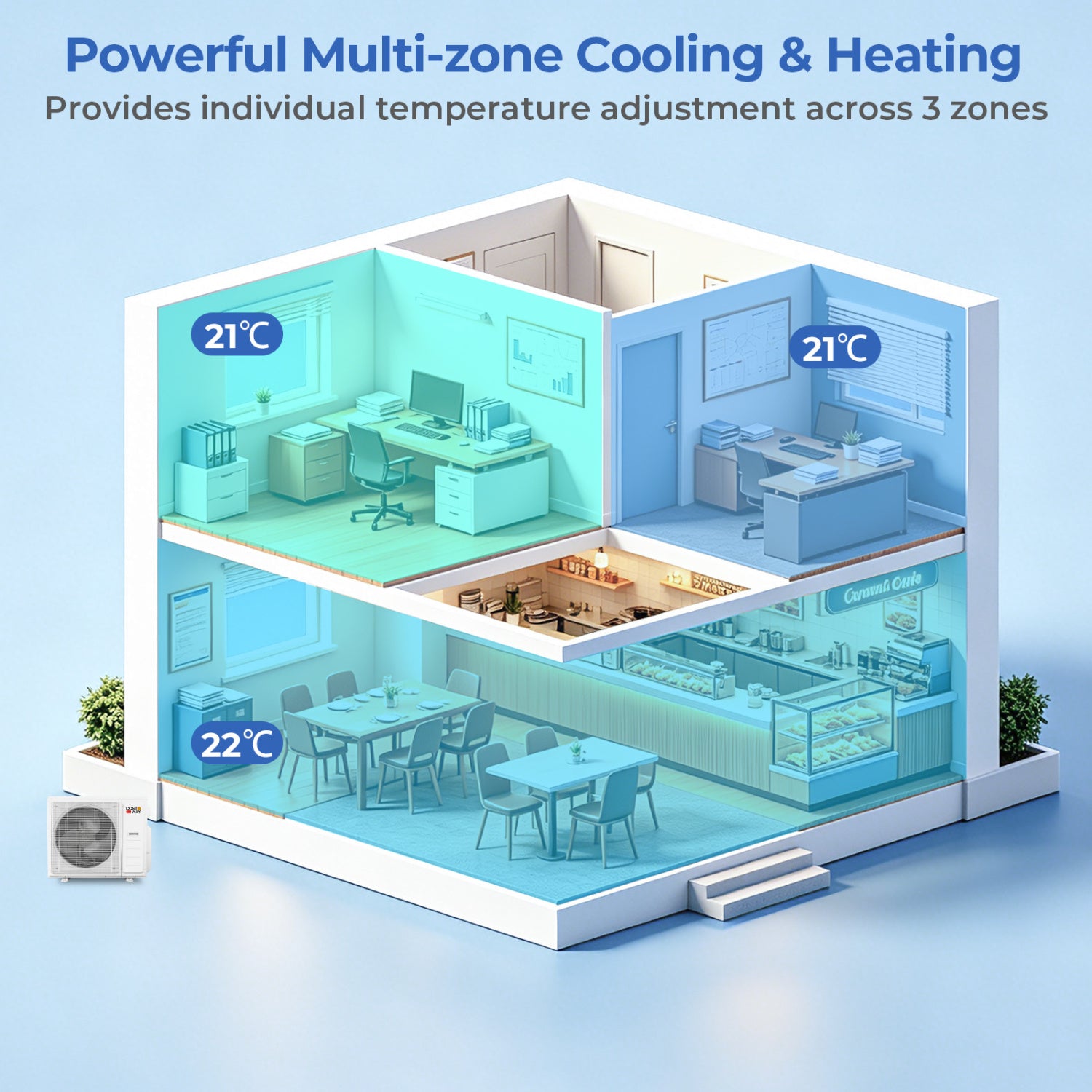

• Powerful multi-zone cooling and heating with individual temperature adjustment across 3 zones.
• Ceiling-mounted design saves wall space and spreads air evenly for optimal coverage.
• Engineered to keep working in harsh conditions, cooling even at 55℃ and heating even at -25℃.
• Built-in chassis electrical heating system prevents freezing in colder weather.

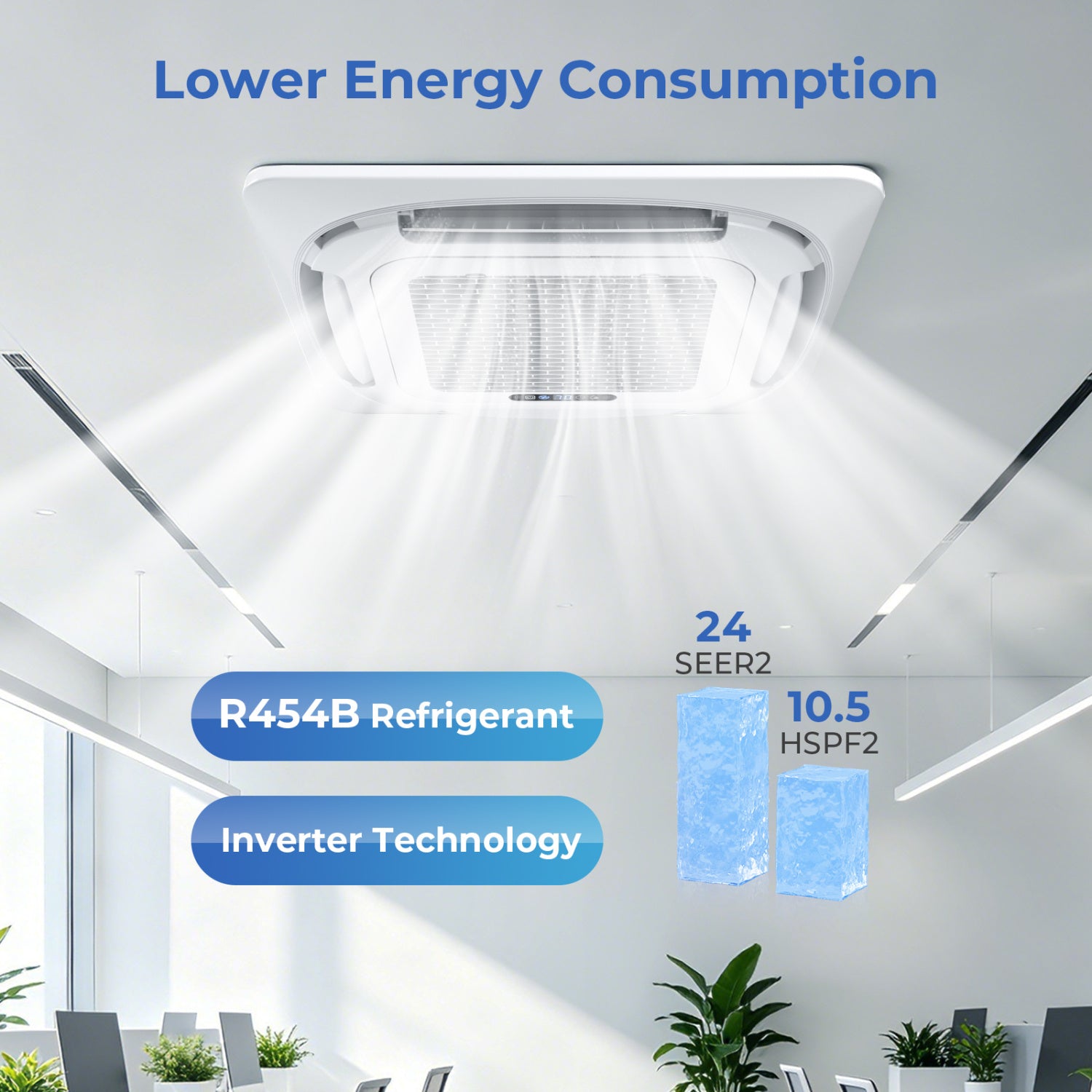

• Lower energy consumption with a 24 SEER2 rating for cost-effective operation.
• Utilizes R454B refrigerant with lower global warming potential for an environmentally friendly approach.
• Incorporates inverter technology to maintain stable temperatures while reducing energy costs.

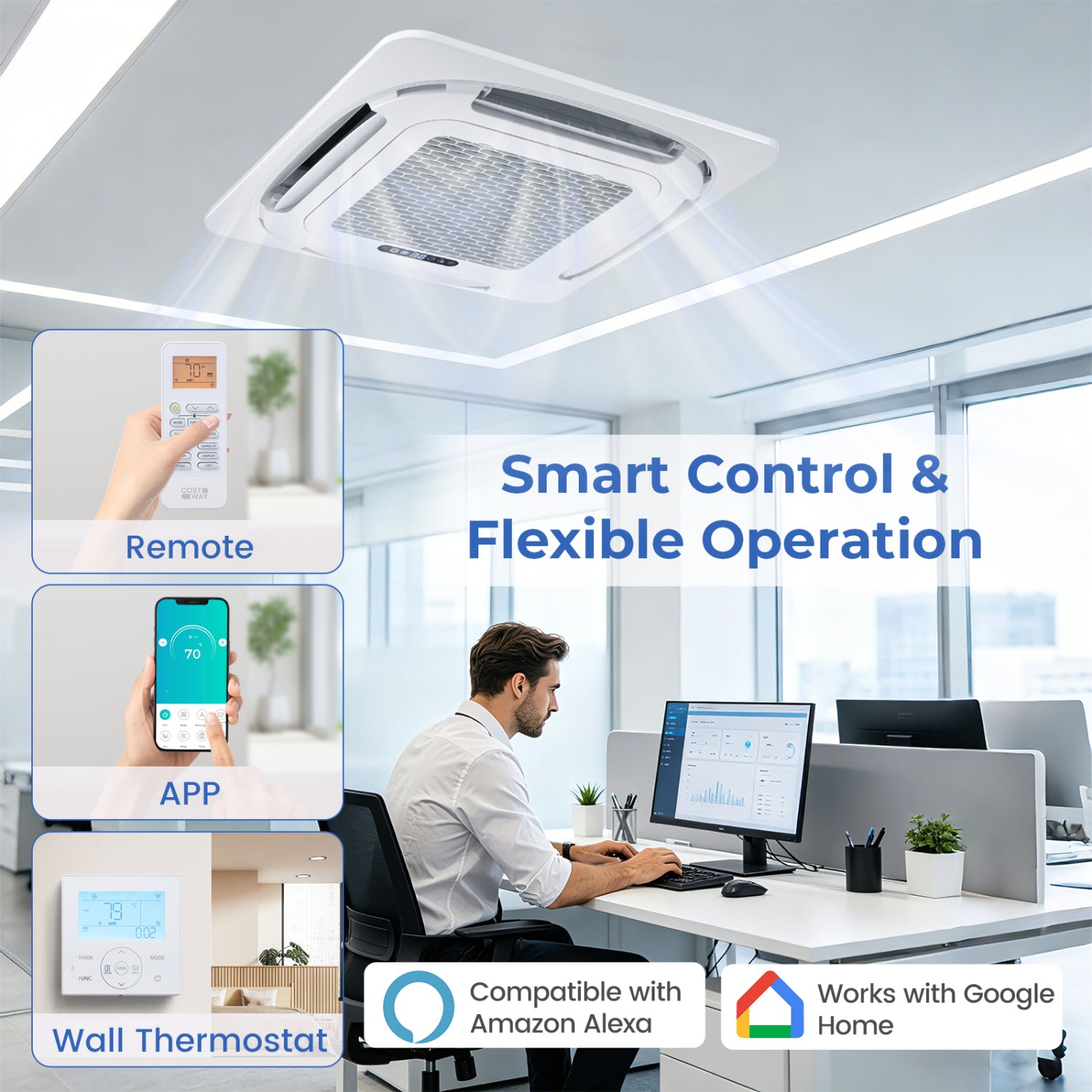

• Smart control with Wi-Fi enabled for app control, voice control, remote, and wall thermostat support.
• Flexible operation with 7 modes: auto, cool, heat, dry, fan, Eco, and sleep.
• Fine-tune airflow with 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Set a 24-hour timer for scheduled temperature changes, adding convenience.
• Quiet operation as low as 32dB for peaceful sleep and focused work environments.
• 8-way 360° airflow reaches more of the room, minimizing hot and cold spots.
• Self-clean function helps keep the interior fresher and supports long-term performance.
• Wide use and exceptional versatility for various settings, including light commercial spaces.

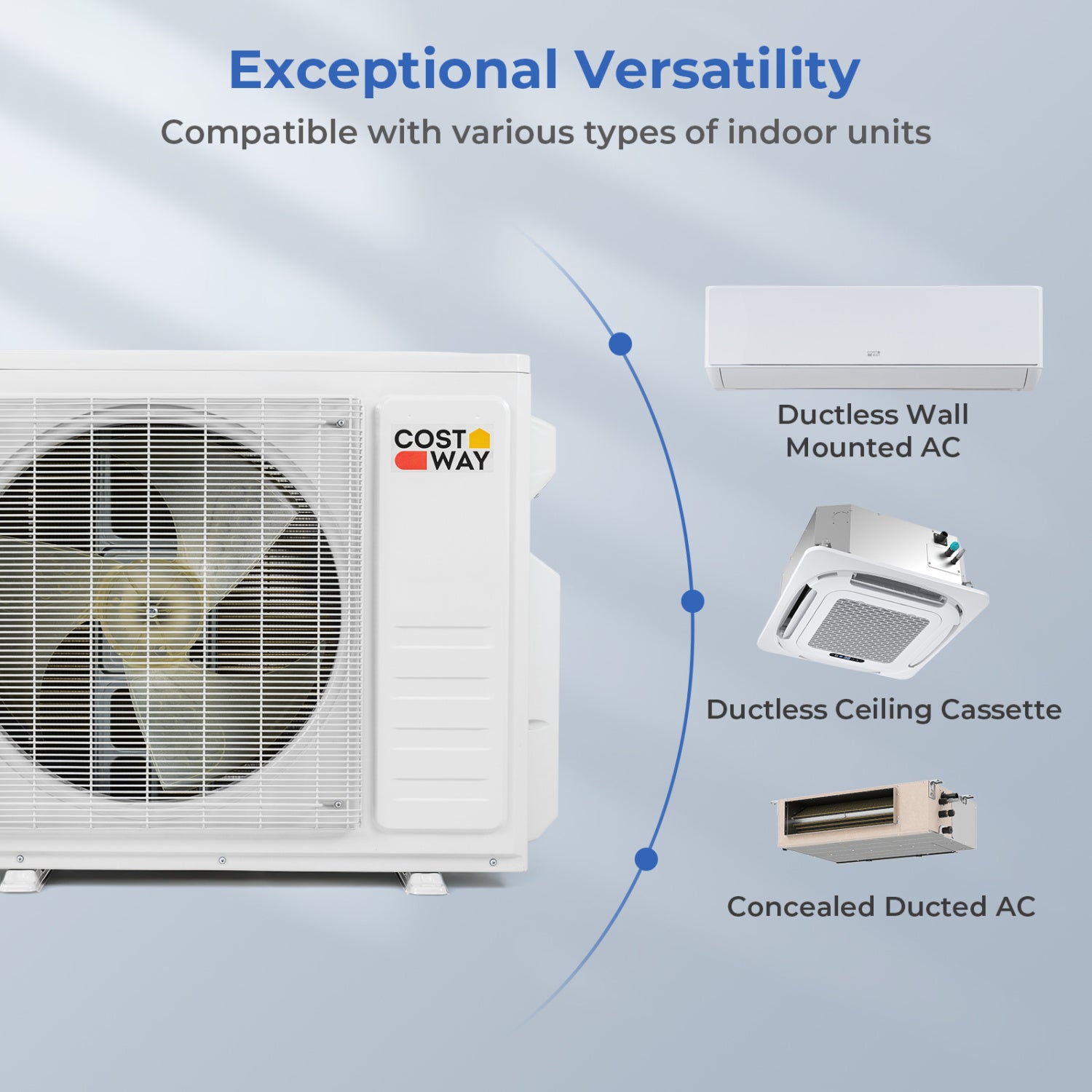

• Outdoor unit is compatible with various types of indoor units: ductless wall mounted, ductless ceiling cassette, and concealed ducted.
• Note: Professional installation is required for safe and effective setup.

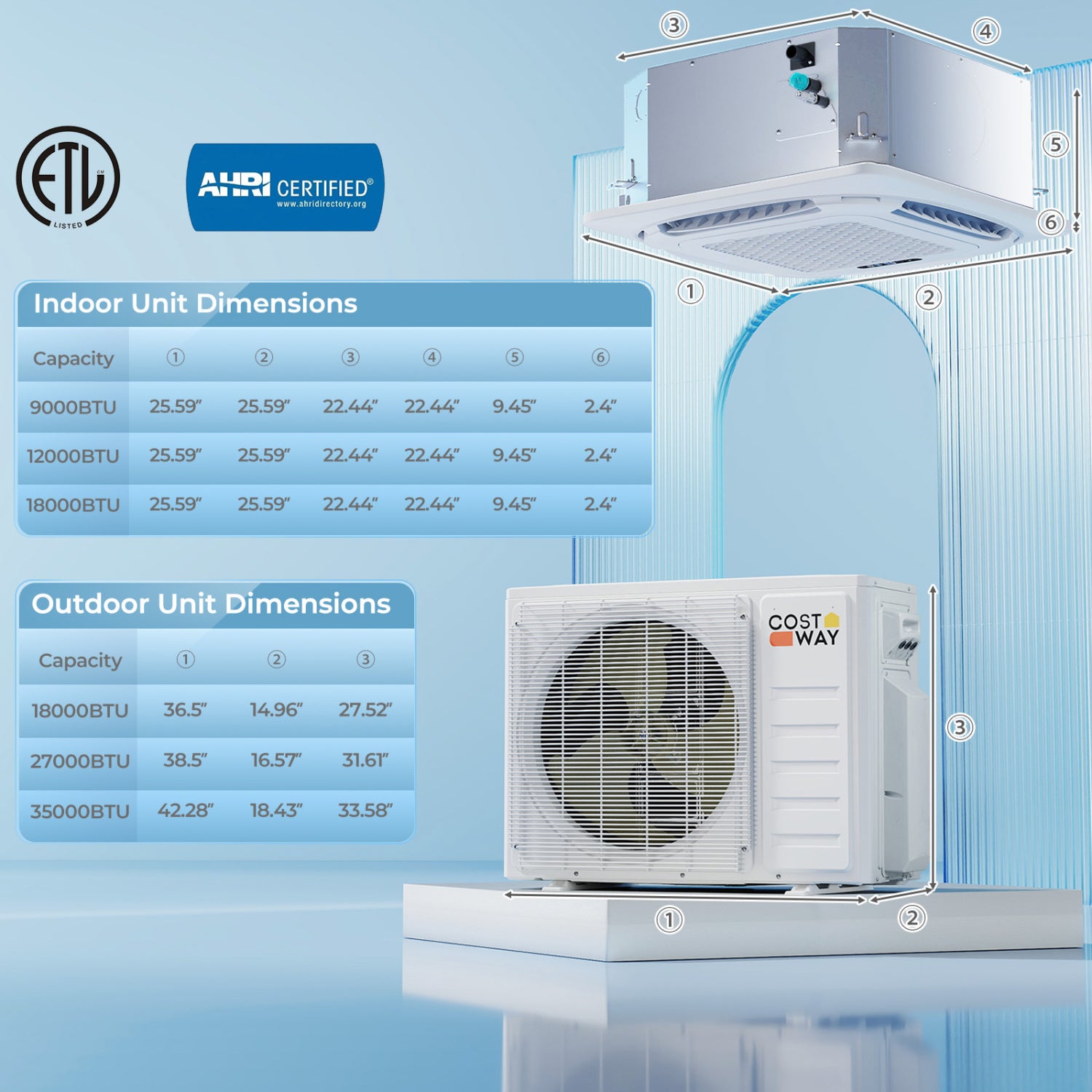

Weight & Dimensions:

• Indoor Unit Dimensions for 9K: 25.59 inches x 25.59 inches x 11.85 inches (65.00 cm x 65.00 cm x 30.10 cm).
• Indoor Unit Dimensions for 12K: 25.59 inches x 25.59 inches x 11.85 inches (65.00 cm x 65.00 cm x 30.10 cm).
• Indoor Unit Dimensions for 18K: 25.59 inches x 25.59 inches x 11.85 inches (65.00 cm x 65.00 cm x 30.10 cm).
• Outdoor Unit Dimensions for 18K: 36.5 inches x 14.96 inches x 27.52 inches (92.71 cm x 38.00 cm x 69.90 cm).
• Outdoor Unit Dimensions for 27K: 38.5 inches x 16.57 inches x 31.61 inches (97.79 cm x 42.09 cm x 80.29 cm).
• Outdoor Unit Dimensions for 35K: 42.28 inches x 18.43 inches x 33.58 inches (107.39 cm x 46.81 cm x 85.29 cm).
• Net Weight of 9K Indoor Unit: 31.9 pounds (14.47 kg).
• Net Weight of 12K Indoor Unit: 31.9 pounds (14.47 kg).
• Net Weight of 18K Indoor Unit: 31.9 pounds (14.47 kg).
• Net Weight of 18K Outdoor Unit: 92.6 pounds (42.00 kg).
• Net Weight of 27K Outdoor Unit: 119 pounds (53.98 kg).
• Net Weight of 35K Outdoor Unit: 145.5 pounds (66.00 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe for 9K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 12K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 18K: 1/2 inch (1.27 cm).

Specifications:

• Color: White for a sleek and modern appearance.
• Material: Cold-rolled Steel Sheet, Copper, and Aluminum for durability and performance.
• Multi Zone Combination: 3 zones for flexible temperature control.
• Voltage: 208-230V for standard electrical compatibility.
• Frequency: 60Hz for reliable operation in applicable regions.
• Temperature Setting Range: 16℃ to 31℃ (61°F to 88°F) for precise comfort adjustments.
• Refrigerant: R454B with lower global warming potential.
• Indoor Unit Noise Level: 32 dB for whisper-quiet operation.
• Max Remote Control Distance: 39.2 feet (11.95 meters) for convenient adjustments.
• Coverage Area for 9K: 450 square feet (41.81 square meters).
• Coverage Area for 12K: 750 square feet (69.68 square meters).
• Coverage Area for 18K: 1250 square feet (116.13 square meters).
• Dehumidification Capacity for 9K: 55.8 pints per day (26.42 liters per day).
• Dehumidification Capacity for 12K: 81.2 pints per day (38.44 liters per day).
• Dehumidification Capacity for 18K: 111.6 pints per day (52.83 liters per day).
• Maximum Air Flow Volume for 9K: 194 CFM (329 m³/h).
• Maximum Air Flow Volume for 12K: 212 CFM (360 m³/h).
• Maximum Air Flow Volume for 18K: 260 CFM (441 m³/h).
• SEER2 Rating for 18K: 24 for high energy efficiency.
• SEER2 Rating for 27K: 24 for consistent performance.
• SEER2 Rating for 35K: 22.5 for reliable efficiency.
• HSPF2 Rating for 18K: 10.5 for effective heating.
• HSPF2 Rating for 27K: 10.5 for balanced operation.
• HSPF2 Rating for 35K: 10 for versatile use.

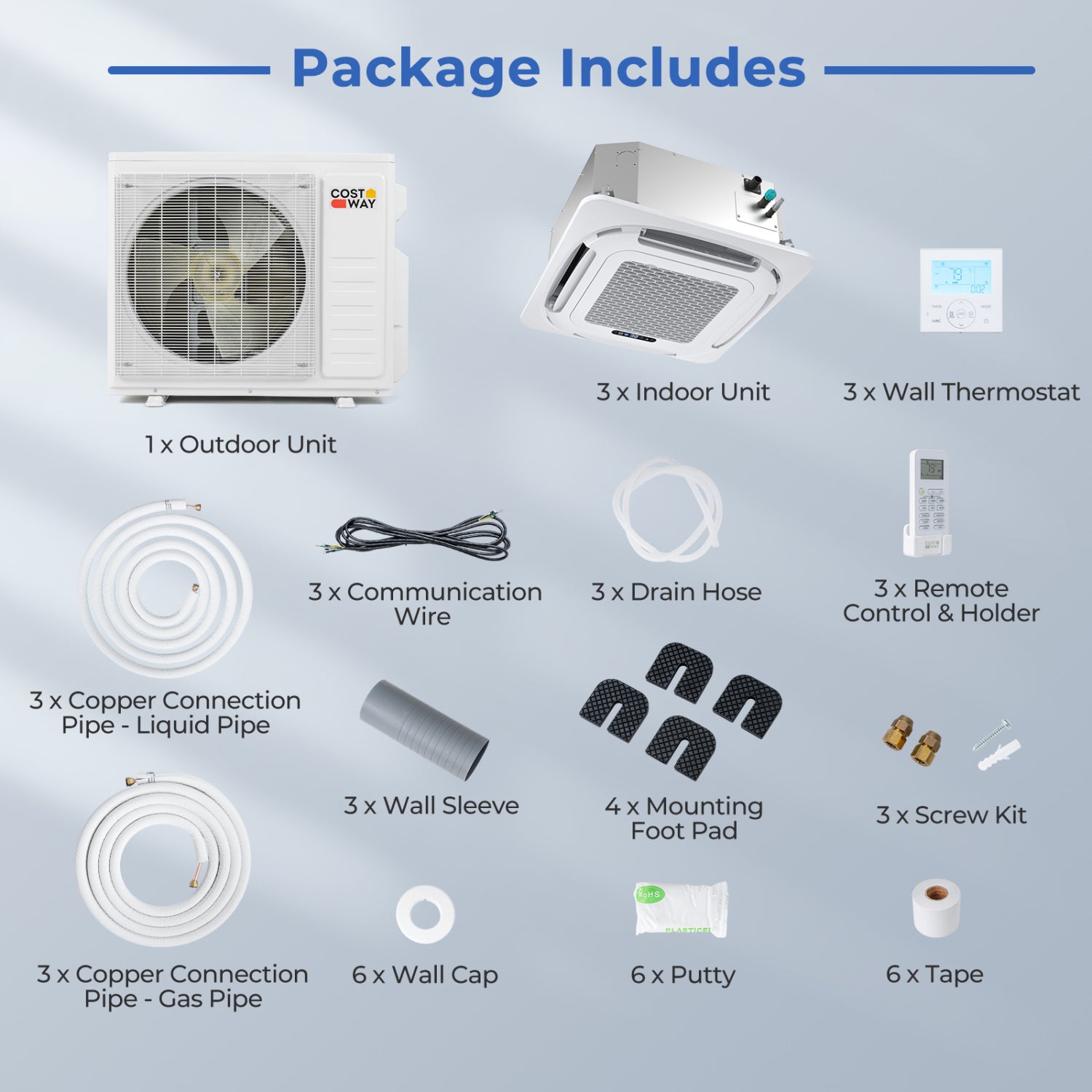

Package Includes:

• 1 x Outdoor Unit for central operation.
• 3 x Indoor Unit for multi-zone coverage.
• 3 x Copper Connection Pipe - Gas Pipe for secure connections.
• 3 x Copper Connection Pipe - Liquid Pipe for efficient refrigerant flow.
• 3 x Communication Wire for system connectivity.
• 3 x Drain Hose for proper condensation management.
• 3 x Remote Control & Holder for easy adjustments.
• 3 x Wall Thermostat for additional control options.
• 3 x Wall Sleeve for installation support.
• 6 x Wall Cap for finishing touches.
• 6 x Tape for sealing purposes.
• 6 x Putty for insulation and sealing.
• 3 x Screw Kit for secure mounting.
• 4 x Mounting Foot Pad for stable outdoor unit placement.
• 7 x User Guide for setup and operation instructions.
