28000 BTU 2 Zone 23 SEER2 Mini Split AC, Heat Pump, 9K + 12K, White

Experience year-round comfort with this 2-zone 28000 BTU mini split air conditioner and heater, offering efficient whole-home climate control through advanced inverter technology and smart connectivity for personalized temperature management.

Overview:

• Provides powerful cooling and heating for two zones, ideal for larger homes with room-by-room temperature customization.
• Features gentle 4D auto swing airflow and a golf ball dimple design to prevent direct blowing and ensure even air distribution.
• Equipped with smart controls via phone, remote, or voice commands, plus multiple operating modes and fan speeds for versatile use.
• Designed for low noise operation and easy maintenance with self-clean and washable filters.
• Note: Professional licensed HVAC technician installation is recommended for optimal performance and safety.

Highlights:

• Powerful whole-home cooling and heating for 2 zones with 28000 BTU capacity.
• High energy efficiency with 20 SEER2 rating and inverter technology for stable temperatures and reduced energy waste.
• Outdoor unit with chassis heating ensures reliable operation in extreme conditions, cooling up to 55°C and heating down to -25°C.
• Smart control options including phone app, remote, and voice commands with Alexa and Google Assistant compatibility.

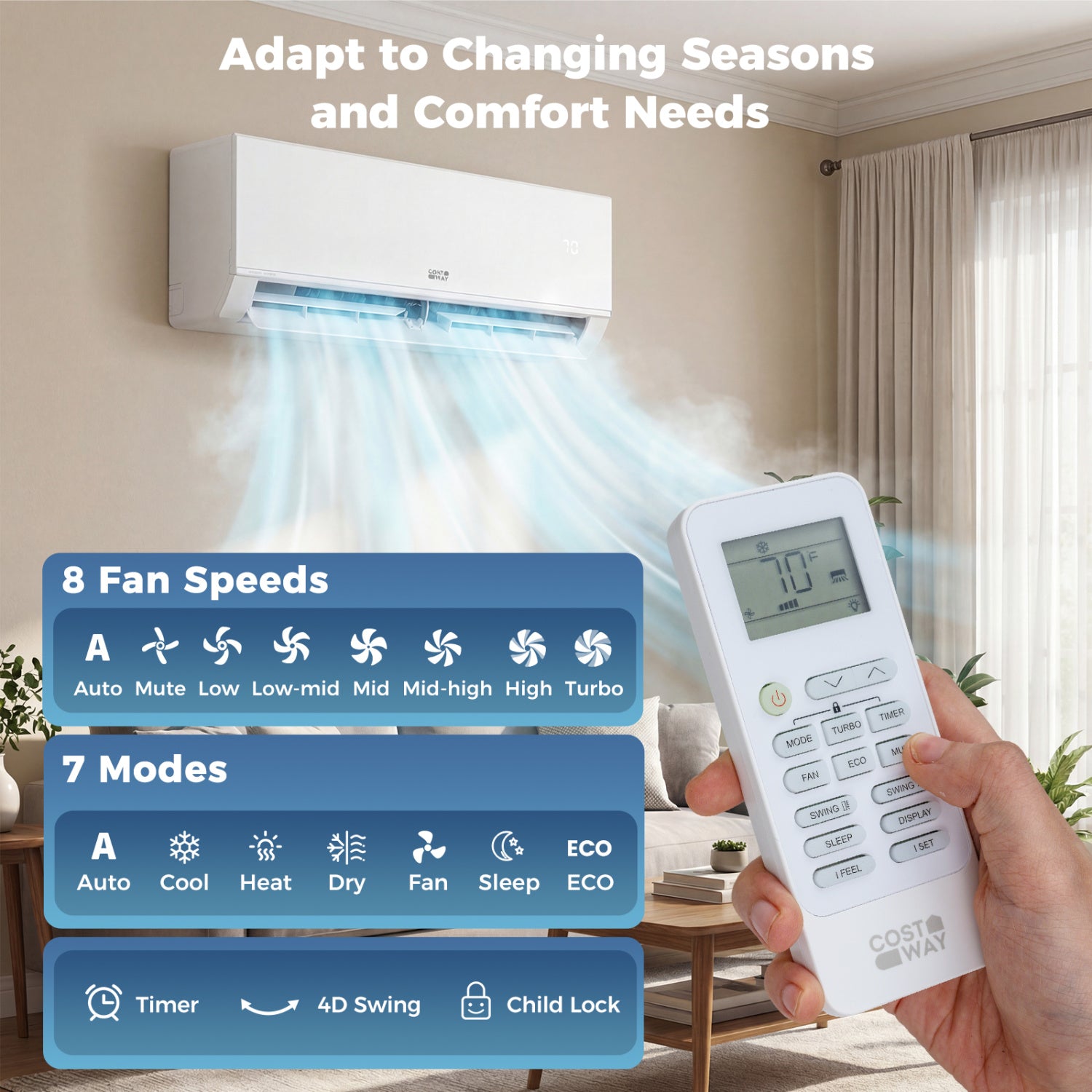

• 7 operating modes (auto, cool, heat, dry, fan, ECO, sleep) and 8 fan speeds for customizable comfort.
• 24-hour timer for convenient scheduling and energy savings.
• Low noise operation as quiet as 28 dB for a peaceful environment.
• Self-clean function and removable, washable filters for easy maintenance and fresher airflow.
• Child lock feature to prevent accidental setting changes.
• 4D auto swing for more even air distribution throughout the room.

Features:

• 2-zone mini split system with 28000 BTU capacity for whole-home cooling and heating.
• Dual zone design allows tailored temperatures in different areas of larger homes.
• 4D auto swing spreads air evenly for consistent comfort.
• Golf ball dimples design provides a gentle breeze and prevents direct blowing.
• 20 SEER2 rating ensures high energy efficiency and cost savings.
• Advanced inverter technology reduces energy waste and maintains stable set temperatures.

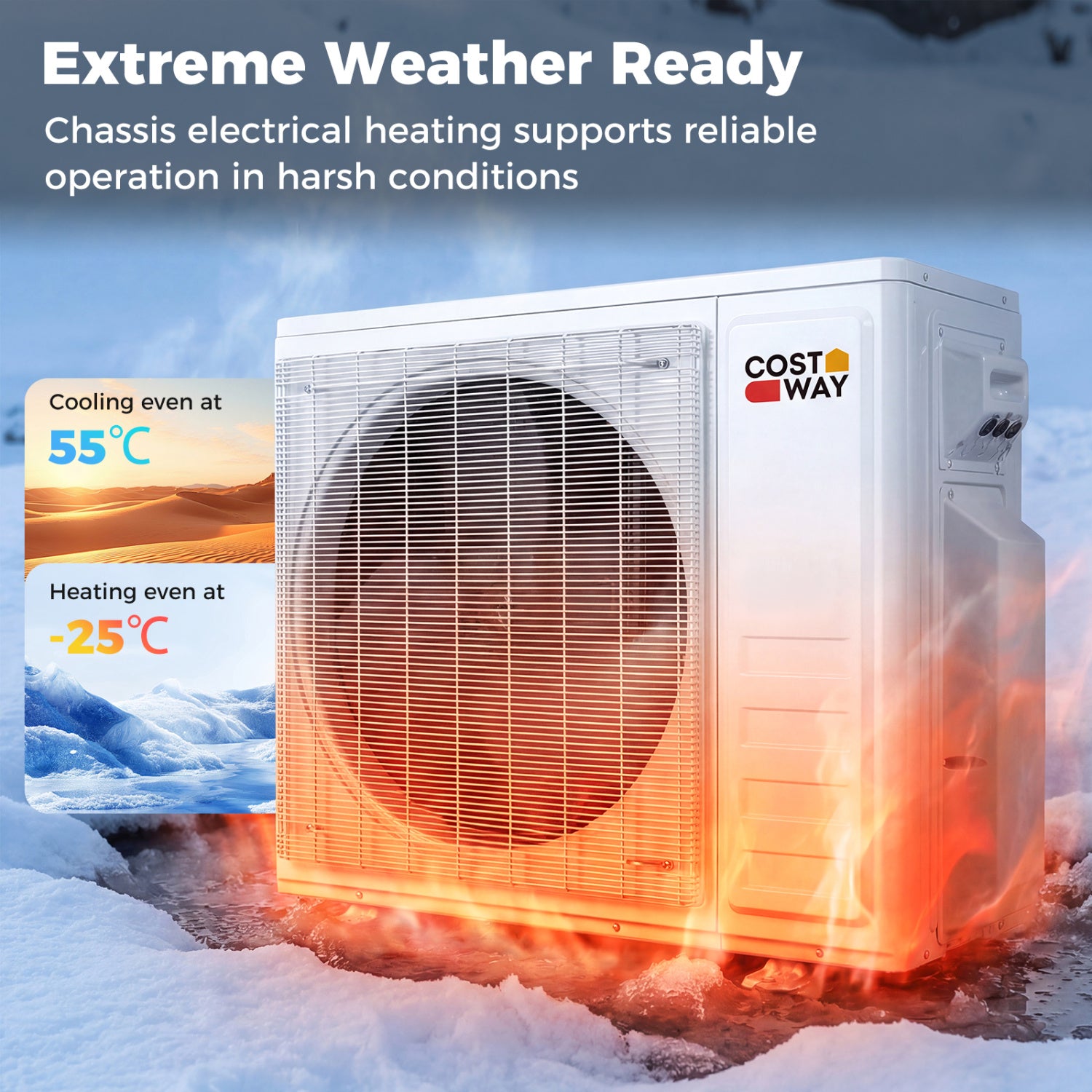

• Outdoor unit equipped with chassis electrical heating for reliable operation in harsh weather.
• Operates in extreme conditions, cooling at up to 55°C and heating at down to -25°C.
• Wi-Fi enabled for smart control via phone app, remote, or voice commands with Alexa and Google Assistant.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for easy daily use and smart energy saving.
• Child lock prevents accidental setting changes.
• Low noise operation with indoor unit noise level as low as 28 dB.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Note: Professional licensed HVAC technician installation is recommended.

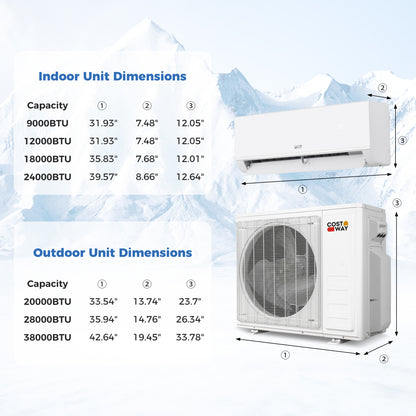

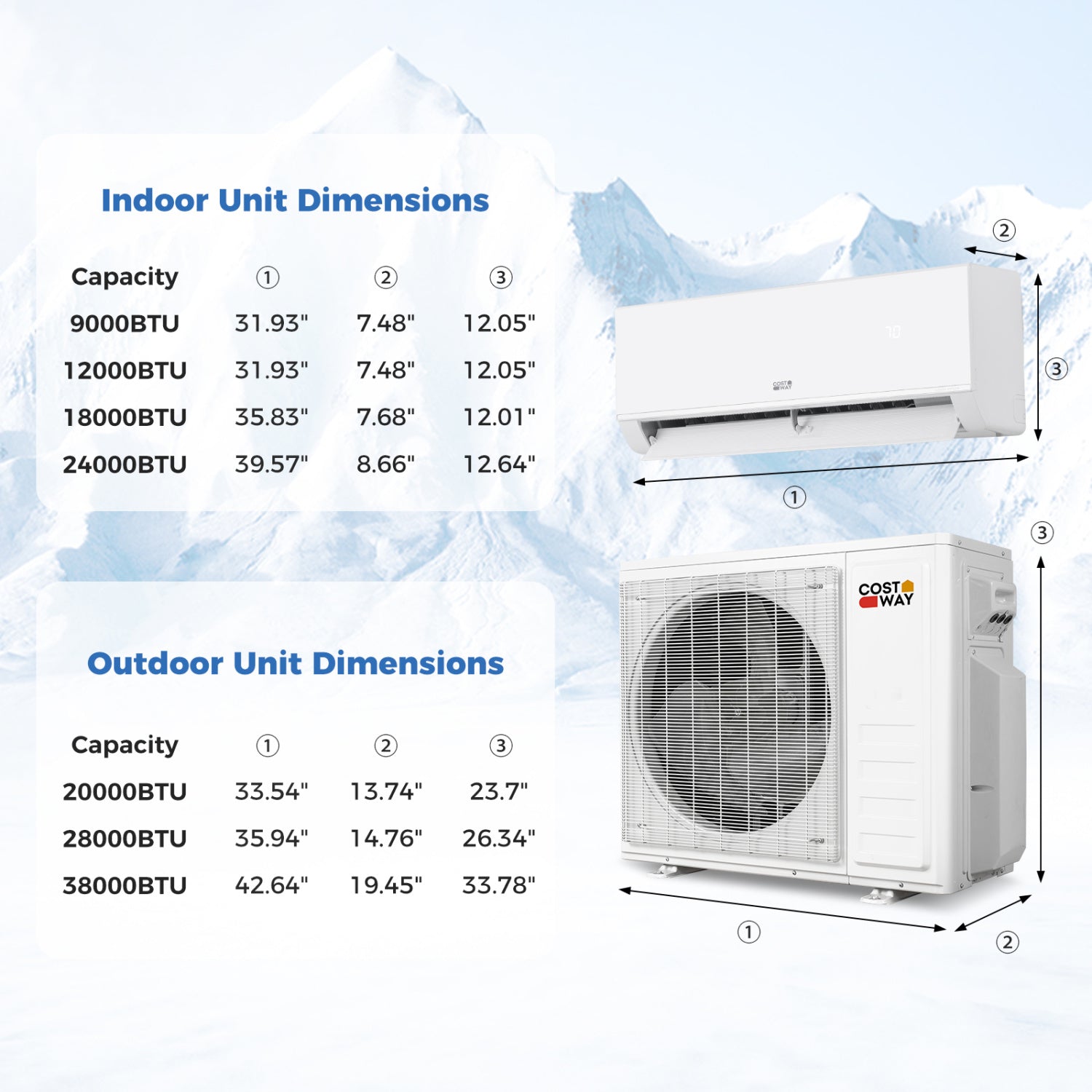

Weight & Dimensions:

• Indoor Unit Dimensions (9K and 12K models): 31.93 inches long x 7.48 inches wide x 12.05 inches high (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (18K model): 35.83 inches long x 7.68 inches wide x 12.01 inches high (91.0 cm x 19.5 cm x 30.5 cm).
• Indoor Unit Dimensions (24K model): 39.57 inches long x 8.66 inches wide x 12.64 inches high (100.5 cm x 22.0 cm x 32.1 cm).
• Outdoor Unit Dimensions (20K model): 33.54 inches long x 13.74 inches wide x 23.7 inches high (85.2 cm x 34.9 cm x 60.2 cm).
• Outdoor Unit Dimensions (28K model): 35.94 inches long x 14.76 inches wide x 26.34 inches high (91.3 cm x 37.5 cm x 66.9 cm).
• Outdoor Unit Dimensions (35K model): 42.64 inches long x 19.45 inches wide x 33.78 inches high (108.3 cm x 49.4 cm x 85.8 cm).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K, 12K, and 18K models): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K model): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, and aluminum.
• Multi-zone combination: 2 zones.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature setting range: 16°C to 31°C (61°F to 88°F).

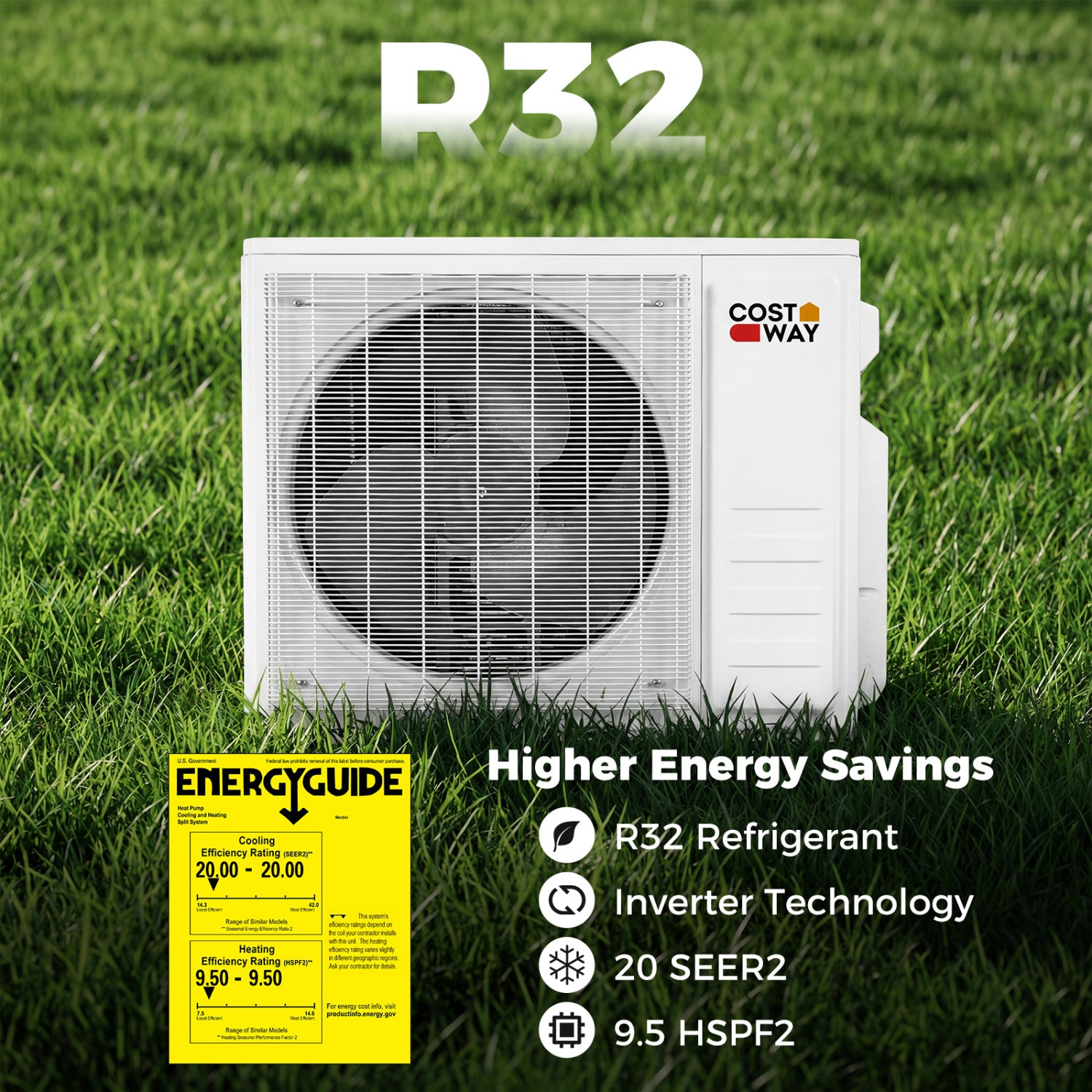

• Refrigerant: R32.
• Indoor unit noise level: 28 dB.
• Maximum remote control distance: 39.5 feet (12.0 meters).
• Coverage area for 9K model: 450 square feet (41.8 square meters).
• Coverage area for 12K model: 750 square feet (69.7 square meters).
• Coverage area for 18K model: 1250 square feet (116.1 square meters).
• Coverage area for 24K model: 1500 square feet (139.4 square meters).
• Dehumidification capacity for 9K model: 66 pints per day (31.2 liters per day).
• Dehumidification capacity for 12K model: 81.2 pints per day (38.4 liters per day).
• Dehumidification capacity for 18K model: 111.6 pints per day (52.8 liters per day).
• Dehumidification capacity for 24K model: 131.9 pints per day (62.4 liters per day).
• Maximum air flow volume for 9K model: 335 CFM (554 m³/h).
• Maximum air flow volume for 12K model: 342 CFM (554 m³/h).
• Maximum air flow volume for 18K model: 617 CFM (554 m³/h).
• Maximum air flow volume for 24K model: 847 CFM (554 m³/h).
• SEER2 rating for 20K model: 23.
• SEER2 rating for 28K model: 20.
• SEER2 rating for 38K model: 20.
• HSPF2 rating for 20K model: 9.5.
• HSPF2 rating for 28K model: 9.5.
• HSPF2 rating for 38K model: 9.5.

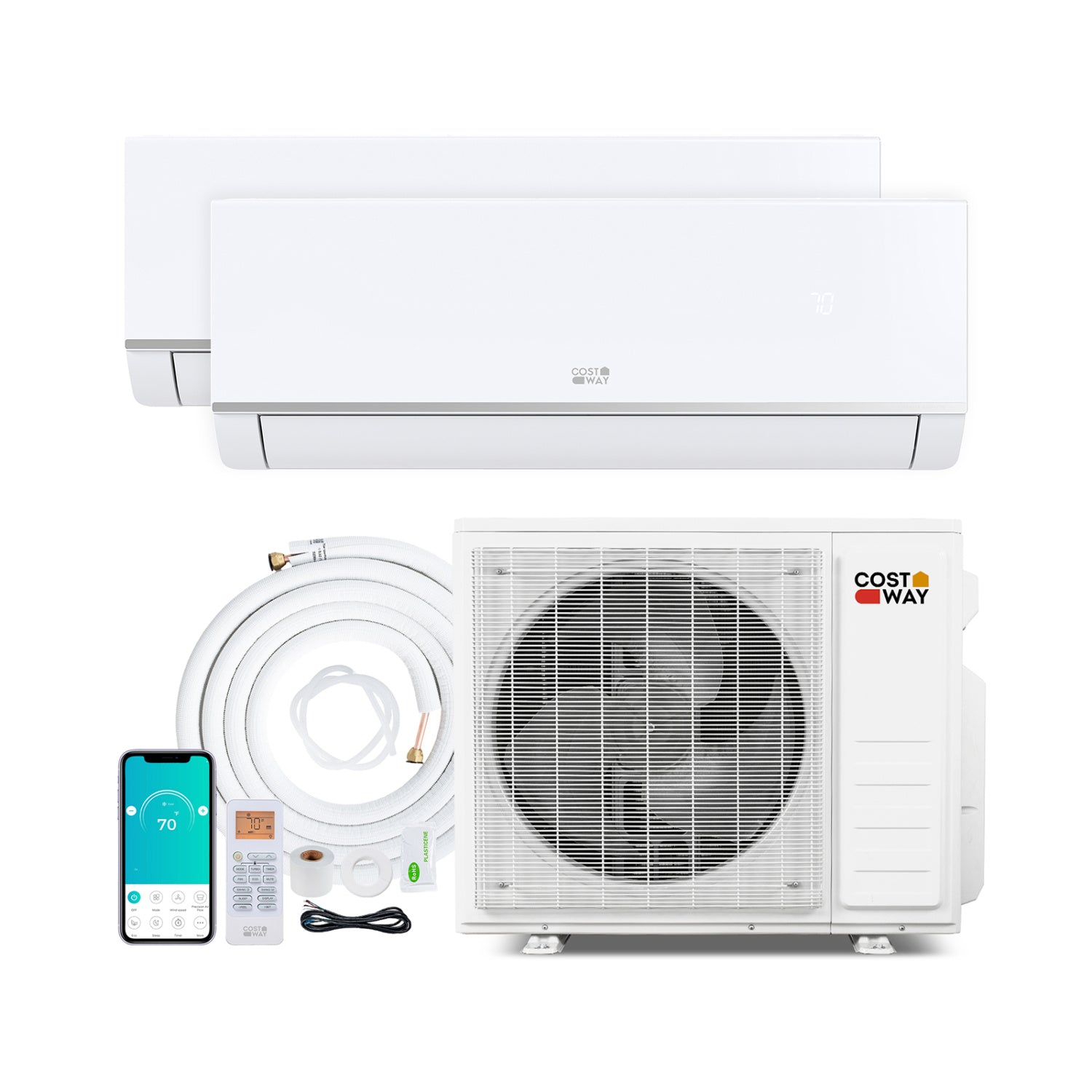

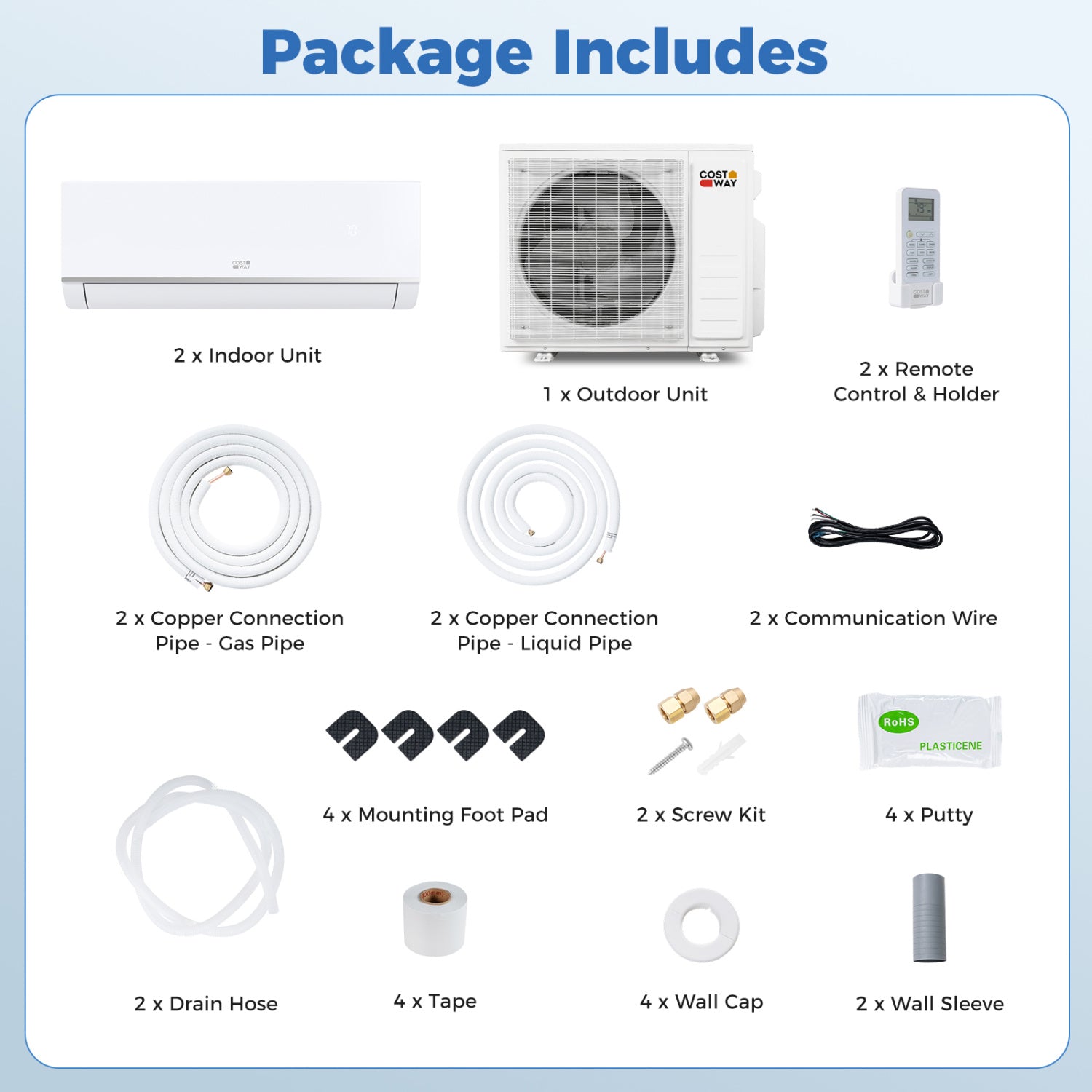

Package Includes:

• 1 x Outdoor unit.
• 2 x Indoor units.
• 2 x Copper connection pipes for gas.
• 2 x Copper connection pipes for liquid.
• 2 x Communication wires.
• 2 x Drain hoses.
• 2 x Remote controls with holders.
• 2 x Wall sleeves.
• 4 x Wall caps.
• 4 x Tapes.
• 4 x Putties.
• 2 x Screw kits.
• 4 x Mounting foot pads.
• 4 x User guides.

Package Quantity: 4 boxes.
