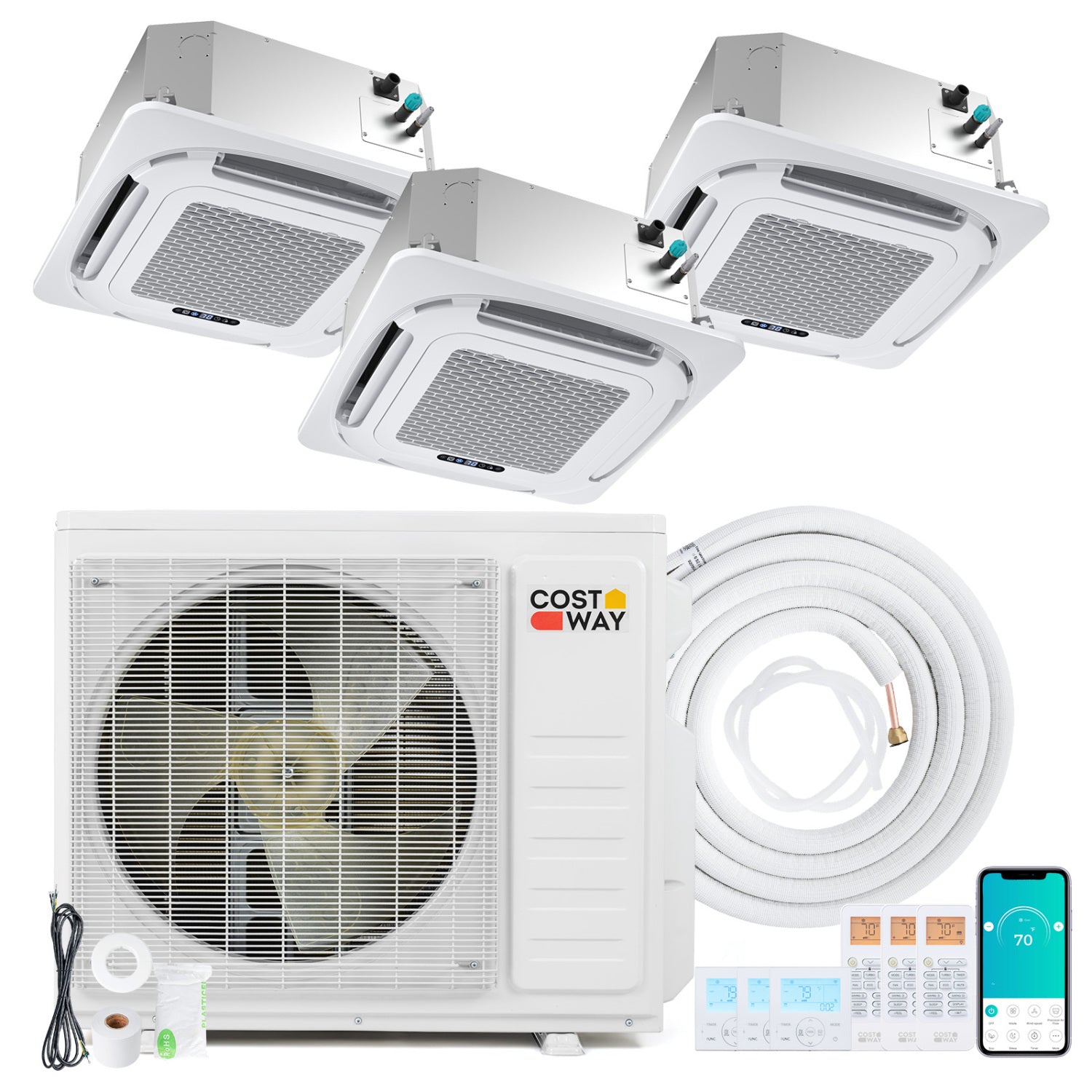

3 Zone Ceiling Cassette Mini Split AC, 9K + 9K + 12K, 27000 BTU, 24 SEER2, White

Enjoy flexible comfort with this 3 Zone 27000 BTU ceiling cassette mini split ac system.

Experience year-round comfort with this 3-zone ceiling cassette mini split system, featuring 27000 BTU capacity, inverter technology for energy efficiency, and smart controls via app, voice, or remote. Ideal for homes and offices, it offers quiet operation, 360° airflow, and versatile installation options.

Overview:

• Provides independent temperature control in 3 zones for personalized comfort.
• Designed for versatile use in homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.
• Features a ceiling-mounted design that saves wall space and creates a clean, built-in look.
• Note: Professional installation is required for safe and proper setup.

Highlights:

• Enjoy independent temperature control in 3 areas.
• Inverter technology provides outstanding energy efficiency.
• R454B refrigerant supports a more future-friendly approach.
• Stay comfortable year-round with 7 modes and 8 fan speeds.
• Control your comfort via the app, voice, remote or wall thermostat.
• Chassis electrical heating prevents freezing in colder weather.
• Versatile application for homes, offices or commercial spaces.
• Ceiling cassette creates a clean and built-in look.
• 360° airflow spreads air evenly across the room.
• 24-hour timer for scheduled temperature changes.
• Self-clean function supports fresher operation.
• Whisper quiet operation as low as 32 dB.
• Child lock adds peace of mind for families.

Features:

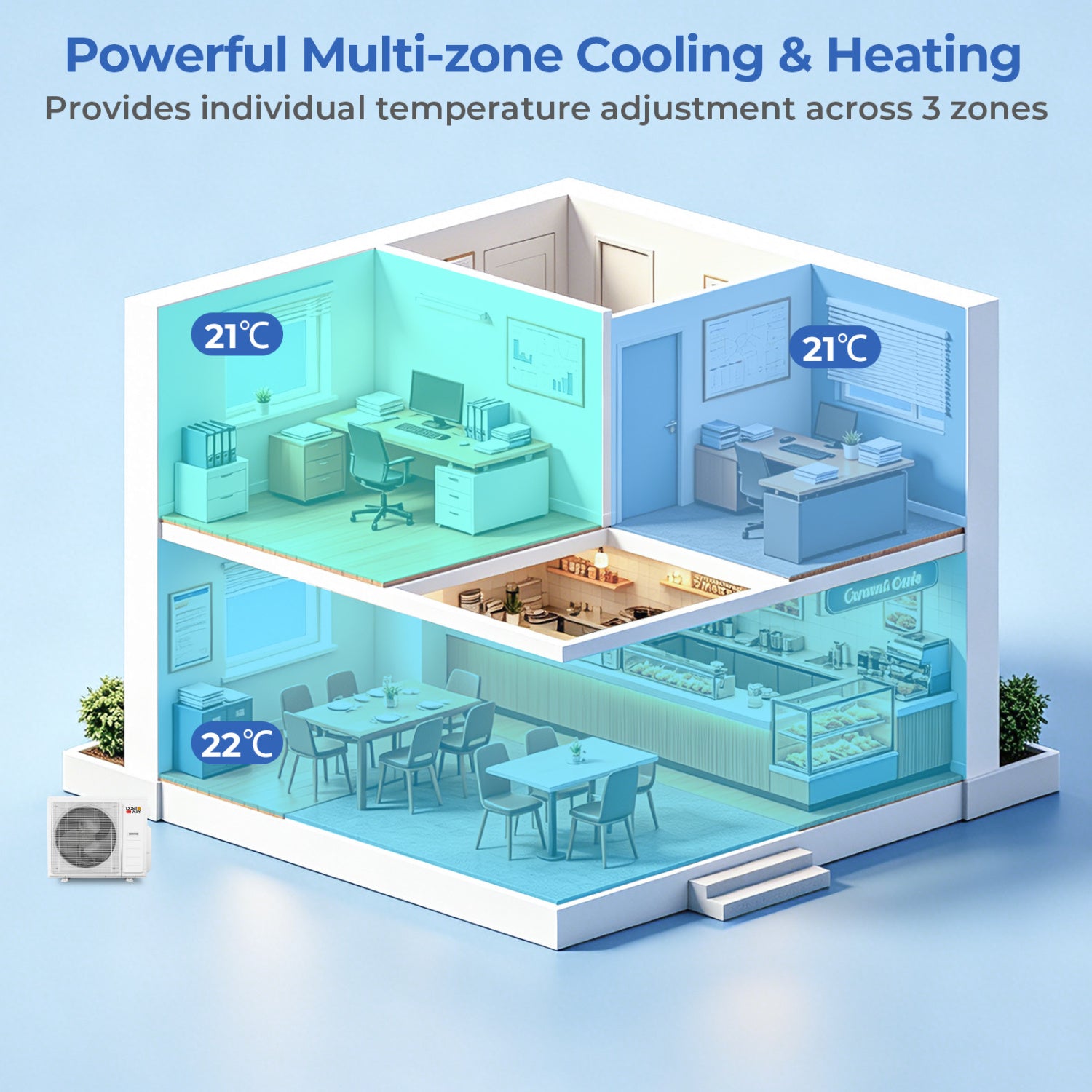

• Powerful multi-zone cooling and heating with 27000 BTU capacity.
• Individual temperature adjustment across 3 zones.
• Ceiling-mounted design saves wall space and spreads air evenly.
• Engineered to keep working in harsh conditions, cooling even at 55℃ and heating even at -25℃.
• Built-in chassis electrical heating system.
• Lower energy consumption with a 24 SEER2 rating.
• Utilizes R454B refrigerant with a lower global warming potential.
• Incorporates inverter technology to maintain stable temperatures while reducing energy costs.
• Smart control with Wi-Fi enabled for app control, plus voice control, remote, and wall thermostat support.
• Adjust comfort from anywhere with multiple control options.
• Choose from 7 modes: auto, cool, heat, dry, fan, Eco, and sleep.
• Fine-tune airflow with 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Set a 24-hour timer for schedules.
• Quiet operation as low as 32dB for peaceful sleep and focused work.
• 8-way 360° airflow reaches more of the room for fewer hot and cold spots.
• Self-clean function helps keep the interior fresher and supports long-term performance.
• Wide use and exceptional versatility for various spaces.

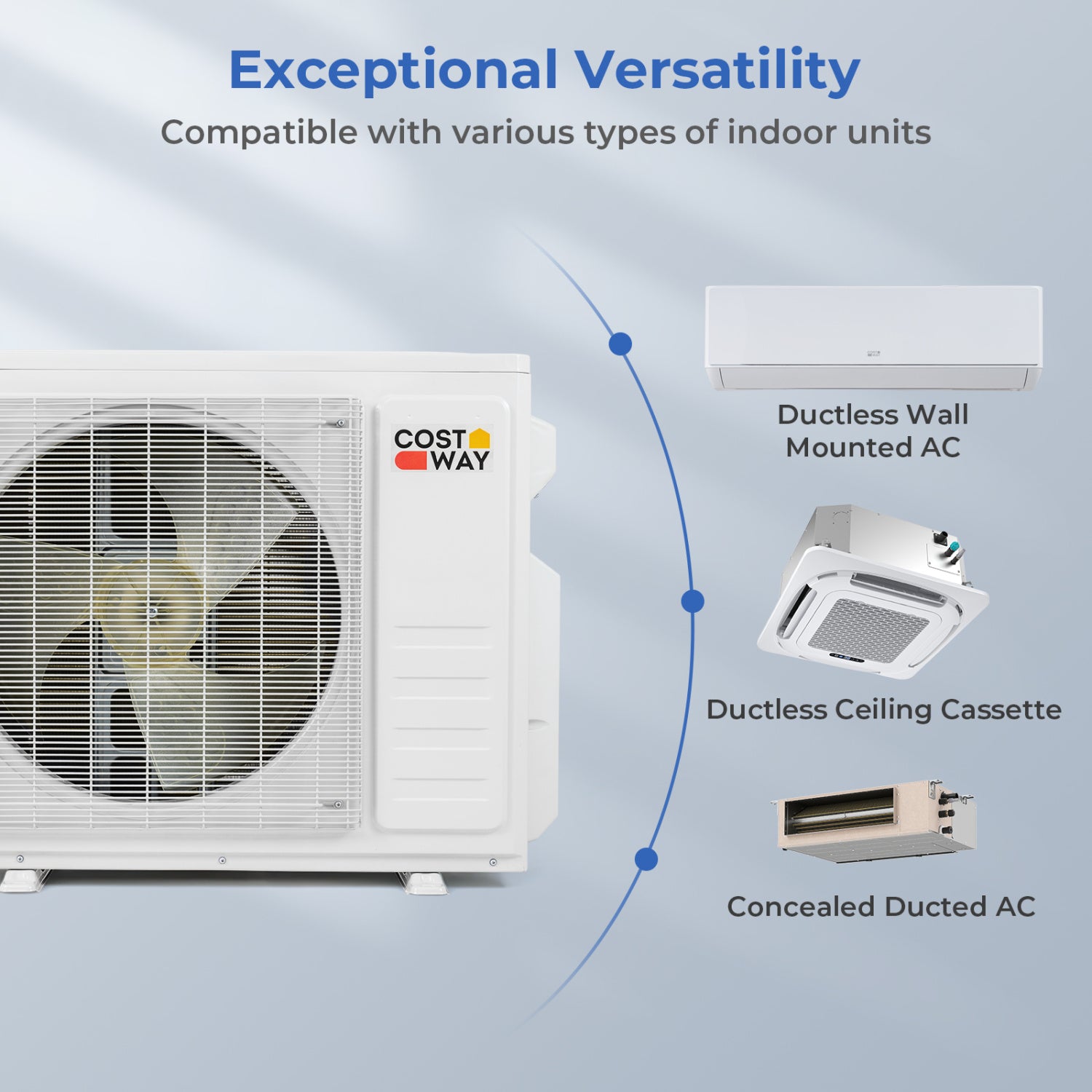

• Outdoor unit is compatible with various types of indoor units, including ductless wall mounted ac, ductless ceiling cassette, and concealed ducted ac.
• Note: Professional installation is required.

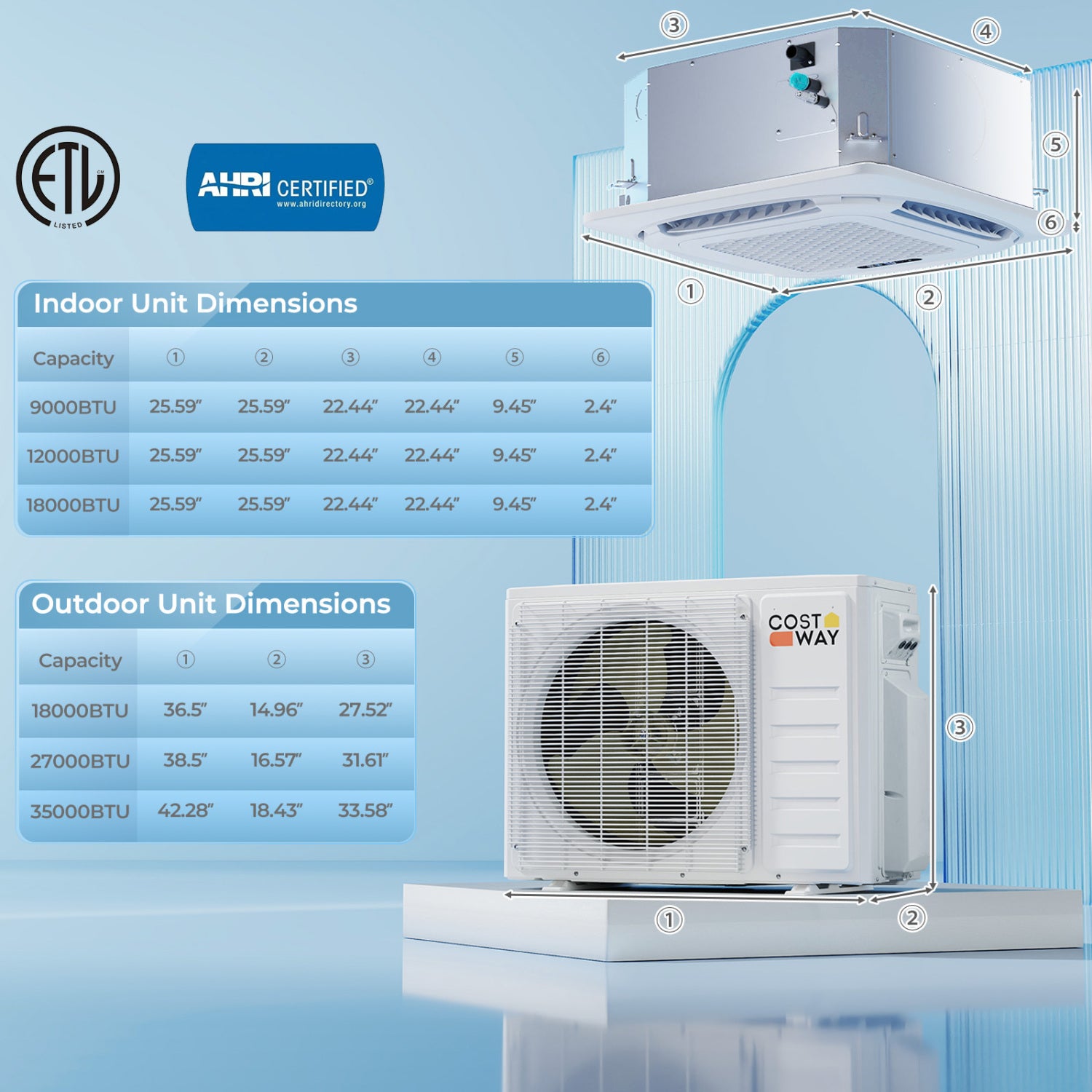

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 25.59 inches x 25.59 inches x 11.85 inches (65.0 cm x 65.0 cm x 30.1 cm).
• Indoor Unit Dimensions (12K): 25.59 inches x 25.59 inches x 11.85 inches (65.0 cm x 65.0 cm x 30.1 cm).
• Indoor Unit Dimensions (18K): 25.59 inches x 25.59 inches x 11.85 inches (65.0 cm x 65.0 cm x 30.1 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches x 14.96 inches x 27.52 inches (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches x 16.57 inches x 31.61 inches (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches x 18.43 inches x 33.58 inches (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 31.9 pounds (14.5 kg).
• Net Weight of Indoor Unit (12K): 31.9 pounds (14.5 kg).
• Net Weight of Indoor Unit (18K): 31.9 pounds (14.5 kg).
• Net Weight of Outdoor Unit (18K): 92.6 pounds (42.0 kg).
• Net Weight of Outdoor Unit (27K): 119 pounds (54.0 kg).
• Net Weight of Outdoor Unit (35K): 145.5 pounds (66.0 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 3.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 32 dB.
• Max Remote Control Distance: 39.2 feet (11.9 meters).
• Coverage Area (9K): 450 Sq.Ft (41.8 m²).
• Coverage Area (12K): 750 Sq.Ft (69.7 m²).
• Coverage Area (18K): 1250 Sq.Ft (116.1 m²).
• Dehumidification Capacity (9K): 55.8 Pints/Day (26.4 liters/day).
• Dehumidification Capacity (12K): 81.2 Pints/Day (38.4 liters/day).
• Dehumidification Capacity (18K): 111.6 Pints/Day (52.8 liters/day).
• Maximum Air Flow Volume (9K): 194 CFM/329 m³/h.
• Maximum Air Flow Volume (12K): 212 CFM/360 m³/h.
• Maximum Air Flow Volume (18K): 260 CFM/441 m³/h.
• SEER2 Rating (18K): 24.
• SEER2 Rating (27K): 24.
• SEER2 Rating (35K): 22.5.
• HSPF2 Rating (18K): 10.5.
• HSPF2 Rating (27K): 10.5.
• HSPF2 Rating (35K): 10.

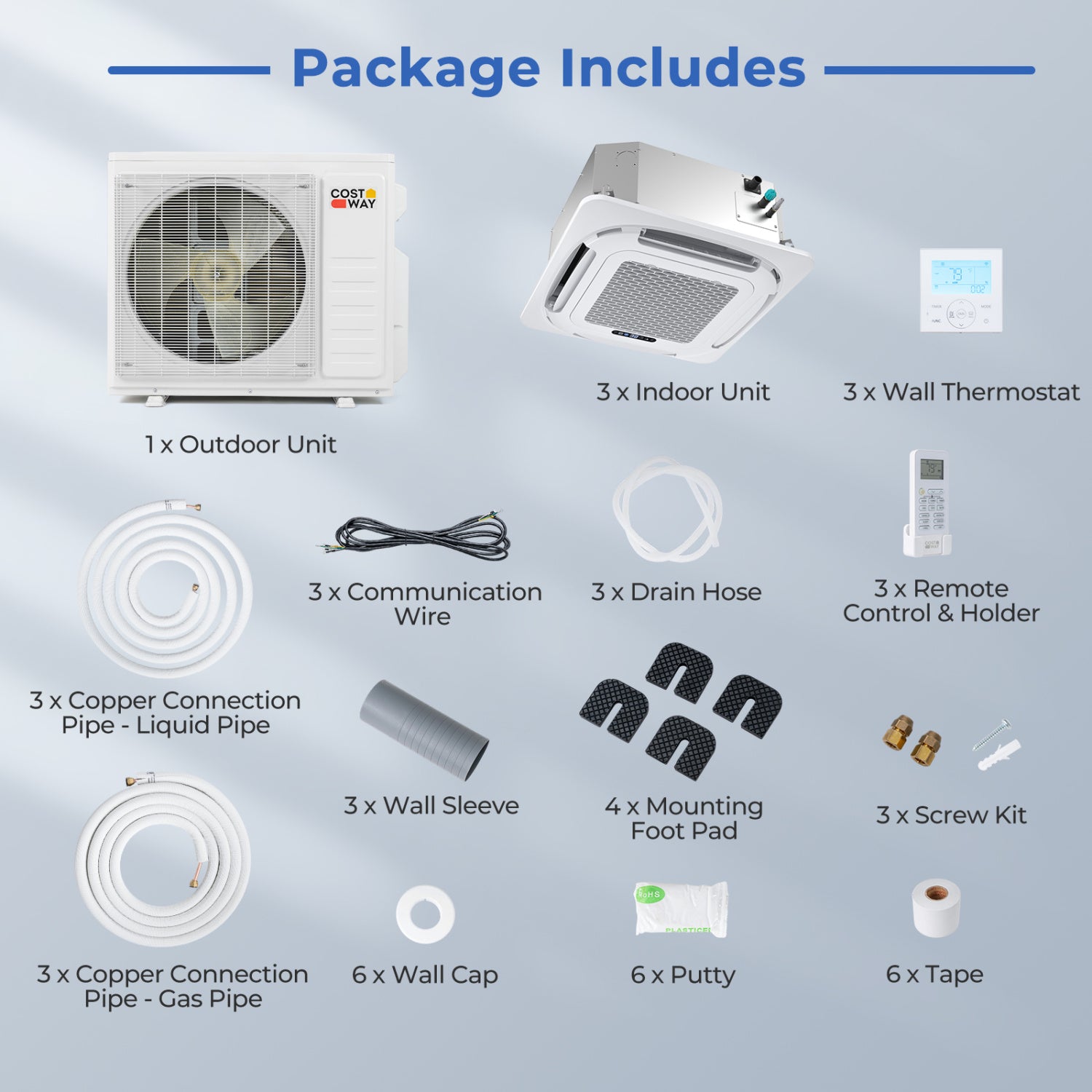

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control & Holder.
• 3 x Wall Thermostat.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 7 x User Guide.
