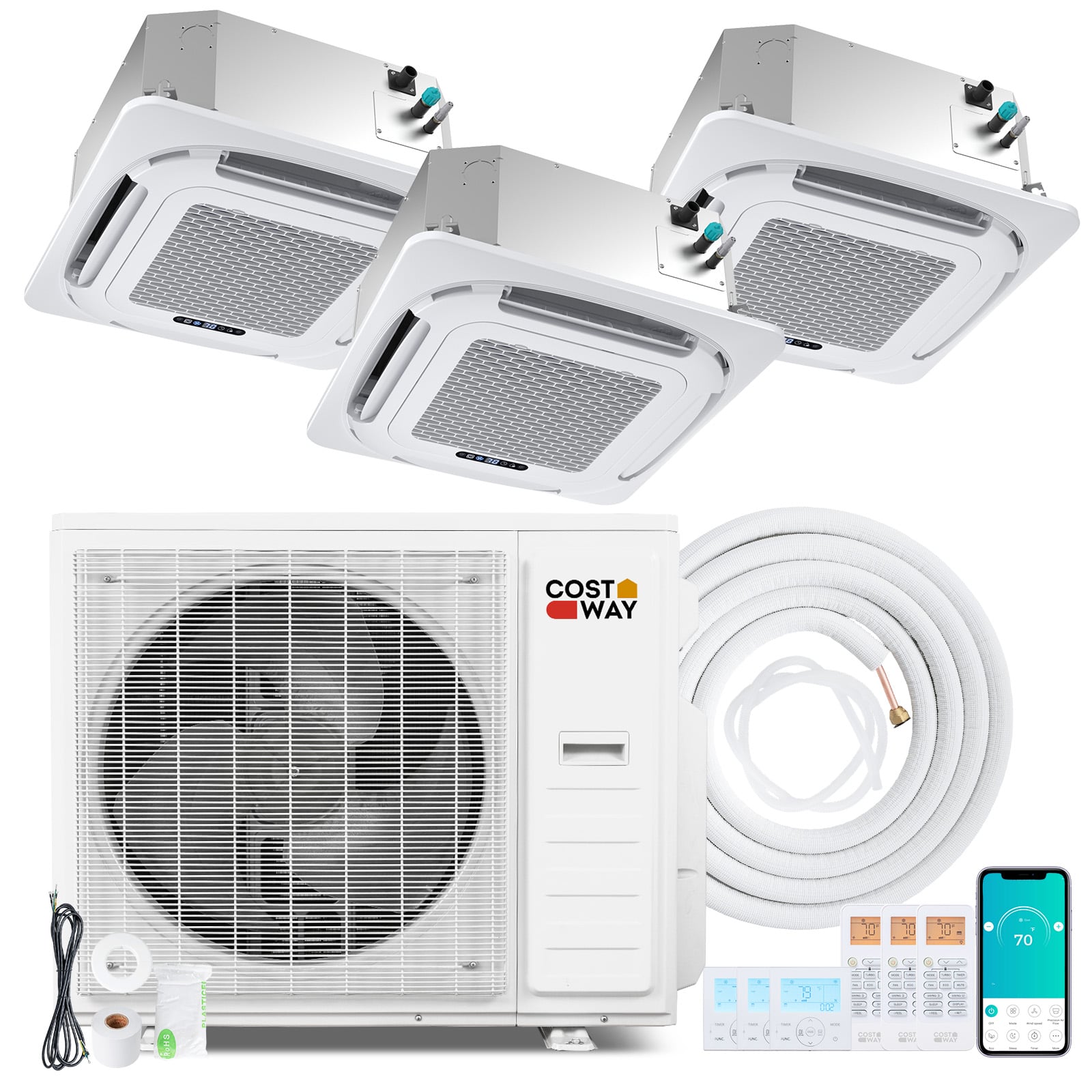

35000 BTU 3 Zone Ceiling Cassette Mini Split, 22.5 SEER2, 9K + 12K + 18K, White

Overview:

• Provides flexible comfort with independent temperature control in three zones
• Ideal for homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores
• Features a clean, built-in ceiling cassette design that saves wall space
• Note: Professional installation is required

Highlights:

• Independent temperature control in 3 areas
• Inverter technology for outstanding energy efficiency
• R454B refrigerant supports a more future-friendly approach
• Stay comfortable year-round with 7 modes and 8 fan speeds
• Control your comfort via the app, voice, remote, or wall thermostat
• Chassis electrical heating prevents freezing in colder weather
• Versatile application for homes, offices, or commercial spaces
• Ceiling cassette creates a clean and built-in look
• 360° airflow spreads air evenly across the room
• 24-hour timer for scheduled temperature changes
• Self-clean function supports fresher operation
• Whisper quiet operation as low as 32 dB
• Child lock adds peace of mind for families

Features:

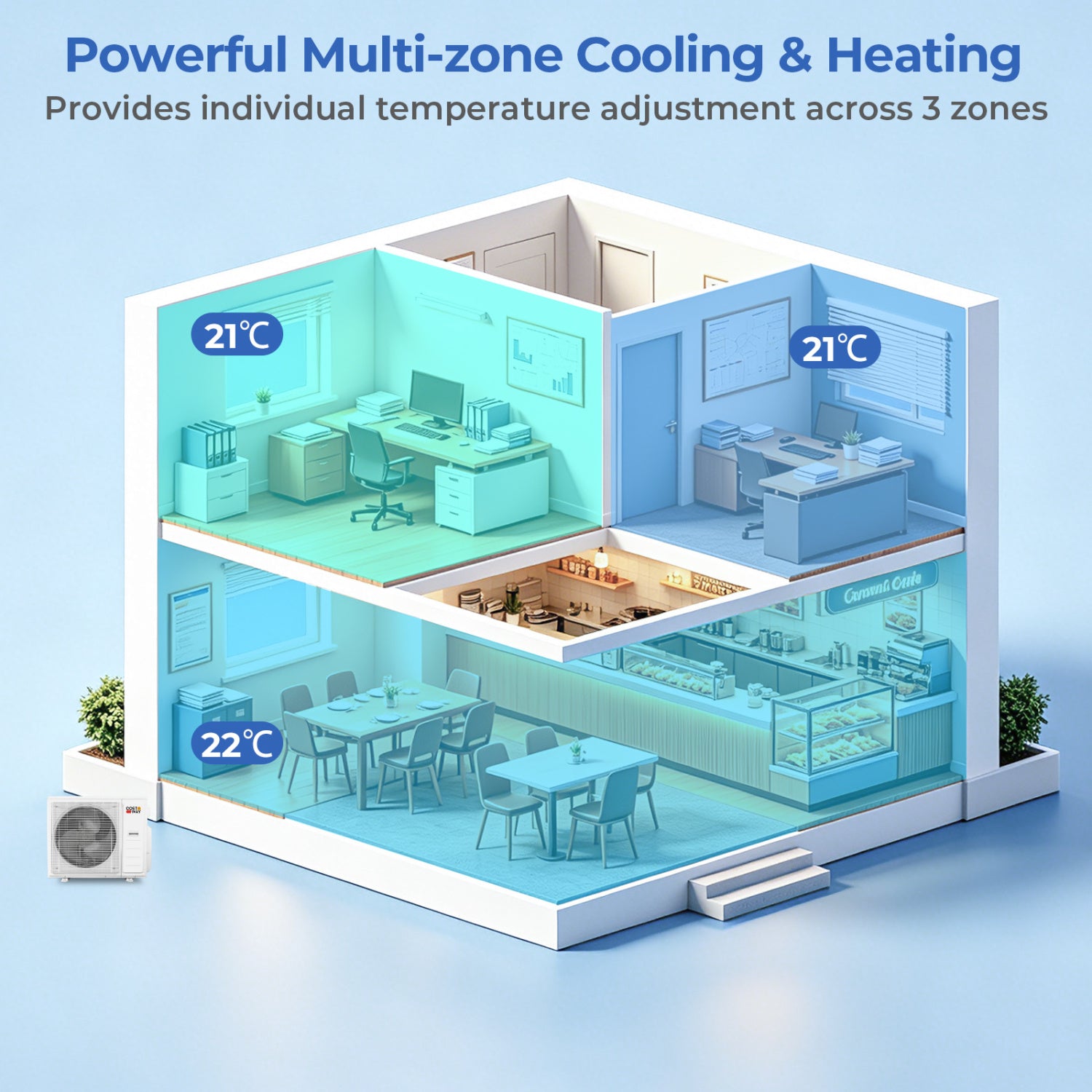

• Powerful multi-zone cooling and heating with individual temperature adjustment across 3 zones
• Ceiling-mounted design saves wall space and spreads air evenly

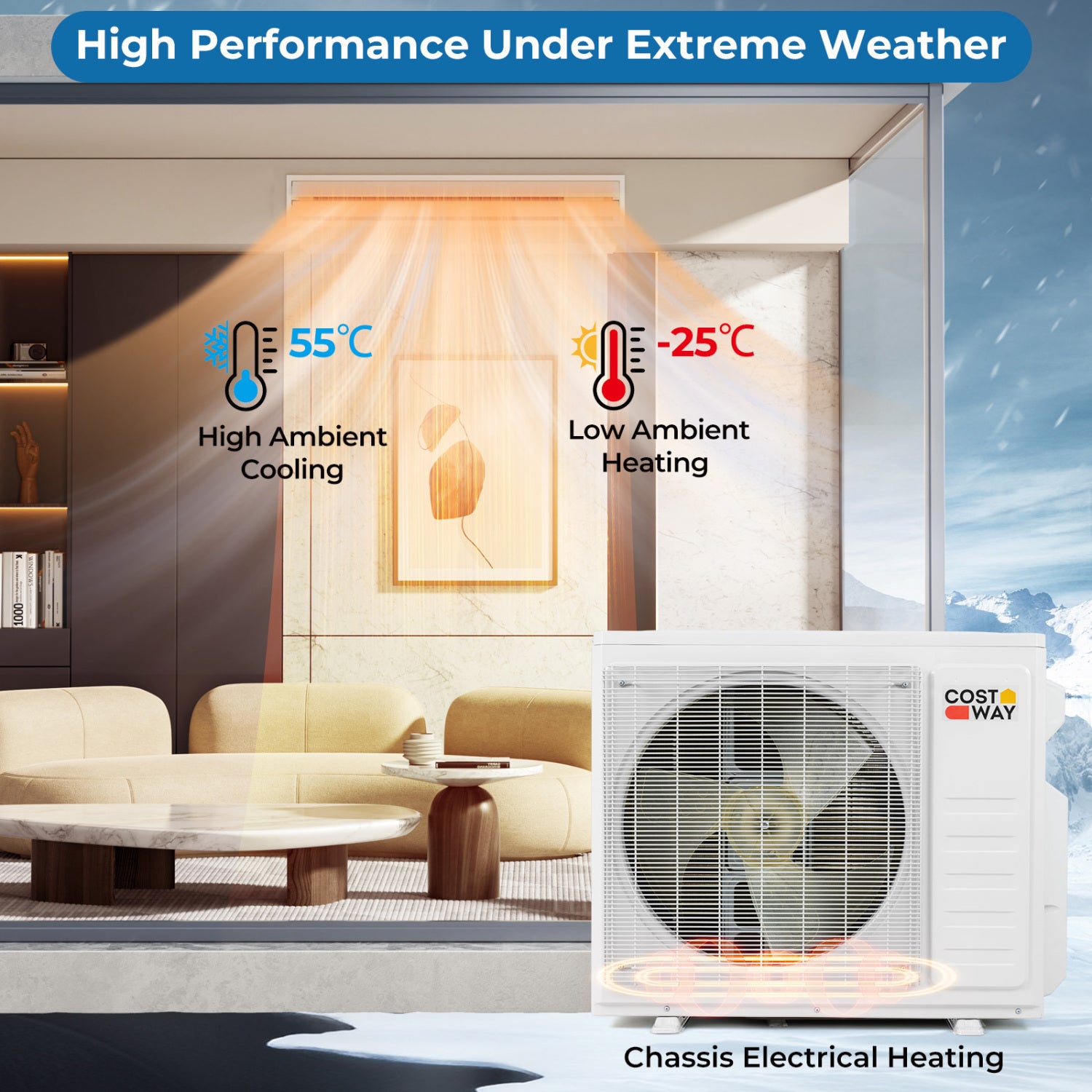

• Engineered to keep working in harsh conditions, cooling even at 55℃ and heating even at -25℃
• Built-in chassis electrical heating system

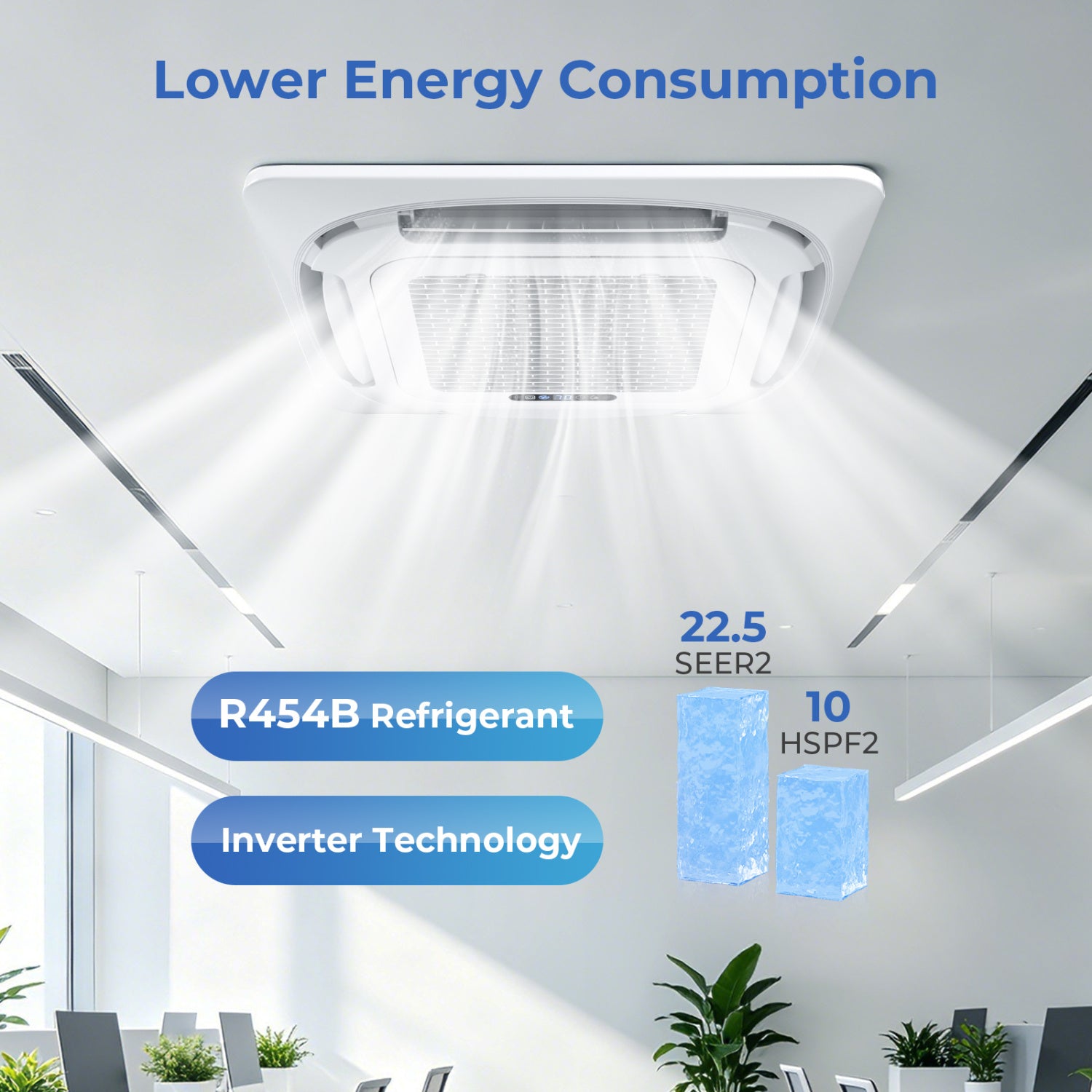

• Lower energy consumption with a 22.5 SEER2 rating
• Utilizes R454B refrigerant with a lower global warming potential
• Incorporates inverter technology to maintain stable temperatures while effectively reducing energy costs

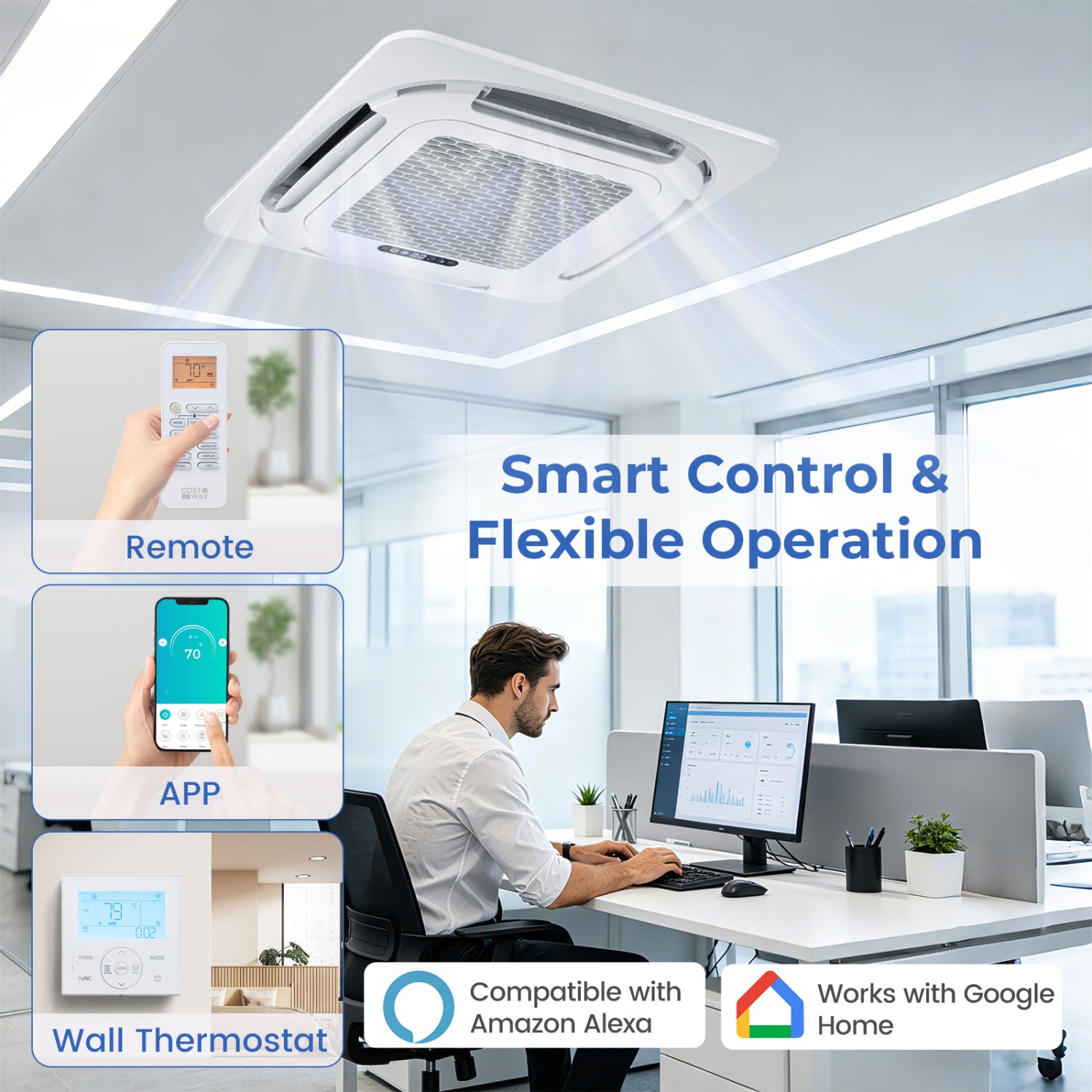

• Wi-Fi enabled for app control plus voice control, remote, and wall thermostat support
• Adjust comfort from anywhere with smart connectivity

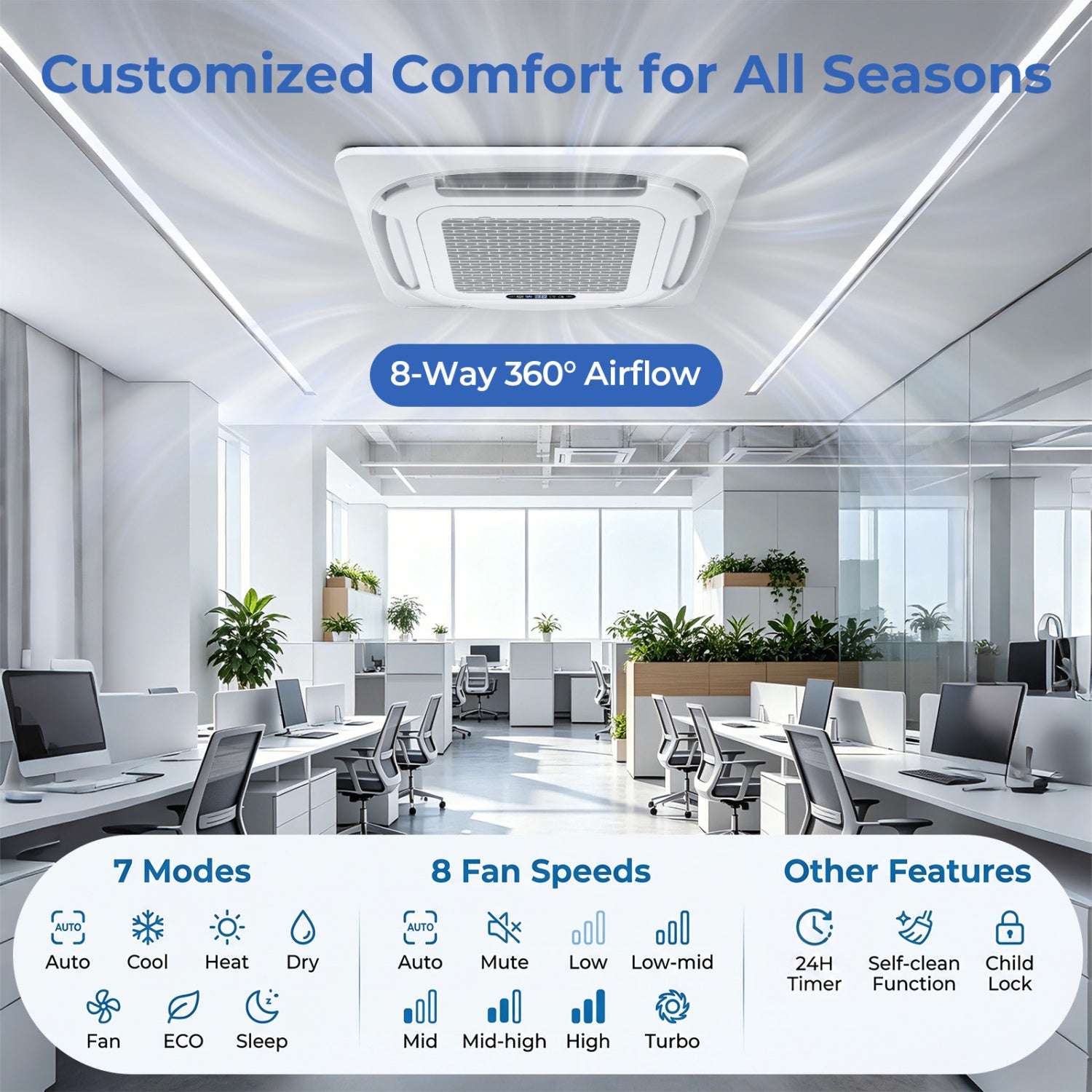

• Choose from 7 modes: auto, cool, heat, dry, fan, Eco, and sleep
• Fine-tune airflow with 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo
• Set a 24-hour timer for schedules
• Quiet operation as low as 32dB for peaceful sleep and focused work
• 8-way 360° airflow reaches more of the room for fewer hot and cold spots
• Self-clean function helps keep the interior fresher and supports long-term performance
• Wide use and exceptional versatility for various spaces

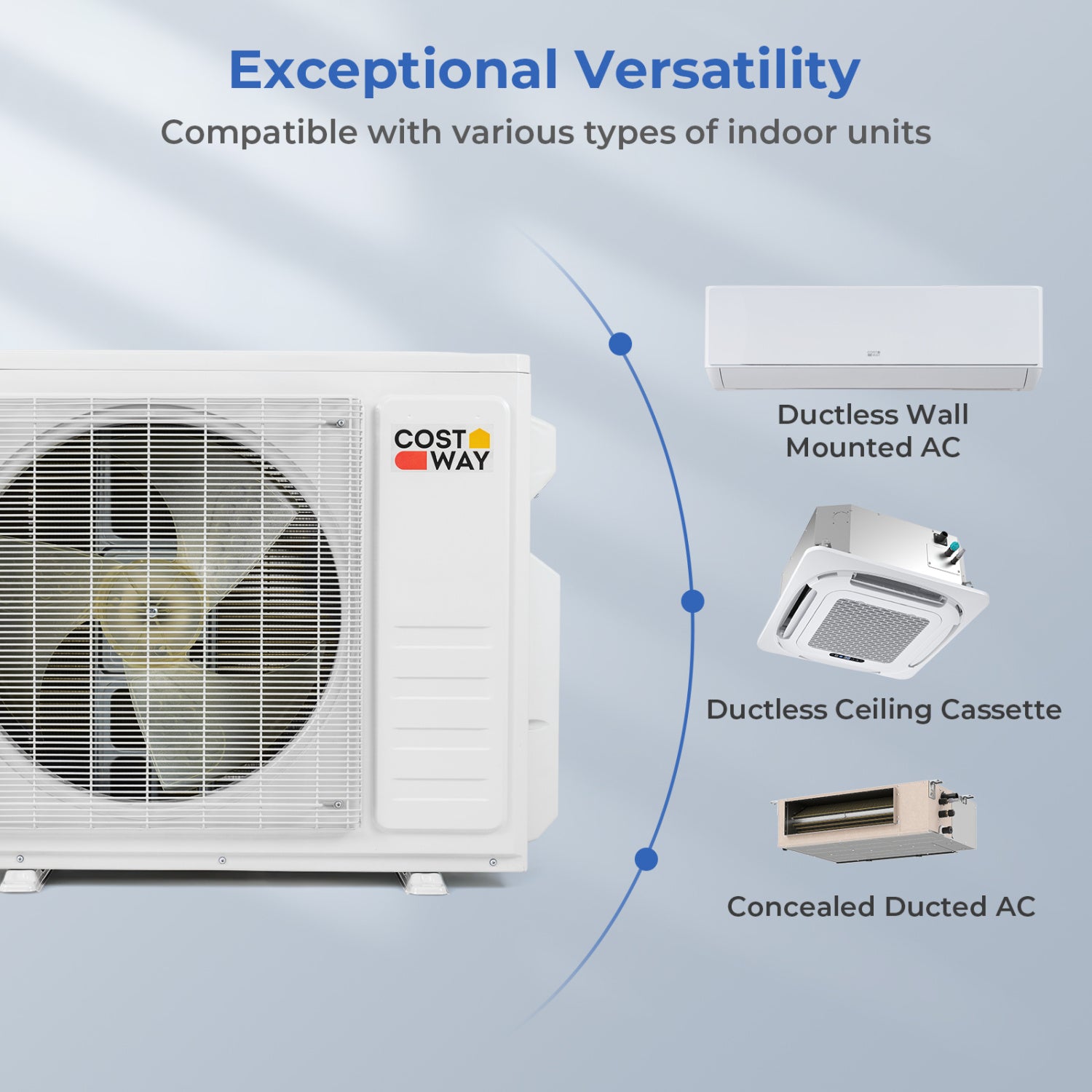

• Outdoor unit is compatible with various types of indoor units, including ductless wall mounted AC, ductless ceiling cassette, and concealed ducted AC
• Note: Professional installation is required

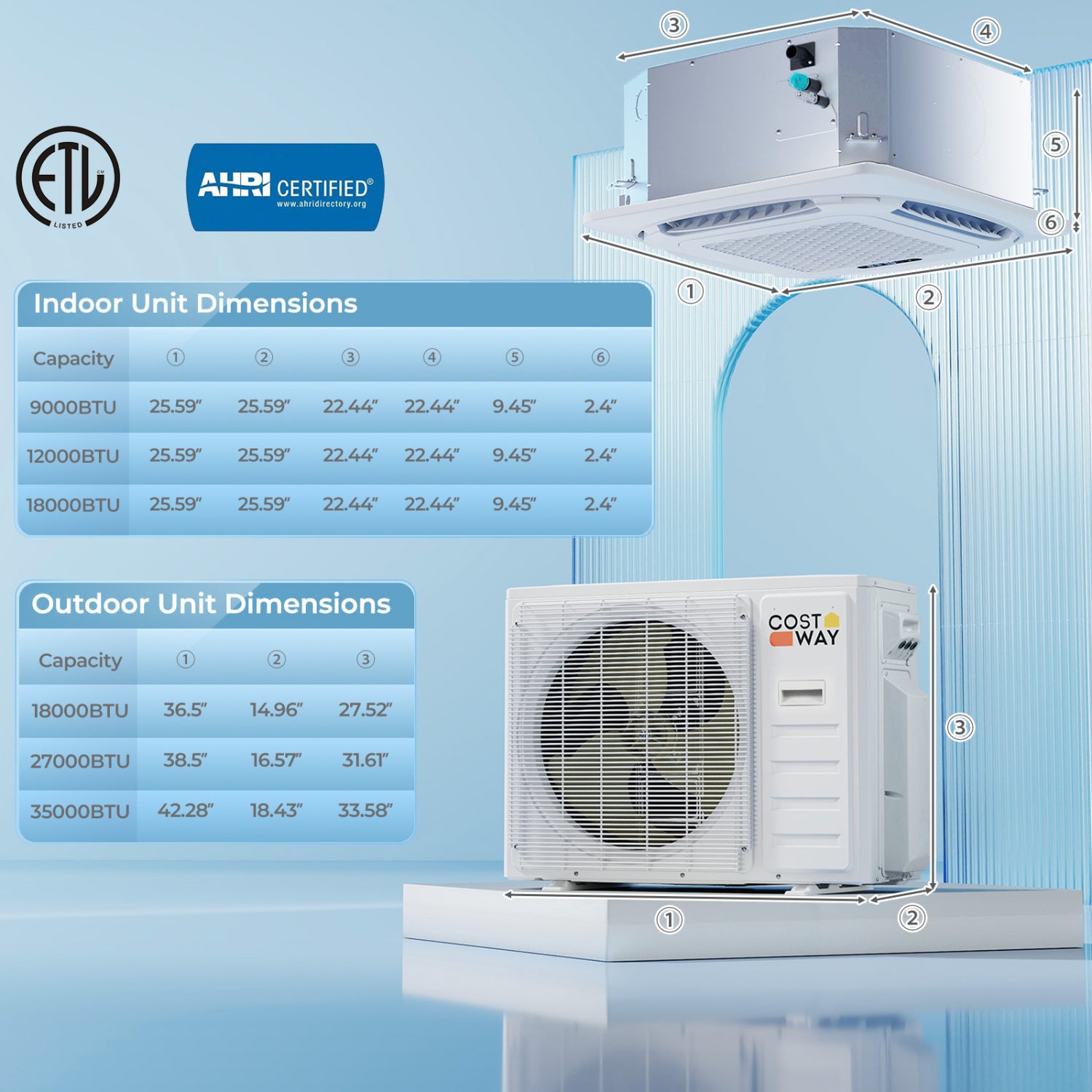

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59" x 25.59" x 11.85" (65 cm x 65 cm x 30.1 cm)
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm)
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm)
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm)
• Net Weight of 9K Indoor Unit: 31.9 lbs (14.5 kg)
• Net Weight of 12K Indoor Unit: 31.9 lbs (14.5 kg)
• Net Weight of 18K Indoor Unit: 31.9 lbs (14.5 kg)
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42 kg)
• Net Weight of 27K Outdoor Unit: 119 lbs (54 kg)
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66 kg)
• Diameter of Liquid Pipe: 1/4" (0.64 cm)
• Diameter of Gas Pipe (9K, 12K): 3/8" (0.95 cm)
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm)

Specifications:

• Color: White
• Material: Cold-rolled Steel Sheet, Copper, Aluminum
• Multi Zone Combination: 3
• Voltage: 208-230V
• Frequency: 60Hz
• Temperature Setting Range: 16℃~31℃
• Refrigerant: R454B
• Indoor Unit Noise Level: 32 dB
• Max Remote Control Distance: 39.2 ft (11.9 m)
• Coverage Area (9K): 450 Sq.Ft (41.8 m²)
• Coverage Area (12K): 750 Sq.Ft (69.7 m²)
• Coverage Area (18K): 1250 Sq.Ft (116.1 m²)
• Dehumidification Capacity (9K): 55.8 Pints/Day (26.4 liters/day)
• Dehumidification Capacity (12K): 81.2 Pints/Day (38.4 liters/day)
• Dehumidification Capacity (18K): 111.6 Pints/Day (52.8 liters/day)
• Maximum Air Flow Volume (9K): 194 CFM/329 m³/h
• Maximum Air Flow Volume (12K): 212 CFM/360 m³/h
• Maximum Air Flow Volume (18K): 260 CFM/441 m³/h
• SEER2 (18K): 24
• SEER2 (27K): 24
• SEER2 (35K): 22.5
• HSPF2 (18K): 10.5
• HSPF2 (27K): 10.5
• HSPF2 (35K): 10

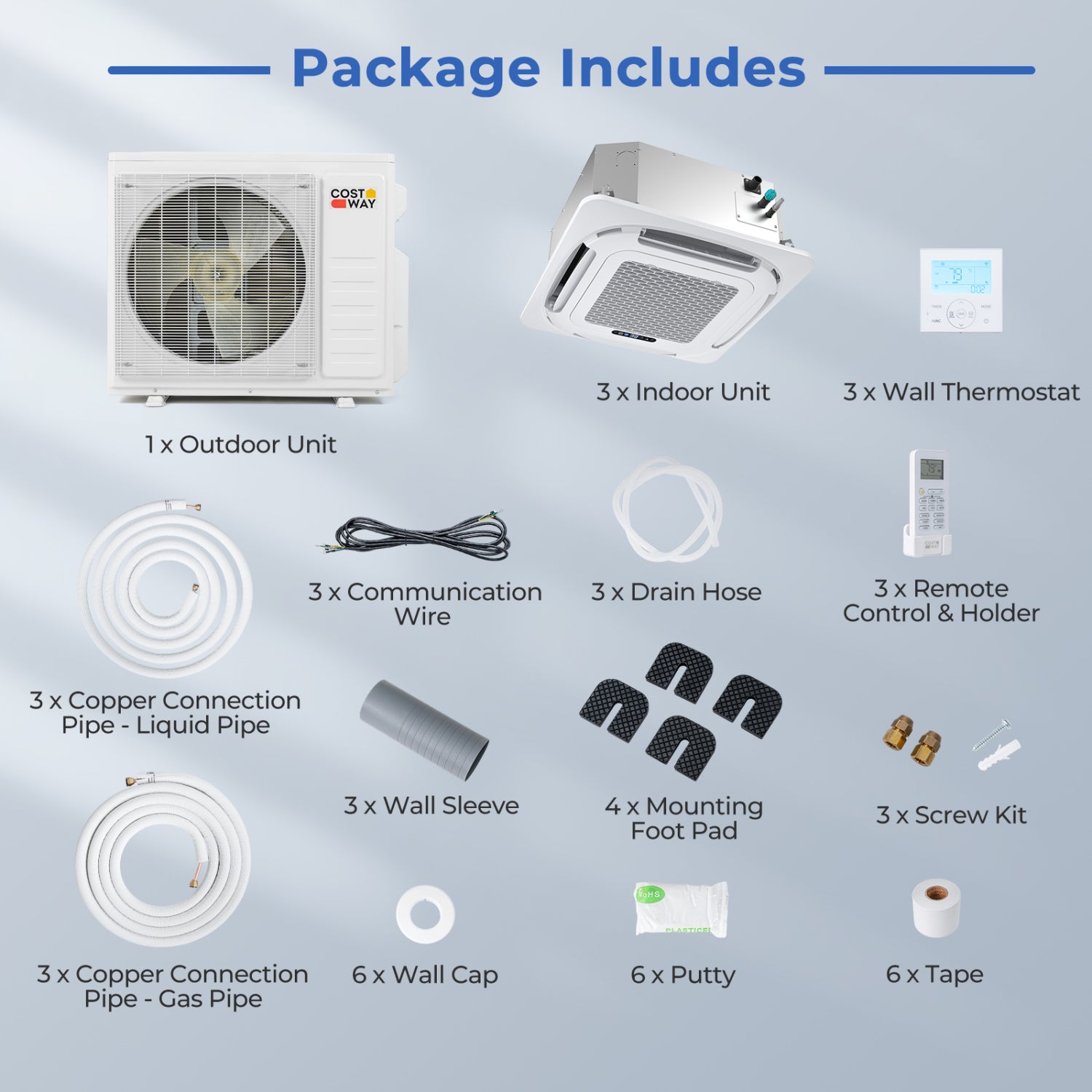

Package Includes:

• 1 x Outdoor Unit
• 3 x Indoor Unit
• 3 x Copper Connection Pipe - Gas Pipe
• 3 x Copper Connection Pipe - Liquid Pipe
• 3 x Communication Wire
• 3 x Drain Hose
• 3 x Remote Control & Holder
• 3 x Wall Thermostat
• 3 x Wall Sleeve
• 6 x Wall Cap
• 6 x Tape
• 6 x Putty
• 3 x Screw Kit
• 4 x Mounting Foot Pad
• 7 x User Guide
