35000 BTU 4 Zone 22.5 SEER2 Ceiling Cassette Mini Split AC, White

Overview:

• Provides flexible cooling and heating across four zones with a ceiling-mounted design for even airflow and space-saving installation.
• Ideal for homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.
• Features advanced technology including R454B refrigerant for lower environmental impact and whisper-quiet operation.
• Note: Professional installation is required for safe and optimal performance.

Highlights:

• Independent temperature control in 4 areas for personalized comfort.
• Inverter technology delivers outstanding energy efficiency, reducing energy costs.
• R454B refrigerant supports a more future-friendly, environmentally conscious approach.
• Stay comfortable year-round with 7 modes and 8 fan speeds for precise climate management.
• Control your comfort via app, voice, remote, or wall thermostat for convenient operation.
• Chassis electrical heating prevents freezing in colder weather, ensuring reliable performance.
• Versatile application for homes, offices, or commercial spaces with a clean, built-in look.
• Ceiling cassette design saves wall space and spreads air evenly with 360° airflow.
• 24-hour timer allows scheduled temperature changes for automated comfort.
• Self-clean function supports fresher operation and long-term system maintenance.
• Whisper-quiet operation as low as 32 dB for peaceful sleep and focused work environments.
• Child lock adds peace of mind for families, enhancing safety and control.

Features:

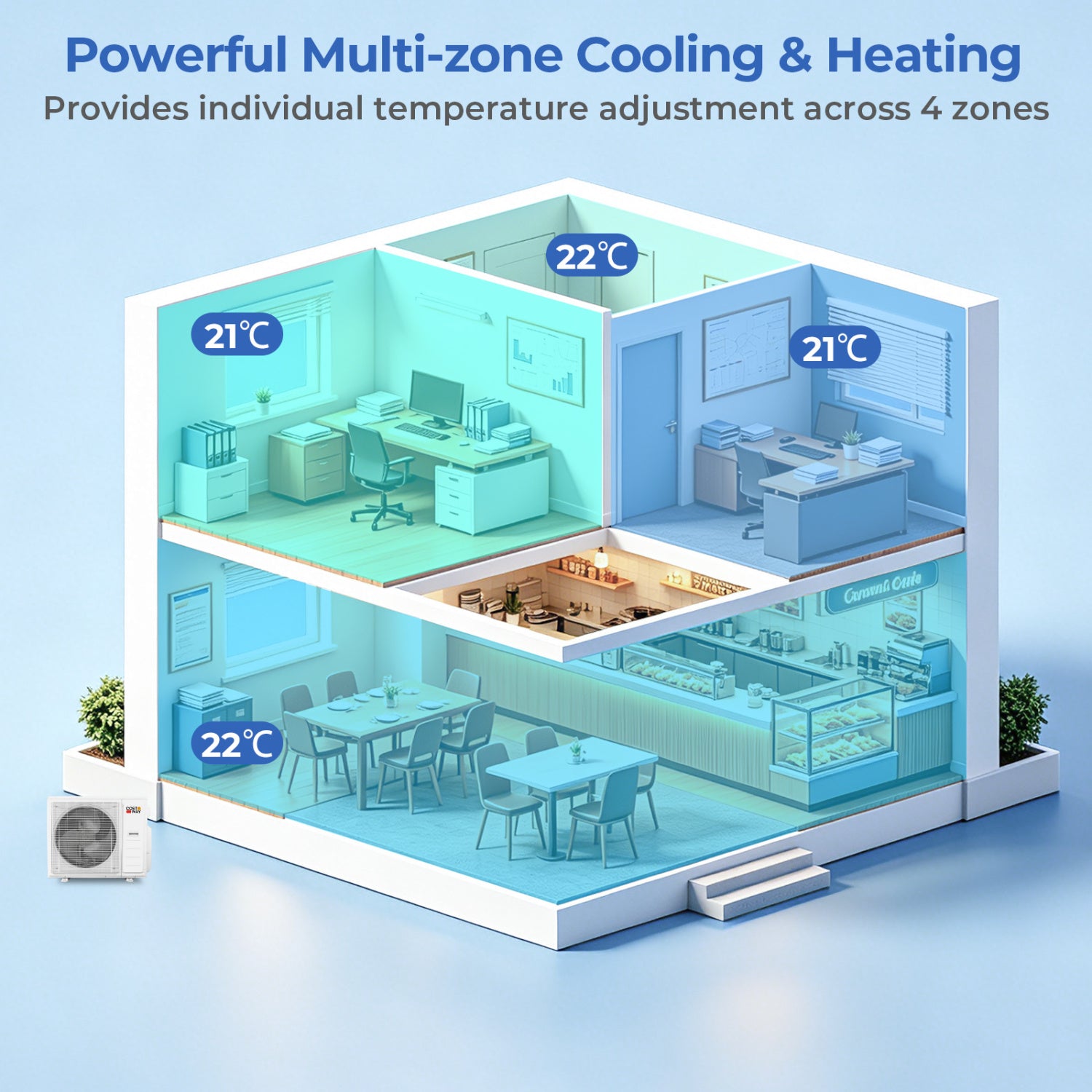

• Powerful multi-zone cooling and heating with individual temperature adjustment across 4 zones.
• Ceiling-mounted design saves wall space and spreads air evenly for consistent comfort.
• Engineered to work in harsh conditions, cooling at up to 55℃ and heating down to -25℃.
• Built-in chassis electrical heating system prevents freezing in colder weather.

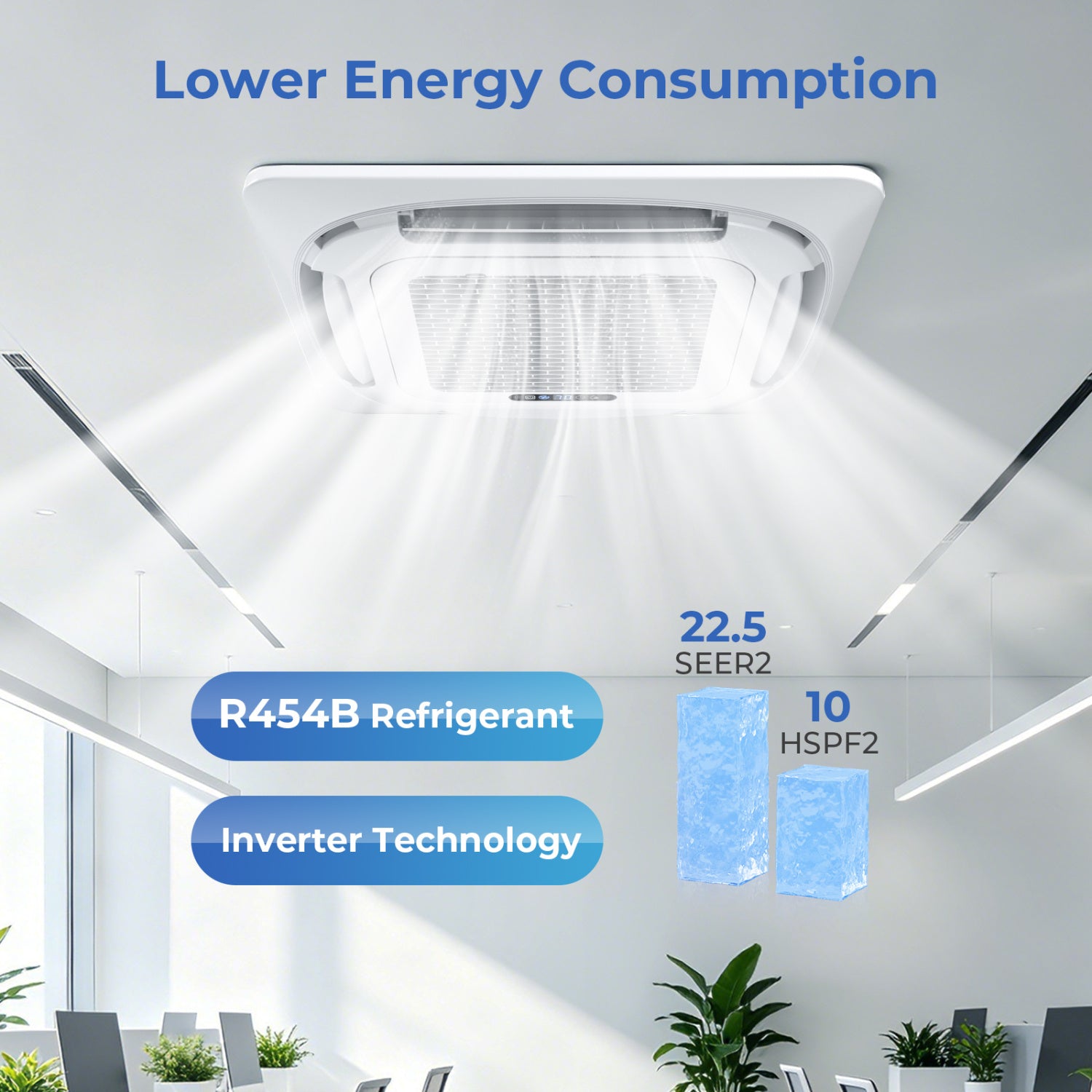

• Lower energy consumption with a 22.5 SEER2 rating for cost-effective operation.
• Utilizes R454B refrigerant with lower global warming potential for environmental friendliness.
• Incorporates inverter technology to maintain stable temperatures and reduce energy costs.
• Smart control via Wi-Fi for app and voice control, plus remote and wall thermostat support.
• Choose from 7 modes: auto, cool, heat, dry, fan, Eco, and sleep for versatile operation.
• Fine-tune airflow with 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Set a 24-hour timer for scheduled temperature changes and automated comfort management.
• Quiet operation as low as 32 dB for peaceful sleep and focused work environments.
• 8-way 360° airflow reaches more of the room, reducing hot and cold spots.
• Self-clean function helps keep the interior fresher and supports long-term performance.
• Wide use in homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.

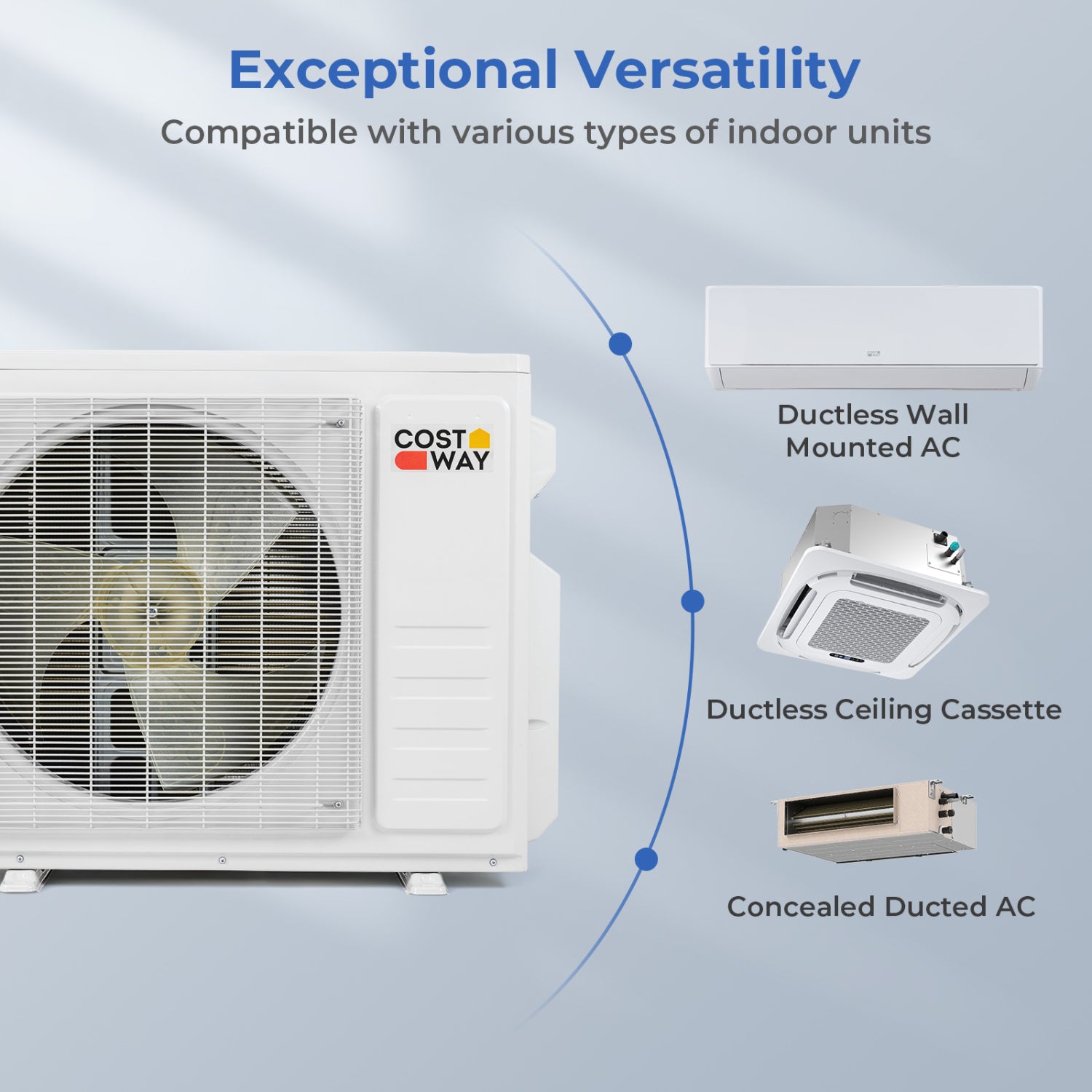

• Outdoor unit is compatible with various indoor units, including ductless wall-mounted, ceiling cassette, and concealed ducted AC.
• Note: Professional installation is required for safe and optimal performance.

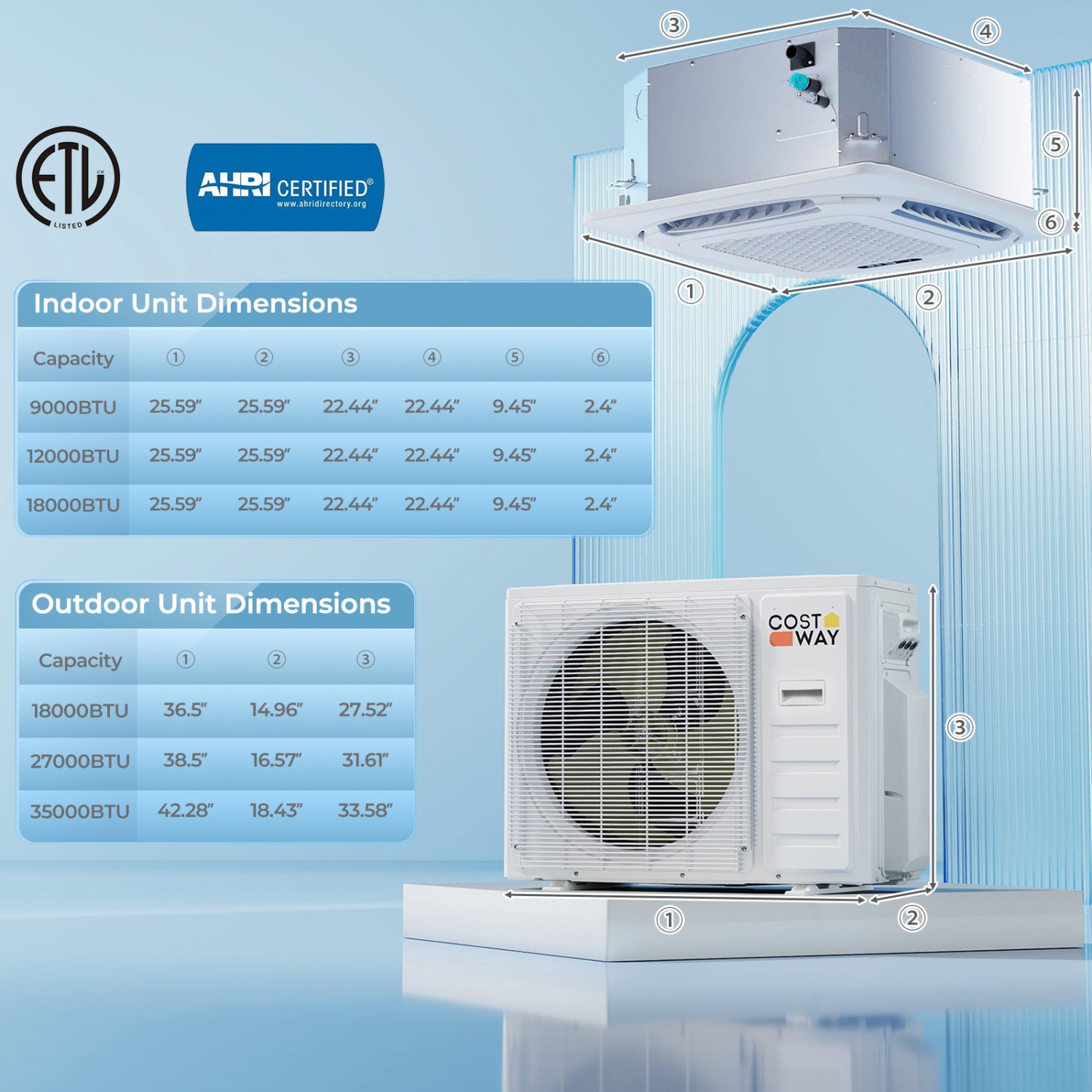

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59 inches x 25.59 inches x 11.85 inches (65.0 cm x 65.0 cm x 30.1 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches x 14.96 inches x 27.52 inches (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches x 16.57 inches x 31.61 inches (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches x 18.43 inches x 33.58 inches (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K, 12K, 18K): 31.9 lbs (14.5 kg).
• Net Weight of Outdoor Unit (18K): 92.6 lbs (42.0 kg).
• Net Weight of Outdoor Unit (27K): 119 lbs (54.0 kg).
• Net Weight of Outdoor Unit (35K): 145.5 lbs (66.0 kg).

Specifications:

• Color: White for a clean, modern aesthetic.
• Material: Cold-rolled steel sheet, copper, and aluminum for durability and performance.
• Multi-zone combination: 4 zones for flexible temperature control.
• Voltage: 208-230V for standard electrical compatibility.
• Frequency: 60Hz for reliable operation in applicable regions.
• Temperature setting range: 16℃ to 31℃ (61°F to 88°F) for precise comfort adjustment.
• Refrigerant: R454B with lower global warming potential.
• Indoor unit noise level: 32 dB for whisper-quiet performance.
• Maximum remote control distance: 39.2 ft (11.9 m) for convenient operation.
• Coverage area for 9K: 450 sq. ft. (41.8 sq. m).
• Coverage area for 12K: 750 sq. ft. (69.7 sq. m).
• Coverage area for 18K: 1250 sq. ft. (116.1 sq. m).
• Dehumidification capacity for 9K: 55.8 pints per day.
• Dehumidification capacity for 12K: 81.2 pints per day.
• Dehumidification capacity for 18K: 111.6 pints per day.
• Maximum air flow volume for 9K: 194 CFM (329 m³/h).
• Maximum air flow volume for 12K: 212 CFM (360 m³/h).
• Maximum air flow volume for 18K: 260 CFM (441 m³/h).
• SEER2 rating for 18K: 24.
• SEER2 rating for 27K: 24.
• SEER2 rating for 35K: 22.5.
• HSPF2 rating for 18K: 10.5.
• HSPF2 rating for 27K: 10.5.
• HSPF2 rating for 35K: 10.
• Diameter of liquid pipe: 1/4 inch (6.35 mm).
• Diameter of gas pipe for 9K: 3/8 inch (9.53 mm).
• Diameter of gas pipe for 12K: 3/8 inch (9.53 mm).
• Diameter of gas pipe for 18K: 1/2 inch (12.7 mm).

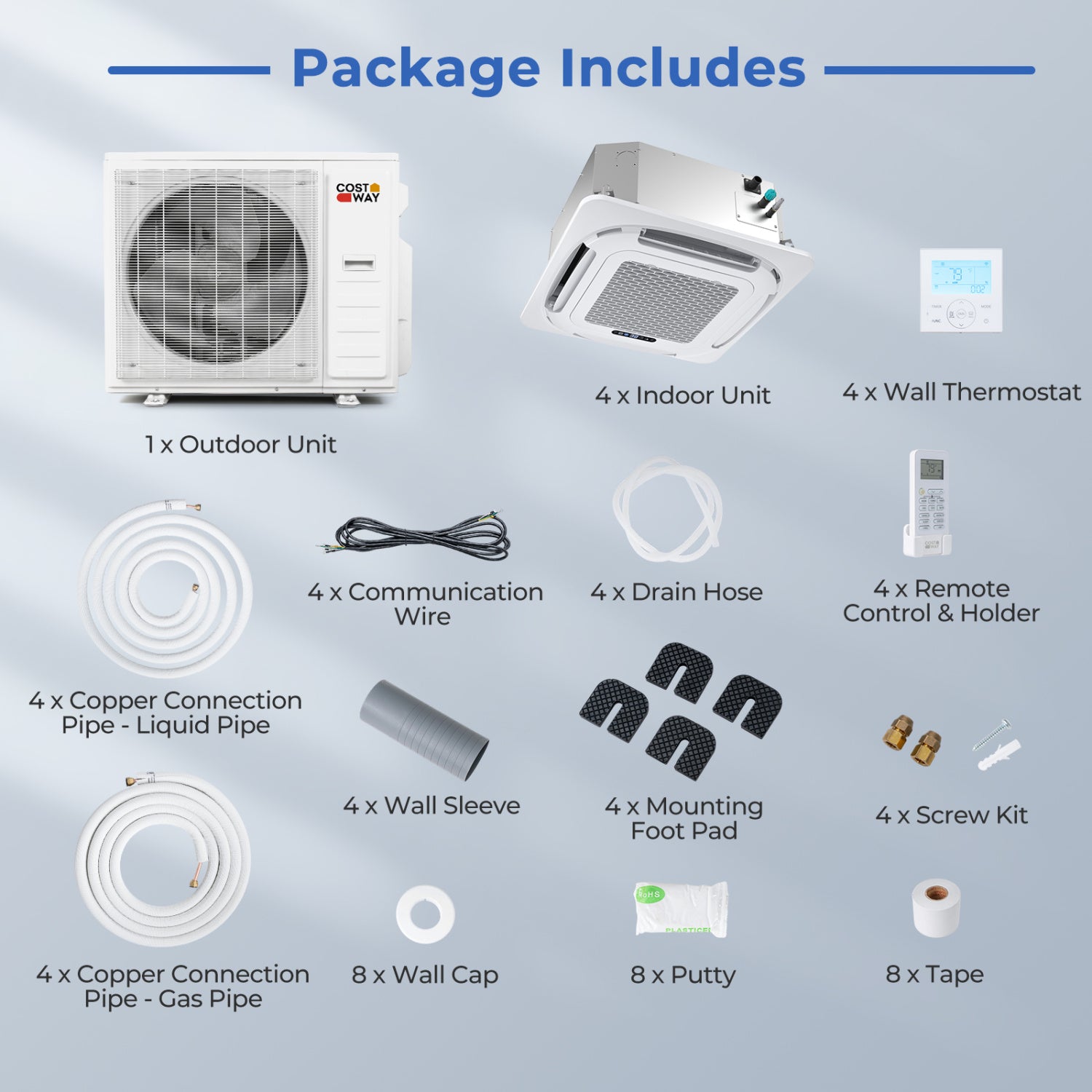

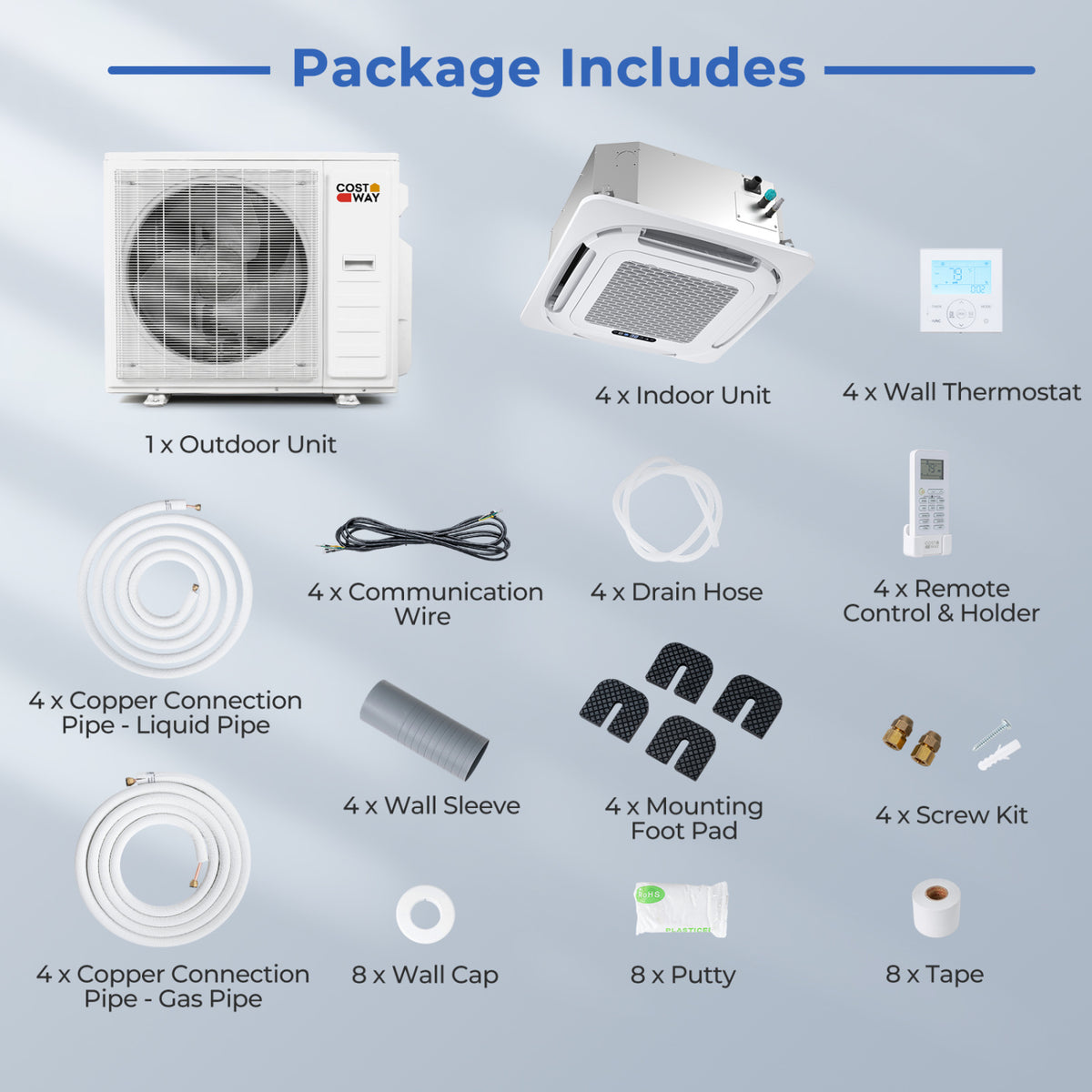

Package Includes:

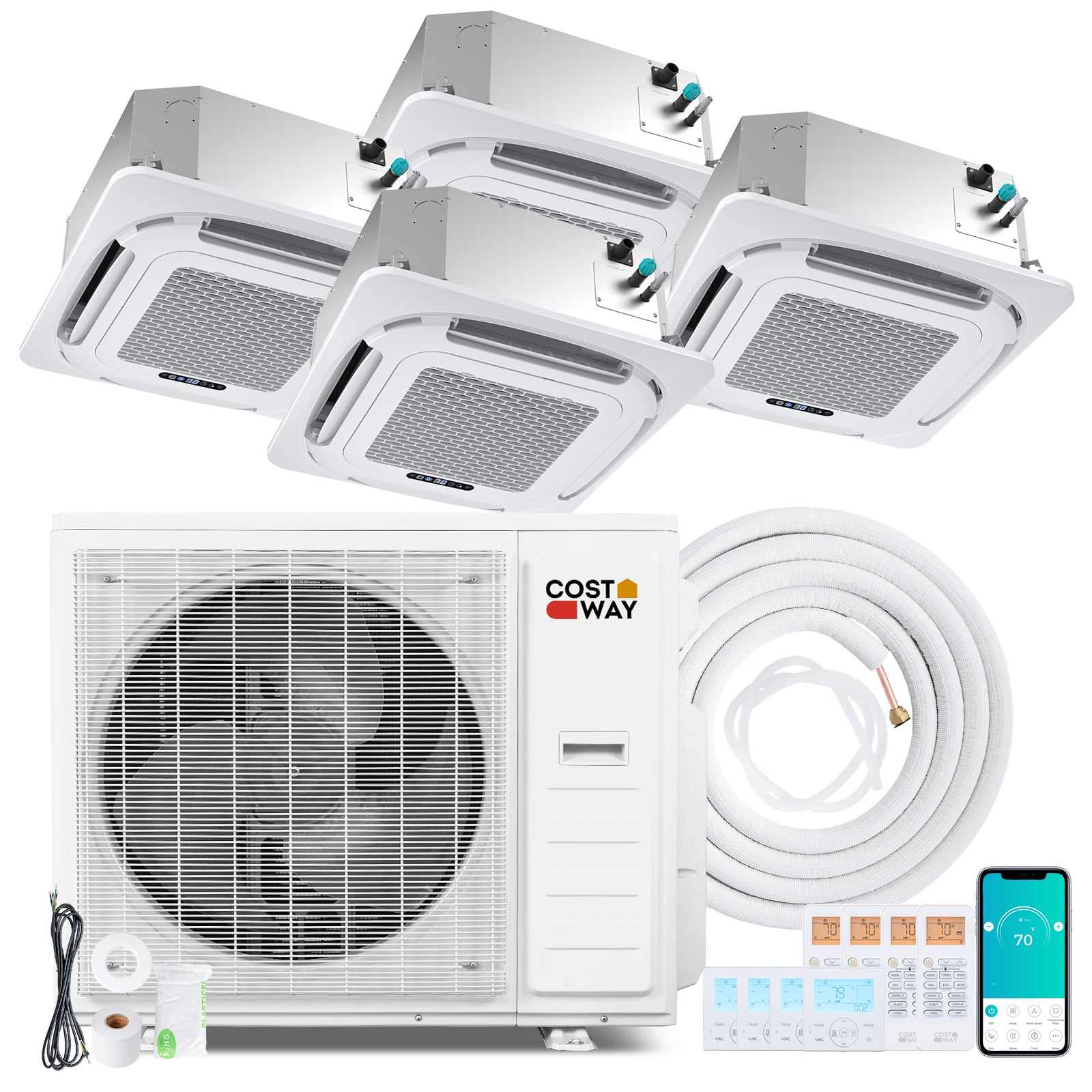

• 1 x Outdoor unit for central operation.
• 4 x Indoor unit for multi-zone coverage.
• 4 x Copper connection pipe - gas pipe for installation.
• 4 x Copper connection pipe - liquid pipe for installation.
• 4 x Communication wire for connectivity.
• 2 x Drain hose for moisture management.
• 4 x Remote control and holder for convenient operation.
• 4 x Wall thermostat for precise temperature control.
• 4 x Wall sleeve for secure mounting.
• 8 x Wall cap for finishing touches.
• 8 x Tape for sealing and installation.
• 8 x Putty for sealing and installation.
• 4 x Screw kit for assembly.
• 4 x Mounting foot pad for stability.
• 9 x User guide for setup and operation instructions.
