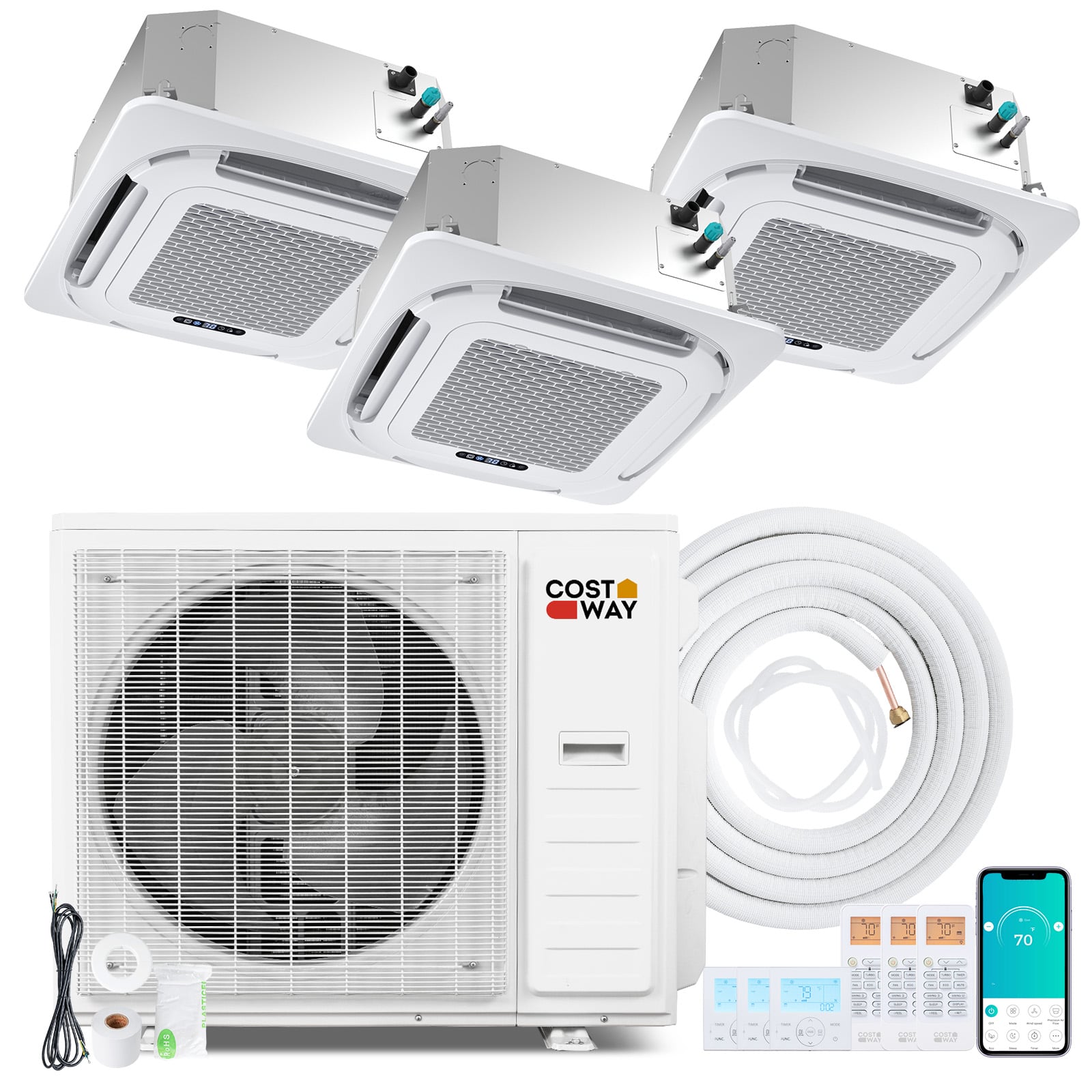

Ceiling Cassette Mini Split AC, 22.5 SEER2, 35000 BTU, 3 Zone, White

Overview:

• Provides flexible cooling and heating across three zones with a ceiling-mounted design for a clean, built-in look.
• Ideal for homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.
• Features advanced technology including R454B refrigerant for lower environmental impact and whisper-quiet operation as low as 32 dB.
• Note: Professional installation is required for safe and proper setup.

Highlights:

• Independent temperature control in three areas for personalized comfort.
• Inverter technology delivers outstanding energy efficiency, reducing operating costs.
• R454B refrigerant supports a more future-friendly, environmentally conscious approach.
• Stay comfortable year-round with seven modes and eight fan speeds.
• Control your comfort via app, voice, remote, or wall thermostat from anywhere.
• Chassis electrical heating prevents freezing in colder weather, ensuring reliable performance.
• Versatile application for homes, offices, or commercial spaces.
• Ceiling cassette creates a clean and built-in look, saving wall space.
• 360° airflow spreads air evenly across the room, minimizing hot and cold spots.
• 24-hour timer for scheduled temperature changes to match your routine.
• Self-clean function supports fresher operation and long-term performance.
• Whisper-quiet operation as low as 32 dB for peaceful sleep and focused work.
• Child lock adds peace of mind for families with young children.

Features:

• Powerful multi-zone cooling and heating with individual temperature adjustment across three zones.
• Ceiling-mounted design saves wall space and spreads air evenly.
• Engineered to keep working in harsh conditions, cooling even at 55℃ and heating even at -25℃.
• Built-in chassis electrical heating system prevents freezing in colder weather.
• Lower energy consumption with a 22.5 SEER2 rating for cost-effective operation.
• Utilizes R454B refrigerant with a lower global warming potential for environmental benefits.
• Incorporates inverter technology to maintain stable temperatures while reducing energy costs.
• Smart control with Wi-Fi enabled for app control, plus voice control, remote, and wall thermostat support.
• Adjust comfort from anywhere with flexible operation options.
• Choose from seven modes: auto, cool, heat, dry, fan, Eco, and sleep.
• Fine-tune airflow with eight fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Set a 24-hour timer for scheduled temperature changes to match your daily routine.
• Quiet operation as low as 32 dB for peaceful sleep and focused work environments.
• 8-way 360° airflow reaches more of the room, reducing hot and cold spots.
• Self-clean function helps keep the interior fresher and supports long-term performance.
• Wide use and exceptional versatility for various indoor settings.
• Outdoor unit is compatible with various types of indoor units, including ductless wall-mounted, ductless ceiling cassette, and concealed ducted units.
• Note: Professional installation is required for safe and proper setup.

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59 inches x 25.59 inches x 11.85 inches (65.0 cm x 65.0 cm x 30.1 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches x 14.96 inches x 27.52 inches (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches x 16.57 inches x 31.61 inches (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches x 18.43 inches x 33.58 inches (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K, 12K, 18K): 31.9 pounds (14.5 kg).
• Net Weight of Outdoor Unit (18K): 92.6 pounds (42.0 kg).
• Net Weight of Outdoor Unit (27K): 119 pounds (54.0 kg).
• Net Weight of Outdoor Unit (35K): 145.5 pounds (66.0 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K, 12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2 inch (1.27 cm).

Specifications:

• Color: White for a sleek and modern appearance.
• Material: Cold-rolled steel sheet, copper, and aluminum for durability and performance.
• Multi-zone combination: 3 zones for flexible temperature control.
• Voltage: 208-230V for standard electrical compatibility.
• Frequency: 60Hz for reliable operation in applicable regions.
• Temperature setting range: 16℃ to 31℃ (approximately 61°F to 88°F) for precise comfort adjustment.
• Refrigerant: R454B with lower global warming potential.
• Indoor unit noise level: 32 dB for whisper-quiet performance.
• Maximum remote control distance: 39.2 feet (12.0 meters) for convenient operation.
• Coverage area (9K): 450 square feet (41.8 square meters).
• Coverage area (12K): 750 square feet (69.7 square meters).
• Coverage area (18K): 1250 square feet (116.1 square meters).
• Dehumidification capacity (9K): 55.8 pints per day (26.4 liters per day).
• Dehumidification capacity (12K): 81.2 pints per day (38.4 liters per day).
• Dehumidification capacity (18K): 111.6 pints per day (52.8 liters per day).
• Maximum air flow volume (9K): 194 CFM (329 m³/h).
• Maximum air flow volume (12K): 212 CFM (360 m³/h).
• Maximum air flow volume (18K): 260 CFM (441 m³/h).
• SEER2 rating (18K): 24 for high energy efficiency.
• SEER2 rating (27K): 24 for high energy efficiency.
• SEER2 rating (35K): 22.5 for excellent energy efficiency.
• HSPF2 rating (18K): 10.5 for efficient heating performance.
• HSPF2 rating (27K): 10.5 for efficient heating performance.
• HSPF2 rating (35K): 10 for reliable heating performance.

Package Includes:

• 1 x outdoor unit for central operation.
• 3 x indoor units for multi-zone coverage.
• 3 x copper connection pipes for gas lines.
• 3 x copper connection pipes for liquid lines.
• 3 x communication wires for connectivity.
• 3 x drain hoses for proper condensation management.
• 3 x remote controls with holders for easy access.
• 3 x wall thermostats for additional control options.
• 3 x wall sleeves for installation.
• 6 x wall caps for finishing touches.
• 6 x tape for sealing.
• 6 x putty for sealing.
• 3 x screw kits for secure mounting.
• 4 x mounting foot pads for stability.
• 7 x user guides for setup and operation instructions.
