Mini Split AC Heat Pump, 35000 BTU, 2 Zone, 22.5 SEER2, 12K + 18K, White

Overview:

• Provides fast cooling and heating for two independent zones with multi-zone design for room-by-room comfort.
• Ideal for homeowners seeking energy-efficient climate control with smart technology integration.
• Features quiet operation, easy maintenance, and reliable performance in harsh weather conditions.
• Note: Professional installation is recommended for optimal safety and performance.

Highlights:

• Fast cooling and heating for 2 independent zones.
• 7 operating modes and 8 fan speeds to suit comfort needs.

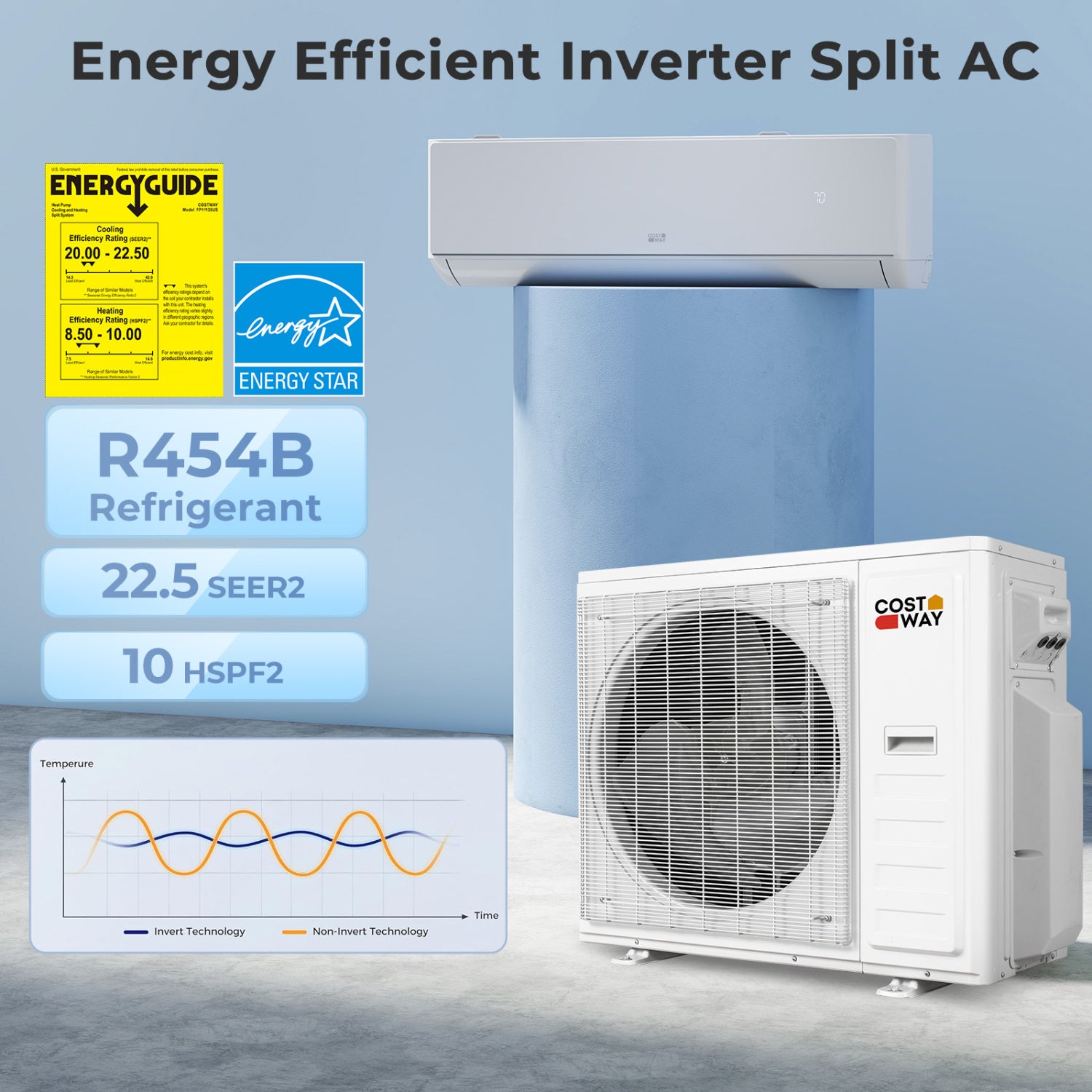

• High energy efficiency with inverter technology and R454B refrigerant.
• Chassis electrical heating promises consistent performance.
• Convenient control via smartphone app, remote, or voice commands.
• Sleep mode for peaceful nights alongside screen off function.
• 24-hour timer for effortless scheduling while saving energy.
• 4D swing ensures even air distribution for added comfort.
• Removable and washable filter for easy cleaning.
• Self-clean function maintains fresher airflow over time.
• Child lock to prevent accidental changes to settings.
• Certified by Energy Star.

Features:

• 2-zone climate control supporting 35000 BTU for larger homes.

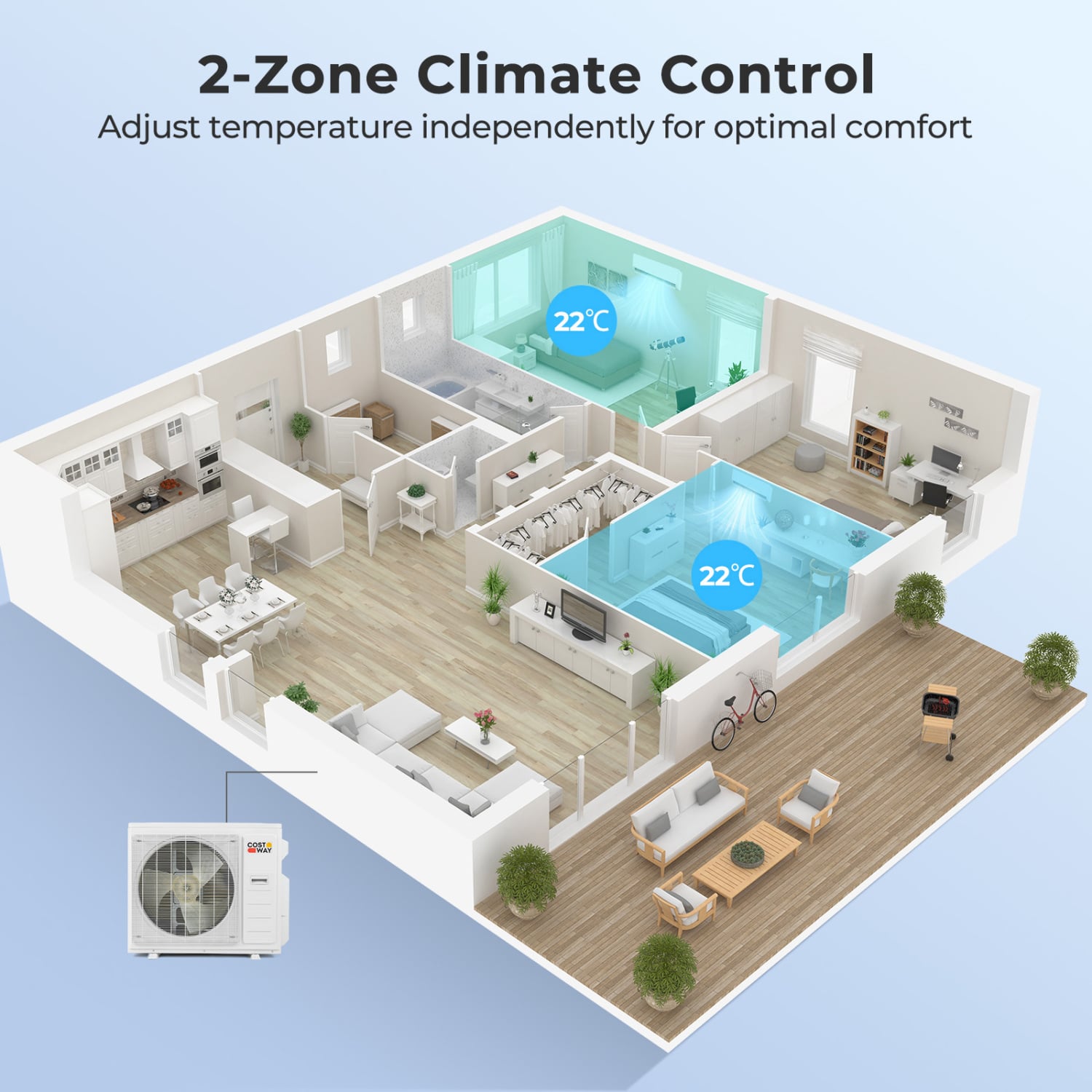

• Multi-zone design allows independent temperature adjustment.
• 4D auto swing helps distribute airflow evenly.
• Rated up to 22.5 SEER2 for energy efficiency.
• Uses R454B refrigerant with lower global warming potential.
• Advanced inverter technology minimizes energy waste.
• WiFi-enabled for smart control compatibility with Alexa and Google Assistant.
• Includes remote control for fast adjustments.
• 7 modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, turbo.
• 24-hour timer for scheduling.
• Child lock for convenience.

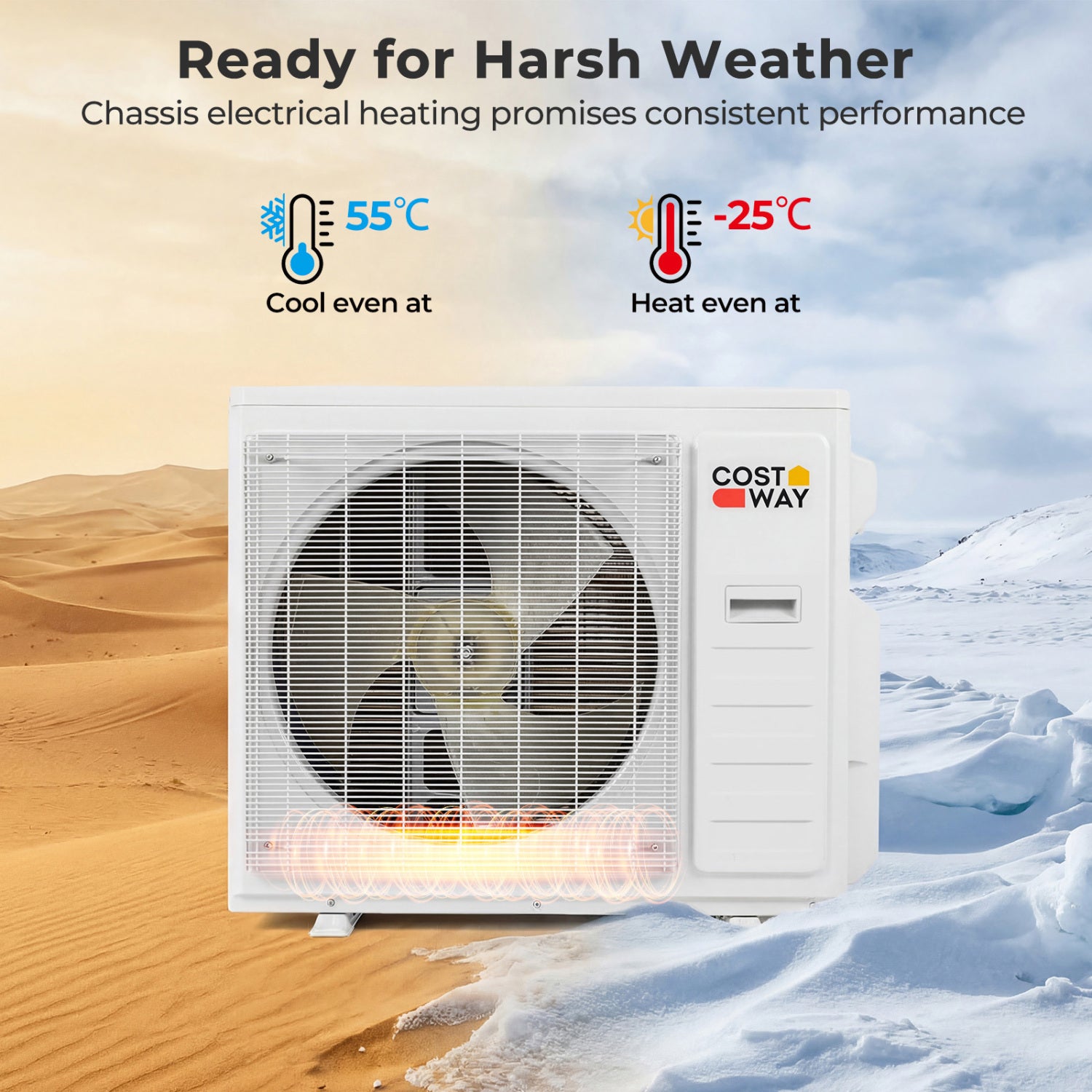

• Chassis electrical heating system ensures dependable performance.
• Cools in ambient temperatures up to 55℃ and heats down to -25℃.
• Quiet operation with sound levels as low as 30 dB.
• Self-clean function for cleaner air.
• Washable filter for easy maintenance.
• Note: Installation by a professional technician is recommended.

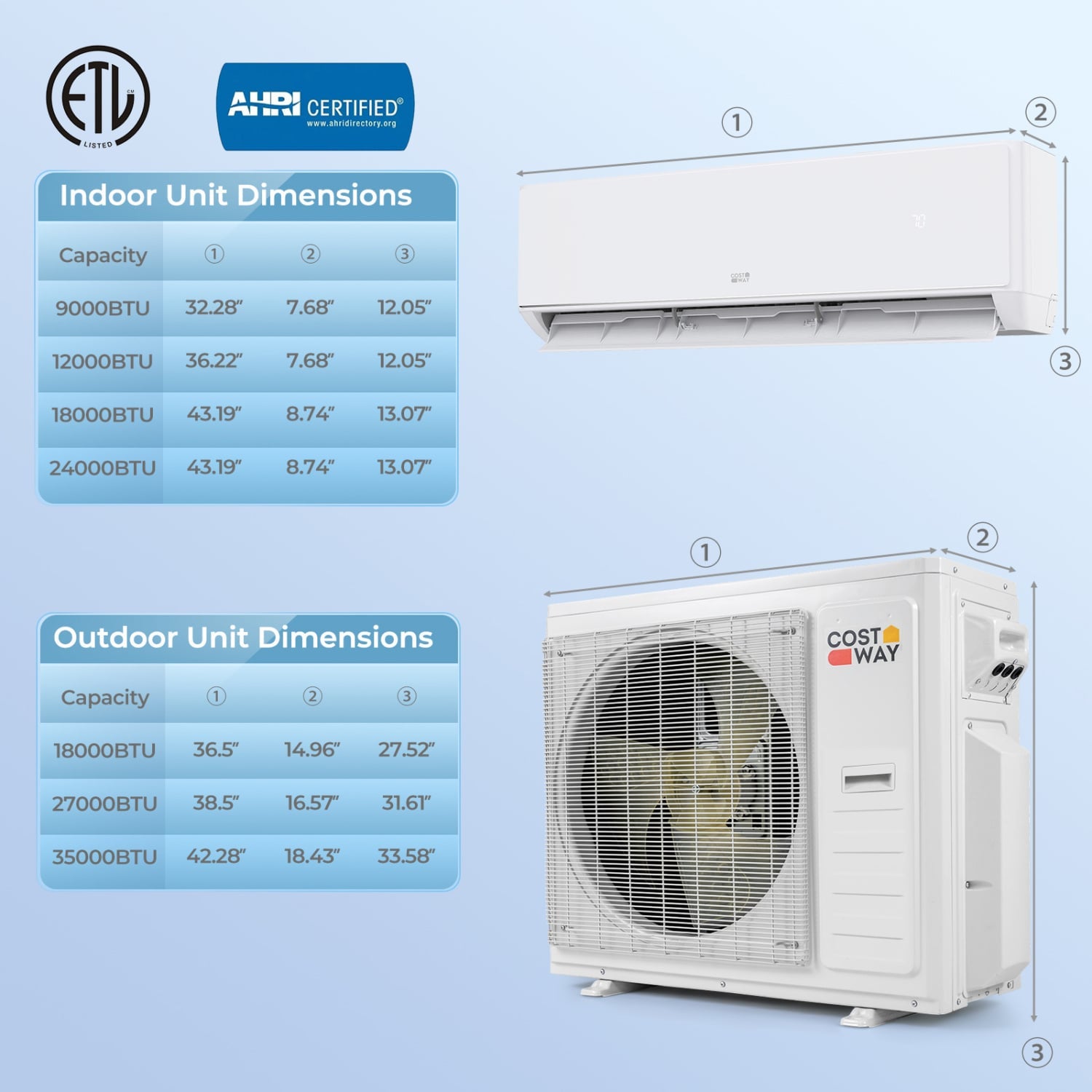

Weight & Dimensions:

• Indoor Unit Dimensions: 9K: 32.28" x 7.68" x 12.05" (82.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions: 12K: 36.22" x 7.68" x 12.05" (92.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions: 18K: 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions: 24K: 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions: 18K: 36.5" x 14.96" x 27.52" (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions: 27K: 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions: 35K: 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe-9K: 3/8" (0.95 cm).
• Diameter of Gas Pipe-12K: 3/8" (0.95 cm).
• Diameter of Gas Pipe-18K: 1/2" (1.27 cm).
• Diameter of Gas Pipe-24K: 5/8" (1.59 cm).
• Net Weight of 9K Indoor Unit: 20.7 lbs (9.4 kg).
• Net Weight of 12K Indoor Unit: 24.3 lbs (11.0 kg).
• Net Weight of 18K Indoor Unit: 30.9 lbs (14.0 kg).
• Net Weight of 24K Indoor Unit: 30.9 lbs (14.0 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42.0 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54.0 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66.0 kg).

Specifications:

• Colour: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 2.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 30 dB.
• Max Remote Control Distance: 39.5 ft (12.0 m).
• Coverage Area-9K: 450 Sq.Ft (41.8 m²).
• Coverage Area-12K: 750 Sq.Ft (69.7 m²).
• Coverage Area-18K: 1250 Sq.Ft (116.1 m²).
• Coverage Area-24K: 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity-9K: 55.8 Pints/Day (26.4 L/Day).
• Dehumidification Capacity-12K: 81.2 Pints/Day (38.4 L/Day).
• Dehumidification Capacity-18K: 111.6 Pints/Day (52.8 L/Day).
• Dehumidification Capacity-24K: 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume-9K: 326 CFM/554 m³/h.
• Maximum Air Flow Volume-12K: 500 CFM/554 m³/h.
• Maximum Air Flow Volume-18K: 735 CFM/554 m³/h.
• Maximum Air Flow Volume-24K: 735 CFM/554 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

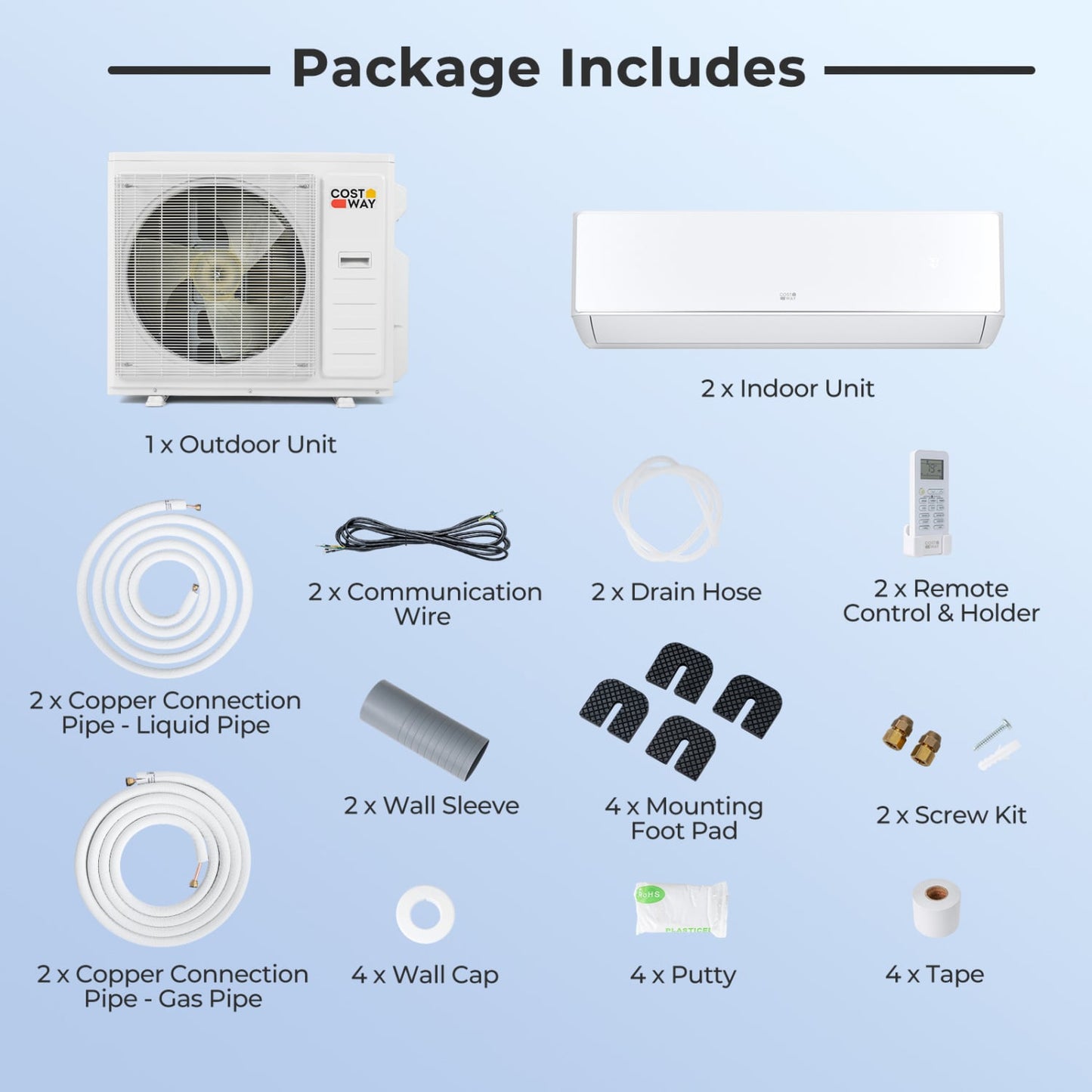

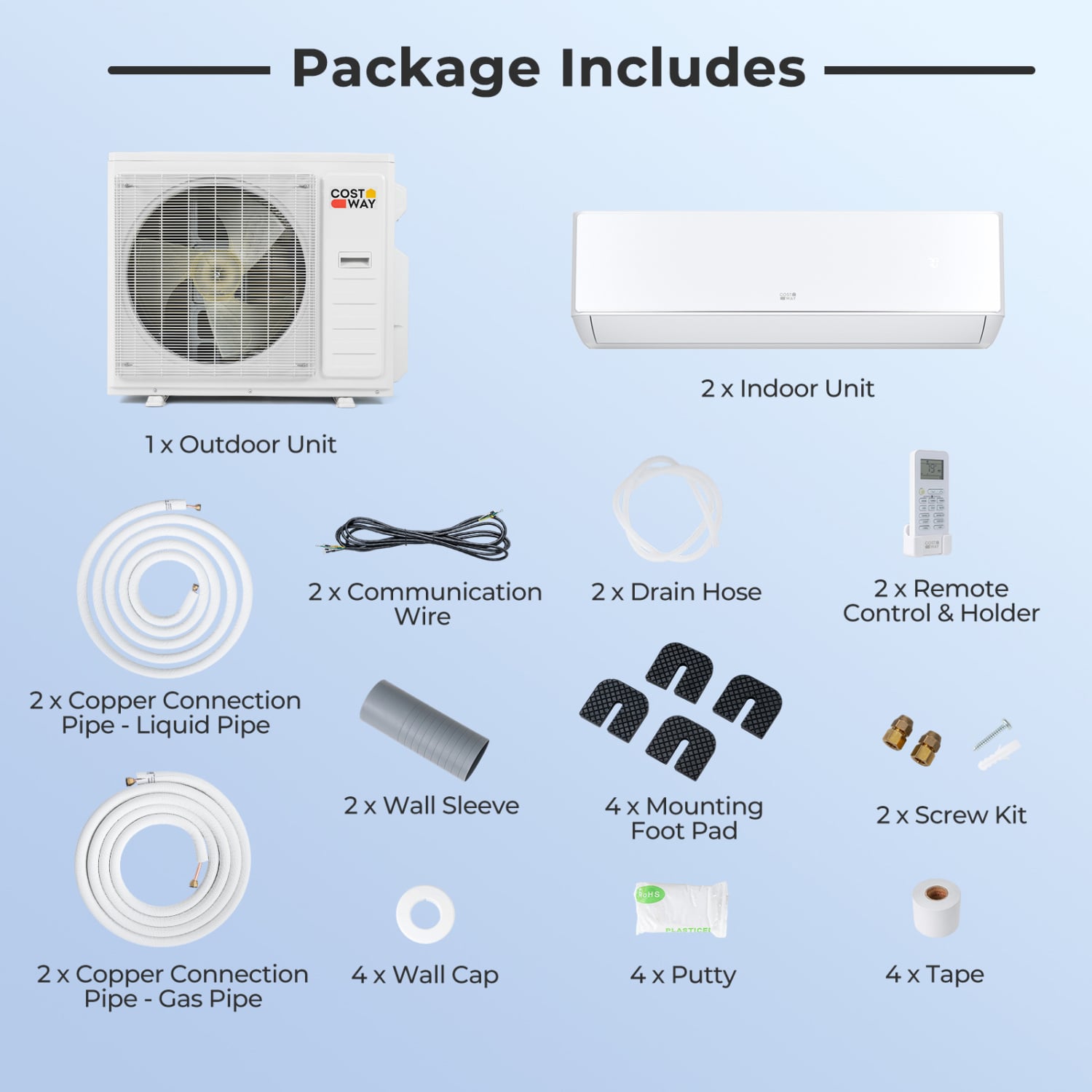

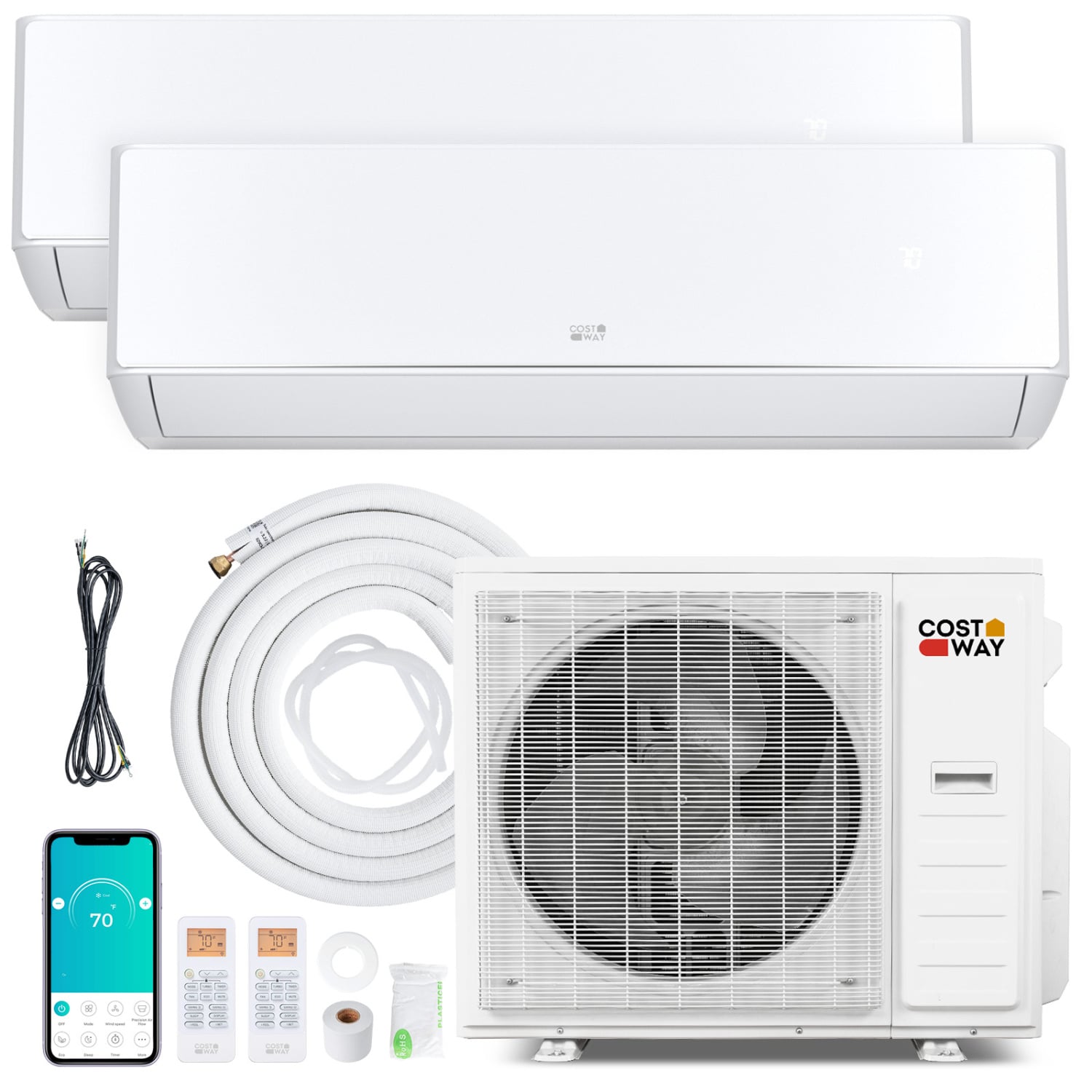

Package Includes:

• 1 x Outdoor Unit.
• 2 x Indoor Unit.
• 2 x Copper Connection Pipe - Gas Pipe.
• 2 x Copper Connection Pipe - Liquid Pipe.
• 2 x Communication Wire.
• 2 x Drain Hose.
• 2 x Remote Control & Holder.
• 2 x Wall Sleeve.
• 4 x Wall Cap.
• 4 x Tape.
• 4 x Putty.
• 2 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.

• Free standard shipping.
• Ships to most Canadian addresses, excluding YT, NT, and NU.
• Cut-off Time: 10:00 am Eastern Standard Time.
• Order Processing Time (prior to your order shipping): 1-2 business days (Monday - Friday).
• Delivery Time: 4-8 business days - depending on your location (Monday-Friday).
• Delivery times are estimates and not guaranteed.
• Most items ship from Canada. Some items may ship from the U.S., if the item is not available at the Canadian location.
• For larger orders, items may arrive in separate boxes and may not be part of the same shipment; delivery times may vary.
