X-Pro 35000 BTU 3 Zone 22.5 SEER2 Ceiling Cassette Mini Split AC, White

Experience efficient year-round comfort with this 3-zone 35,000 BTU ceiling cassette mini split AC system. Enjoy independent temperature control, inverter technology for energy savings, and smart app/voice operation in a sleek, space-saving design perfect for homes and offices.

Overview:

• Provides flexible cooling and heating for three separate areas with individual temperature control.
• Features a ceiling-mounted cassette design for a clean, built-in look and even 360° airflow distribution.
• Ideal for residential and light commercial use in spaces like homes, offices, meeting rooms, restaurants, and retail stores.
• Note: Professional installation is required for proper setup and operation.

Highlights:

• Independent temperature control across 3 zones for personalized comfort.
• Inverter technology delivers outstanding energy efficiency and stable temperature maintenance.
• Uses R454B refrigerant with a lower global warming potential for a more future-friendly approach.
• Operates year-round with 7 modes (auto, cool, heat, dry, fan, Eco, sleep) and 8 fan speeds.
• Control via app, voice commands, remote, or wall thermostat for ultimate convenience.
• Built-in chassis electrical heating prevents freezing in colder weather, allowing operation down to -25℃.
• Versatile application suitable for homes, offices, and various commercial spaces.
• Ceiling cassette design saves wall space and creates a seamless, built-in appearance.
• 360° airflow spreads conditioned air evenly throughout the room, minimizing hot and cold spots.
• 24-hour timer allows for scheduled temperature adjustments to match your daily routine.
• Self-clean function helps maintain fresher operation and supports long-term system performance.
• Whisper-quiet operation as low as 32 dB ensures peaceful environments for sleep and work.
• Child lock feature provides added safety and peace of mind for families.

Features:

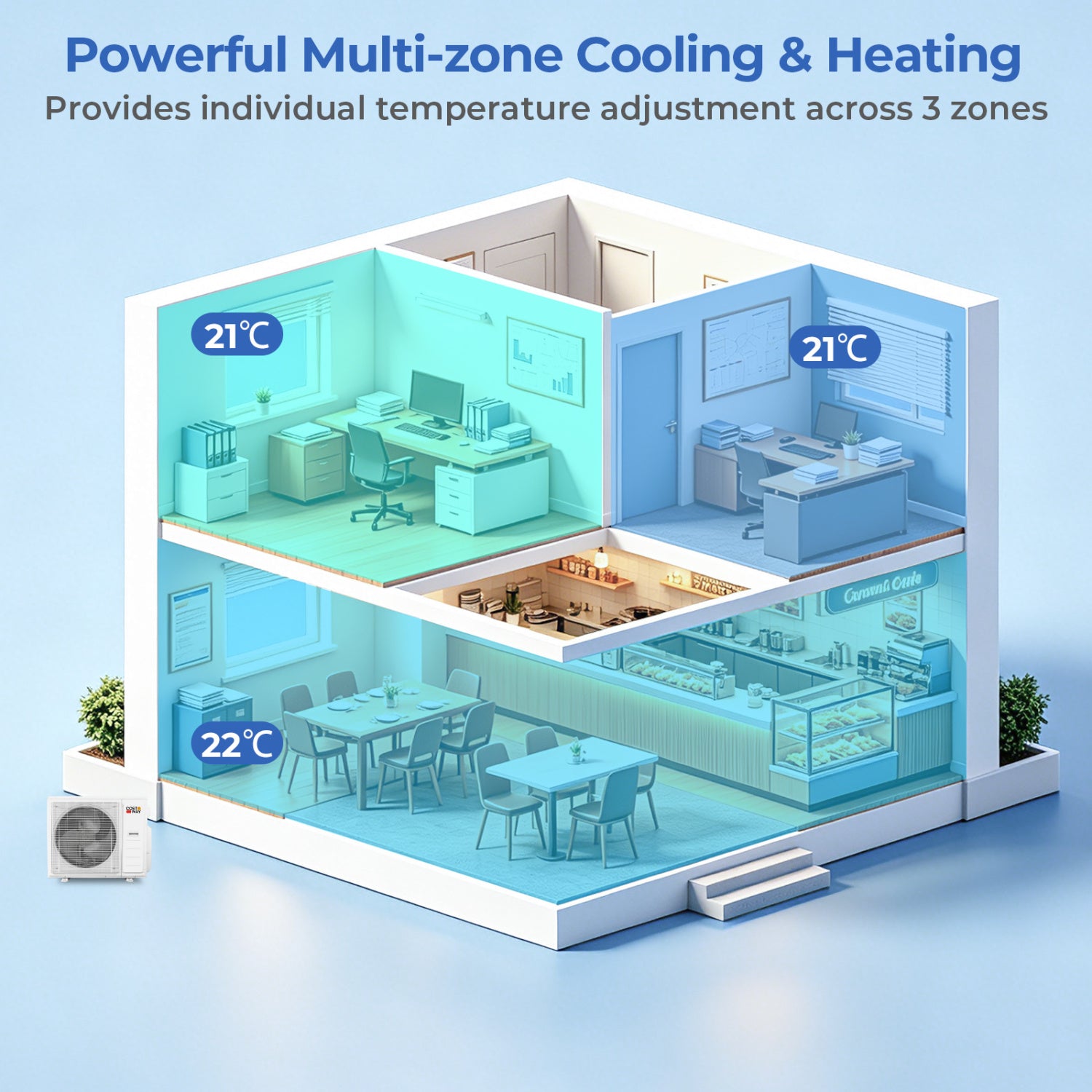

• Provides powerful multi-zone cooling and heating with individual temperature adjustment across 3 zones.
• Ceiling-mounted design saves valuable wall space while distributing air evenly.

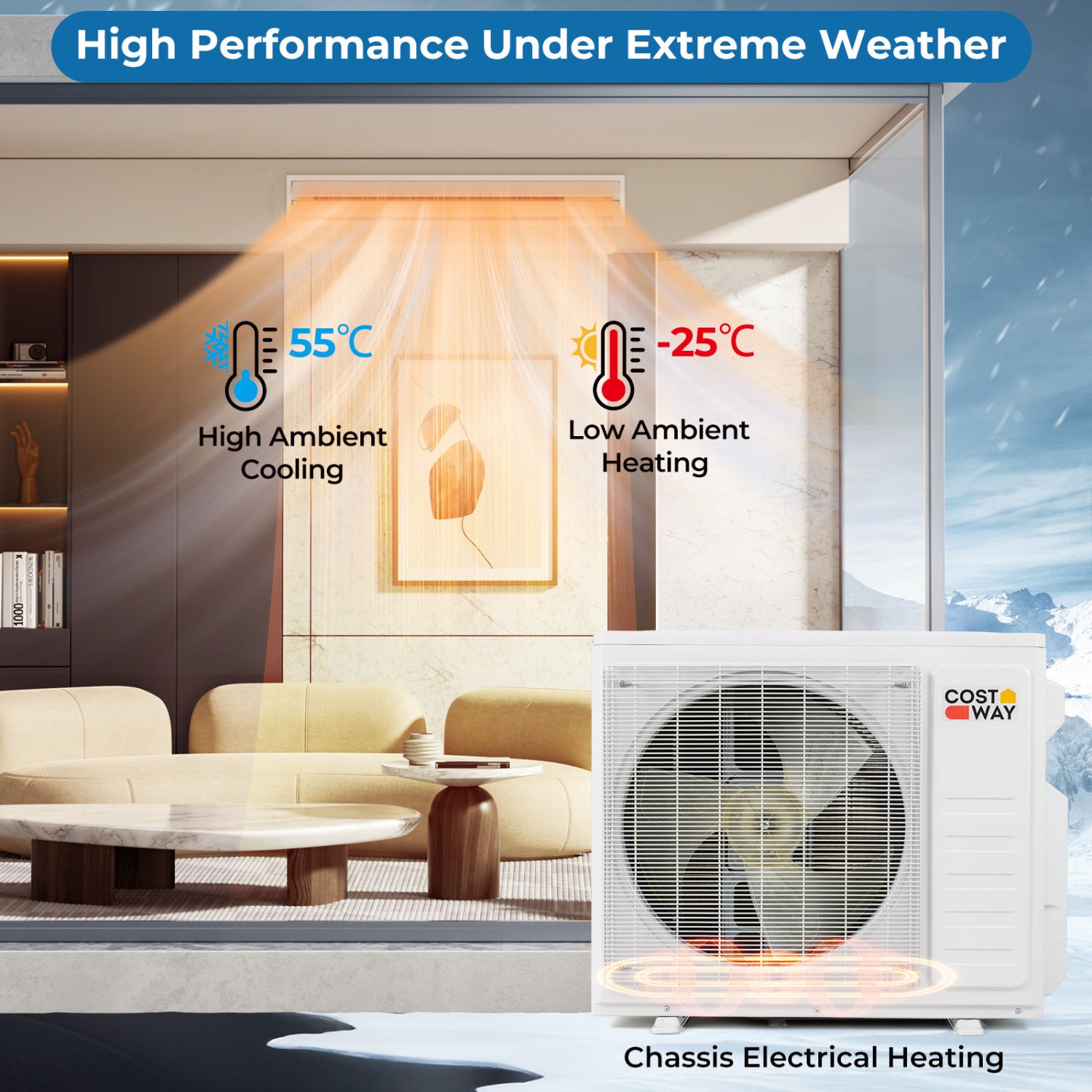

• Engineered for harsh conditions, cooling effectively at up to 55℃ and heating down to -25℃.
• Incorporates a built-in chassis electrical heating system to prevent freezing in cold weather.
• Rated at 22.5 SEER2 for lower energy consumption and reduced operating costs.
• Utilizes R454B refrigerant, which has a lower global warming potential.
• Features inverter technology to maintain stable temperatures efficiently.
• Wi-Fi enabled for smart app control and compatibility with voice commands.
• Supports remote control and wall thermostat operation for flexible adjustment.
• Offers 7 operating modes: auto, cool, heat, dry, fan, Eco, and sleep.
• Provides 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Includes a 24-hour timer for scheduling temperature changes.
• Operates quietly at noise levels as low as 32 dB.
• Delivers 360° airflow through an 8-way system for comprehensive room coverage.
• Features a self-clean function to help keep the interior fresh and maintain performance.
• Versatile for use in homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.

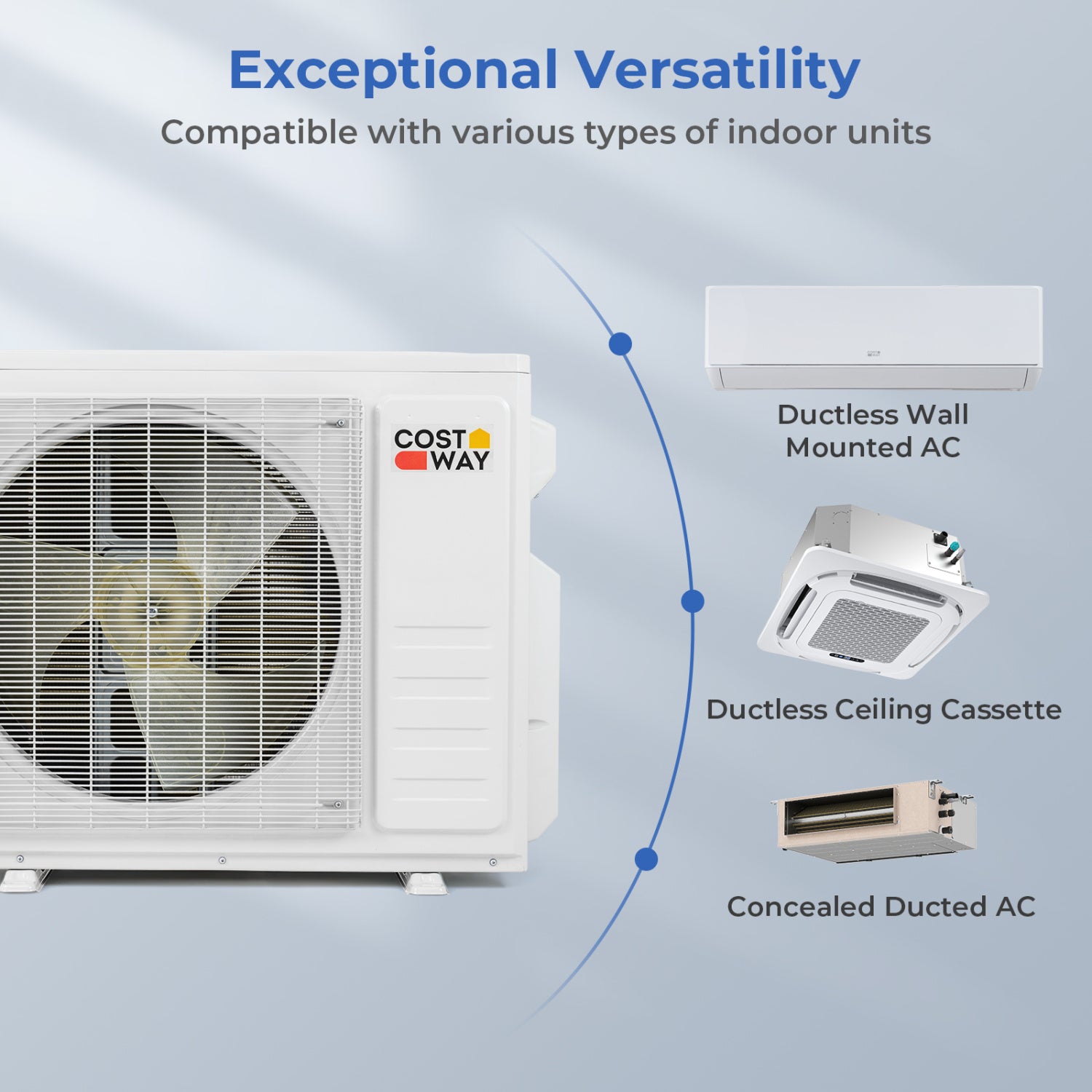

• Outdoor unit is compatible with various indoor unit types, including ductless wall-mounted, ductless ceiling cassette, and concealed ducted units.
• Note: Professional installation is required for safe and proper setup.

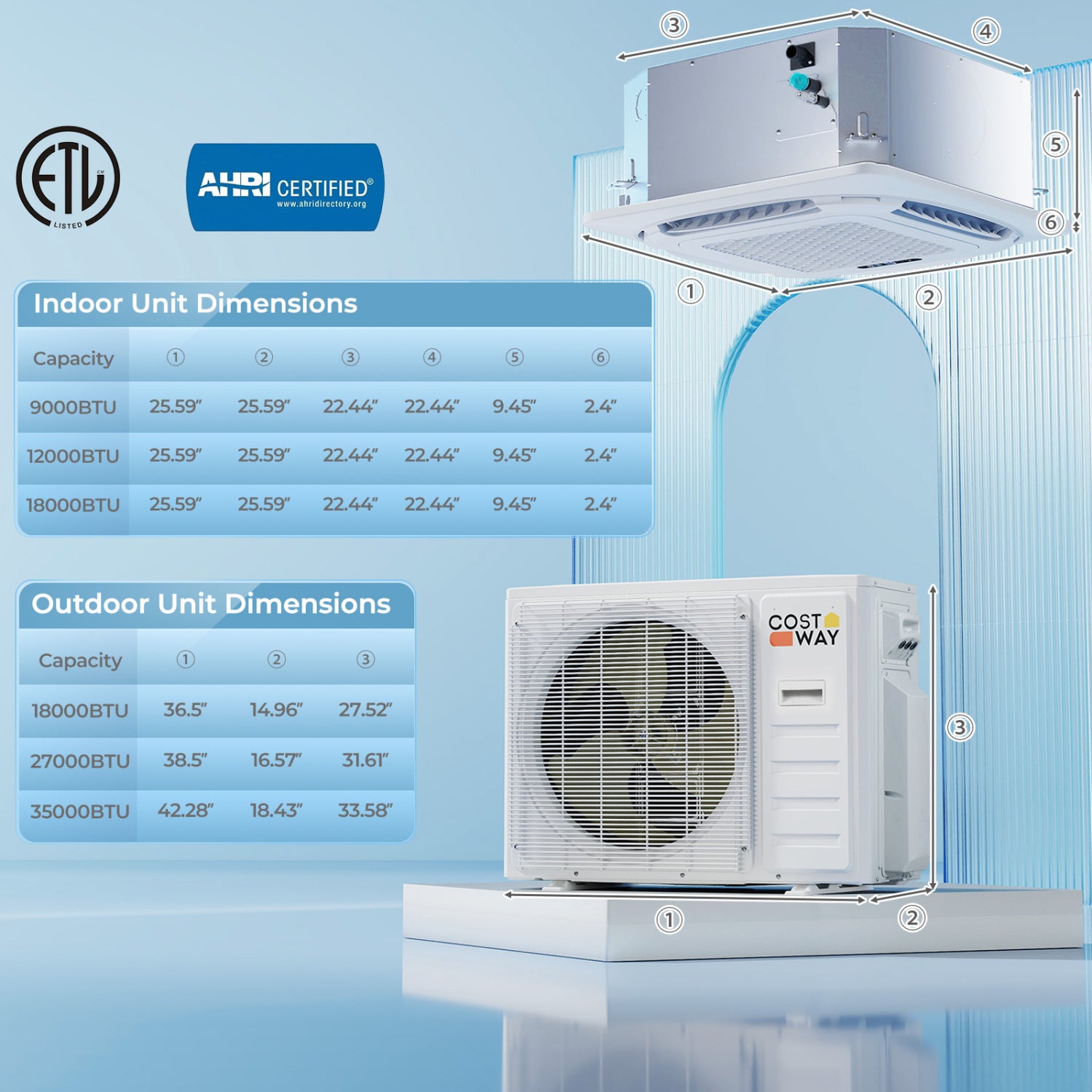

Weight & Dimensions:

• Indoor Unit (9K model): 25.59 inches long x 25.59 inches wide x 11.85 inches high (65.0 cm x 65.0 cm x 30.1 cm).
• Indoor Unit (12K model): 25.59 inches long x 25.59 inches wide x 11.85 inches high (65.0 cm x 65.0 cm x 30.1 cm).
• Indoor Unit (18K model): 25.59 inches long x 25.59 inches wide x 11.85 inches high (65.0 cm x 65.0 cm x 30.1 cm).
• Outdoor Unit (18K model): 36.5 inches long x 14.96 inches wide x 27.52 inches high (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit (27K model): 38.5 inches long x 16.57 inches wide x 31.61 inches high (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit (35K model): 42.28 inches long x 18.43 inches wide x 33.58 inches high (107.4 cm x 46.8 cm x 85.3 cm).
• Indoor Unit Net Weight (9K model): 31.9 pounds (14.5 kg).
• Indoor Unit Net Weight (12K model): 31.9 pounds (14.5 kg).
• Indoor Unit Net Weight (18K model): 31.9 pounds (14.5 kg).
• Outdoor Unit Net Weight (18K model): 92.6 pounds (42.0 kg).
• Outdoor Unit Net Weight (27K model): 119 pounds (54.0 kg).
• Outdoor Unit Net Weight (35K model): 145.5 pounds (66.0 kg).
• Liquid Pipe Diameter: 1/4 inch (0.64 cm).
• Gas Pipe Diameter (9K model): 3/8 inch (0.95 cm).
• Gas Pipe Diameter (12K model): 3/8 inch (0.95 cm).
• Gas Pipe Diameter (18K model): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Materials: Cold-rolled steel sheet, copper, and aluminum.
• Multi-zone combination: 3 zones.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature setting range: 16℃ to 31℃ (61°F to 88°F).
• Refrigerant type: R454B.
• Indoor unit noise level: 32 dB.
• Maximum remote control distance: 39.2 feet (11.95 meters).
• Coverage area for 9K model: 450 square feet (41.8 square meters).
• Coverage area for 12K model: 750 square feet (69.7 square meters).
• Coverage area for 18K model: 1250 square feet (116.1 square meters).
• Dehumidification capacity for 9K model: 55.8 pints per day (26.4 liters per day).
• Dehumidification capacity for 12K model: 81.2 pints per day (38.4 liters per day).
• Dehumidification capacity for 18K model: 111.6 pints per day (52.8 liters per day).
• Maximum air flow volume for 9K model: 194 CFM (329 m³/h).
• Maximum air flow volume for 12K model: 212 CFM (360 m³/h).
• Maximum air flow volume for 18K model: 260 CFM (441 m³/h).
• SEER2 rating for 18K model: 24.
• SEER2 rating for 27K model: 24.
• SEER2 rating for 35K model: 22.5.
• HSPF2 rating for 18K model: 10.5.
• HSPF2 rating for 27K model: 10.5.
• HSPF2 rating for 35K model: 10.

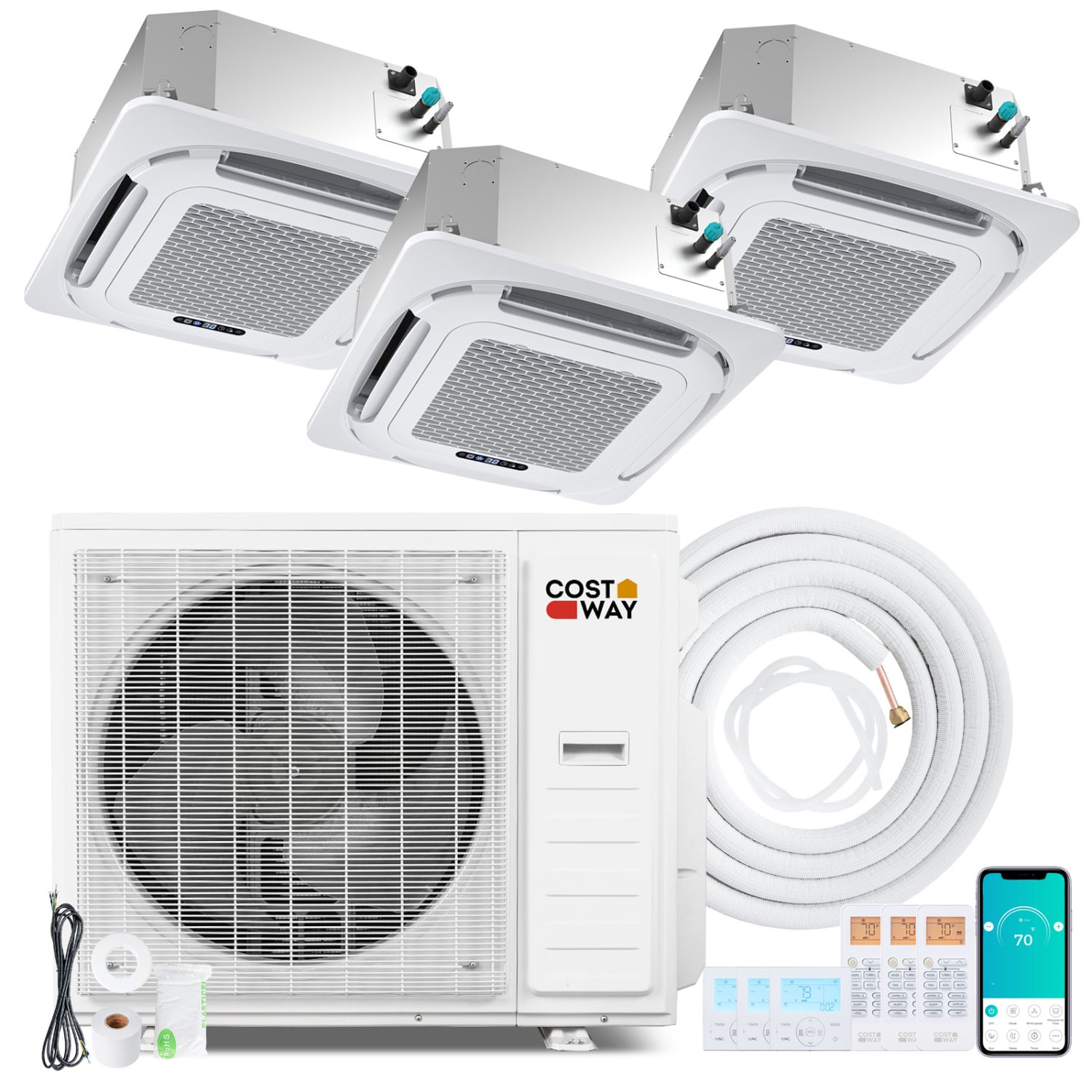

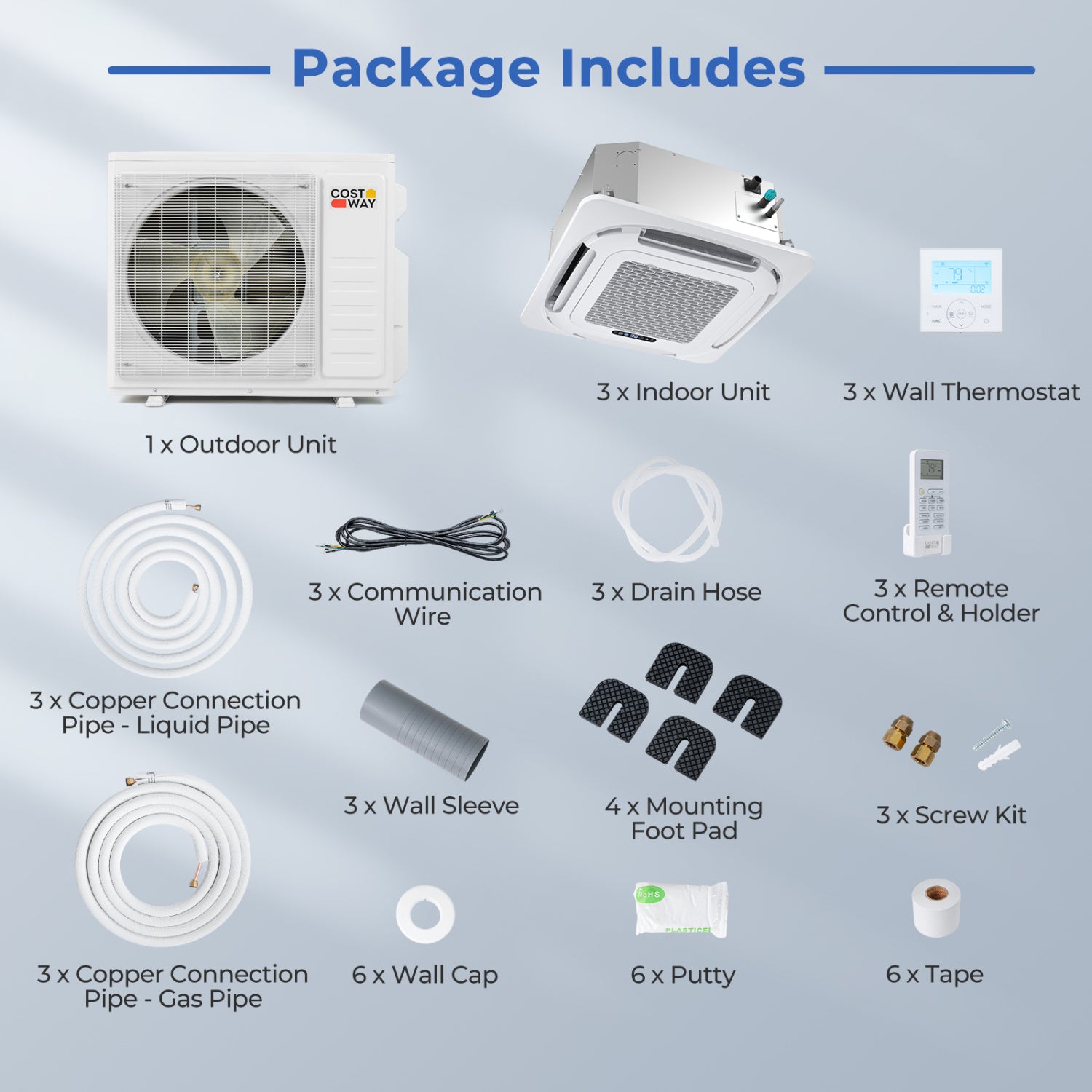

Package Includes:

• 1 x Outdoor unit.
• 3 x Indoor units.
• 3 x Copper connection pipes for gas lines.
• 3 x Copper connection pipes for liquid lines.
• 3 x Communication wires.
• 3 x Drain hoses.
• 3 x Remote controls with holders.
• 3 x Wall thermostats.
• 3 x Wall sleeves.
• 6 x Wall caps.
• 6 x Tapes.
• 6 x Putties.
• 3 x Screw kits.
• 4 x Mounting foot pads.
