X-Pro 35000 BTU 4 Zone 22.5 SEER2 Ceiling Cassette Mini Split, White

Overview:

• Provides flexible comfort with individual temperature control across 4 zones.
• Ideal for homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.
• Features a ceiling-mounted design for a clean, built-in look and even 360° airflow.
• Note: Professional installation is required.

Highlights:

• Independent temperature control in 4 areas for personalized comfort.
• Inverter technology ensures outstanding energy efficiency and stable temperatures.
• R454B refrigerant supports a more future-friendly approach with lower global warming potential.
• Stay comfortable year-round with 7 modes and 8 fan speeds.
• Control your comfort via app, voice, remote, or wall thermostat from anywhere.
• Chassis electrical heating prevents freezing in colder weather, operating down to -25℃.
• Versatile application for various spaces, creating a clean and built-in look.
• 360° airflow spreads air evenly across the room, reducing hot and cold spots.
• 24-hour timer for scheduled temperature changes and energy savings.
• Self-clean function supports fresher operation and long-term performance.
• Whisper quiet operation as low as 32 dB for peaceful sleep and focused work.
• Child lock adds peace of mind for families with enhanced safety.

Features:

• Powerful multi-zone cooling and heating with 35000 BTU capacity.
• Individual temperature adjustment across 4 zones for customized comfort.
• Ceiling-mounted design saves wall space and spreads air evenly.
• Engineered to work in harsh conditions, cooling at 55℃ and heating at -25℃.
• Built-in chassis electrical heating system prevents freezing in cold weather.
• Lower energy consumption with a 22.5 SEER2 rating for cost savings.
• Utilizes R454B refrigerant with lower global warming potential.
• Incorporates inverter technology to maintain stable temperatures efficiently.
• Smart control with Wi-Fi enabled for app and voice control.
• Remote and wall thermostat support for flexible operation.
• 7 modes: auto, cool, heat, dry, fan, Eco, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduled temperature changes.
• Quiet operation as low as 32 dB for minimal noise disruption.
• 8-way 360° airflow reaches more of the room for even temperature distribution.
• Self-clean function helps keep the interior fresher and supports performance.
• Wide use in various settings, from residential to light commercial.
• Outdoor unit compatible with ductless wall mounted, ceiling cassette, and concealed ducted indoor units.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59 inches x 25.59 inches x 11.85 inches (65.0 cm x 65.0 cm x 30.1 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches x 14.96 inches x 27.52 inches (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches x 16.57 inches x 31.61 inches (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches x 18.43 inches x 33.58 inches (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K, 12K, 18K): 31.9 pounds (14.5 kg).
• Net Weight of Outdoor Unit (18K): 92.6 pounds (42.0 kg).
• Net Weight of Outdoor Unit (27K): 119 pounds (54.0 kg).
• Net Weight of Outdoor Unit (35K): 145.5 pounds (66.0 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K, 12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2 inch (1.27 cm).

Specifications:

• Colour: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Multi Zone Combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃ to 31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 32 dB.
• Max Remote Control Distance: 39.2 feet (11.9 meters).
• Coverage Area (9K): 450 square feet (41.8 square meters).
• Coverage Area (12K): 750 square feet (69.7 square meters).
• Coverage Area (18K): 1250 square feet (116.1 square meters).
• Dehumidification Capacity (9K): 55.8 pints per day (26.4 liters per day).
• Dehumidification Capacity (12K): 81.2 pints per day (38.4 liters per day).
• Dehumidification Capacity (18K): 111.6 pints per day (52.8 liters per day).
• Maximum Air Flow Volume (9K): 194 CFM (329 m³/h).
• Maximum Air Flow Volume (12K): 212 CFM (360 m³/h).
• Maximum Air Flow Volume (18K): 260 CFM (441 m³/h).
• SEER2 Rating (18K): 24.
• SEER2 Rating (27K): 24.
• SEER2 Rating (35K): 22.5.
• HSPF2 Rating (18K): 10.5.
• HSPF2 Rating (27K): 10.5.
• HSPF2 Rating (35K): 10.

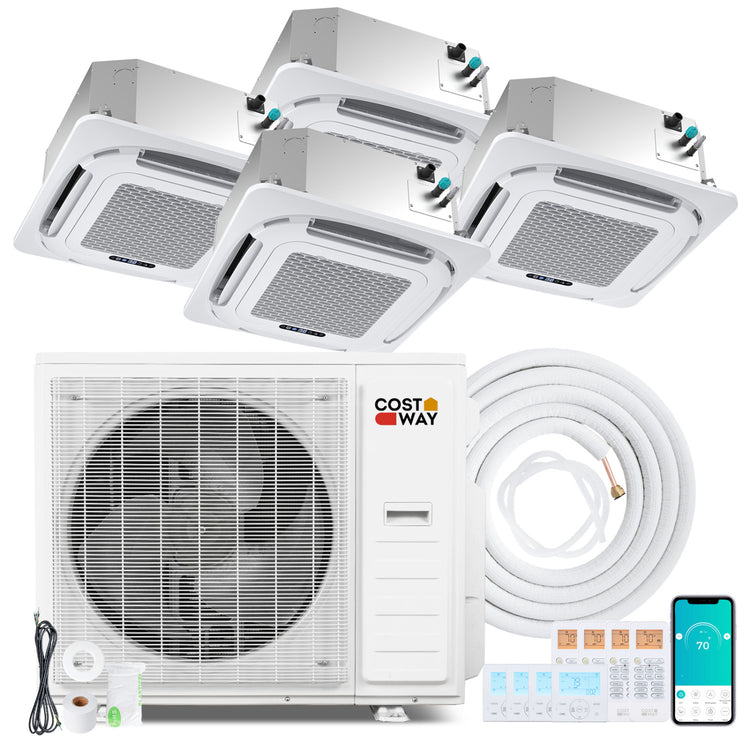

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 2 x Drain Hose.
• 4 x Remote Control & Holder.
• 4 x Wall Thermostat.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 9 x User Guide.
