20000 BTU 2 Zone Mini Split AC, 12K + 12K, 23 SEER2 Heat Pump

Experience year-round comfort with this 2 Zone 20000 BTU mini split air conditioner and heater, featuring 23 SEER2 efficiency, smart control via app or voice, and reliable operation from -13°F to 131°F for whole-home climate control.

Overview:

• Provides all-season comfort with powerful cooling and heating for two zones.
• Ideal for larger homes, offering room-by-room temperature control.
• Features advanced inverter technology and a high 23 SEER2 rating for energy savings.
• Designed for reliable performance in extreme weather conditions.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 2 zones.
• 23 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice commands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

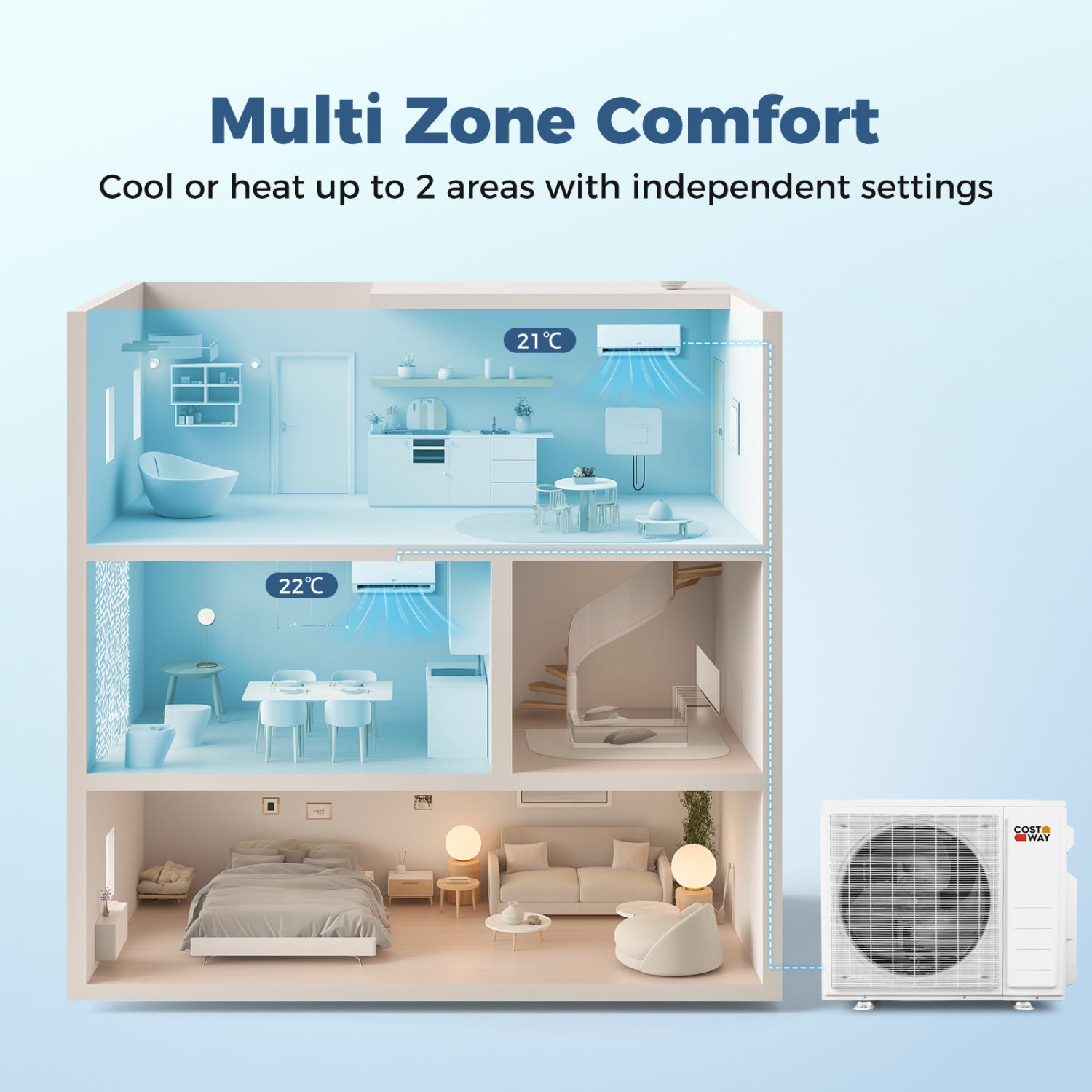

• Multi-zone comfort with 2-zone design for room-by-room temperature control.
• Gentle airflow with 4D swing for even distribution and golf ball dimples design to prevent direct blowing.

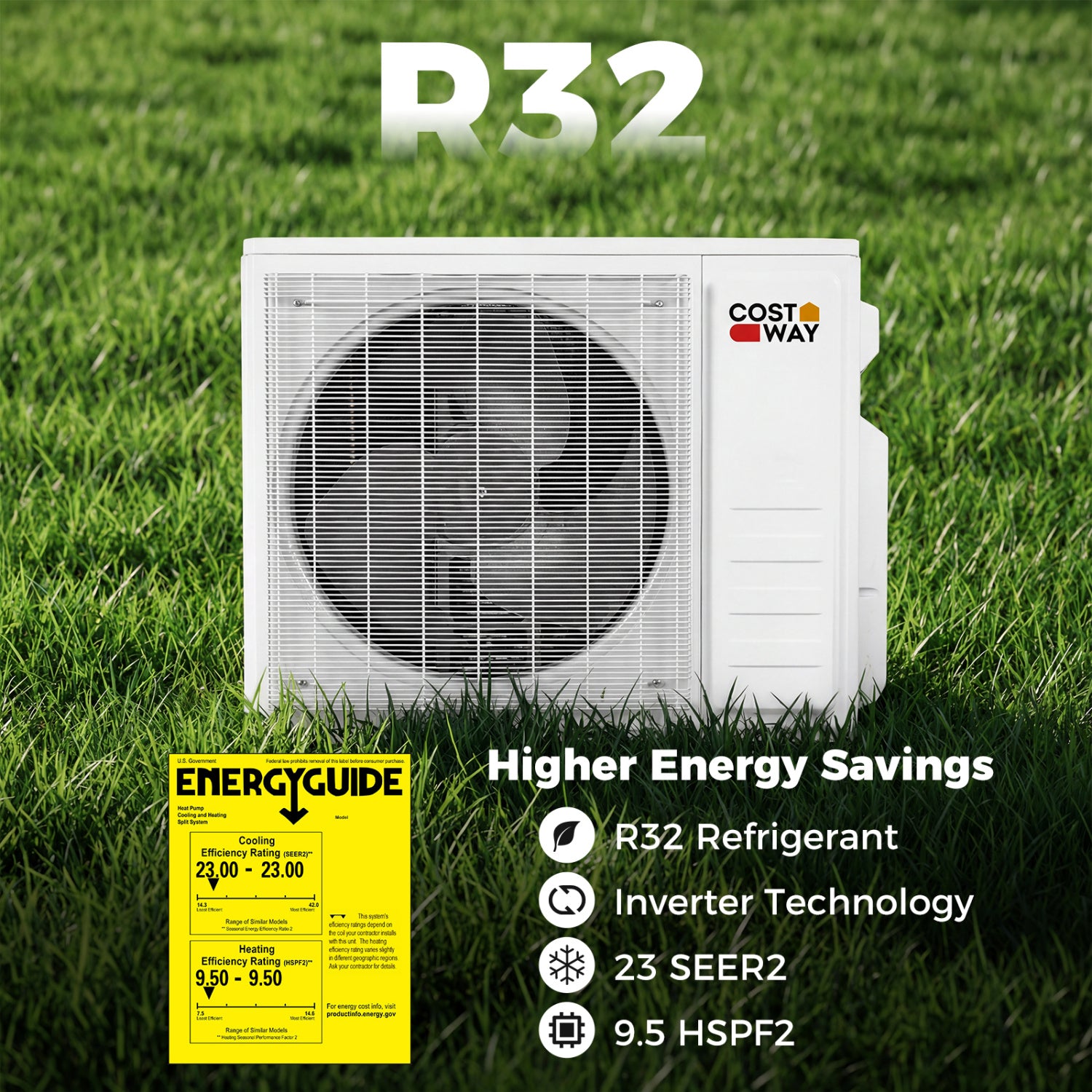

• Higher energy savings with 23 SEER2 rating and advanced inverter technology.

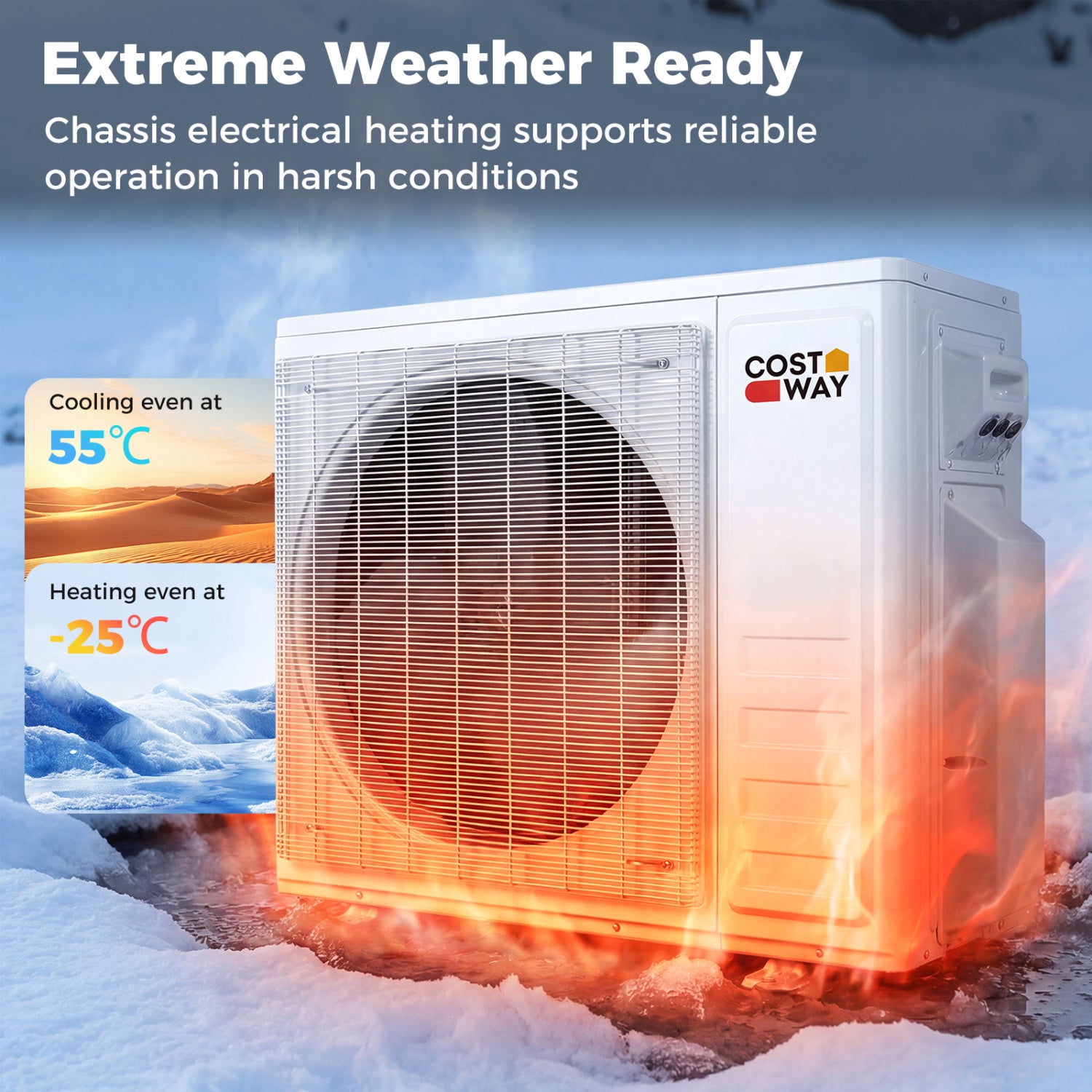

• Extreme weather ready, cooling up to 131°F and heating down to -13°F with chassis electrical heating.
• Smart control via WiFi, compatible with Alexa and Google Assistant, plus remote control.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduling and energy efficiency.
• Low noise operation as low as 28 dB for a peaceful environment.
• Easy maintenance with self-clean function and washable filters.
• Child lock feature to prevent accidental changes.
• Note: Professional licensed HVAC technician installation is recommended.

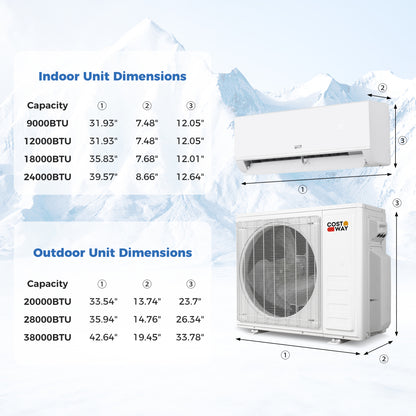

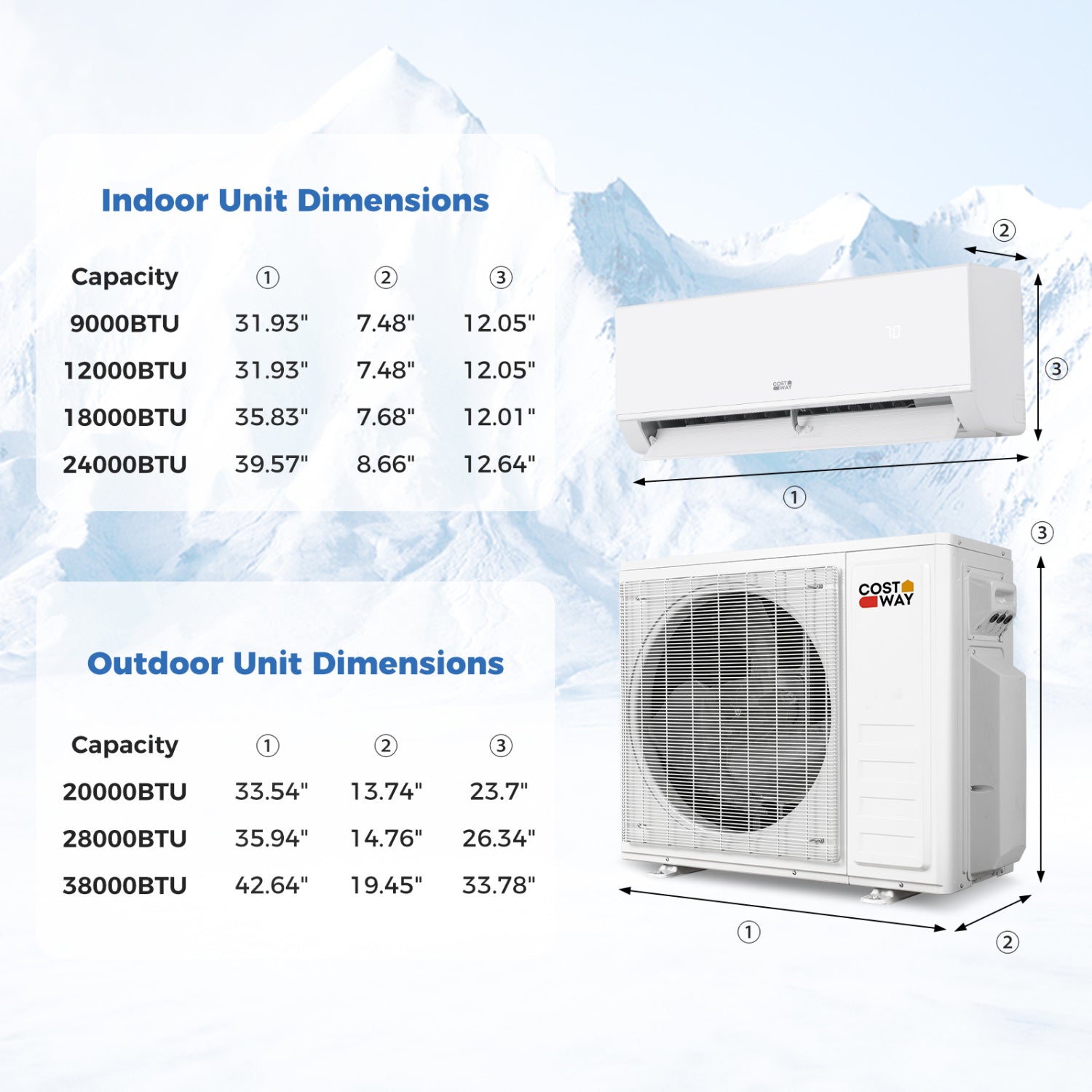

Weight & Dimensions:

• Indoor Unit Dimensions (9K and 12K): 31.93 inches x 7.48 inches x 12.05 inches (81.10 cm x 19.00 cm x 30.61 cm).
• Indoor Unit Dimensions (18K): 35.83 inches x 7.68 inches x 12.01 inches (91.01 cm x 19.51 cm x 30.51 cm).
• Indoor Unit Dimensions (24K): 39.57 inches x 8.66 inches x 12.64 inches (100.51 cm x 22.00 cm x 32.11 cm).
• Outdoor Unit Dimensions (20K): 33.54 inches x 13.74 inches x 23.7 inches (85.19 cm x 34.90 cm x 60.20 cm).
• Outdoor Unit Dimensions (28K): 35.94 inches x 14.76 inches x 26.34 inches (91.29 cm x 37.49 cm x 66.90 cm).
• Outdoor Unit Dimensions (35K): 42.64 inches x 19.45 inches x 33.78 inches (108.31 cm x 49.40 cm x 85.80 cm).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K, 12K, 18K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 2.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature Setting Range: 60°F to 88°F (15.6°C to 31.1°C).
• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet (12.04 meters).
• Coverage Area (9K): 450 square feet (41.81 square meters).
• Coverage Area (12K): 750 square feet (69.68 square meters).
• Coverage Area (18K): 1250 square feet (116.13 square meters).
• Coverage Area (24K): 1500 square feet (139.35 square meters).
• Dehumidification Capacity (9K): 66 pints per day (31.23 liters per day).
• Dehumidification Capacity (12K): 81.2 pints per day (38.43 liters per day).
• Dehumidification Capacity (18K): 111.6 pints per day (52.82 liters per day).
• Dehumidification Capacity (24K): 131.9 pints per day (62.42 liters per day).
• Maximum Air Flow Volume (9K): 335 CFM (554 m³/h).
• Maximum Air Flow Volume (12K): 342 CFM (554 m³/h).
• Maximum Air Flow Volume (18K): 617 CFM (554 m³/h).
• Maximum Air Flow Volume (24K): 847 CFM (554 m³/h).
• 20K SEER2: 23.
• 28K SEER2: 20.
• 38K SEER2: 20.
• 20K HSPF2: 9.5.
• 28K HSPF2: 9.5.
• 38K HSPF2: 9.5.

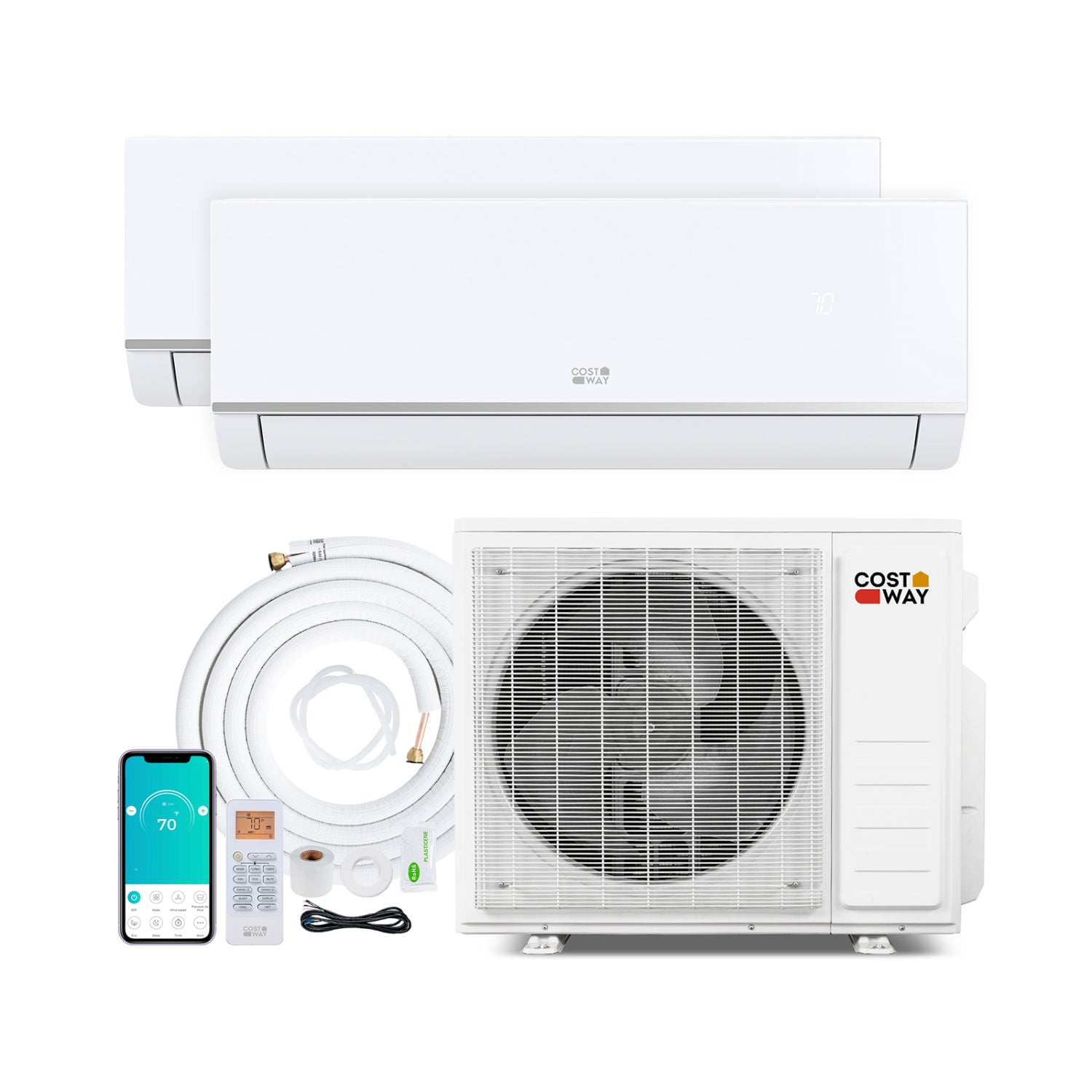

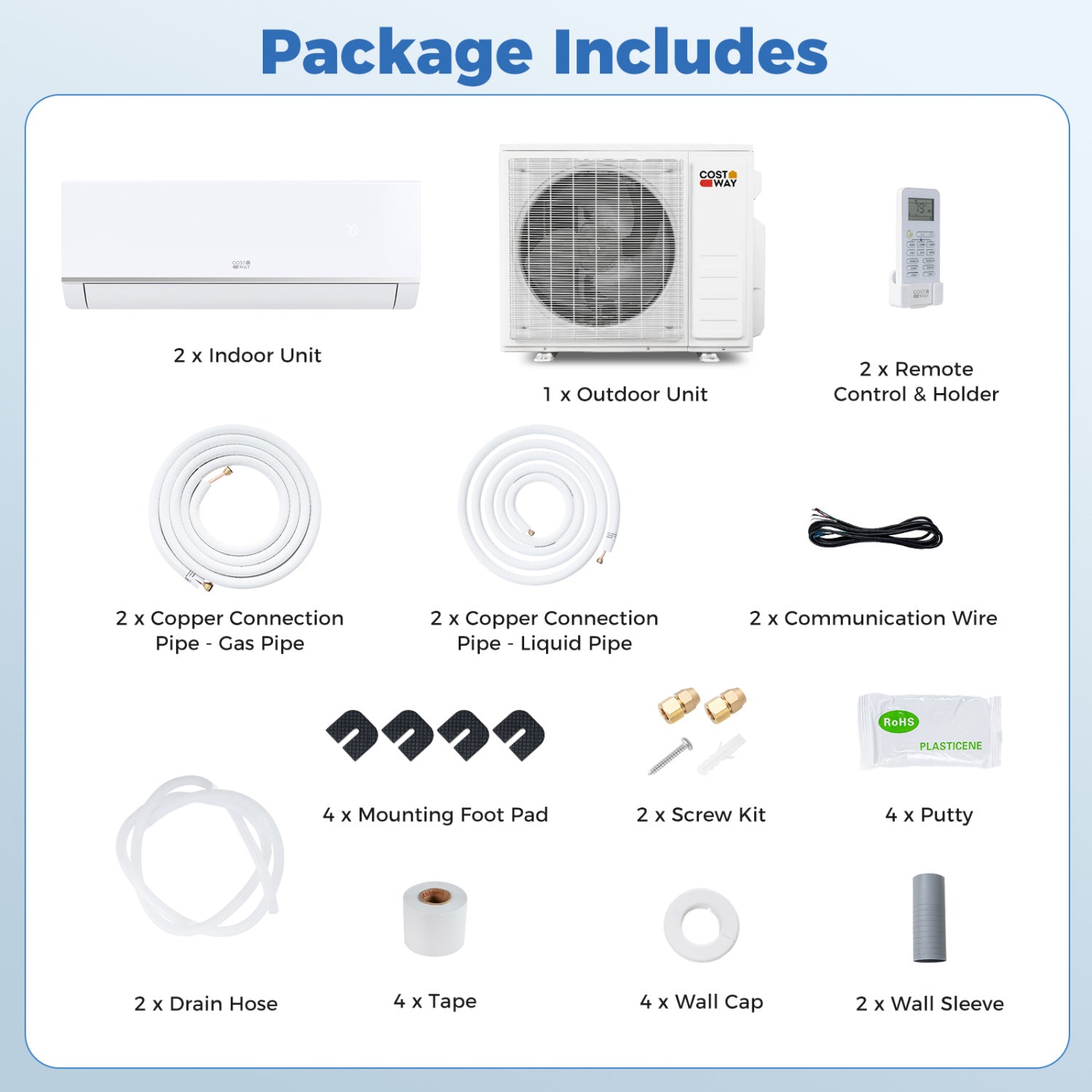

Package Includes:

• 1 x Outdoor Unit.
• 2 x Indoor Unit.
• 2 x Copper Connection Pipe - Gas Pipe.
• 2 x Copper Connection Pipe - Liquid Pipe.
• 2 x Communication Wire.
• 2 x Drain Hose.
• 2 x Remote Control and Holder.
• 2 x Wall Sleeve.
• 4 x Wall Cap.
• 4 x Tape.
• 4 x Putty.
• 2 x Screw Kit.
• 4 x Mounting Foot Pad.
• 4 x User Guide.

Package Quantity: 4 boxes.
