Mini Split AC, 20000 BTU, 2 Zone, 23 SEER2, Heat Pump, 9K + 12K

Experience year-round comfort with this 2 Zone 20000 BTU mini split air conditioner and heater, featuring 23 SEER2 efficiency, smart controls, and quiet operation for whole-home climate control.

Overview:

• Provides powerful cooling and heating for two zones, ideal for larger homes.
• Uses inverter technology and a high SEER2 rating for energy savings and stable temperatures.
• Offers smart control via app, remote, or voice commands with multiple operating modes.
• Designed for low noise and easy maintenance with self-clean and washable filters.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Whole-home cooling and heating for 2 zones with 20000 BTU capacity.
• 23 SEER2 rating and inverter technology for high energy efficiency.
• Outdoor unit with chassis heating for reliable operation in extreme weather.
• 7 operating modes and 8 fan speeds for customizable comfort.
• Smart control via phone, remote, or voice commands with Alexa and Google Assistant.
• 24-hour timer for easy daily use and energy saving.
• Low noise operation as quiet as 28 dB for a peaceful environment.
• Self-clean function and removable, washable filters for easy maintenance.
• Child lock to prevent accidental setting changes.
• 4D auto swing for even air distribution and gentle airflow.

Features:

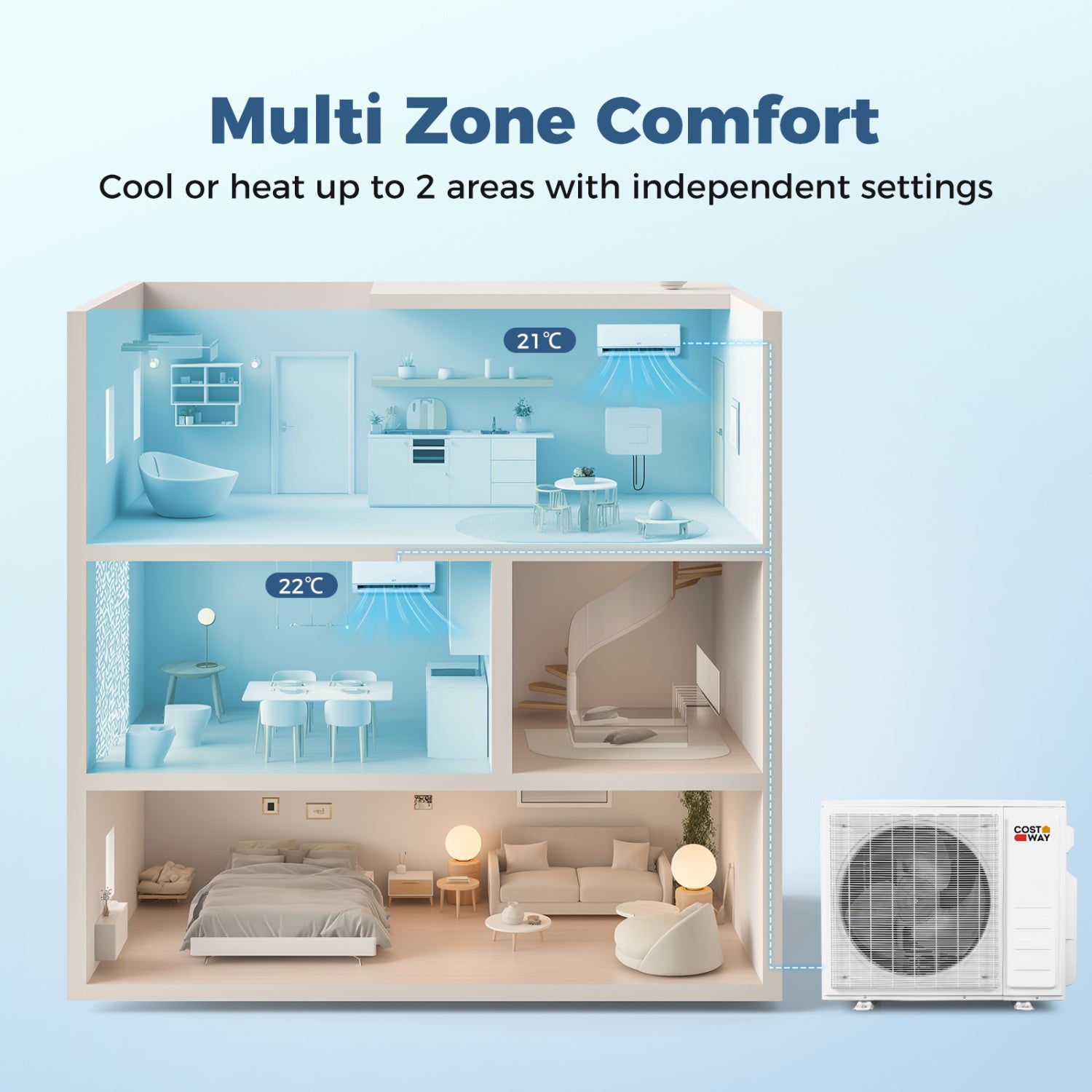

• 2 zone mini split system for room-by-room comfort in larger homes.
• Dual/tri/quad zone design allows tailored temperatures.
• 4D swing spreads air evenly for improved distribution.

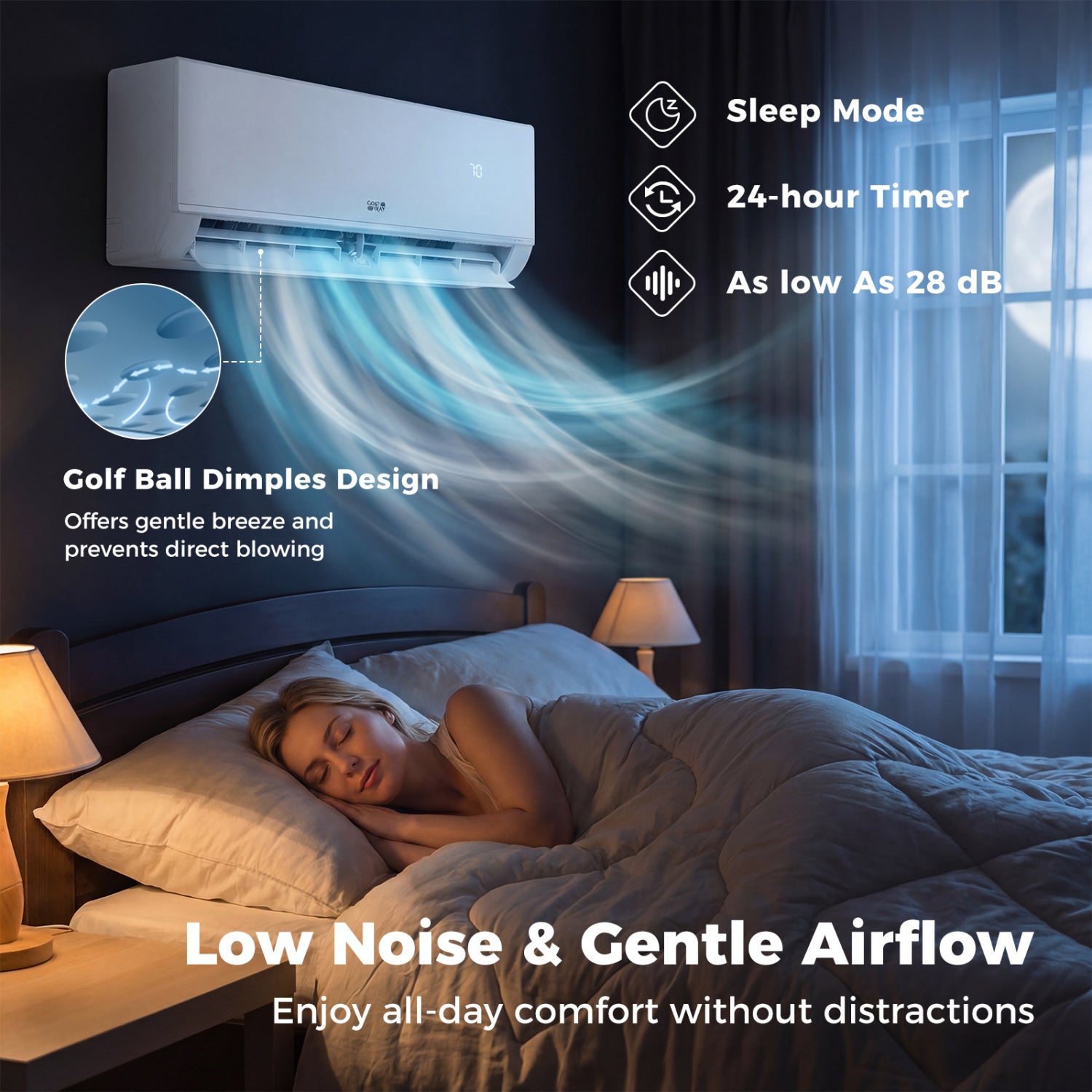

• Golf ball dimples design provides a gentle breeze and prevents direct blowing.

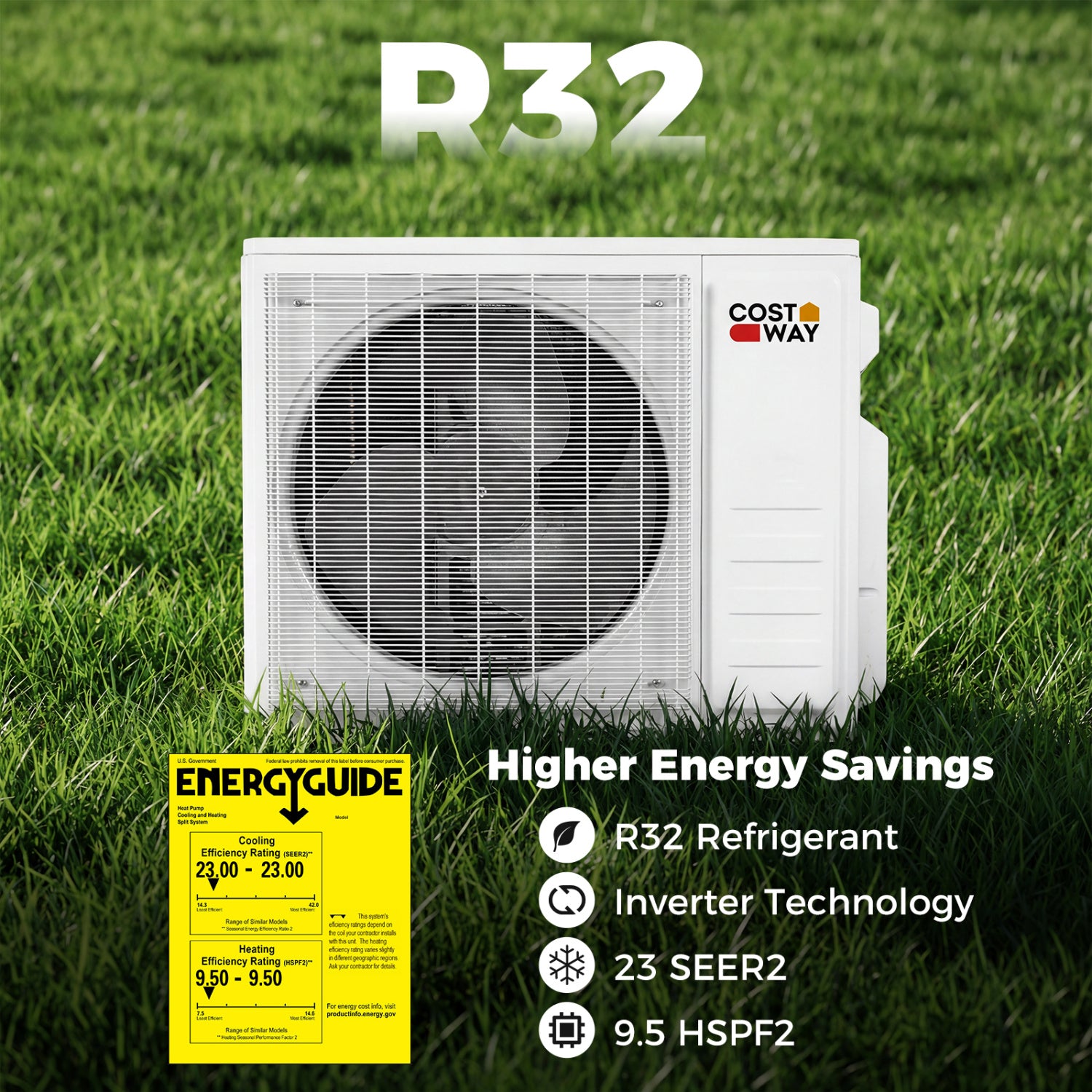

• 23 SEER2 rating ensures powerful heating and cooling with energy-smart control.
• Advanced inverter technology reduces energy waste and maintains stable temperatures.

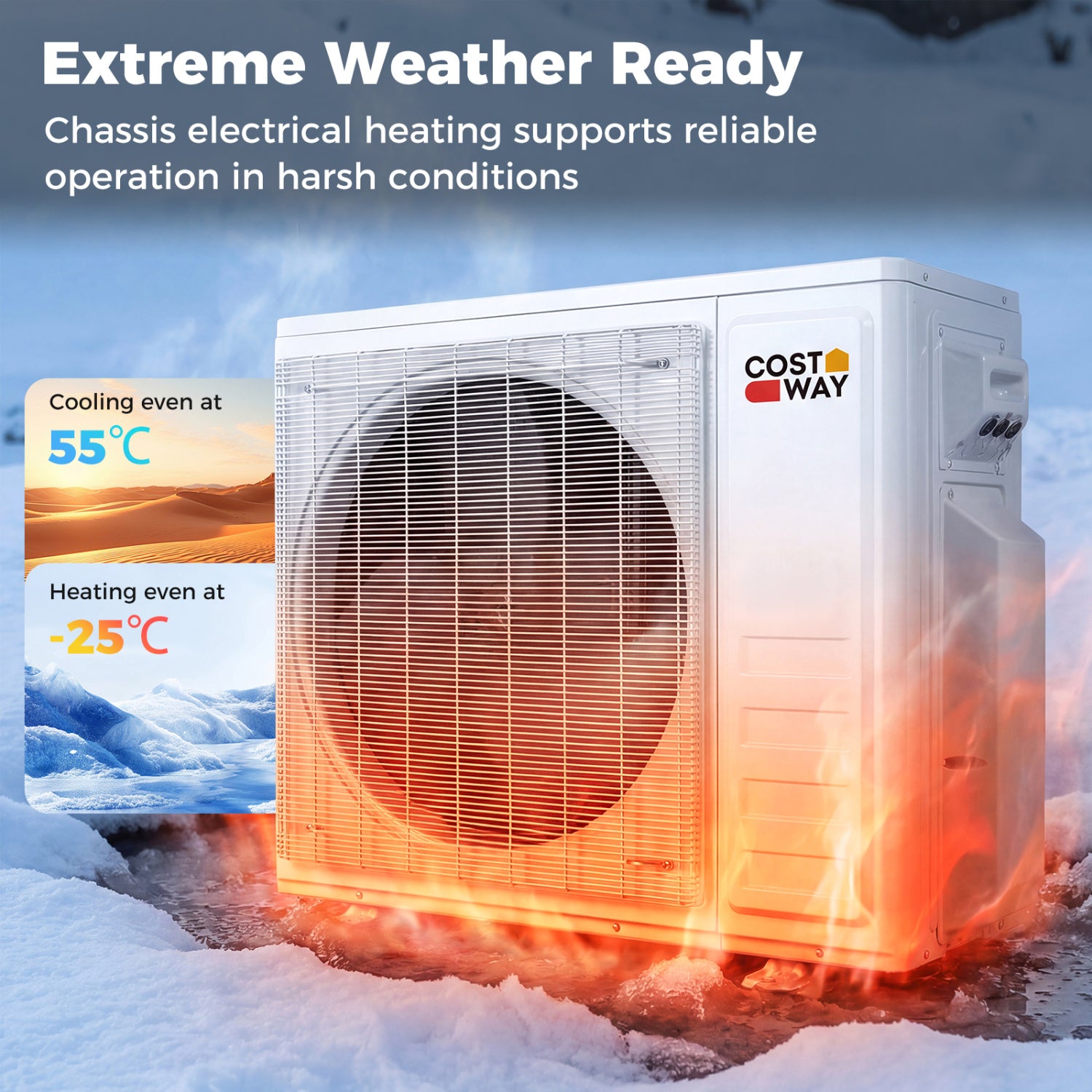

• Outdoor unit equipped with chassis electrical heating for reliable operation.
• Operates in harsh conditions, cooling up to 131℉ and heating down to -13℉.
• Wi-Fi enabled for smart control with Alexa and Google Assistant.
• Includes remote control for quick access.

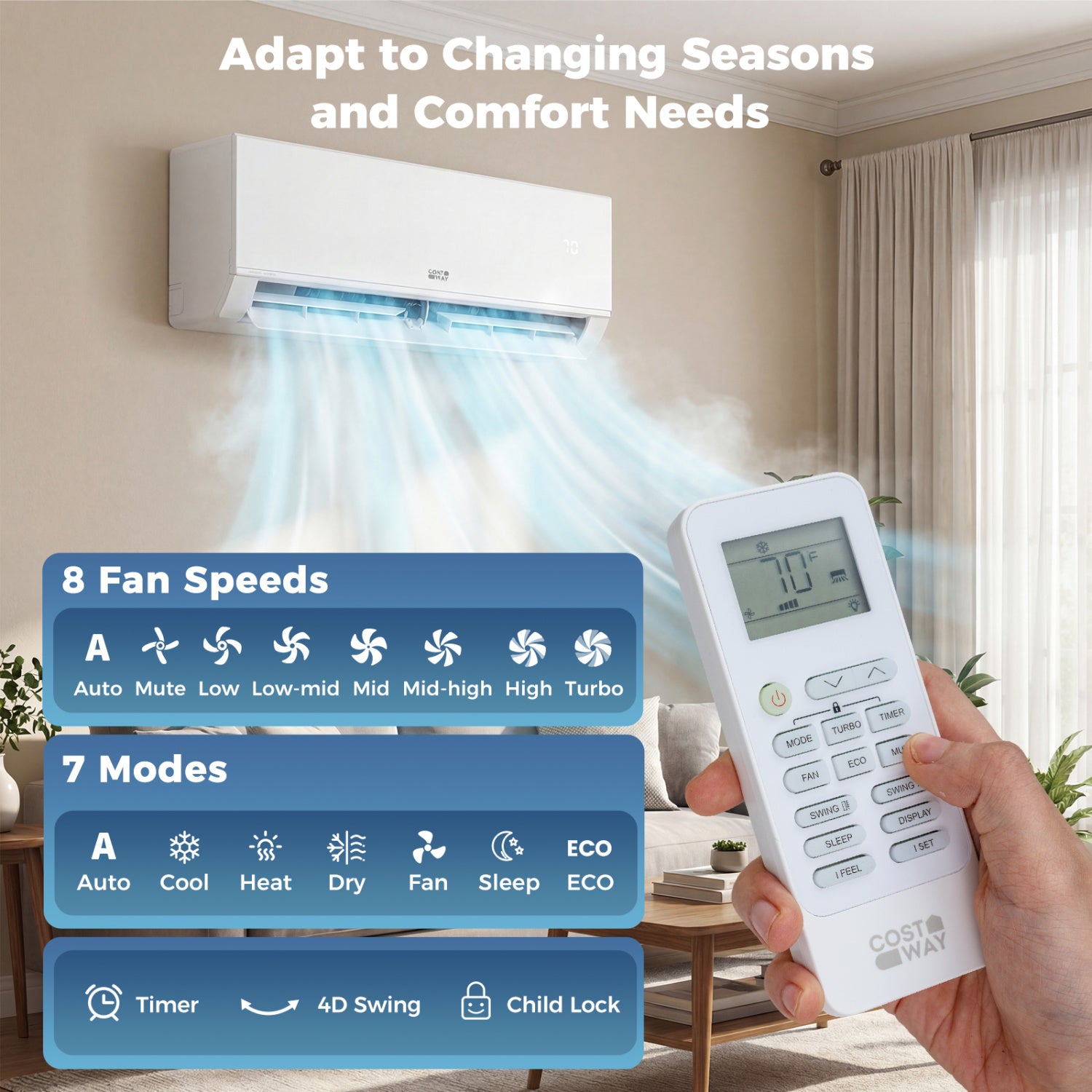

• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduling and energy saving.
• Child lock feature to prevent accidental changes.
• Low noise operation with indoor unit noise as low as 28 dB.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Note: Professional licensed HVAC technician installation is recommended.

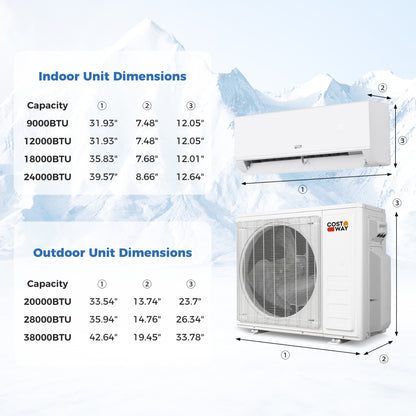

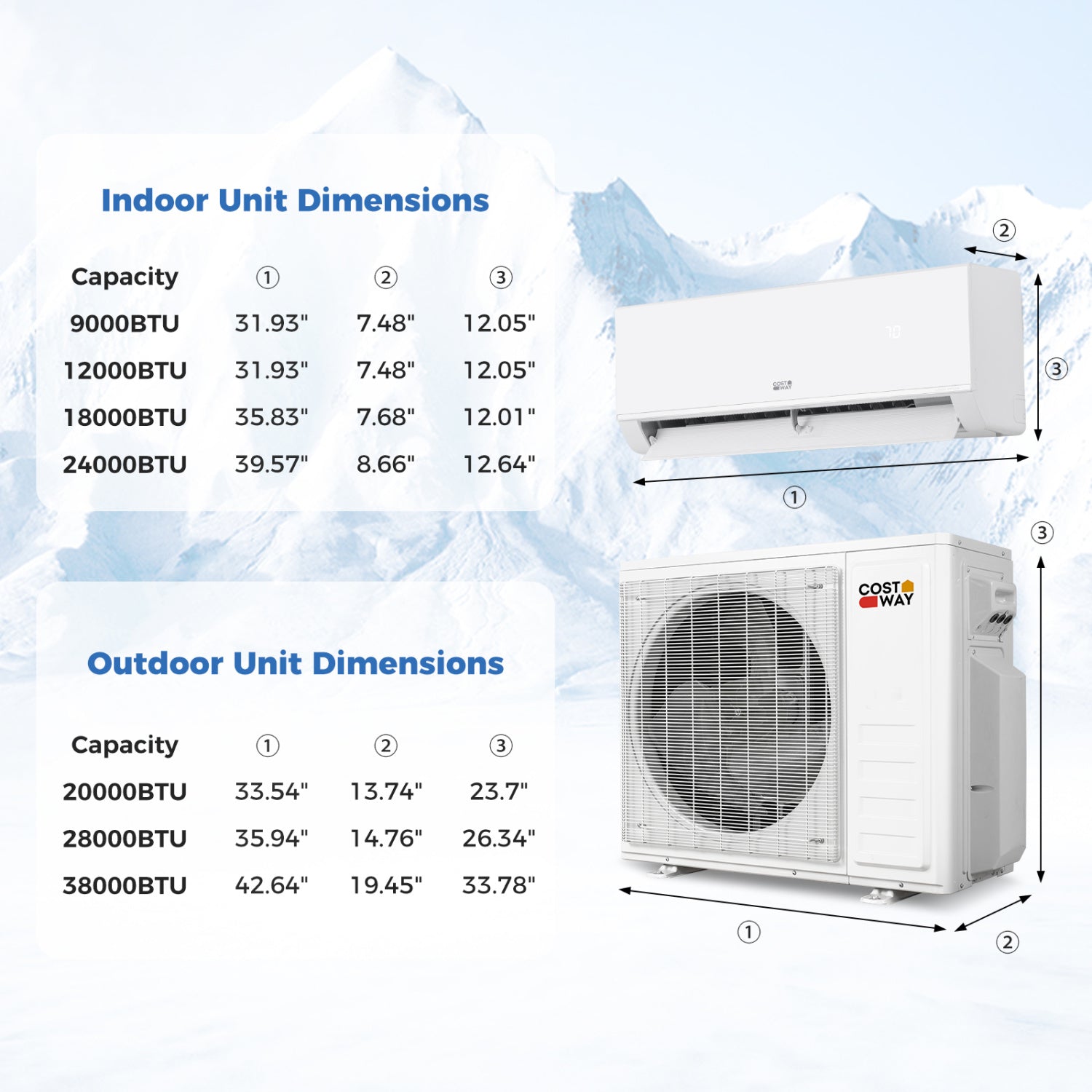

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 35.83 inches x 7.68 inches x 12.01 inches (91.0 cm x 19.5 cm x 30.5 cm).
• Indoor Unit Dimensions (24K): 39.57 inches x 8.66 inches x 12.64 inches (100.5 cm x 22.0 cm x 32.1 cm).
• Outdoor Unit Dimensions (20K): 33.54 inches x 13.74 inches x 23.7 inches (85.2 cm x 34.9 cm x 60.2 cm).
• Outdoor Unit Dimensions (28K): 35.94 inches x 14.76 inches x 26.34 inches (91.3 cm x 37.5 cm x 66.9 cm).
• Outdoor Unit Dimensions (35K): 42.64 inches x 19.45 inches x 33.78 inches (108.3 cm x 49.4 cm x 85.8 cm).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 2.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature Setting Range: 60℉ to 88℉ (16℃ to 31℃).
• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet (12.0 meters).
• Coverage Area (9K): 450 square feet (41.8 square meters).
• Coverage Area (12K): 750 square feet (69.7 square meters).
• Coverage Area (18K): 1250 square feet (116.1 square meters).
• Coverage Area (24K): 1500 square feet (139.4 square meters).
• Dehumidification Capacity (9K): 66 pints per day (31.2 liters per day).
• Dehumidification Capacity (12K): 81.2 pints per day (38.4 liters per day).
• Dehumidification Capacity (18K): 111.6 pints per day (52.8 liters per day).
• Dehumidification Capacity (24K): 131.9 pints per day (62.4 liters per day).
• Maximum Air Flow Volume (9K): 335 CFM / 554 m³/h.
• Maximum Air Flow Volume (12K): 342 CFM / 554 m³/h.
• Maximum Air Flow Volume (18K): 617 CFM / 554 m³/h.
• Maximum Air Flow Volume (24K): 847 CFM / 554 m³/h.
• 20K SEER2: 23.
• 28K SEER2: 20.
• 38K SEER2: 20.
• 20K HSPF2: 9.5.
• 28K HSPF2: 9.5.
• 38K HSPF2: 9.5.

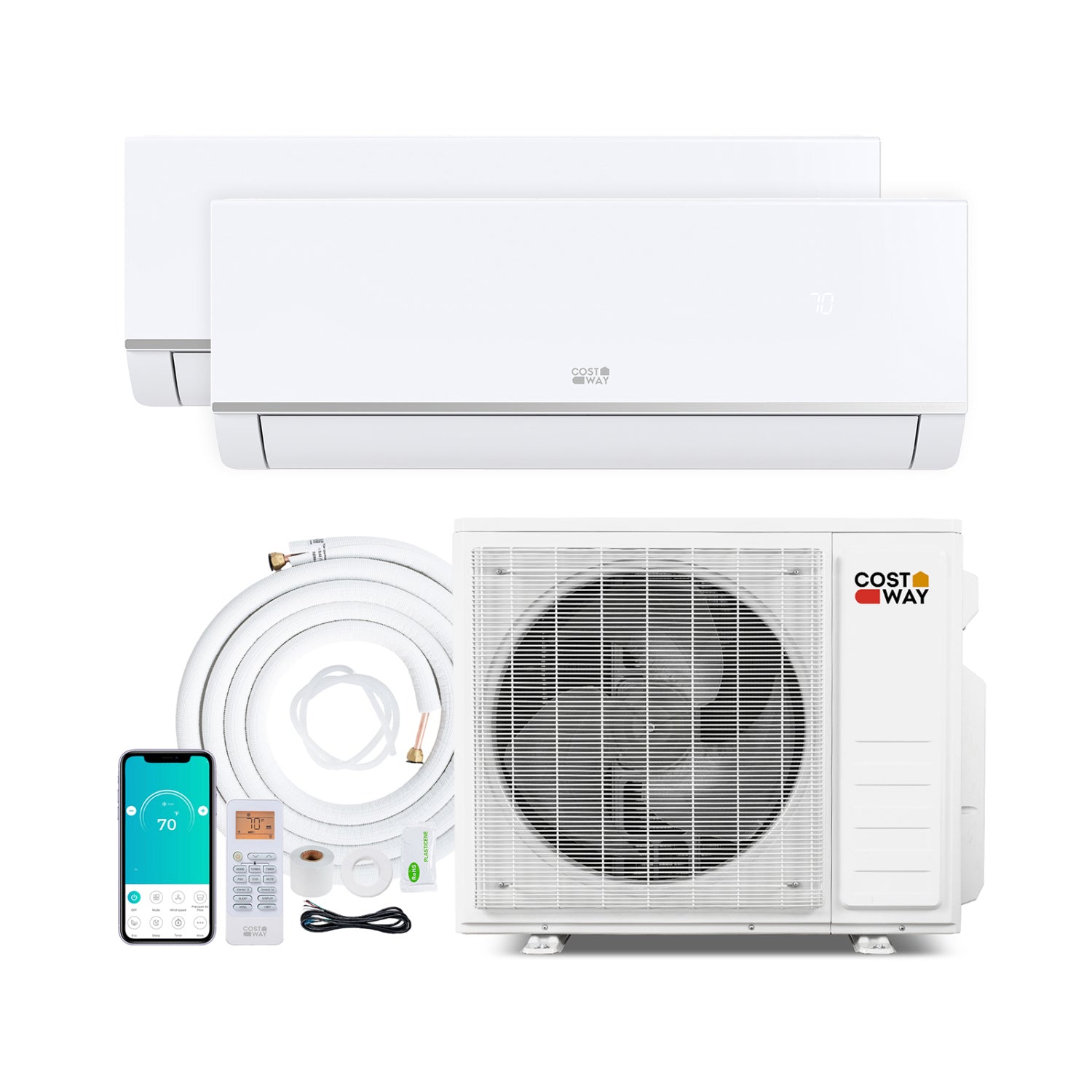

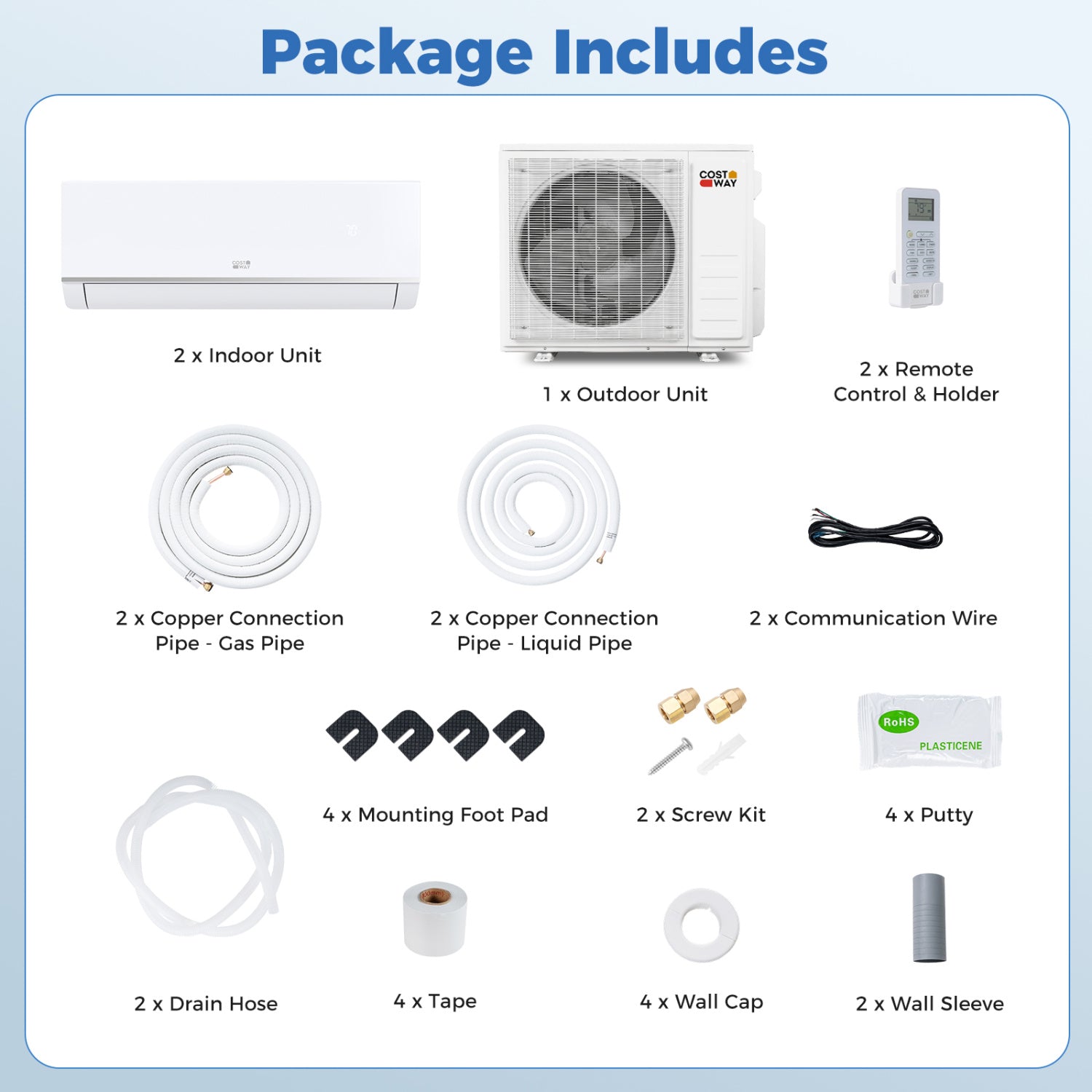

Package Includes:

• 1 x Outdoor Unit.
• 2 x Indoor Unit.
• 2 x Copper Connection Pipe - Gas Pipe.
• 2 x Copper Connection Pipe - Liquid Pipe.
• 2 x Communication Wire.
• 2 x Drain Hose.
• 2 x Remote Control & Holder.
• 2 x Wall Sleeve.
• 4 x Wall Cap.
• 4 x Tape.
• 4 x Putty.
• 2 x Screw Kit.
• 4 x Mounting Foot Pad.
• 4 x User Guide.
