28000 BTU 3 Zone 20 SEER2 Mini Split AC, Heat Pump, 12K + 12K + 12K, White

Experience year-round comfort with this 3-zone 28000 BTU mini split air conditioner and heat pump, featuring 20 SEER2 efficiency, smart Wi-Fi control, and whisper-quiet operation for whole-home climate control.

Overview:

• Provides powerful cooling and heating for three separate zones, ideal for larger homes.
• Designed for all-season use with reliable operation in extreme temperatures.
• Offers smart home integration, multiple operating modes, and energy-saving features.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 3 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

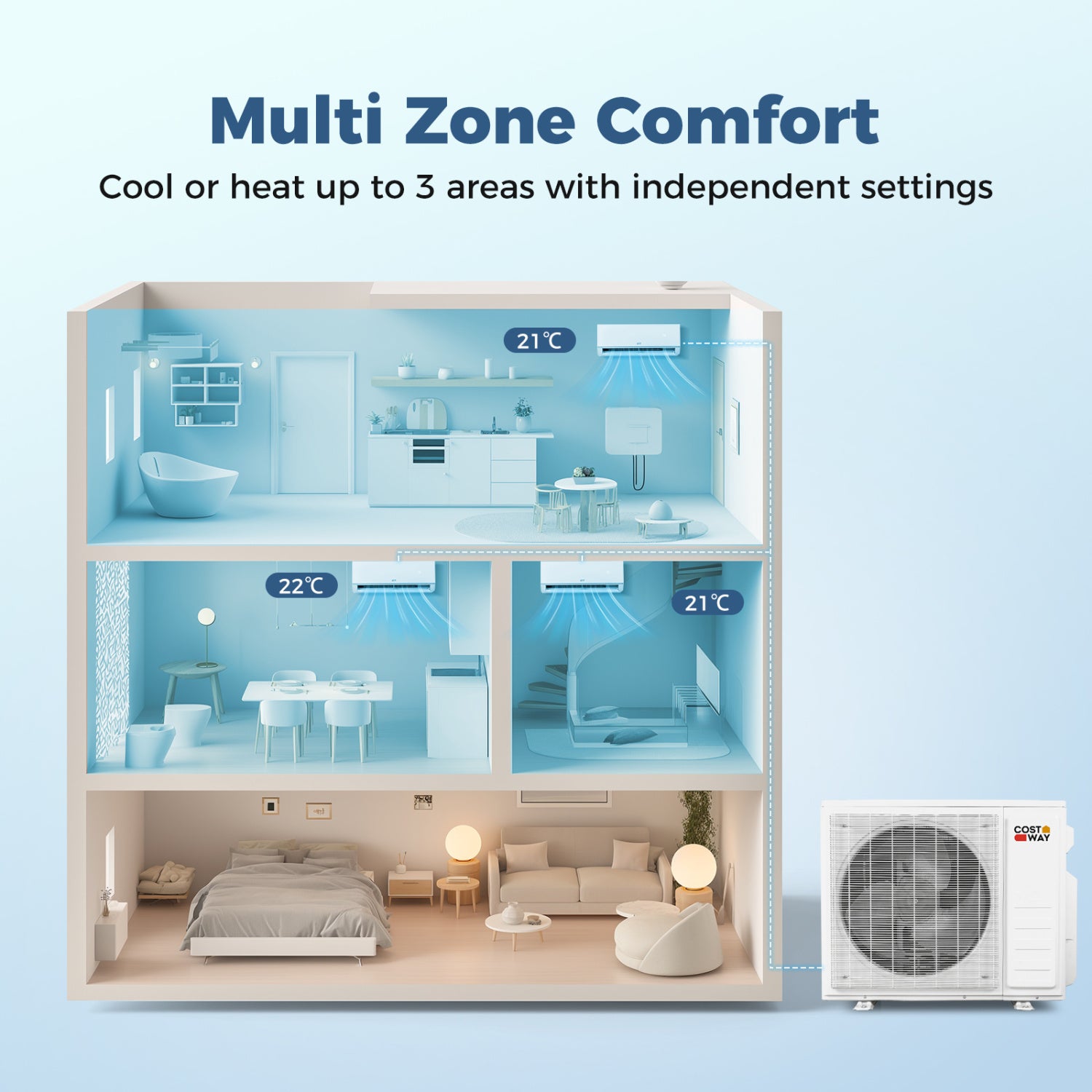

• Multi-zone comfort and gentle airflow with tri-zone design for room-by-room temperature control.
• 4D swing spreads air more evenly for consistent climate.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.

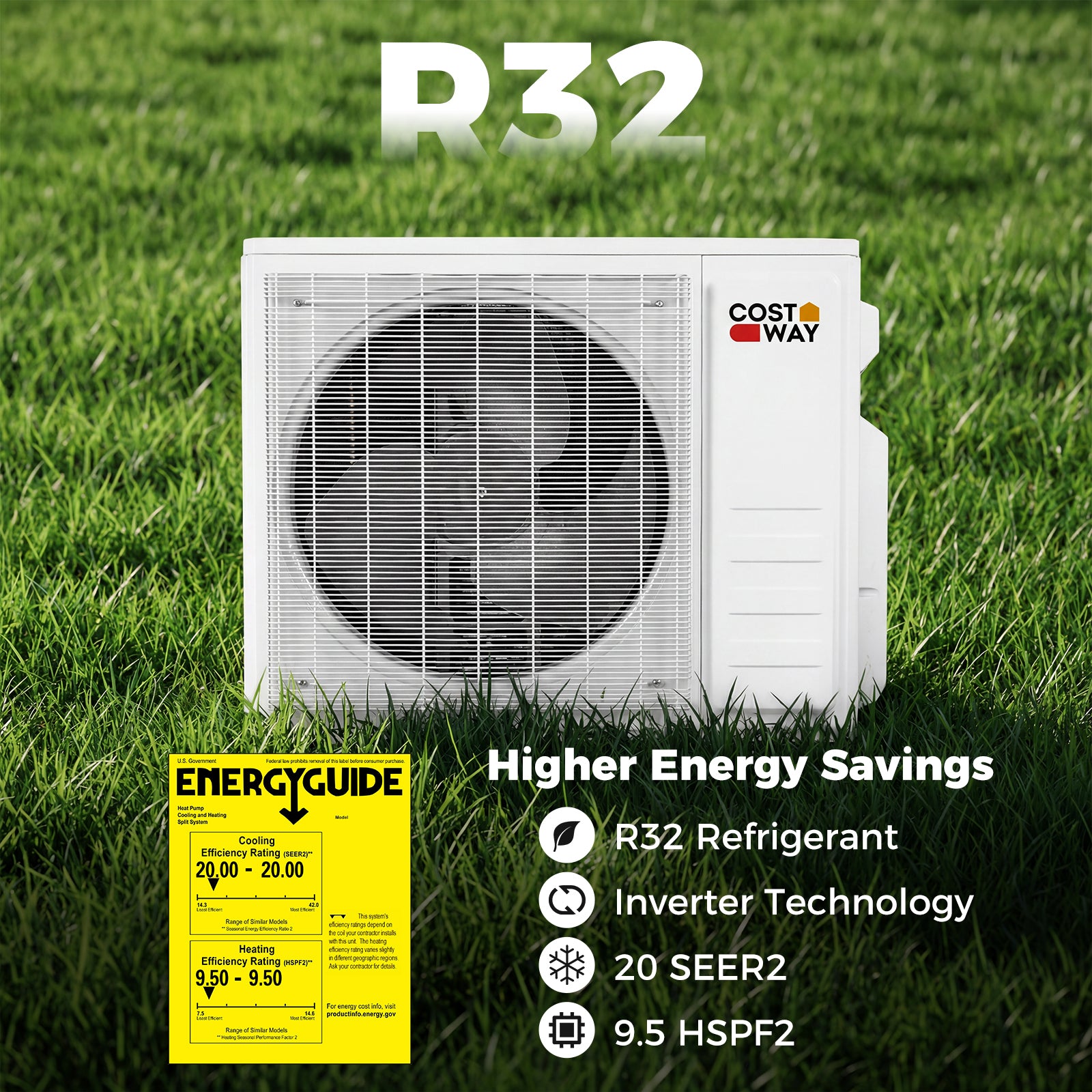

• Higher energy savings with a 20 SEER2 rating and advanced inverter technology.
• Energy-smart control reduces waste while maintaining stable temperatures.

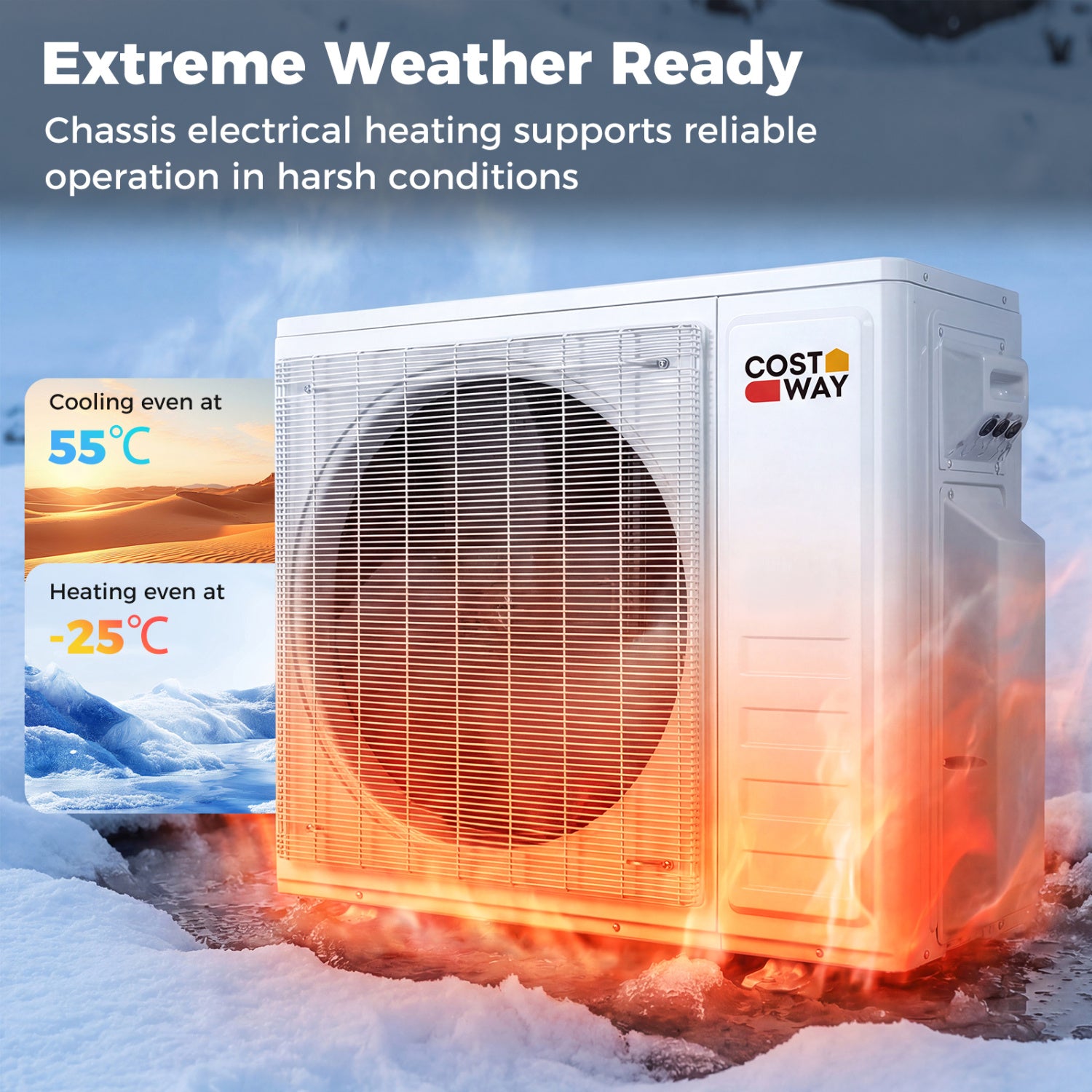

• Extreme weather ready with chassis electrical heating in the outdoor unit.
• Supports cooling at 55°C and heating at -25°C.
• Smart control with Wi-Fi enabled operation compatible with Alexa and Google Assistant.
• Includes remote control for quick access.

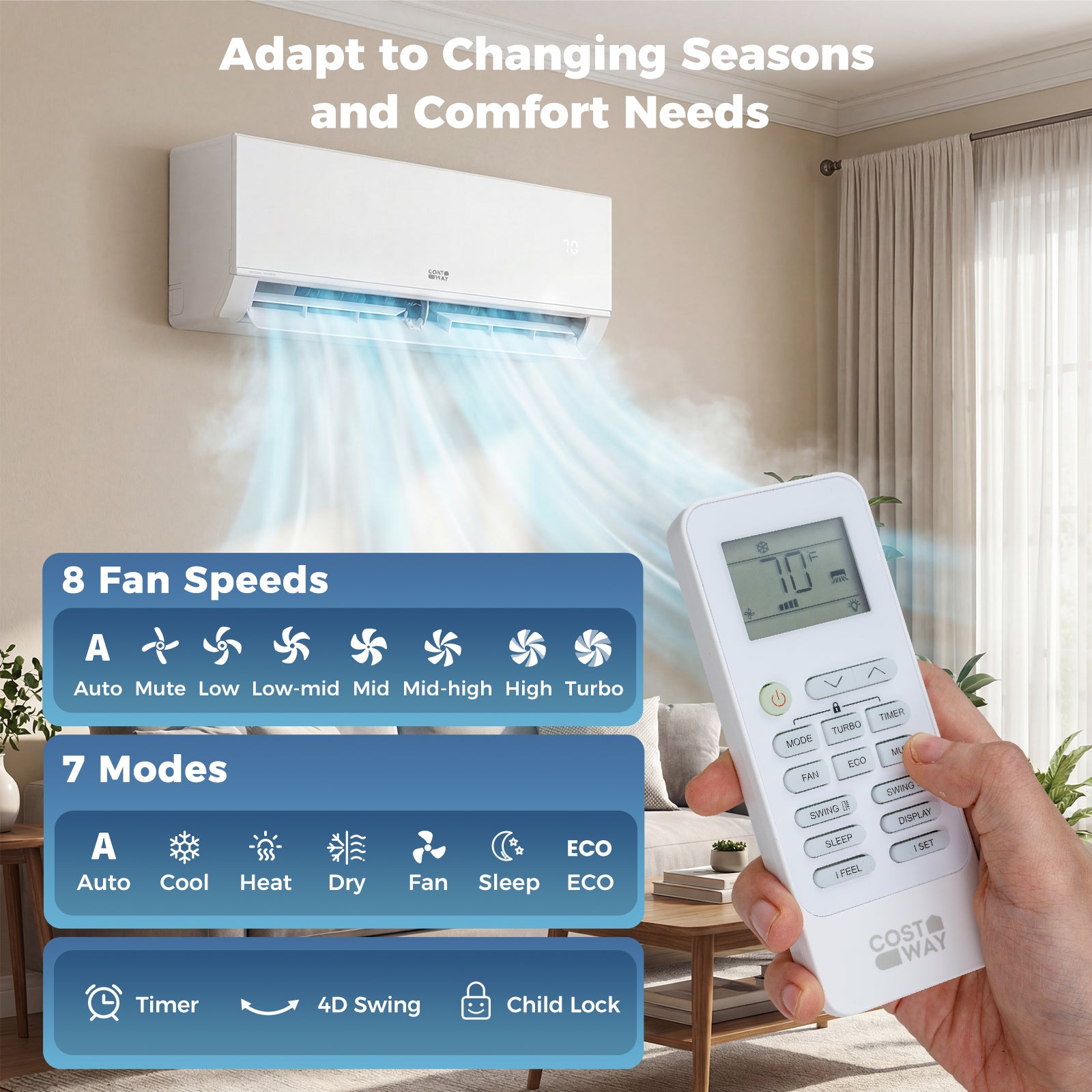

• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduling and energy efficiency.
• Child lock feature for safety.
• Low noise operation as quiet as 28 dB for minimal distraction.
• Easy maintenance with self-clean function and washable filters.
• Note: Professional licensed HVAC technician installation is recommended.

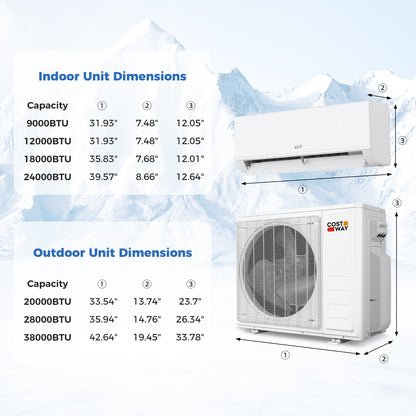

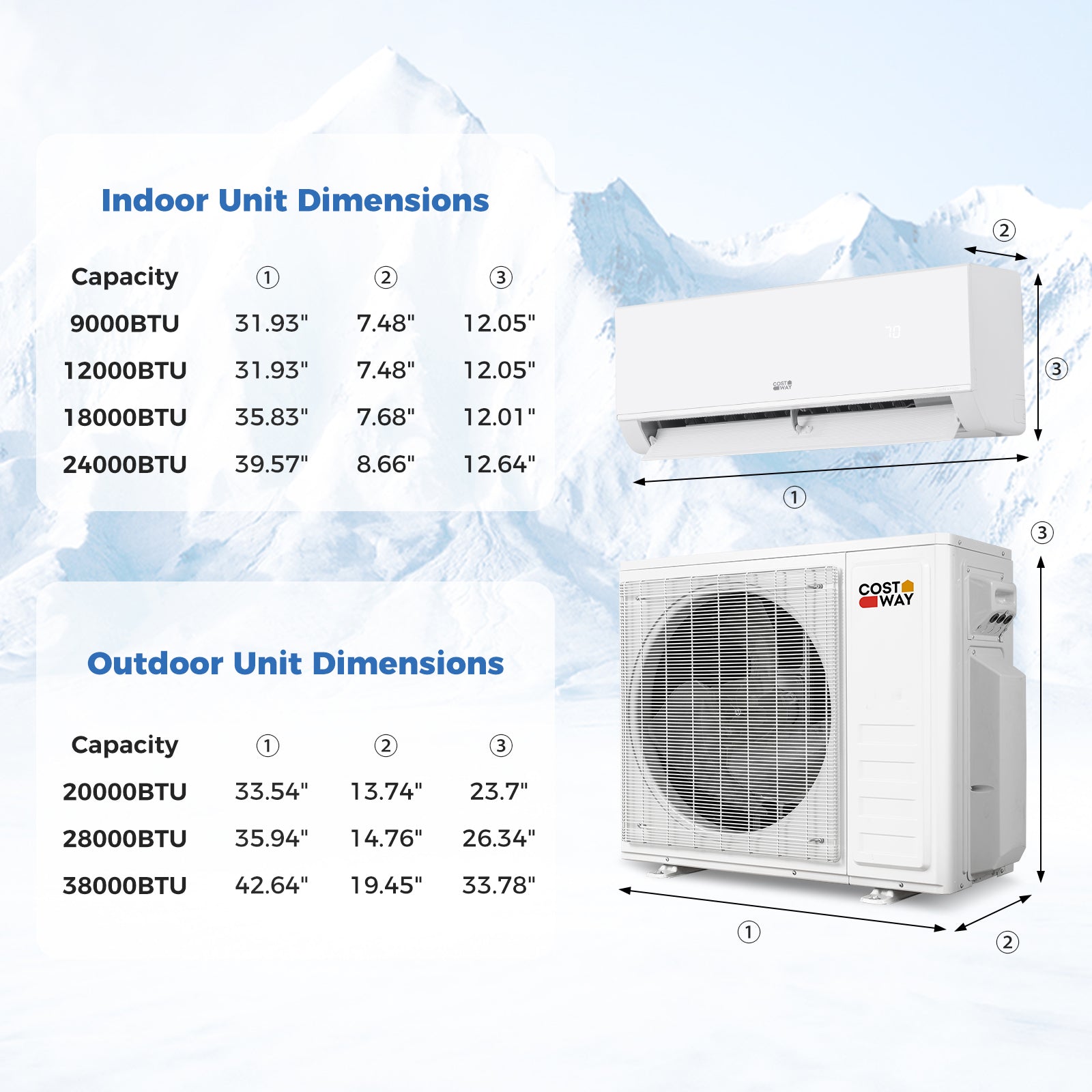

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 35.83 inches x 7.68 inches x 12.01 inches (91.0 cm x 19.5 cm x 30.5 cm).
• Indoor Unit Dimensions (24K): 39.57 inches x 8.66 inches x 12.64 inches (100.5 cm x 22.0 cm x 32.1 cm).
• Outdoor Unit Dimensions (20K): 33.54 inches x 13.74 inches x 23.7 inches (85.2 cm x 34.9 cm x 60.2 cm).
• Outdoor Unit Dimensions (28K): 35.94 inches x 14.76 inches x 26.34 inches (91.3 cm x 37.5 cm x 66.9 cm).
• Outdoor Unit Dimensions (35K): 42.64 inches x 19.45 inches x 33.78 inches (108.3 cm x 49.4 cm x 85.8 cm).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi-Zone Combination: 3.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C to 31°C.
• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet (12.0 meters).
• Coverage Area (9K): 450 square feet.
• Coverage Area (12K): 750 square feet.
• Coverage Area (18K): 1250 square feet.
• Coverage Area (24K): 1500 square feet.
• Dehumidification Capacity (9K): 66 pints per day.
• Dehumidification Capacity (12K): 81.2 pints per day.
• Dehumidification Capacity (18K): 111.6 pints per day.
• Dehumidification Capacity (24K): 131.9 pints per day.
• Maximum Air Flow Volume (9K): 335 CFM / 554 m³/h.
• Maximum Air Flow Volume (12K): 342 CFM / 554 m³/h.
• Maximum Air Flow Volume (18K): 617 CFM / 554 m³/h.
• Maximum Air Flow Volume (24K): 847 CFM / 554 m³/h.
• 20K SEER2: 23.
• 28K SEER2: 20.
• 38K SEER2: 20.
• 20K HSPF2: 9.5.
• 28K HSPF2: 9.5.
• 38K HSPF2: 9.5.

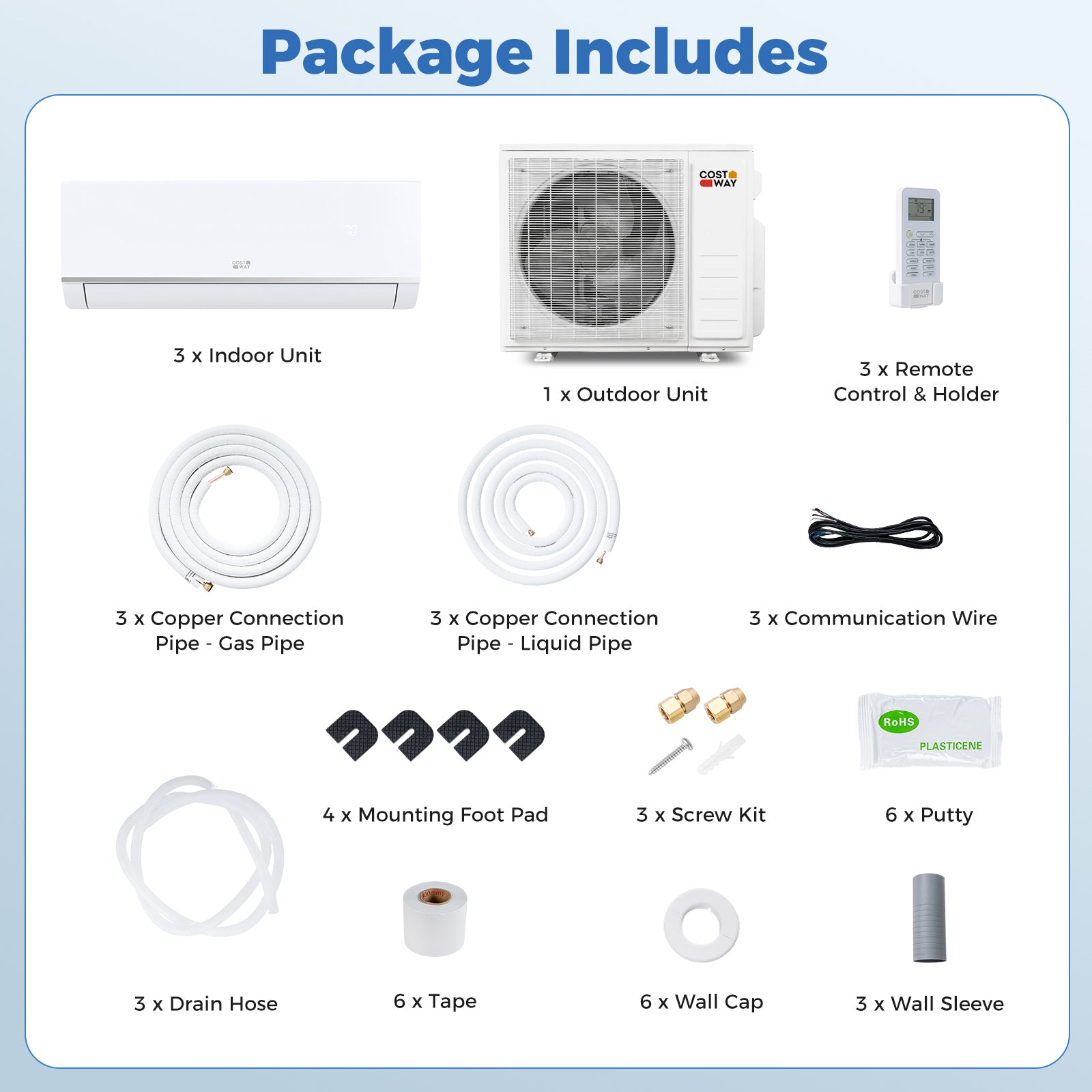

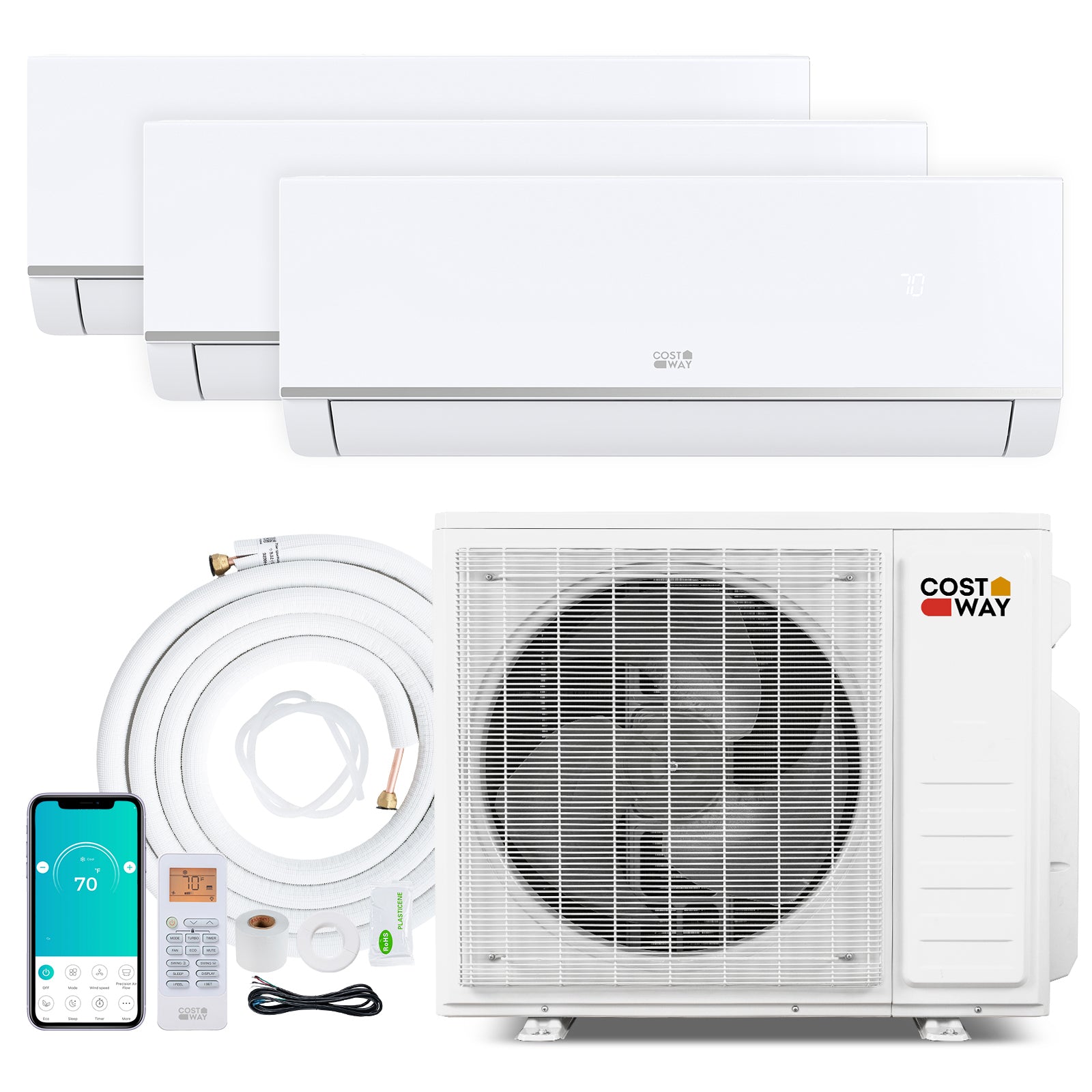

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control and Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.

Package Quantity: 5 boxes.
