28000 BTU 3 Zone 20 SEER2 Mini Split AC, Heat Pump, 9K + 9K + 18K, White

Enjoy year-round comfort with this 3-zone 28000 BTU mini-split air conditioner and heat pump, featuring 20 SEER2 efficiency, smart Wi-Fi control, and quiet operation for whole-home climate control.

Overview:

• Provides powerful cooling and heating for three separate zones, ideal for larger homes.
• Features inverter technology and a high 20 SEER2 rating for energy savings and stable temperature control.
• Includes smart Wi-Fi connectivity for control via phone, remote, or voice assistants like Alexa and Google Assistant.
• Operates quietly with low noise levels and offers easy maintenance with self-clean and washable filters.
• Note: Professional licensed HVAC technician installation is recommended for safe and proper setup.

Highlights:

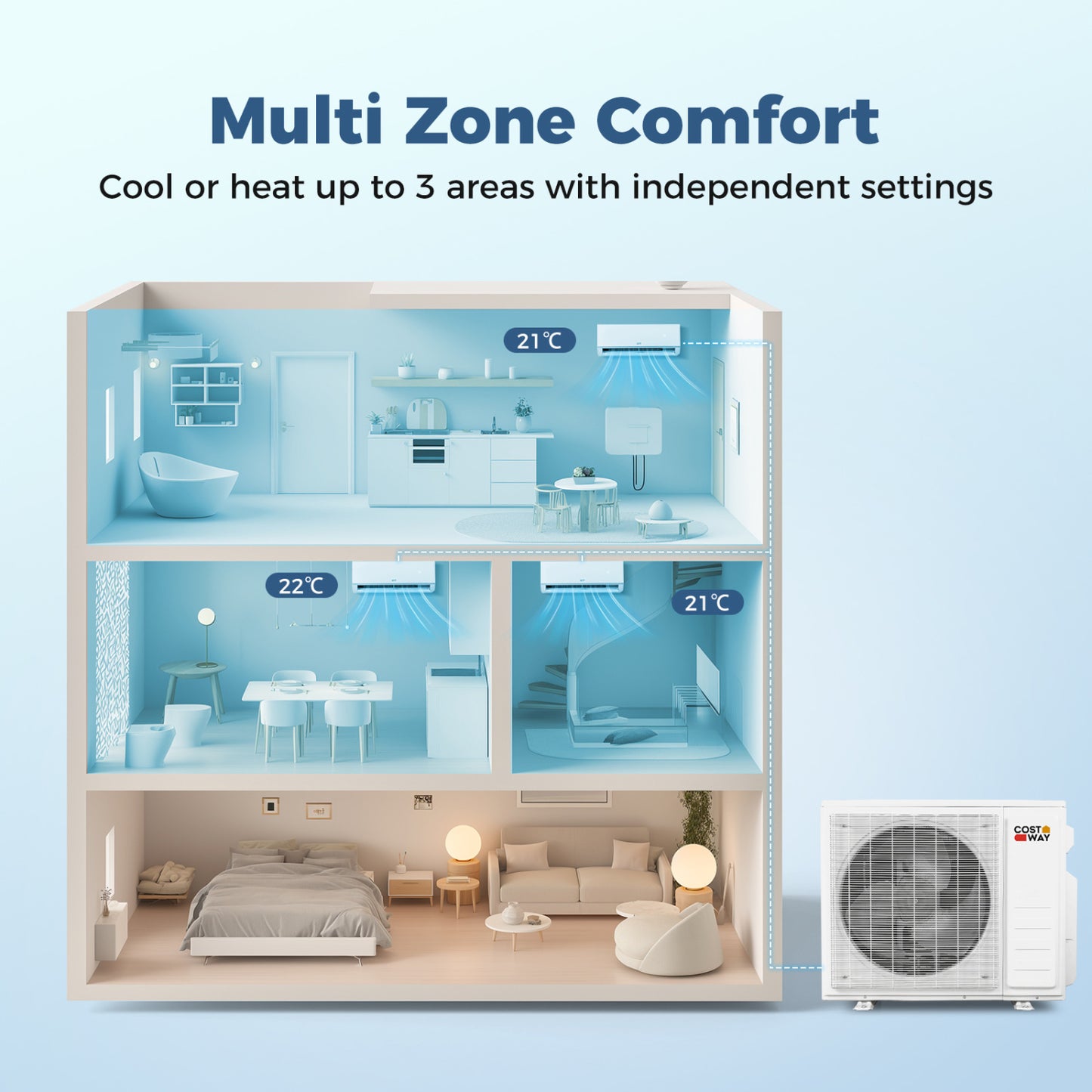

• Whole-home cooling and heating for three zones with customizable room-by-room temperatures.
• High energy efficiency with 20 SEER2 rating and inverter technology to reduce energy waste.

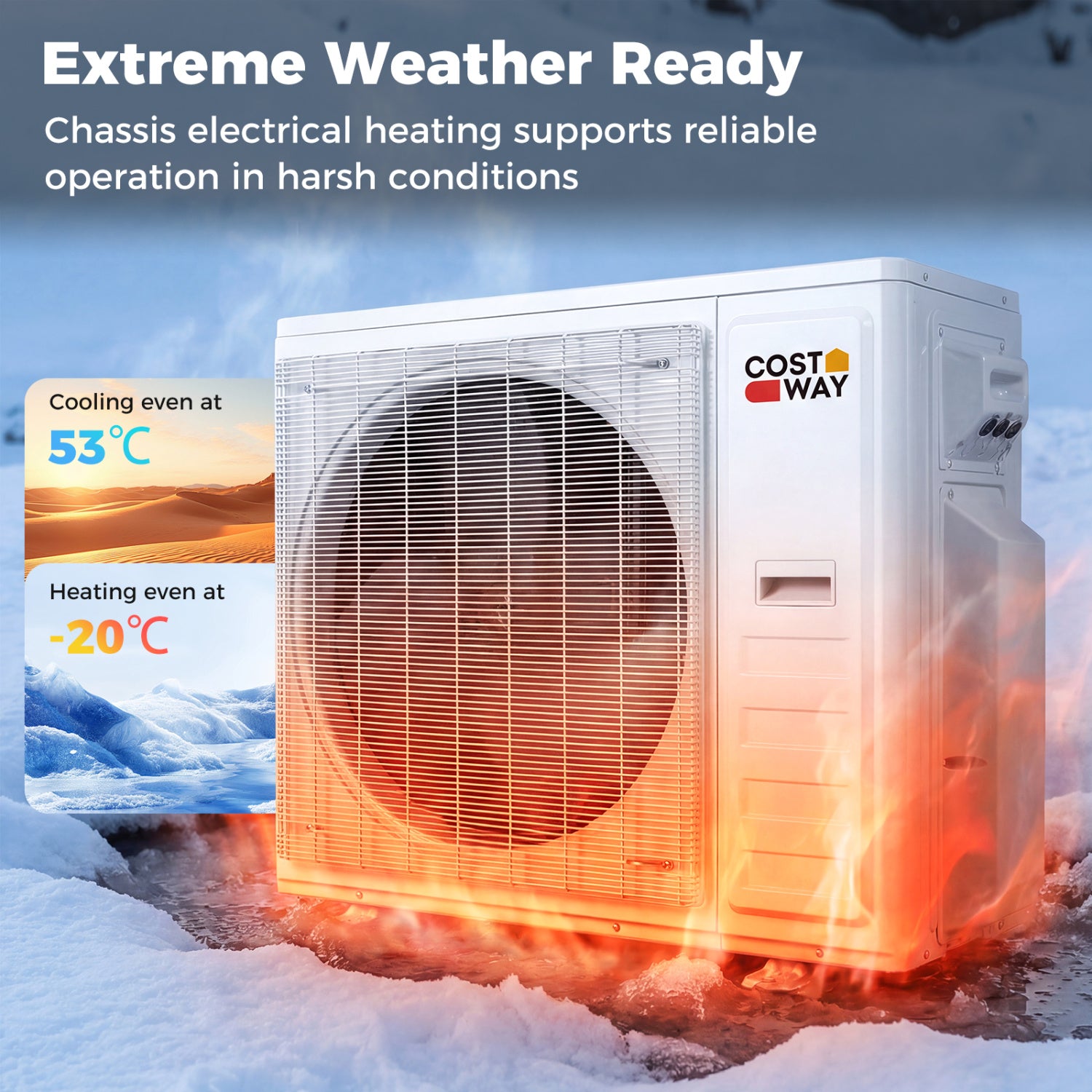

• Outdoor unit equipped with chassis heating for reliable operation in extreme temperatures from -25°C to 55°C.
• Seven operating modes and eight fan speeds for versatile climate control options.
• Smart control via Wi-Fi, remote, or voice commands for convenient access.
• 24-hour timer for automated daily use and energy savings.
• Low noise operation as low as 28 dB for a peaceful indoor environment.
• Self-clean function and removable, washable filters for easy maintenance and fresher airflow.
• Child lock feature to prevent accidental setting changes.
• 4D auto swing for even air distribution and gentle airflow with a golf ball dimples design.

Features:

• Three-zone mini-split system with 28000 BTU capacity for whole-home comfort.
• Provides both cooling and heating functions for all-season use.
• 20 SEER2 rating for high energy efficiency and reduced electricity costs.
• Inverter technology for stable temperature control and minimized energy waste.
• Outdoor unit with chassis electrical heating for reliable operation in harsh conditions, cooling up to 55°C and heating down to -25°C.
• Wi-Fi enabled for smart control via smartphone, remote, or voice assistants (Alexa and Google Assistant).
• Seven operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• Eight fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduled operation and energy saving.
• Child lock to prevent accidental changes to settings.
• 4D auto swing for more even air distribution throughout the room.
• Golf ball dimples design on indoor units for gentle airflow and prevention of direct blowing.
• Low noise operation with indoor unit noise levels as low as 28 dB.
• Self-clean function to maintain fresher airflow over time.
• Removable and washable filters for simple cleaning and maintenance.
• Note: Professional licensed HVAC technician installation is recommended for safety and performance.

Weight & Dimensions:

• Indoor Unit Dimensions (9K and 12K models): 31.93 inches long x 7.48 inches wide x 12.05 inches high (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (18K model): 35.83 inches long x 7.68 inches wide x 12.01 inches high (91.0 cm x 19.5 cm x 30.5 cm).
• Indoor Unit Dimensions (24K model): 39.57 inches long x 8.66 inches wide x 12.64 inches high (100.5 cm x 22.0 cm x 32.1 cm).
• Outdoor Unit Dimensions (20K model): 33.54 inches long x 13.74 inches wide x 23.7 inches high (85.2 cm x 34.9 cm x 60.2 cm).
• Outdoor Unit Dimensions (28K model): 35.94 inches long x 14.76 inches wide x 26.34 inches high (91.3 cm x 37.5 cm x 66.9 cm).
• Outdoor Unit Dimensions (35K model): 42.64 inches long x 19.45 inches wide x 33.78 inches high (108.3 cm x 49.4 cm x 85.8 cm).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K, 12K, and 18K models): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K model): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, and aluminum.
• Multi-zone combination: 3 zones.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature setting range: 16°C to 31°C (approximately 61°F to 88°F).
• Refrigerant: R32.
• Indoor unit noise level: 28 dB.
• Maximum remote control distance: 39.5 feet (12.0 meters).
• Coverage area for 9K model: 450 square feet (41.8 square meters).
• Coverage area for 12K model: 750 square feet (69.7 square meters).
• Coverage area for 18K model: 1250 square feet (116.1 square meters).
• Coverage area for 24K model: 1500 square feet (139.4 square meters).
• Dehumidification capacity for 9K model: 66 pints per day (31.2 liters per day).
• Dehumidification capacity for 12K model: 81.2 pints per day (38.4 liters per day).
• Dehumidification capacity for 18K model: 111.6 pints per day (52.8 liters per day).
• Dehumidification capacity for 24K model: 131.9 pints per day (62.4 liters per day).
• Maximum air flow volume for 9K model: 335 CFM (554 m³/h).
• Maximum air flow volume for 12K model: 342 CFM (554 m³/h).
• Maximum air flow volume for 18K model: 617 CFM (554 m³/h).
• Maximum air flow volume for 24K model: 847 CFM (554 m³/h).
• SEER2 rating for 20K model: 23.
• SEER2 rating for 28K model: 20.
• SEER2 rating for 38K model: 20.
• HSPF2 rating for 20K model: 9.5.
• HSPF2 rating for 28K model: 9.5.
• HSPF2 rating for 38K model: 9.5.

Package Includes:

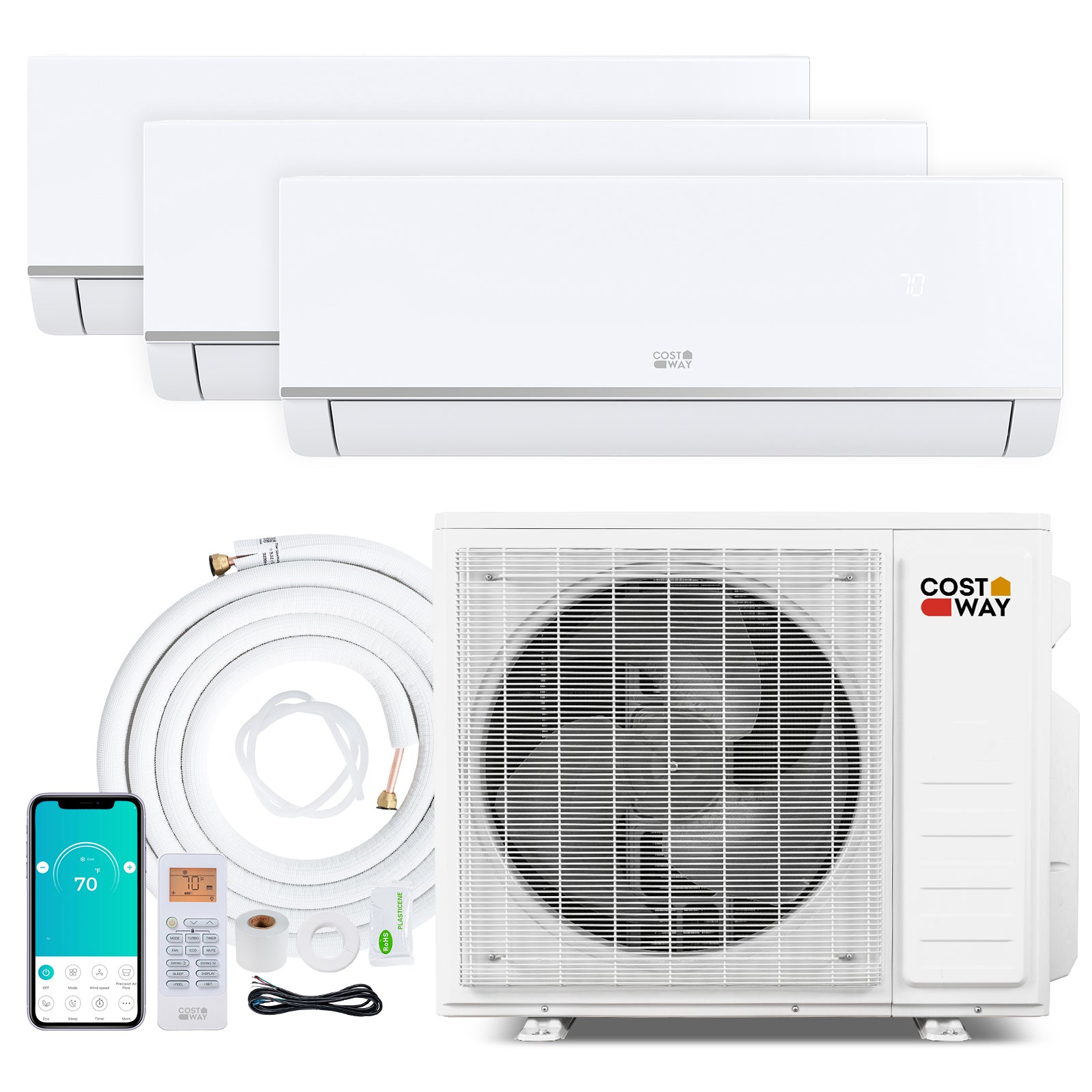

• 1 x outdoor unit.
• 3 x indoor units.
• 3 x copper connection pipes for gas lines.
• 3 x copper connection pipes for liquid lines.
• 3 x communication wires.
• 3 x drain hoses.
• 3 x remote controls with holders.
• 3 x wall sleeves.
• 6 x wall caps.
• 6 x tapes.
• 6 x putties.
• 3 x screw kits.
• 4 x mounting foot pads.
• 5 x user guides.
