Mini Split AC, 35000 BTU, 3 Zone, 22.5 SEER2, White

Experience discreet, multi-zone comfort with this 35000 BTU concealed ducted mini split system. Featuring inverter technology and R454B refrigerant, it delivers efficient heating and cooling across three zones with smart controls, quiet operation, and versatile modes for homes and light commercial spaces.

Overview:

• Provides powerful and balanced heating and cooling across 3 independent zones for optimal comfort in various rooms.
• Designed for versatile use in homes, offices, and light commercial spaces like living rooms, bedrooms, and restaurants.
• Features a ducted design that keeps the system discreet and maintains a neat appearance in your space.
• Note: Professional installation is required for safe and proper operation.

Highlights:

• Adjust temperature independently across 3 zones for personalized comfort in different areas.
• Inverter technology maintains steadier temperatures with smarter energy use, reducing cycling.
• R454B refrigerant supports more responsible, forward-looking operation with environmental benefits.
• Built-in versatility with 7 modes and 8 fan speeds for precise climate control in all seasons.
• Enjoy peaceful sleep without distractions with sleep mode and screen off function for quiet nights.
• Effortless convenience with smart control options including wifi connectivity, app, and voice commands.
• Chassis electrical heating ensures reliable performance in colder conditions down to -25℃.
• 4D auto swing provides balanced and even air distribution throughout the room.
• Self-clean function makes maintenance a breeze by keeping air paths fresher over time.
• 24-hour timer allows for set-and-forget scheduling of heating and cooling cycles.
• Child lock helps prevent unwanted changes to settings, ensuring security.

Features:

• Multi-zone climate control with 35000 BTU capacity for powerful heating and cooling across 3 zones.
• Advanced inverter technology maintains steady temperatures with less energy waste for efficiency.
• R454B refrigerant for responsible and forward-looking operation in the mini split system.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep for versatile comfort.
• 8 fan speeds for precise control over airflow and temperature in your space.
• 4D auto swing function improves room coverage with balanced and even air distribution.
• Self-clean function helps keep air paths fresher over time with minimal maintenance.
• 24-hour timer for scheduled operation, allowing set-and-forget convenience.
• Child lock feature prevents unwanted changes to settings for added security.
• Wifi enabled for smart control via app, remote, wall thermostat, or voice commands.
• Compatible with Alexa and Google Assistant for hands-free voice control.

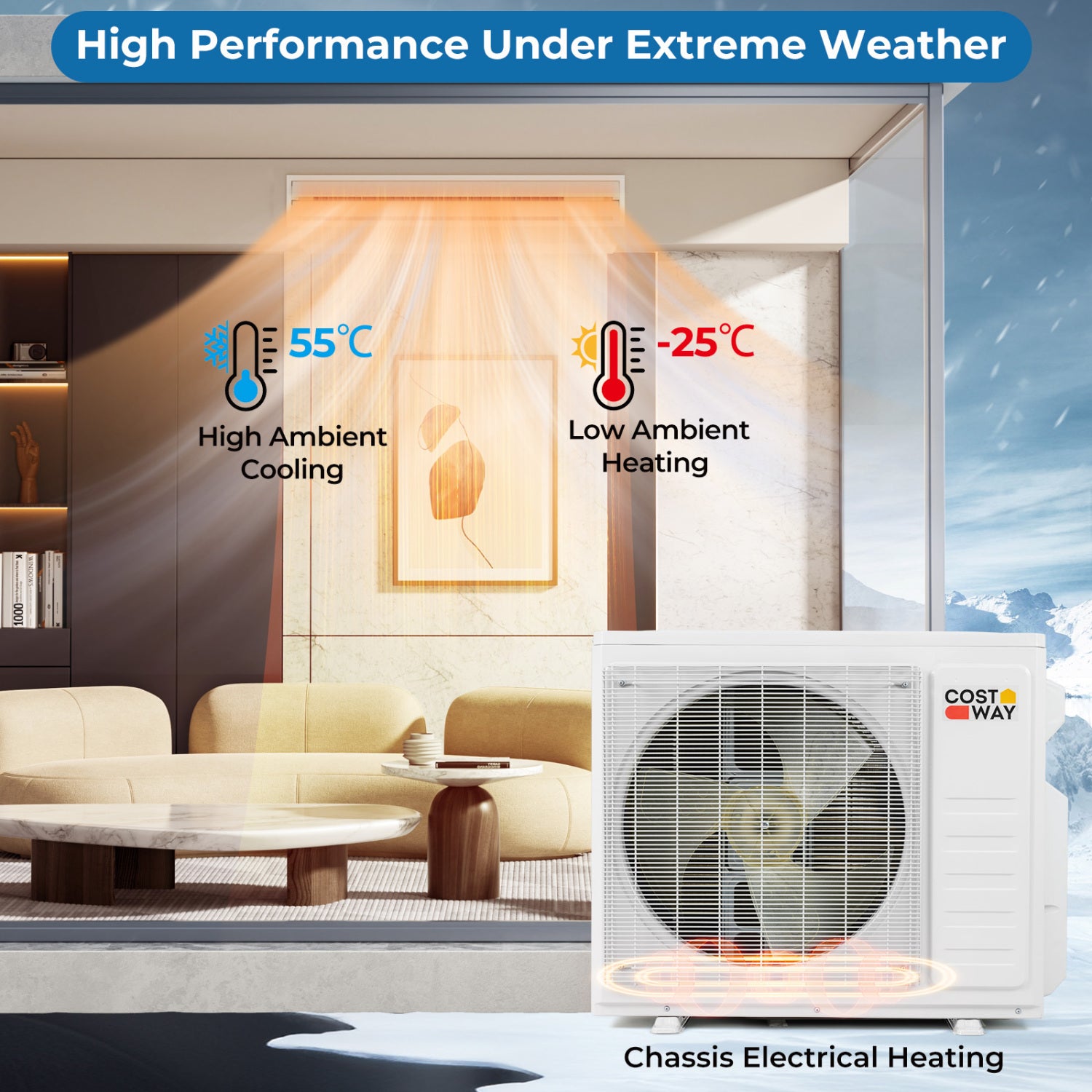

• Chassis electrical heating ensures reliable performance in tough weather conditions.
• Low ambient heating capability down to -25℃ for cold climate operation.
• High ambient cooling capability up to 55℃ for hot weather performance.
• Quiet operation with indoor unit noise levels as low as 28 dB for peaceful environments.
• Ideal for household and light commercial use in various settings.
• Note: Professional installation is required for safe and proper setup.

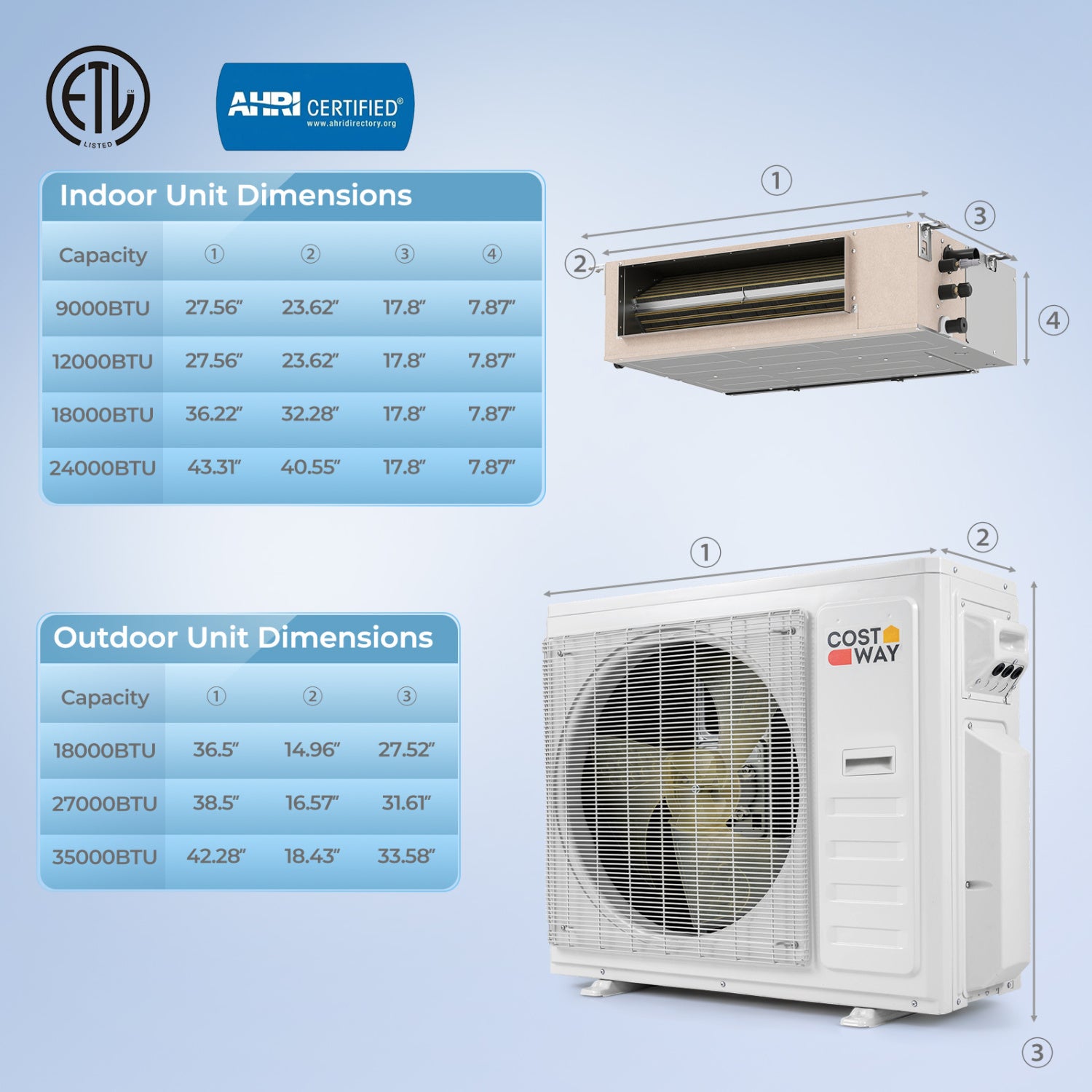

Weight & Dimensions:

• Indoor Unit Dimensions for 9K model: 27.56 inches long x 17.8 inches wide x 7.87 inches high (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions for 12K model: 27.56 inches long x 17.8 inches wide x 7.87 inches high (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions for 18K model: 36.22 inches long x 17.8 inches wide x 7.87 inches high (92 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions for 24K model: 43.31 inches long x 17.8 inches wide x 7.87 inches high (110 cm x 45.2 cm x 20 cm).
• Outdoor Unit Dimensions for 18K model: 36.5 inches long x 14.96 inches wide x 27.52 inches high (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions for 27K model: 38.5 inches long x 16.57 inches wide x 31.61 inches high (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions for 35K model: 42.28 inches long x 18.43 inches wide x 33.58 inches high (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of 9K Indoor Unit: 33.1 pounds (15 kg).
• Net Weight of 12K Indoor Unit: 33.1 pounds (15 kg).
• Net Weight of 18K Indoor Unit: 39.7 pounds (18 kg).
• Net Weight of 24K Indoor Unit: 50.7 pounds (23 kg).
• Net Weight of 18K Outdoor Unit: 92.6 pounds (42 kg).
• Net Weight of 27K Outdoor Unit: 119 pounds (54 kg).
• Net Weight of 35K Outdoor Unit: 145.5 pounds (66 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe for 9K model: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 12K model: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 18K model: 1/2 inch (1.27 cm).
• Diameter of Gas Pipe for 24K model: 5/8 inch (1.59 cm).

Specifications:

• Colour: White for a clean and modern appearance.
• Material: Constructed from cold-rolled steel sheet, copper, and aluminum for durability.
• Multi Zone Combination: 3 zones for independent climate control.
• Voltage: 208-230V for standard electrical compatibility.
• Frequency: 60Hz for operation in compatible regions.
• Temperature Setting Range: 16℃ to 31℃ (61°F to 88°F) for adjustable comfort.
• Refrigerant: R454B for efficient and environmentally responsible cooling and heating.
• Indoor Unit Noise Level: As low as 28 dB for quiet operation in living spaces.
• Max Remote Control Distance: 39.2 feet (11.95 meters) for convenient wireless use.
• Coverage Area for 9K model: 450 square feet (41.8 square meters).
• Coverage Area for 12K model: 750 square feet (69.7 square meters).
• Coverage Area for 18K model: 1250 square feet (116.1 square meters).
• Coverage Area for 24K model: 1500 square feet (139.4 square meters).
• Dehumidification Capacity for 9K model: 55.8 pints per day.
• Dehumidification Capacity for 12K model: 81.2 pints per day.
• Dehumidification Capacity for 18K model: 111.6 pints per day.
• Dehumidification Capacity for 24K model: 131.9 pints per day.
• Maximum Air Flow Volume for 9K model: 335 CFM (570 m³/h).
• Maximum Air Flow Volume for 12K model: 360 CFM (610 m³/h).
• Maximum Air Flow Volume for 18K model: 500 CFM (850 m³/h).
• Maximum Air Flow Volume for 24K model: 741 CFM (1260 m³/h).
• SEER2 Rating for 18K model: 24 for high energy efficiency.
• SEER2 Rating for 27K model: 24 for consistent performance.
• SEER2 Rating for 35K model: 22.5 for efficient operation.
• HSPF2 Rating for 18K model: 10.5 for effective heating.
• HSPF2 Rating for 27K model: 10.5 for reliable warmth.
• HSPF2 Rating for 35K model: 10 for seasonal heating efficiency.

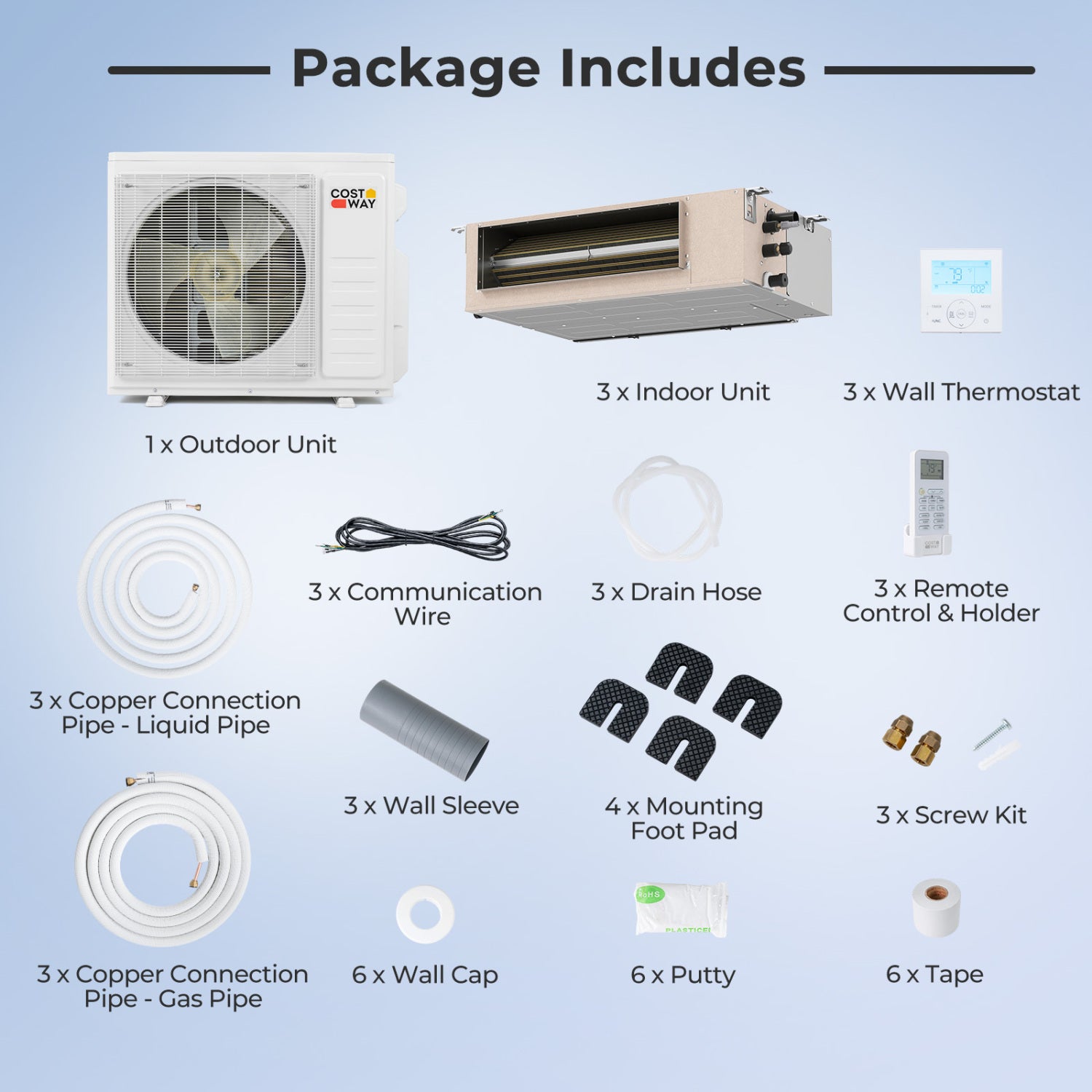

Package Includes:

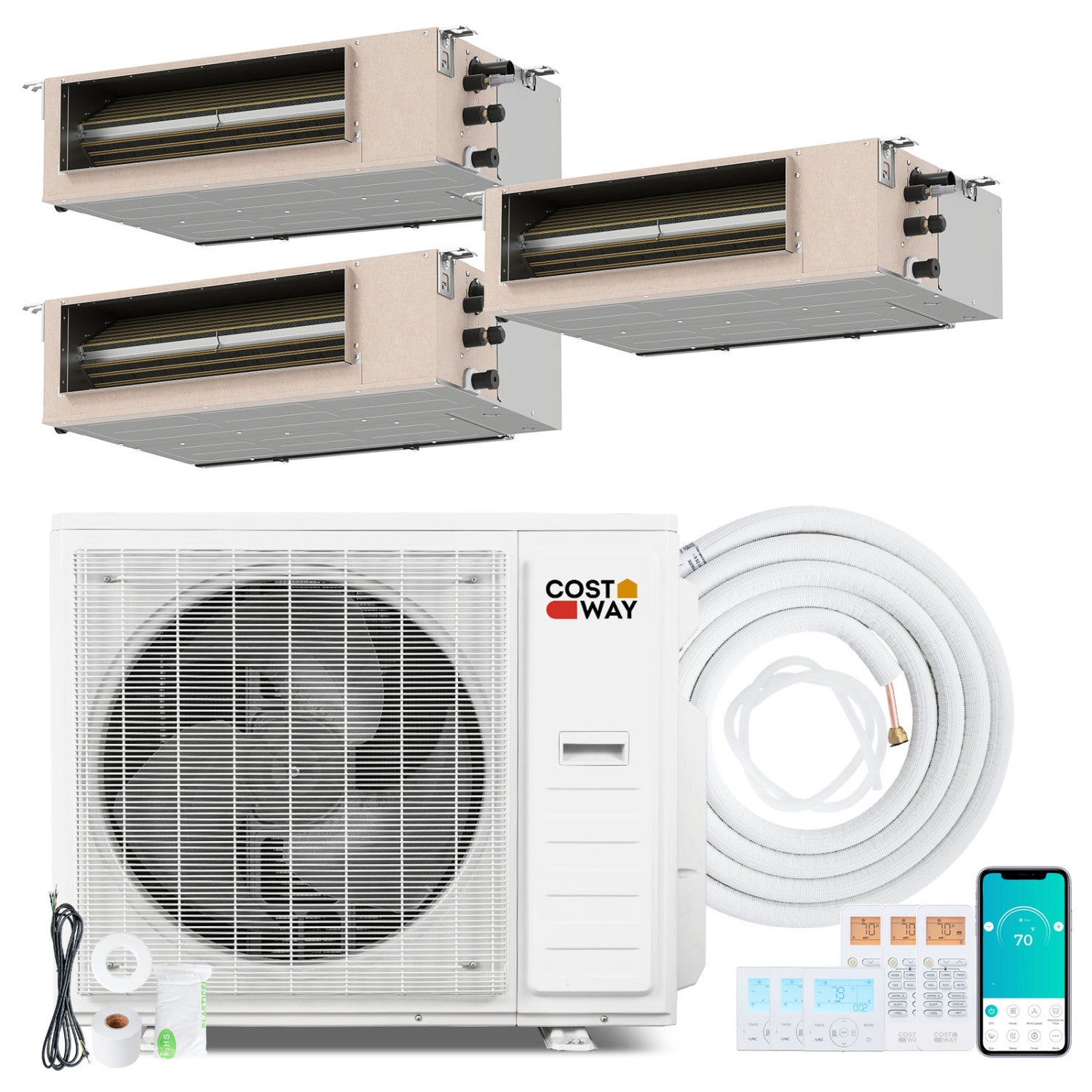

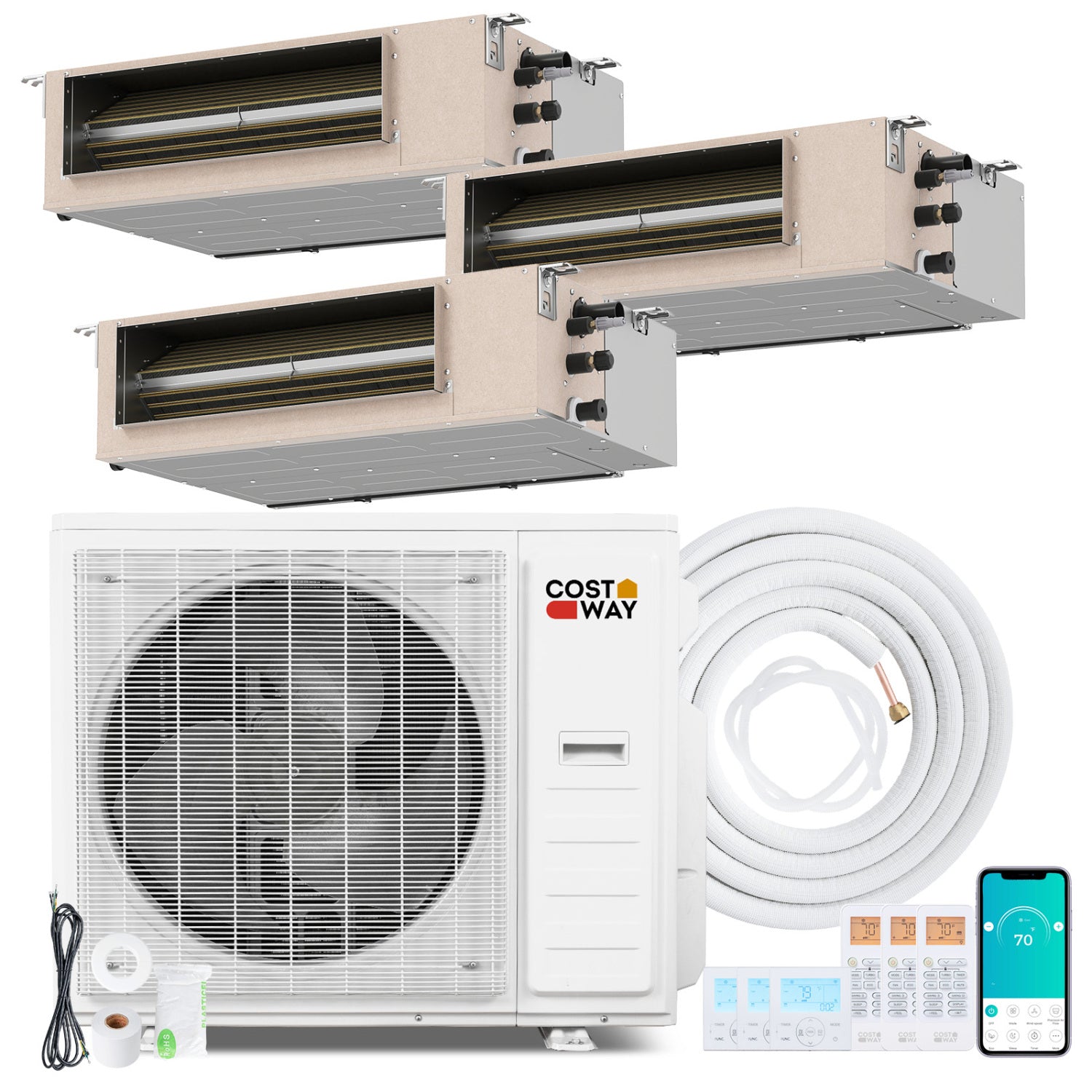

• 1 x Outdoor Unit for the central component of the system.
• 3 x Indoor Unit for multi-zone climate control in different rooms.
• 3 x Copper Connection Pipe - Gas Pipe for refrigerant flow.
• 3 x Copper Connection Pipe - Liquid Pipe for cooling and heating circulation.
• 3 x Communication Wire for connectivity between units.
• 3 x Drain Hose for moisture removal from indoor units.
• 3 x Remote Control & Holder for wireless operation and storage.
• 3 x Wall Sleeve for installation through walls.
• 6 x Wall Cap for finishing wall openings.
• 6 x Tape for sealing and insulation.
• 6 x Putty for additional sealing needs.
• 3 x Screw Kit for secure mounting of components.
• 4 x Mounting Foot Pad for stable outdoor unit placement.
• 7 x User Guide for setup and operation instructions.
