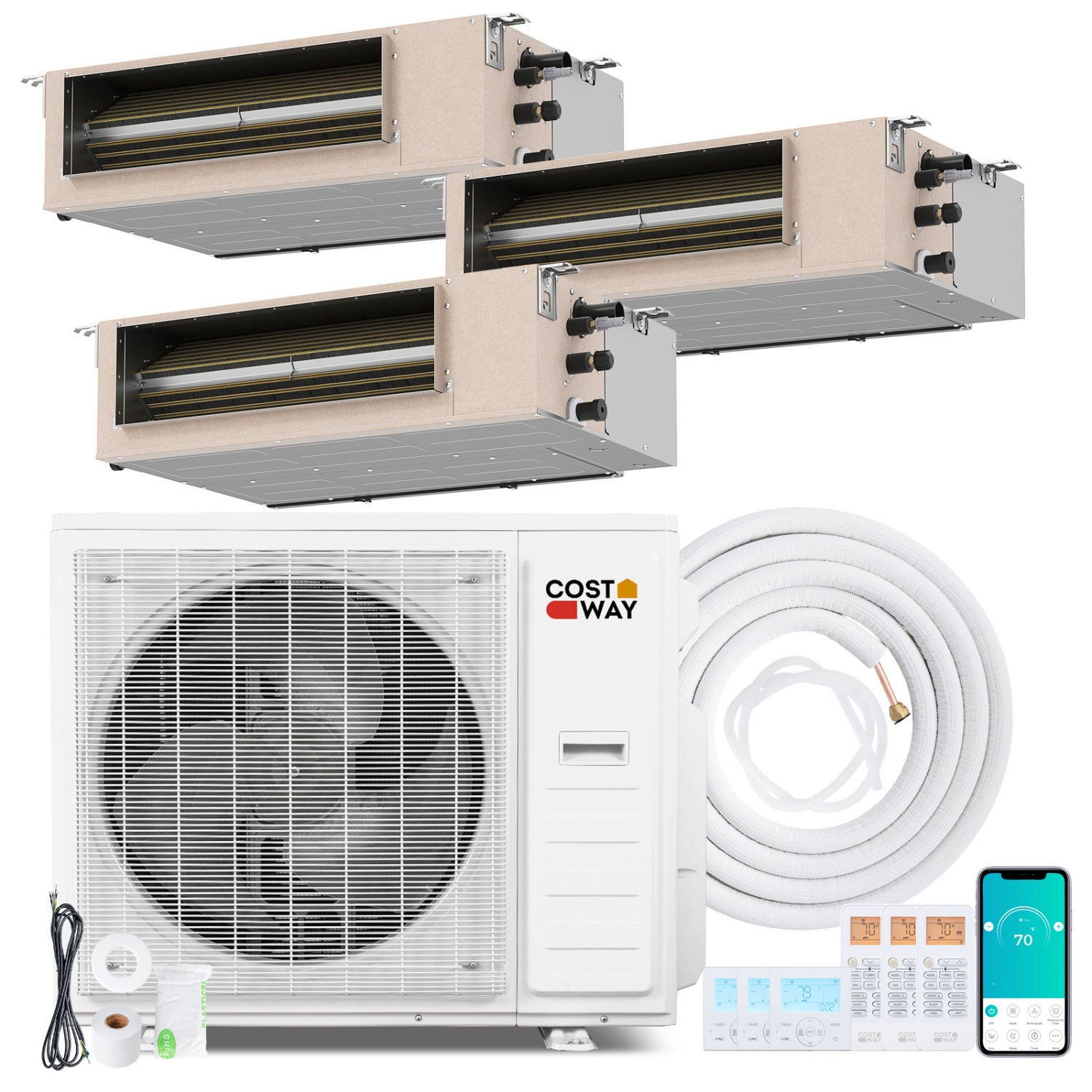

X-Pro 35000 BTU 3 Zone 22.5 SEER2 Concealed Ducted Mini Split, White

Experience versatile and discreet comfort with this 3-zone concealed ducted mini split system, delivering 35000 BTU of heating and cooling power. Designed for homes, offices, and light commercial spaces, it features inverter technology for energy efficiency, R454B refrigerant, and smart control options including WiFi and voice commands. With independent temperature control across three zones, this system offers personalized comfort while maintaining a sleek, hidden appearance. Enjoy quiet operation as low as 28 dB, 7 modes, 8 fan speeds, and a self-clean function for easy maintenance.

Overview:

• Multi-zone concealed ducted mini split system for discreet, balanced heating and cooling across three areas.
• Ideal for homes, offices, and light commercial spaces like living rooms, bedrooms, and restaurants.
• Advanced inverter technology with R454B refrigerant for energy savings and environmental responsibility.
• Smart control via remote, thermostat, WiFi app, or voice commands compatible with Alexa and Google Assistant.
• Note: Professional installation is required.

Highlights:

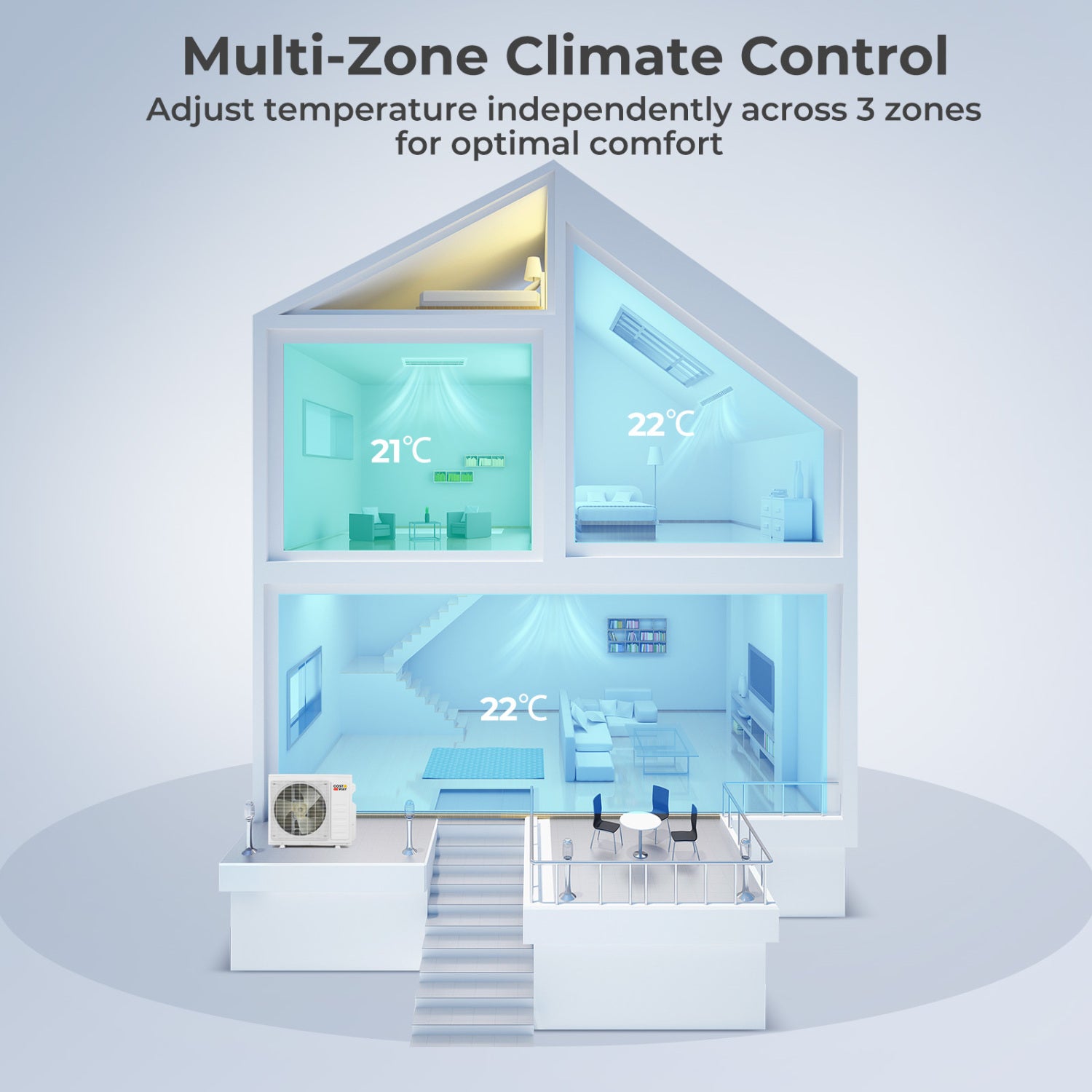

• Adjust temperature independently across 3 zones for optimal comfort.
• Inverter technology maintains steadier temperatures with smarter energy use.
• R454B refrigerant supports more responsible, forward-looking operation.
• Built-in versatility with 7 modes and 8 fan speeds.
• Enjoy peaceful sleep with sleep mode and screen off function.
• Effortless convenience with smart control options and WiFi connectivity.
• Chassis electrical heating ensures reliable performance in colder conditions.
• 4D auto swing for balanced and even air distribution.
• Ducted design keeps your space neat and discreet.
• Self-clean function makes maintenance a breeze.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.

Features:

• 35000 BTU concealed ducted mini split system for powerful heating and cooling.
• Multi-zone climate control: independent temperature adjustment across 3 zones.
• Outdoor unit with chassis electrical heating for reliable operation in tough weather (25°C low ambient heating, 55°C high ambient cooling).
• Advanced inverter technology for steady temperatures and less energy waste.
• 22.5 SEER2 rating for energy efficiency.
• R454B refrigerant for efficient year-round use.
• Multiple control options: remote control, wall thermostat, smart app (WiFi enabled), voice commands (compatible with Alexa and Google Assistant).
• 24-hour timer for scheduled operation.
• Child lock to keep settings secure.
• 7 modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds for precise comfort.
• 4D auto swing for improved room coverage.
• Self-clean function to keep air paths fresher.
• Low sound levels as low as 28 dB.
• Ideal for household and light commercial use.
• Note: Professional installation is required.

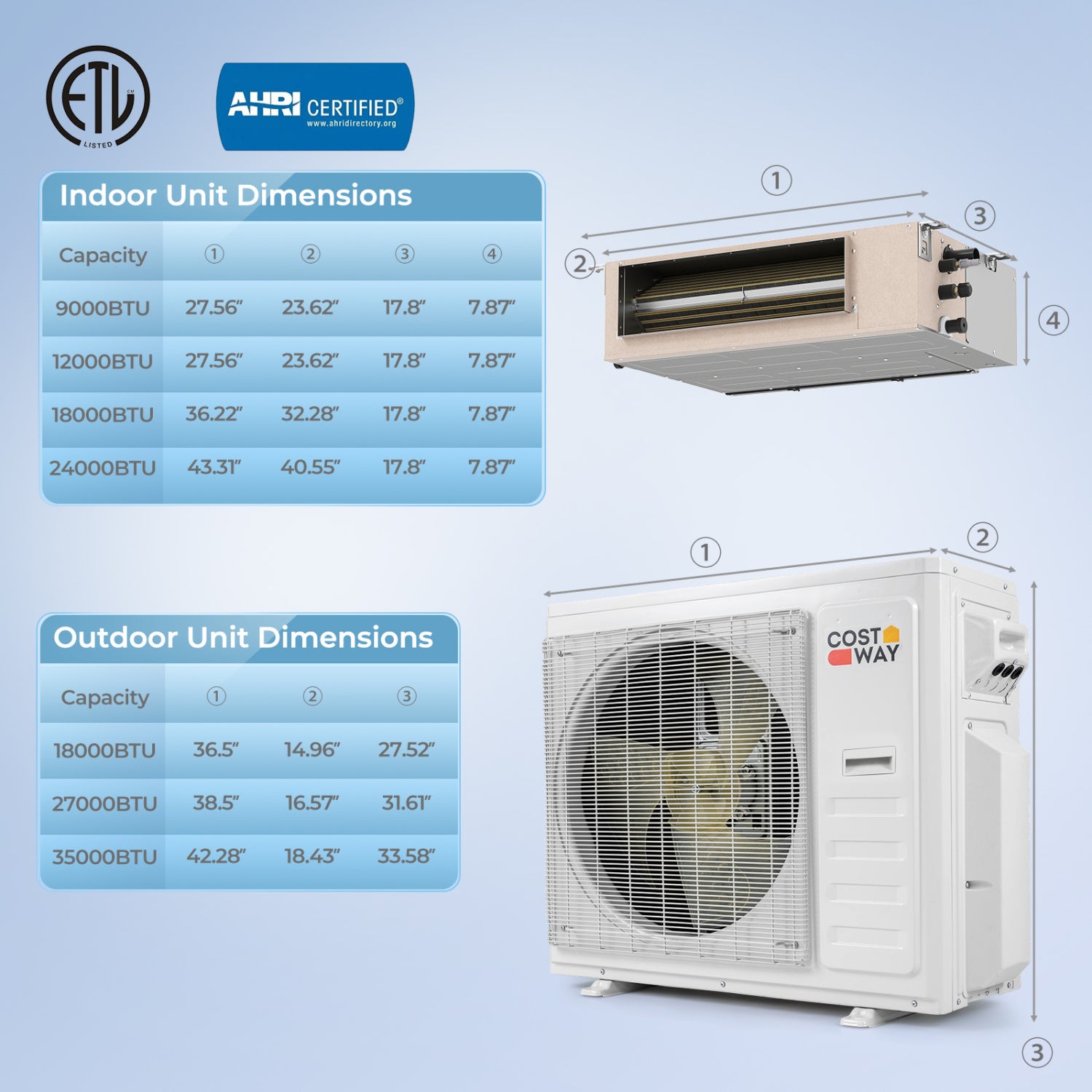

Weight & Dimensions:

• Indoor Unit 9K: 27.56" x 17.8" x 7.87" (70.0 cm x 45.2 cm x 20.0 cm)
• Indoor Unit 12K: 27.56" x 17.8" x 7.87" (70.0 cm x 45.2 cm x 20.0 cm)
• Indoor Unit 18K: 36.22" x 17.8" x 7.87" (92.0 cm x 45.2 cm x 20.0 cm)
• Indoor Unit 24K: 43.31" x 17.8" x 7.87" (110.0 cm x 45.2 cm x 20.0 cm)
• Outdoor Unit 18K: 36.5" x 14.96" x 27.52" (92.7 cm x 38.0 cm x 69.9 cm)
• Outdoor Unit 27K: 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm)
• Outdoor Unit 35K: 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm)
• Net Weight of 9K Indoor Unit: 33.1 lbs (15.0 kg)
• Net Weight of 12K Indoor Unit: 33.1 lbs (15.0 kg)
• Net Weight of 18K Indoor Unit: 39.7 lbs (18.0 kg)
• Net Weight of 24K Indoor Unit: 50.7 lbs (23.0 kg)
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42.0 kg)
• Net Weight of 27K Outdoor Unit: 119 lbs (54.0 kg)
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66.0 kg)

Specifications:

• Color: White
• Material: Cold-rolled Steel Sheet, Copper, Aluminum
• Voltage: 208-230V
• Frequency: 60Hz
• Temperature Setting Range: 16°C~31°C
• Refrigerant: R454B
• Indoor Unit Noise Level: 28 dB
• Max Remote Control Distance: 39.2 ft (11.9 m)
• Coverage Area 9K: 450 sq ft
• Coverage Area 12K: 750 sq ft
• Coverage Area 18K: 1250 sq ft
• Coverage Area 24K: 1500 sq ft
• Dehumidification Capacity 9K: 55.8 pints/day
• Dehumidification Capacity 12K: 81.2 pints/day
• Dehumidification Capacity 18K: 111.6 pints/day
• Dehumidification Capacity 24K: 131.9 pints/day
• Maximum Air Flow Volume 9K: 335 CFM (570 m³/h)
• Maximum Air Flow Volume 12K: 360 CFM (610 m³/h)
• Maximum Air Flow Volume 18K: 500 CFM (850 m³/h)
• Maximum Air Flow Volume 24K: 741 CFM (1260 m³/h)
• 18K SEER2: 24
• 27K SEER2: 24
• 35K SEER2: 22.5
• 18K HSPF2: 10.5
• 27K HSPF2: 10.5
• 35K HSPF2: 10
• Diameter of Liquid Pipe: 1/4"
• Diameter of Gas Pipe 9K: 3/8"
• Diameter of Gas Pipe 12K: 3/8"
• Diameter of Gas Pipe 18K: 1/2"
• Diameter of Gas Pipe 24K: 5/8"
• Multi Zone Combination: 3
• Note: Professional installation is required.

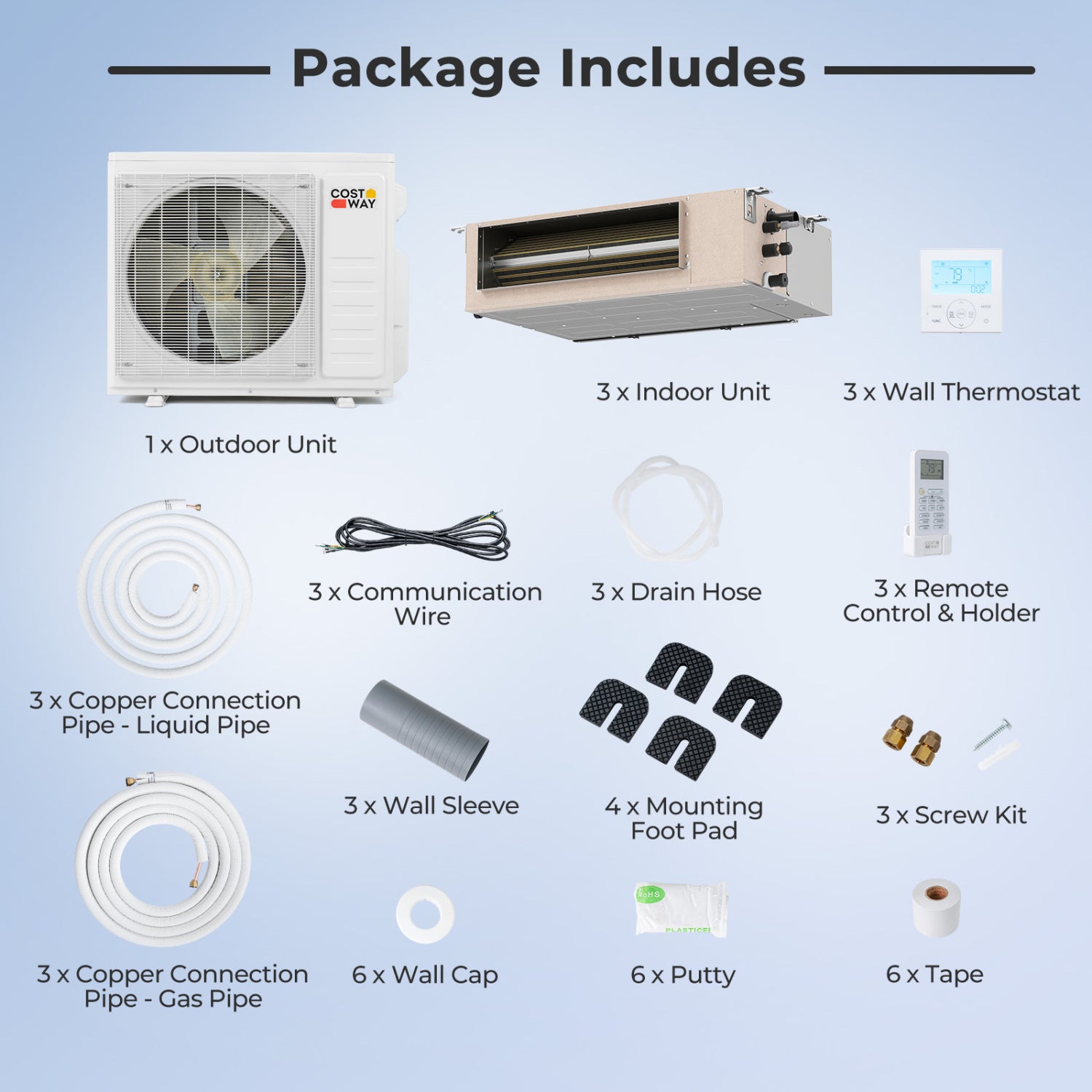

Package Includes:

• 1 x Outdoor Unit
• 3 x Indoor Unit
• 3 x Copper Connection Pipe - Gas Pipe
• 3 x Copper Connection Pipe - Liquid Pipe
• 3 x Communication Wire
• 3 x Drain Hose
• 3 x Remote Control & Holder
• 3 x Wall Thermostat
• 3 x Wall Sleeve
• 6 x Tape
• 6 x Putty
• 3 x Screw Kit
• 6 x Wall Cap
• 4 x Mounting Foot Pad
• 7 x User Guide
• Package Quantity: 1 Set (includes all components above)
