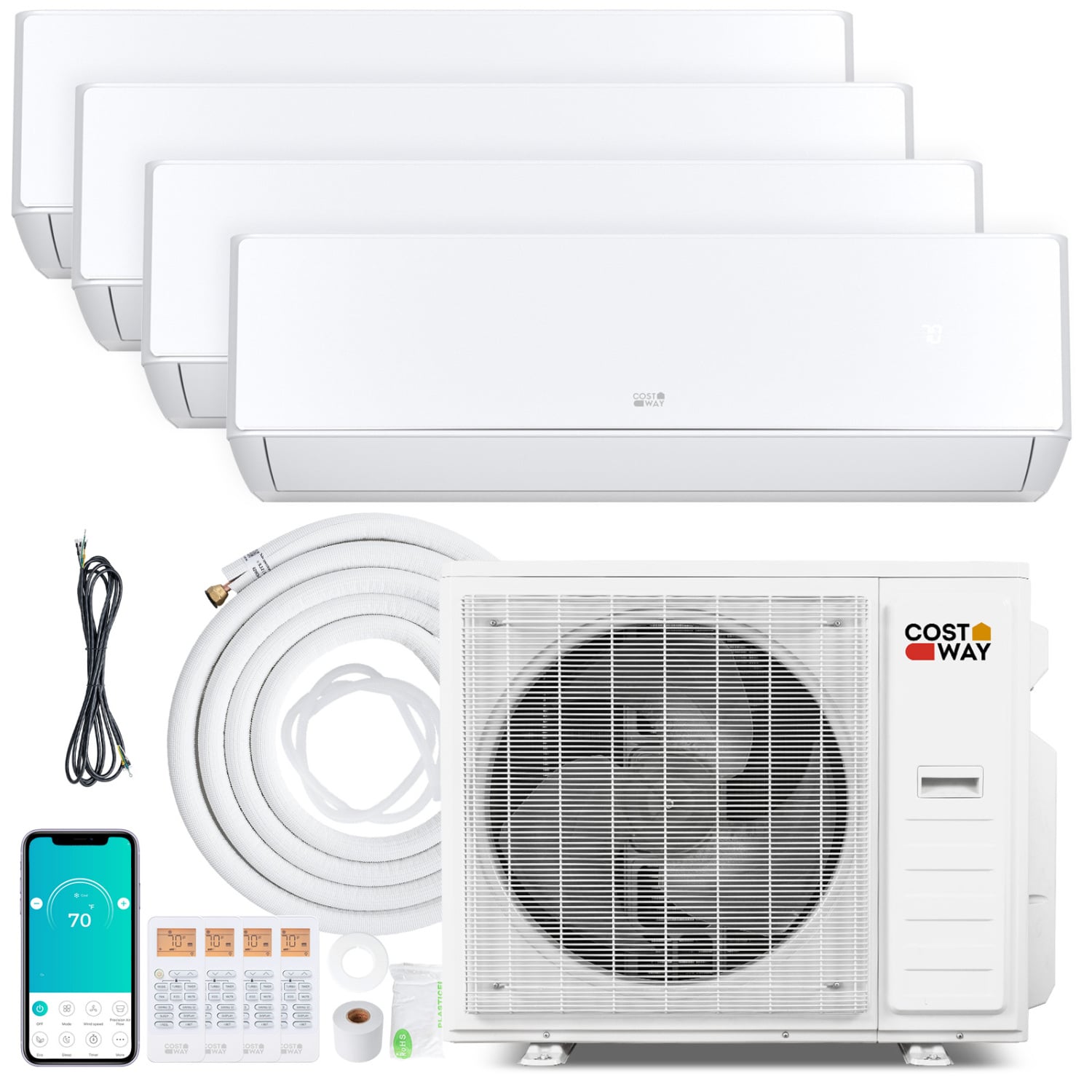

Mini Split AC Heat Pump, 35000 BTU, 4 Zone, 22.5 SEER2, 12K + 12K + 12K + 12K

Overview:

• Provides fast cooling and heating for 4 independent zones with room-by-room temperature control.
• Features 7 operating modes, 8 fan speeds, and 4D auto swing for even air distribution.
• Utilizes inverter technology and R454B refrigerant for high energy efficiency and lower environmental impact.
• Includes smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant compatibility.
• Offers quiet operation as low as 30 dB, sleep mode, and a child lock for family-friendly use.
• Equipped with self-clean function and washable filter for easy maintenance and fresher airflow.
• Designed for harsh weather with chassis electrical heating, cooling up to 55℃ and heating down to -25℃.
• Note: Installation by a professional technician is recommended.

Highlights:

• Fast cooling and heating for 4 independent zones with precise temperature control.
• High energy efficiency with inverter technology and Energy Star certification.
• Smart and flexible control via WiFi, app, remote, or voice commands.
• Quiet operation as low as 30 dB for peaceful sleep and work environments.
• Self-clean function and washable filter for easy maintenance and cleaner air.
• Child lock to prevent accidental changes to settings.
• 24-hour timer for effortless scheduling and energy savings.
• 4D swing ensures even air distribution for added comfort.
• Chassis electrical heating ensures consistent performance in tough weather.
• Sleep mode and screen off function for undisturbed nights.

Features:

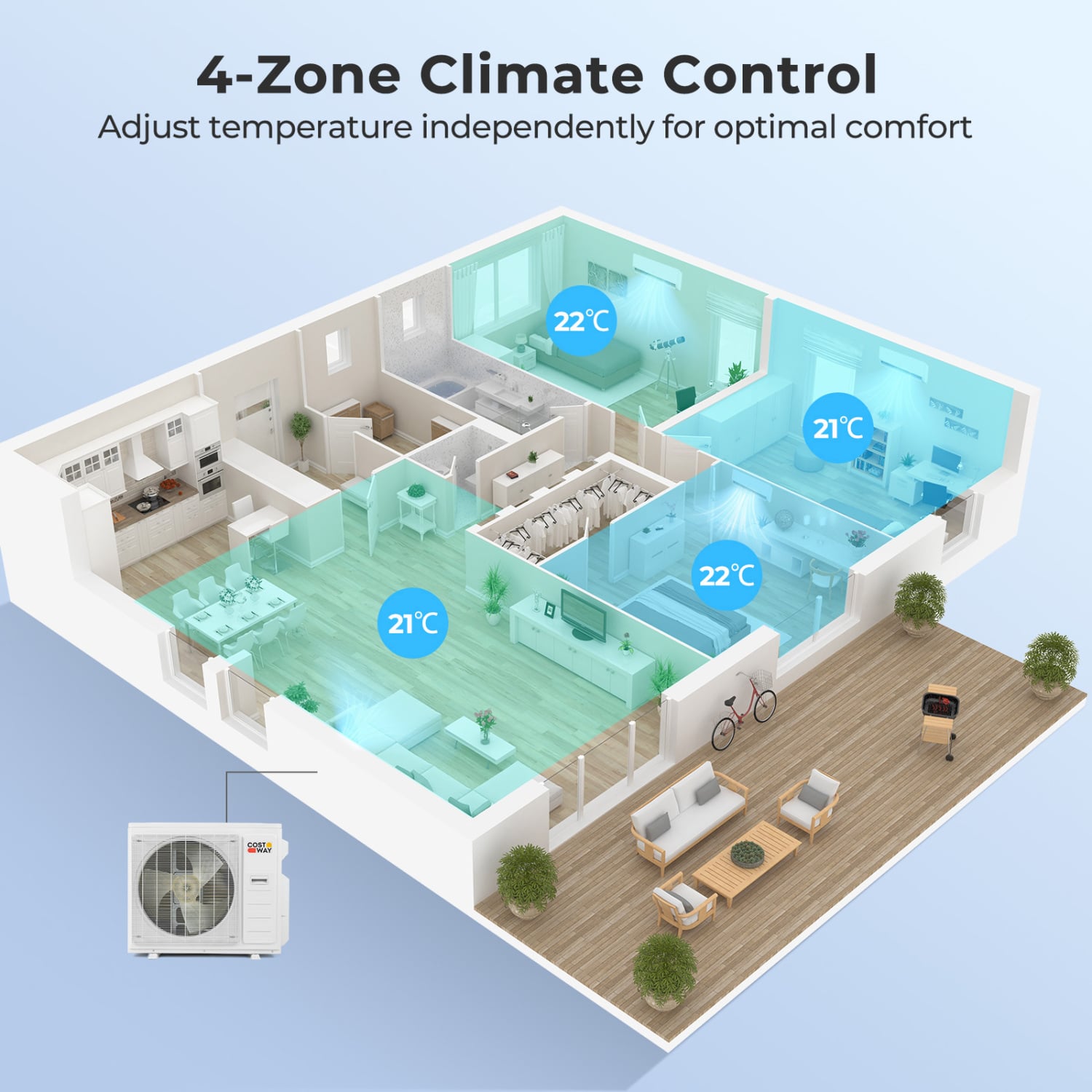

• 4-zone climate control for room-by-room comfort in larger homes.
• 35000 BTU capacity for efficient heating and cooling.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 4D auto swing for even air distribution.

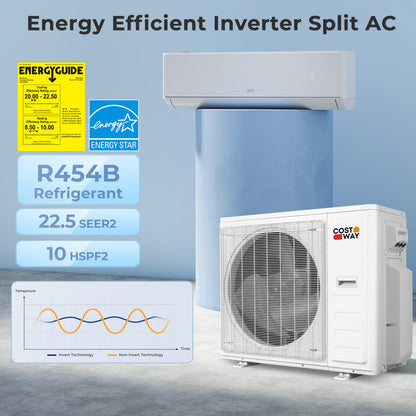

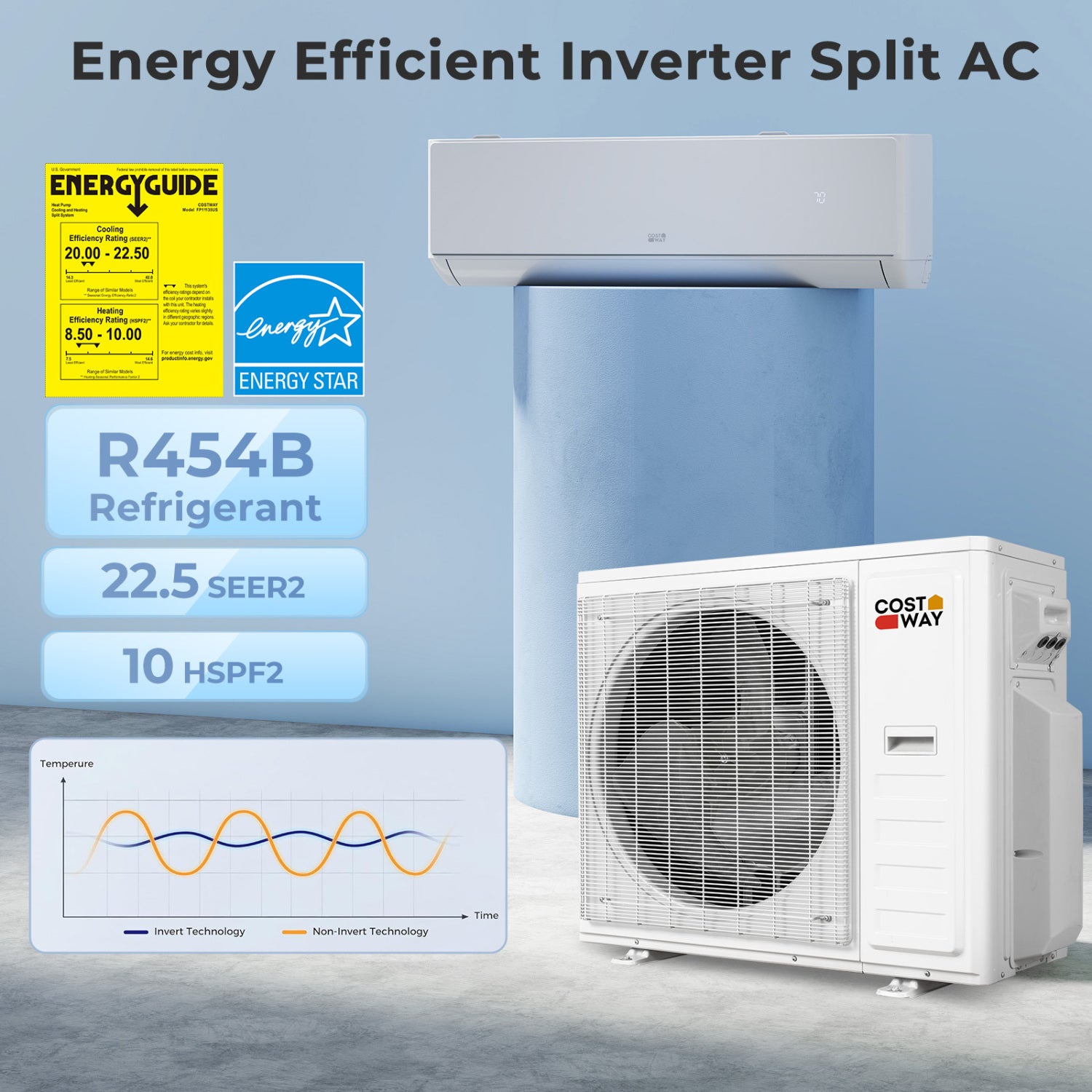

• Inverter technology for minimized energy waste and steady temperatures.
• R454B refrigerant for efficient performance with lower global warming potential.
• Energy Star certified with up to 22.5 SEER2 rating.
• WiFi-enabled for smart control via smartphone app.
• Compatible with Alexa and Google Assistant for voice commands.
• Includes remote control for fast adjustments.
• 24-hour timer for scheduling and energy savings.
• Child lock to prevent accidental setting changes.

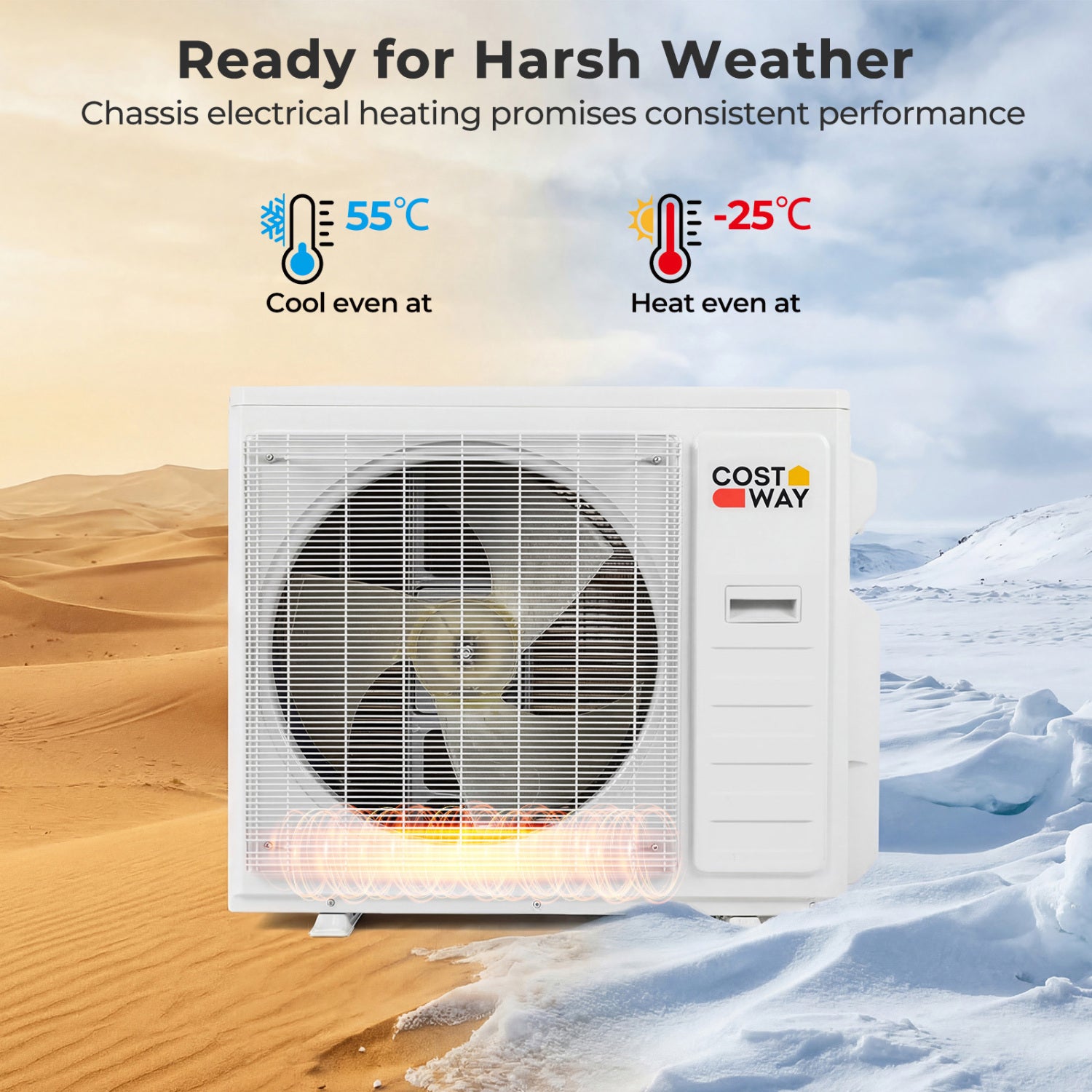

• Chassis electrical heating system for dependable performance in harsh weather.
• Cools in ambient temperatures up to 55℃ and heats down to -25℃.
• Quiet operation with noise levels as low as 30 dB.
• Self-clean function maintains fresher airflow over time.
• Removable and washable filter for easy cleaning.
• Sleep mode for peaceful nights.
• Screen off function.
• Note: Installation by a professional technician is recommended.

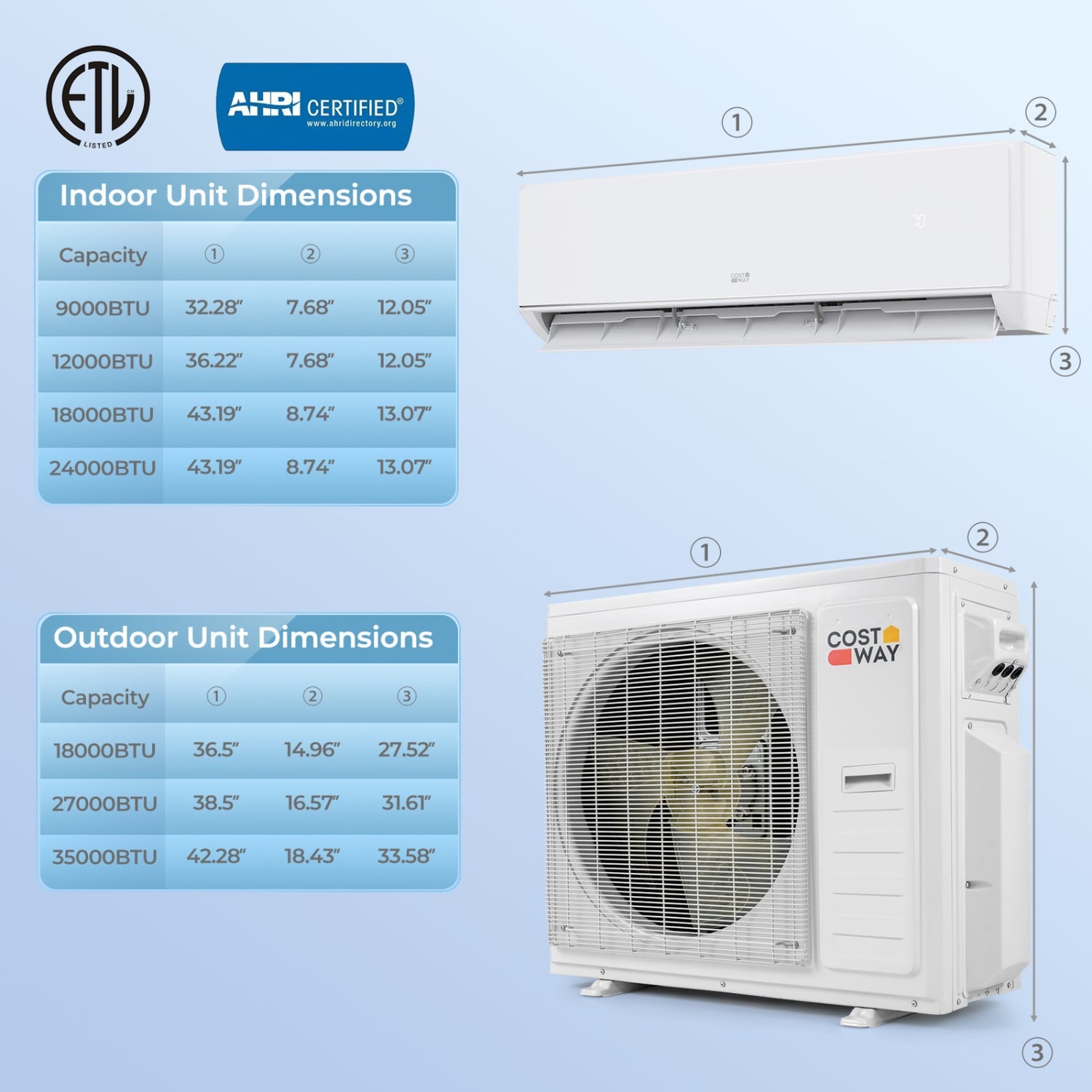

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 20.7 lbs (9.4 kg).
• Net Weight of Indoor Unit (12K): 24.3 lbs (11 kg).
• Net Weight of Indoor Unit (18K): 30.9 lbs (14 kg).
• Net Weight of Indoor Unit (24K): 30.9 lbs (14 kg).
• Net Weight of Outdoor Unit (18K): 92.6 lbs (42 kg).
• Net Weight of Outdoor Unit (27K): 119 lbs (54 kg).
• Net Weight of Outdoor Unit (35K): 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 30 dB.
• Max Remote Control Distance: 39.5 ft (12 m).
• Coverage Area (9K): 450 Sq.Ft (41.8 m²).
• Coverage Area (12K): 750 Sq.Ft (69.7 m²).
• Coverage Area (18K): 1250 Sq.Ft (116.1 m²).
• Coverage Area (24K): 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity (9K): 55.8 Pints/Day (26.4 L/day).
• Dehumidification Capacity (12K): 81.2 Pints/Day (38.4 L/day).
• Dehumidification Capacity (18K): 111.6 Pints/Day (52.8 L/day).
• Dehumidification Capacity (24K): 131.9 Pints/Day (62.4 L/day).
• Maximum Air Flow Volume (9K): 326 CFM/554 m³/h.
• Maximum Air Flow Volume (12K): 500 CFM/554 m³/h.
• Maximum Air Flow Volume (18K): 735 CFM/554 m³/h.
• Maximum Air Flow Volume (24K): 735 CFM/554 m³/h.
• SEER2 (18K): 24.
• SEER2 (27K): 24.
• SEER2 (35K): 22.5.
• HSPF2 (18K): 10.5.
• HSPF2 (27K): 10.5.
• HSPF2 (35K): 10.

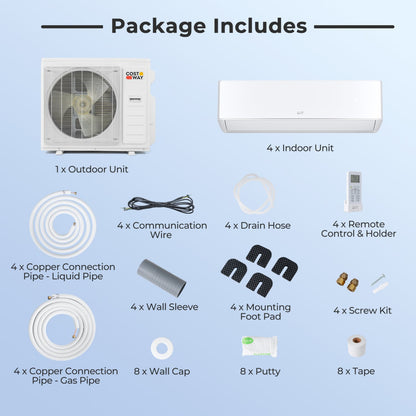

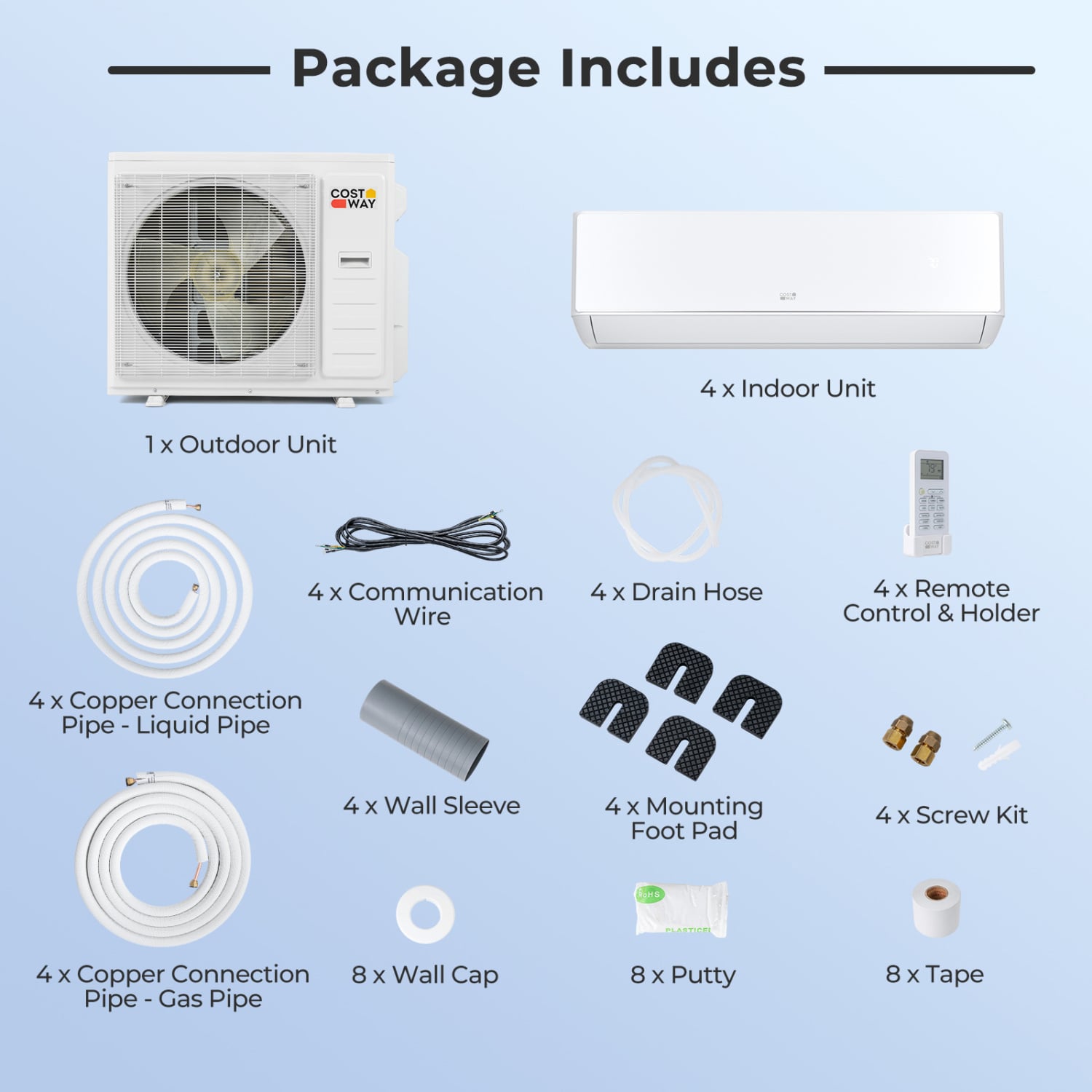

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 3 x Drain Hose.
• 4 x Remote Control & Holder.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 9 x User Guide.
