Mini Split AC Heat Pump, 35000 BTU, 4 Zone, 22.5 SEER2, 9K+9K+9K+12K, White

Enjoy year-round comfort with this 4-zone 35000 BTU mini split air conditioner, featuring efficient inverter technology, smart WiFi control, and quiet operation for whole-home climate control. Ideal for larger spaces, it offers independent temperature settings, energy savings, and easy maintenance with self-clean and washable filters.

Overview:

• Provides all-season comfort with fast cooling and heating for up to 4 independent zones.
• Designed for larger homes, offering room-by-room climate control with even air distribution.
• Features smart control via app, remote, or voice commands for flexible adjustments.
• Ensures reliable performance in harsh weather conditions with chassis electrical heating.
• Promotes quiet operation and cleaner air with self-clean function and washable filters.
• Note: Installation by a professional technician is recommended.

Highlights:

• Fast cooling and heating for 3 independent zones.
• 7 operating modes and 8 fan speeds to suit your comfort needs.
• High energy efficiency with inverter technology and R454B refrigerant.
• Chassis electrical heating promises consistent performance.
• Convenient control via smartphone app, remote, or voice commands.
• Sleep mode for peaceful nights alongside screen off function.
• 24-hour timer for effortless scheduling while saving energy.
• 4D swing ensures even air distribution for added comfort.
• Removable and washable filter for easy cleaning.
• Self-clean function maintains fresher airflow over time.
• Child lock to prevent accidental changes to settings.
• Certified by Energy Star.

Features:

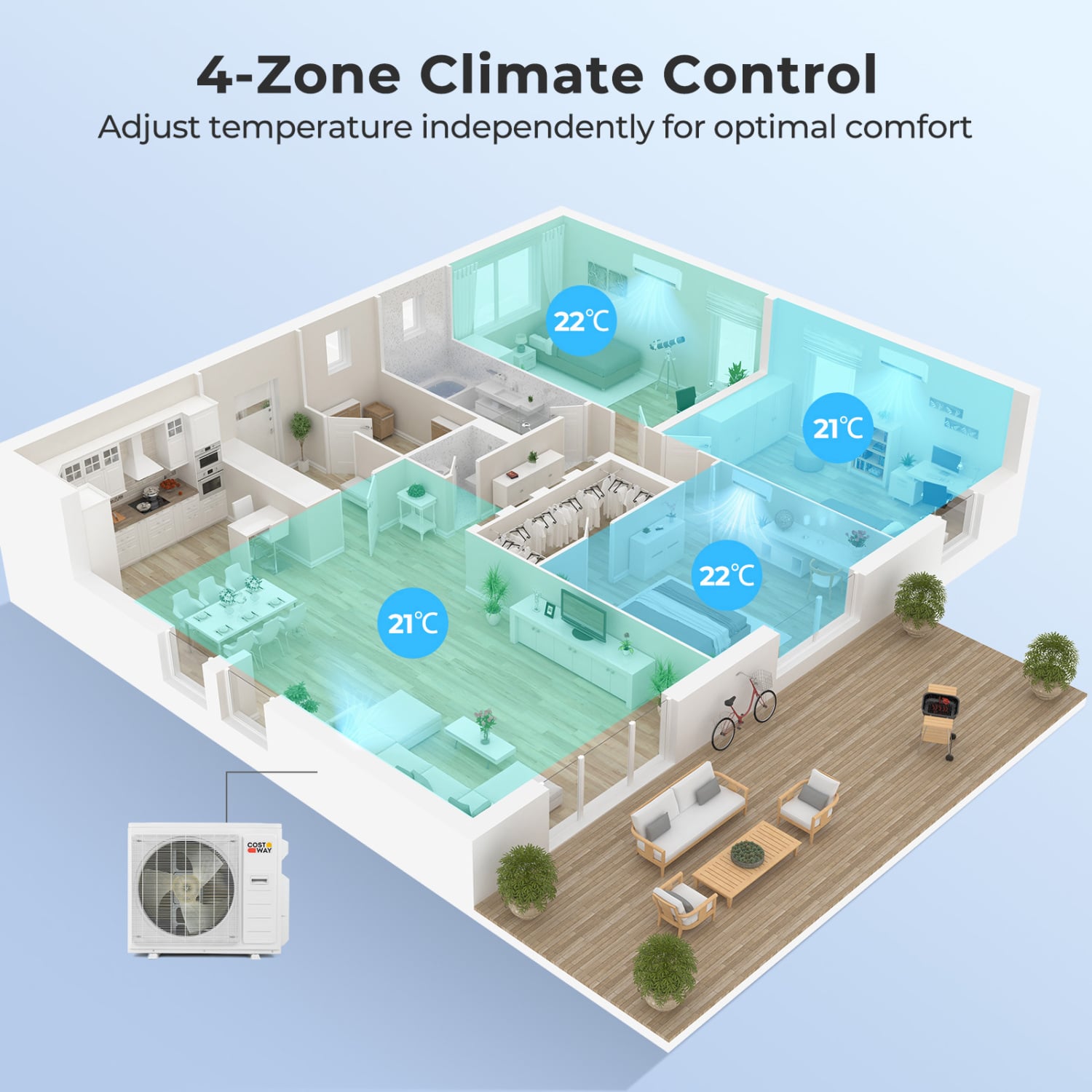

• 4-zone climate control for room-by-room comfort in larger homes.
• Multi-zone design allows independent temperature adjustments.
• 4D auto swing helps distribute airflow more evenly.

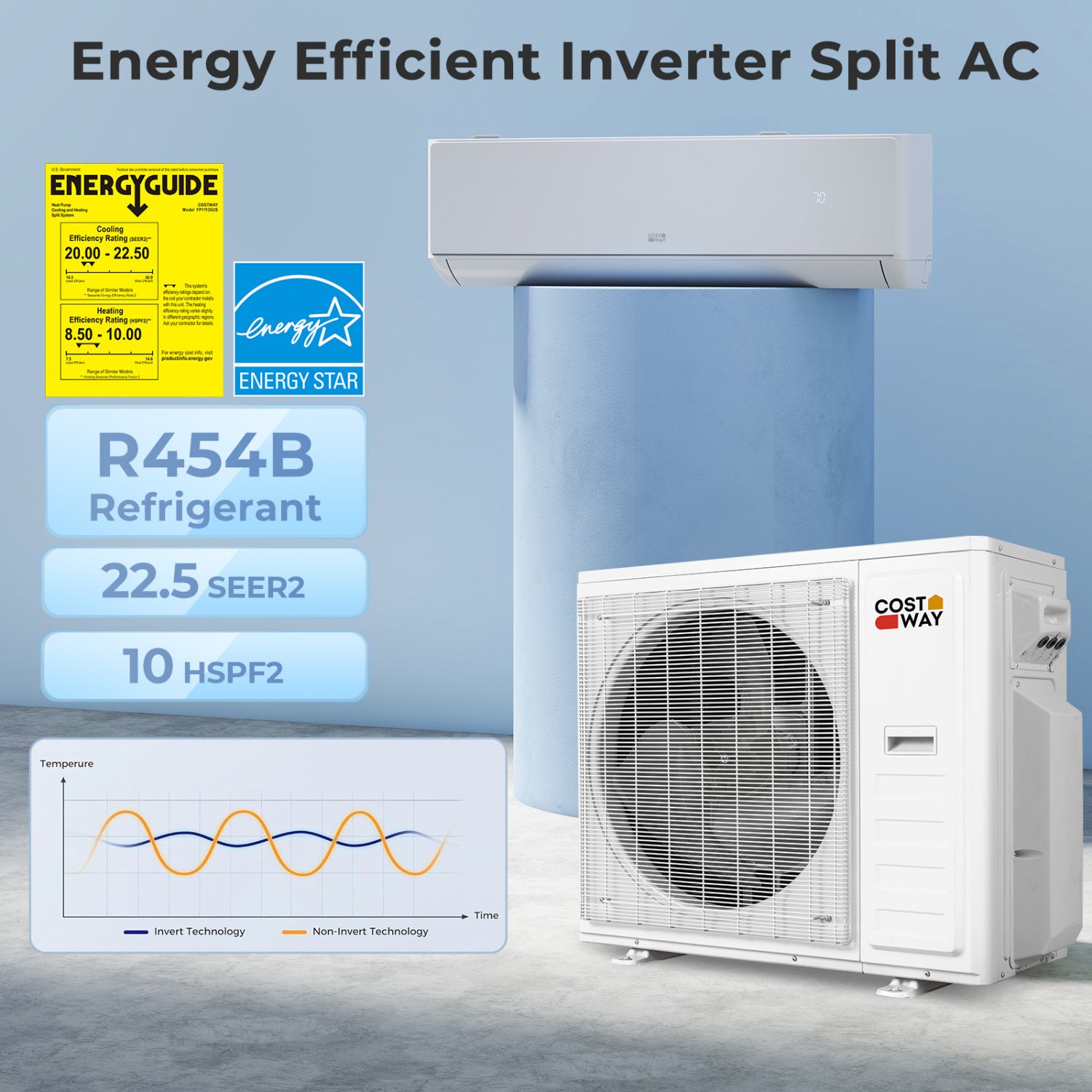

• Energy-efficient performance rated up to 22.5 SEER2.
• Uses R454B refrigerant for efficient heating and cooling with lower global warming potential.
• Advanced inverter technology minimizes energy waste and maintains steady set temperatures.
• WiFi-enabled for smart control compatible with Alexa and Google Assistant.
• Includes a handy remote control for fast adjustments.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, turbo.
• 24-hour timer for scheduling and energy savings.
• Child lock for preventing accidental changes to settings.

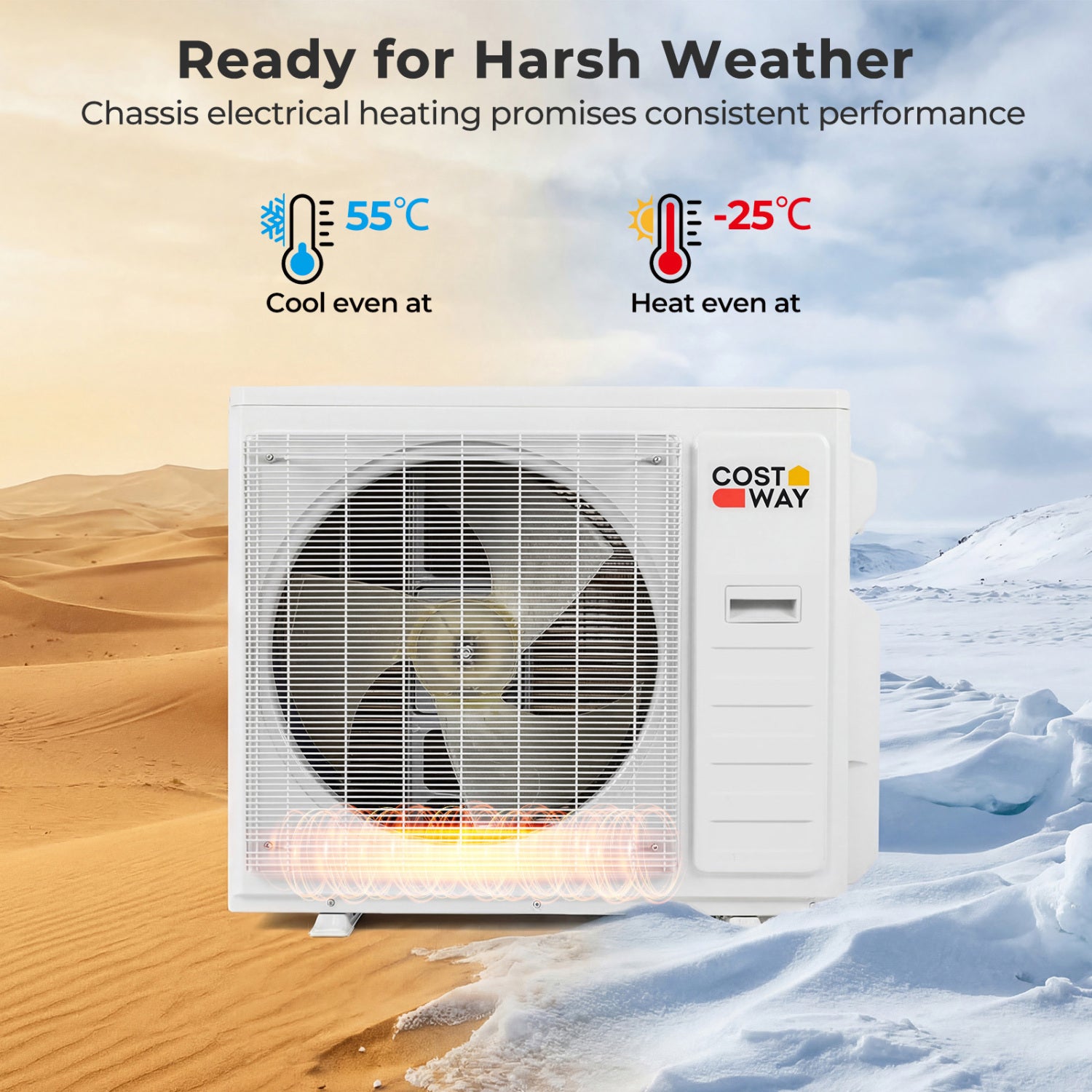

• Equipped with chassis electrical heating system for dependable performance in tough weather.
• Cools in ambient temperatures up to 55℃ and heats down to -25℃.
• Runs with low sound levels as low as 30 dB for a peaceful environment.
• Self-clean function maintains fresher airflow over time.
• Removable and washable filter for easy cleaning.
• Note: Installation by a professional technician is recommended.

Weight & Dimensions:

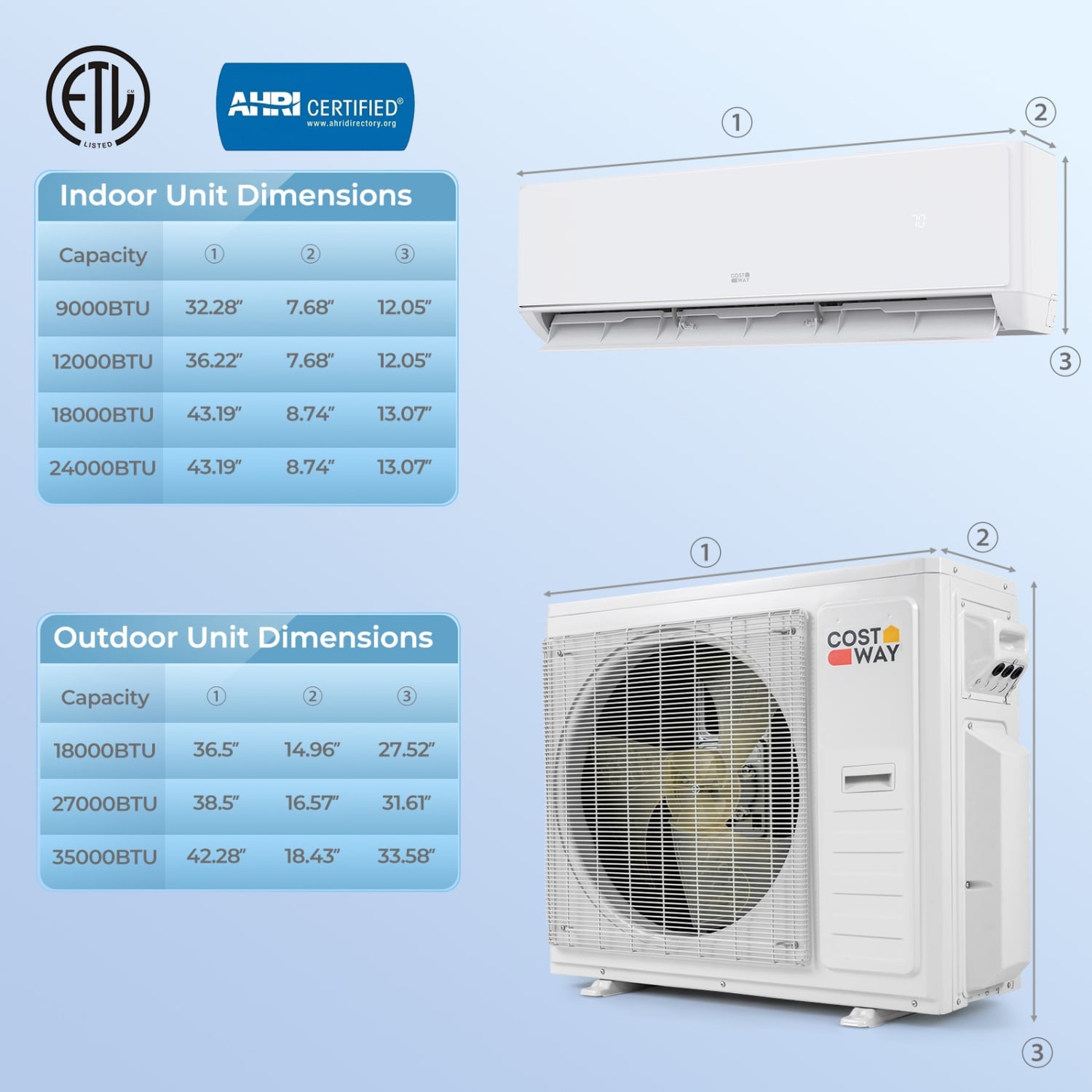

• Indoor Unit Dimensions: 9K: 32.28" x 7.68" x 12.05" (82.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions: 12K: 36.22" x 7.68" x 12.05" (92.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions: 18K: 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions: 24K: 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions: 18K: 36.5" x 14.96" x 27.52" (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions: 27K: 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions: 35K: 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Diameter of Liquid Pipe: 1/4" (0.6 cm).
• Diameter of Gas Pipe: 9K: 3/8" (1.0 cm), 12K: 3/8" (1.0 cm), 18K: 1/2" (1.3 cm), 24K: 5/8" (1.6 cm).
• Net Weight of 9K Indoor Unit: 20.7 lbs (9.4 kg).
• Net Weight of 12K Indoor Unit: 24.3 lbs (11.0 kg).
• Net Weight of 18K Indoor Unit: 30.9 lbs (14.0 kg).
• Net Weight of 24K Indoor Unit: 30.9 lbs (14.0 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42.0 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54.0 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66.0 kg).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 30 dB.
• Max Remote Control Distance: 39.5 ft (12.0 m).
• Coverage Area: 9K: 450 Sq.Ft (41.8 m²), 12K: 750 Sq.Ft (69.7 m²), 18K: 1250 Sq.Ft (116.1 m²), 24K: 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity: 9K: 55.8 Pints/Day (26.4 L/Day), 12K: 81.2 Pints/Day (38.4 L/Day), 18K: 111.6 Pints/Day (52.8 L/Day), 24K: 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume: 9K: 326 CFM/554 m³/h, 12K: 500 CFM/554 m³/h, 18K: 735 CFM/554 m³/h, 24K: 735 CFM/554 m³/h.
• SEER2 Ratings: 18K: 24, 27K: 24, 35K: 22.5.
• HSPF2 Ratings: 18K: 10.5, 27K: 10.5, 35K: 10.

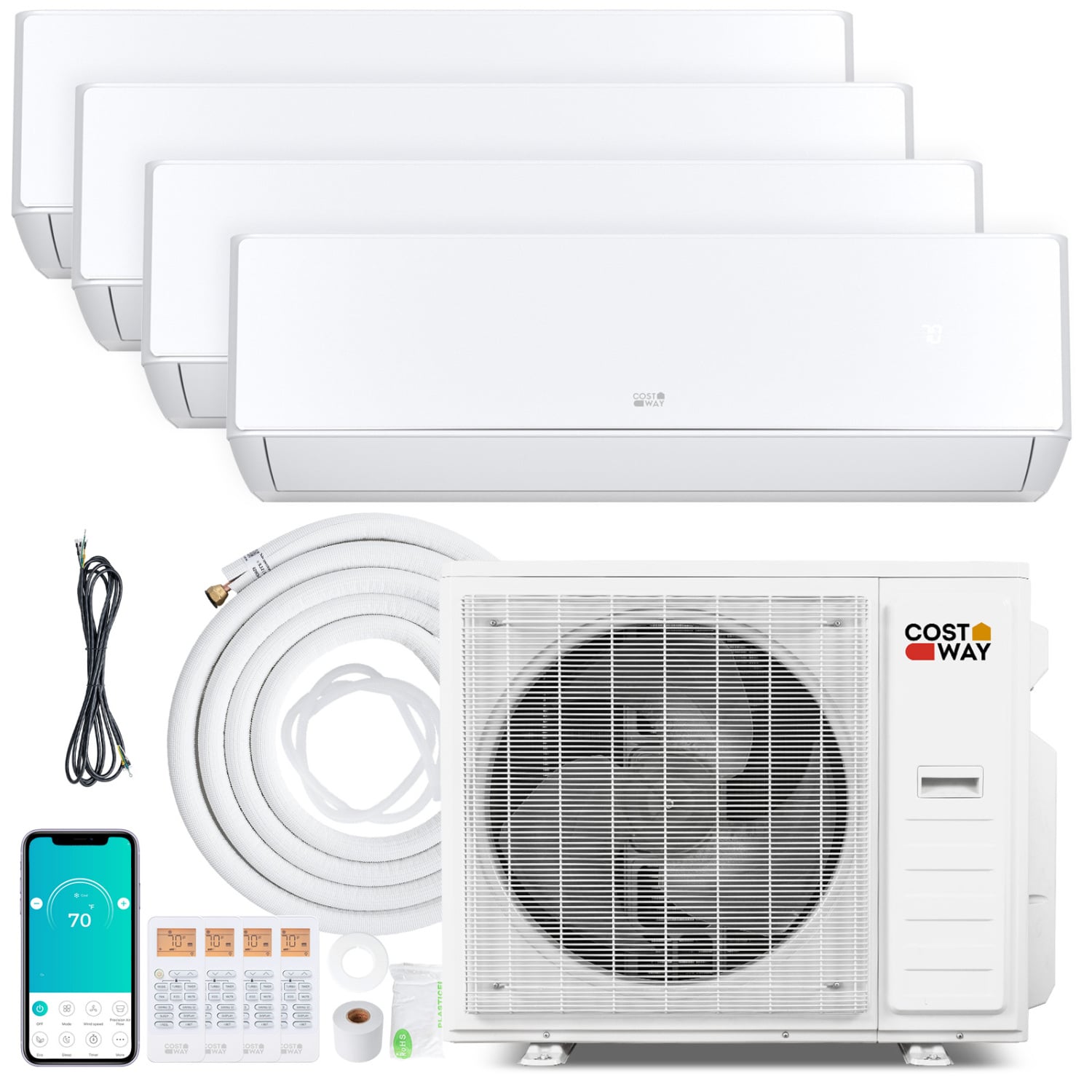

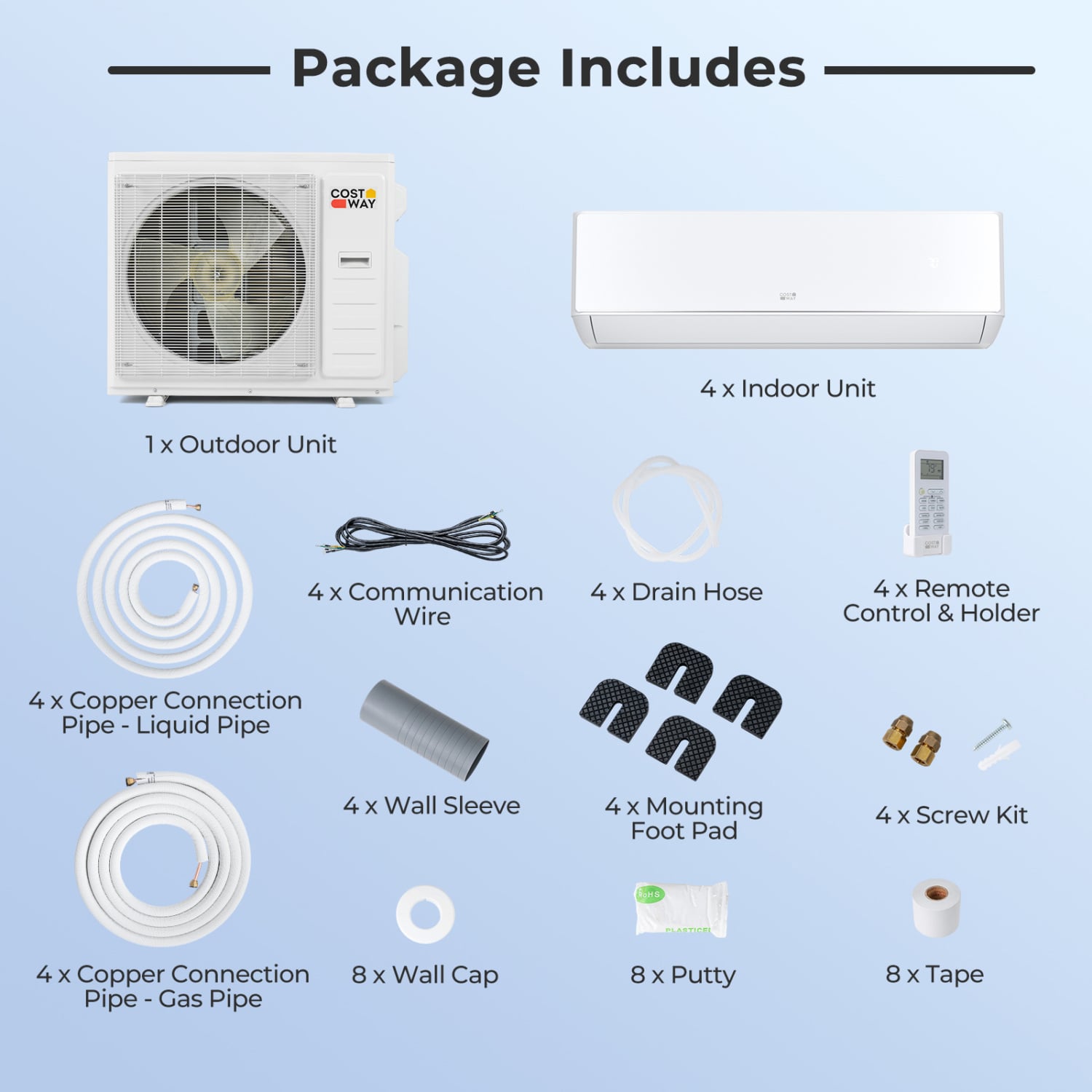

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 3 x Drain Hose.
• 4 x Remote Control & Holder.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 9 x User Guide.
