38000 BTU 3 Zone 20 SEER2 Mini Split AC With Heat Pump, 9K + 12K + 12K

Experience year-round comfort with this 3-zone mini split air conditioner and heat pump, offering efficient whole-home cooling and heating. With a 20 SEER2 rating and inverter technology, it delivers powerful performance while reducing energy costs. Smart controls via Wi-Fi, Alexa, and Google Assistant, plus 7 operating modes and 8 fan speeds, provide customizable climate control. Features include low noise operation, self-clean function, washable filters, and reliable performance in extreme temperatures from -25°C to 55°C.

Overview:

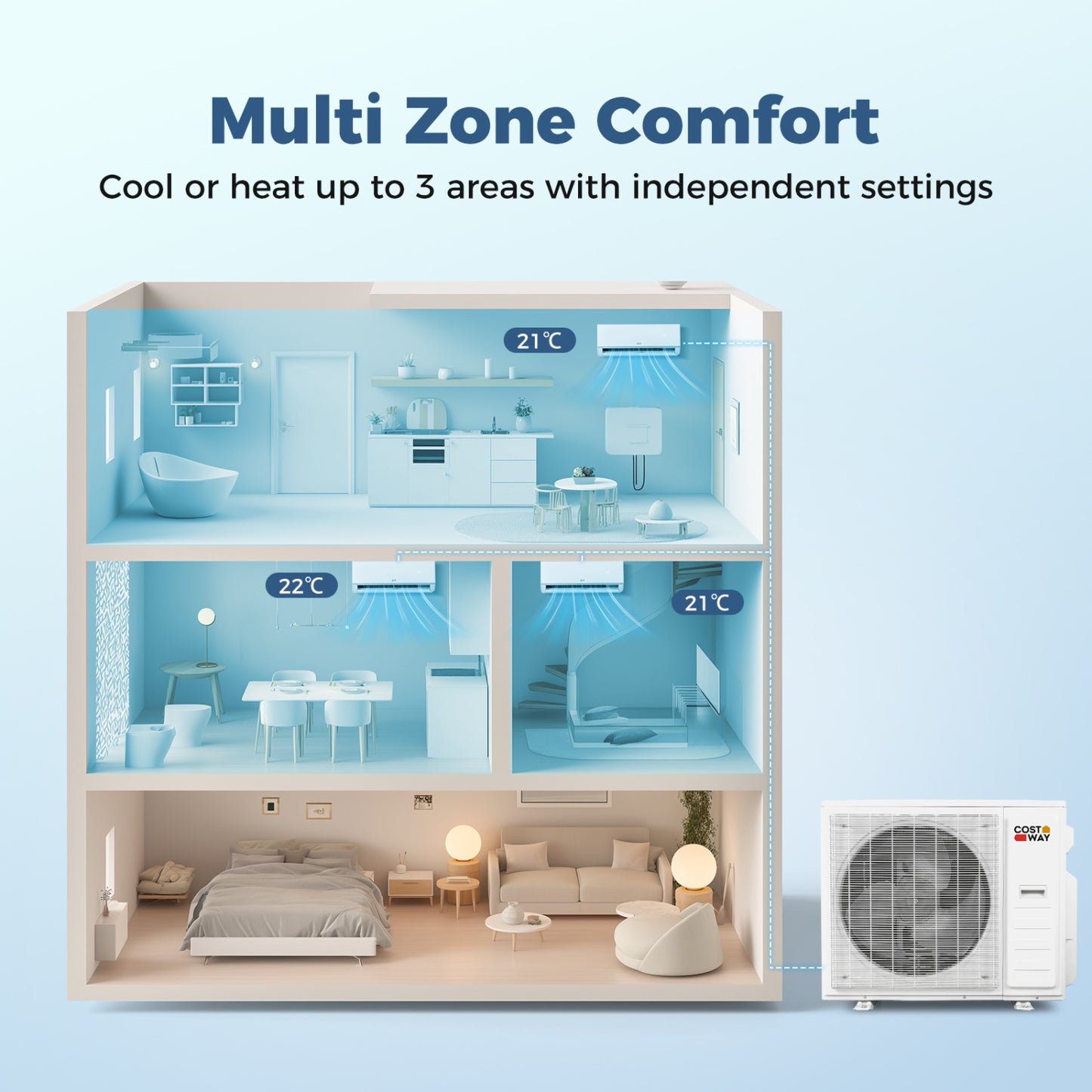

• Provides multi-zone comfort for larger homes with room-by-room temperature control.
• Ideal for year-round use with cooling and heating capabilities.
• Features advanced inverter technology for energy efficiency and stable temperature maintenance.
• Includes smart controls via Wi-Fi, voice assistants, and remote for convenient access.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 3 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

• 3-zone 38000 BTU mini split ac/heating system for room-by-room comfort.
• Dual/tri/quad zone design for tailored temperatures.
• 4D swing spreads air more evenly for improved distribution.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• 20 SEER2 rating for energy-smart control and reduced waste.
• Advanced inverter technology helps maintain stable set temperatures.
• Outdoor unit equipped with chassis electrical heating for reliable operation in harsh conditions.
• Supports cooling even at 55°C and heating even at -25°C.
• Wi-Fi enabled for use with Alexa and Google Assistant.
• Includes remote control for quick access.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduled operation.
• Child lock feature to prevent accidental changes.
• Operates quietly with noise as low as 28 dB.
• Self-clean function for fresher airflow.
• Washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

Weight & Dimensions:

• Outdoor Unit Dimensions for 20K: 33.54 inches (85.19 cm) length x 13.74 inches (34.90 cm) width x 23.7 inches (60.20 cm) height.
• Outdoor Unit Dimensions for 28K: 35.94 inches (91.29 cm) length x 14.76 inches (37.49 cm) width x 26.34 inches (66.90 cm) height.
• Outdoor Unit Dimensions for 38K: 42.64 inches (108.31 cm) length x 19.45 inches (49.40 cm) width x 33.78 inches (85.80 cm) height.
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe for 9K, 12K, and 18K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 24K: 1/2 inch (1.27 cm).
• Net Weight of 38K Outdoor Unit: 148.8 pounds (67.5 kilograms).
• Net Weight of 9K Indoor Unit: 19.8 pounds (9.0 kilograms).
• Net Weight of 12K Indoor Unit: 19.8 pounds (9.0 kilograms).
• Net Weight of 18K Indoor Unit: 20.9 pounds (9.5 kilograms).
• Net Weight of 24K Indoor Unit: 27.6 pounds (12.5 kilograms).

Specifications:

• Multi Zone Combination: 3.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C to 31°C.
• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet (12.0 meters).
• Coverage Area for 9K: 450 square feet.
• Coverage Area for 12K: 750 square feet.
• Coverage Area for 18K: 1250 square feet.
• Coverage Area for 24K: 1500 square feet.
• Dehumidification Capacity for 9K: 66 pints per day.
• Dehumidification Capacity for 12K: 81.2 pints per day.
• Dehumidification Capacity for 18K: 111.6 pints per day.
• Dehumidification Capacity for 24K: 131.9 pints per day.
• Maximum Air Flow Volume for 9K: 335 CFM.
• Maximum Air Flow Volume for 12K: 342 CFM.
• Maximum Air Flow Volume for 18K: 617 CFM.
• Maximum Air Flow Volume for 24K: 847 CFM.
• SEER2 for 20K: 23.
• SEER2 for 28K: 20.
• SEER2 for 38K: 20.
• HSPF2 for 20K, 28K, and 38K: 9.5.

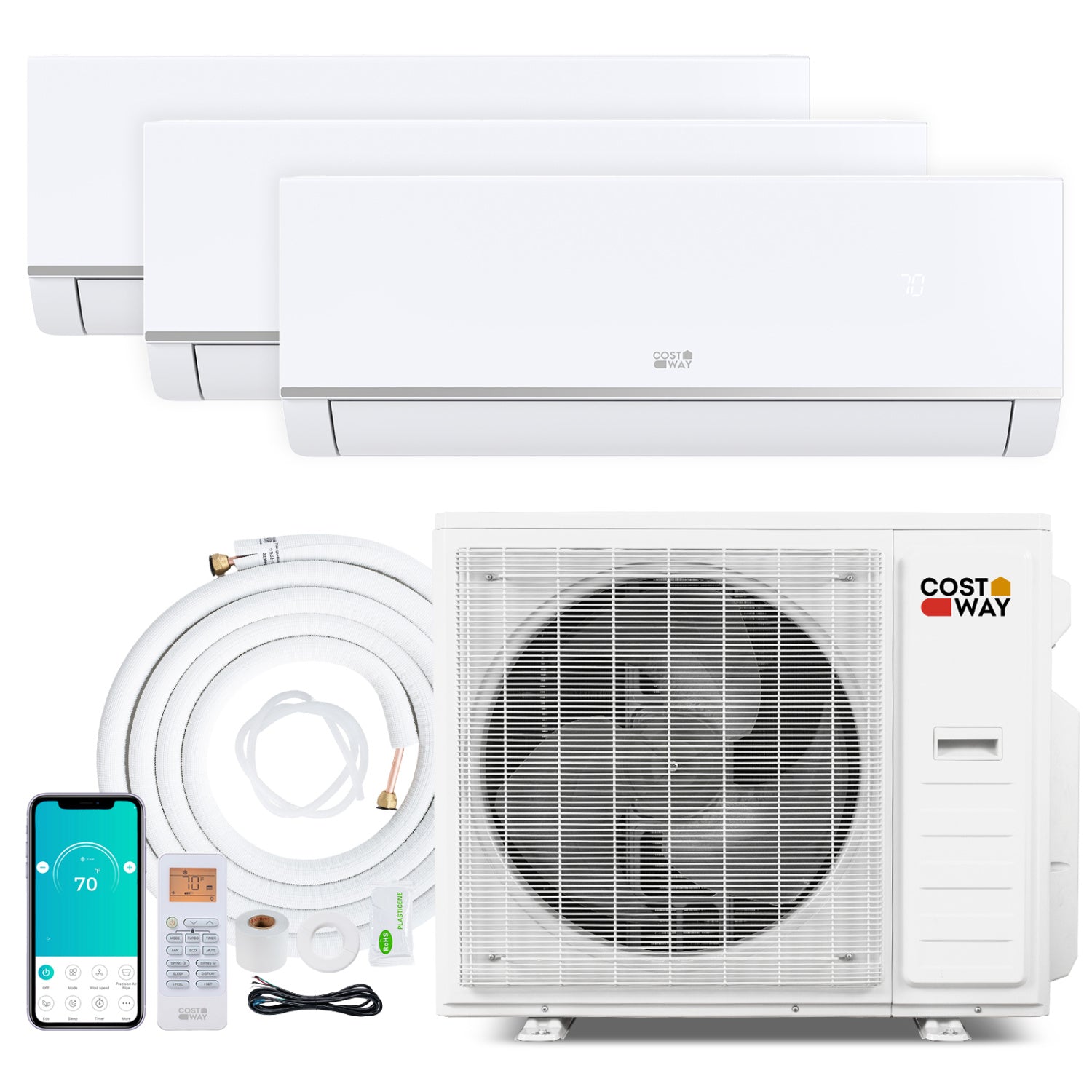

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control and Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.
