38000 BTU 3 Zone Mini Split AC, Heat Pump 12K + 18K + 18K

Experience year-round comfort with this 3-zone mini split air conditioner and heat pump, delivering efficient whole-home cooling and heating. With 20 SEER2 energy efficiency, smart controls, and quiet operation, it's ideal for larger spaces.

Overview:

• Provides multi-zone comfort for tailored temperature control in different rooms.
• Designed for all-season use with reliable operation in extreme weather conditions.
• Features smart technology for easy control via phone, voice, or remote.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 3 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

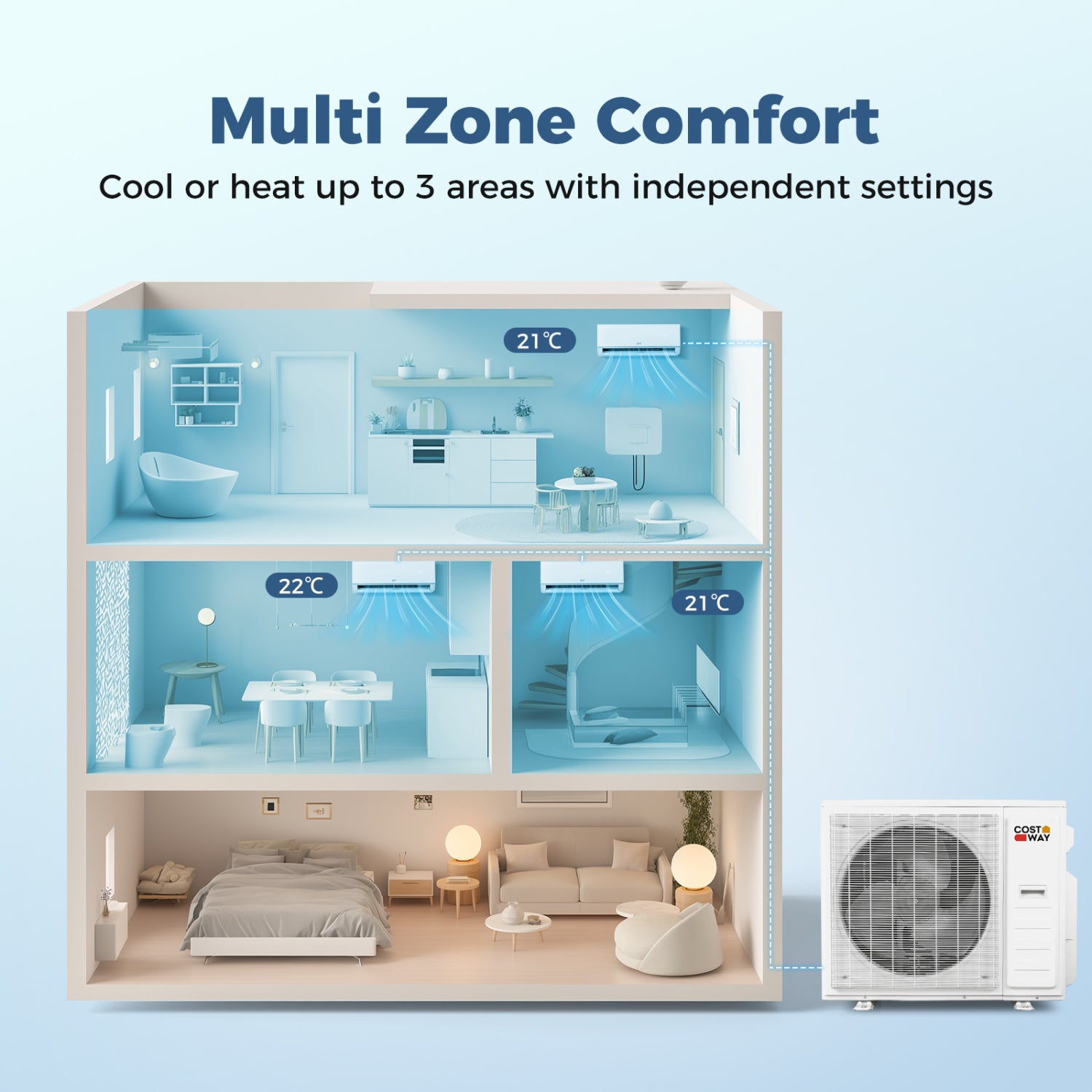

• 3-zone 38000 BTU mini split ac and heating system for room-by-room comfort.
• Dual/tri/quad zone design for tailored temperatures.
• 4D swing spreads air more evenly.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.

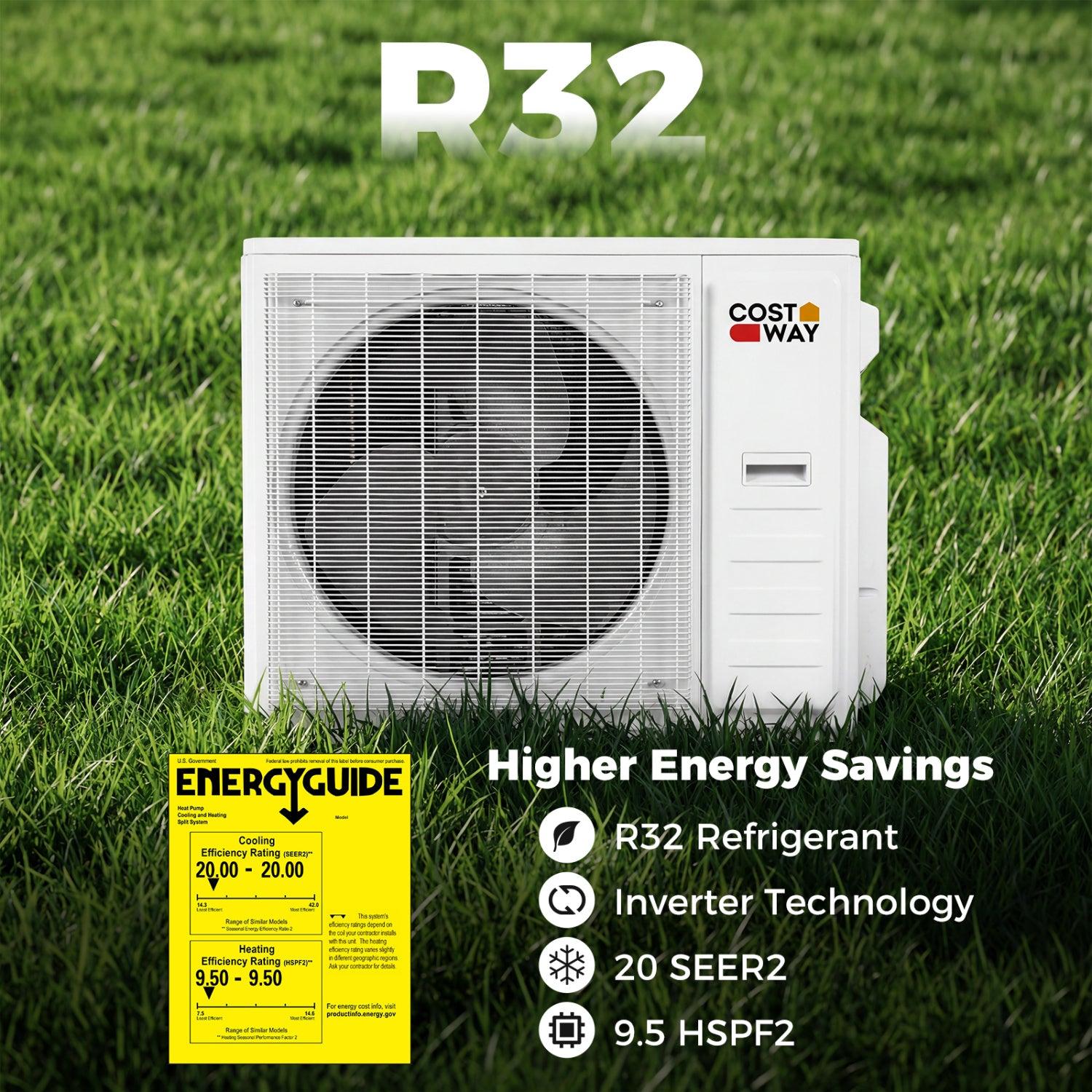

• 20 SEER2 rating for powerful heating and cooling with energy-smart control.
• Advanced inverter technology reduces energy waste and keeps temperatures stable.

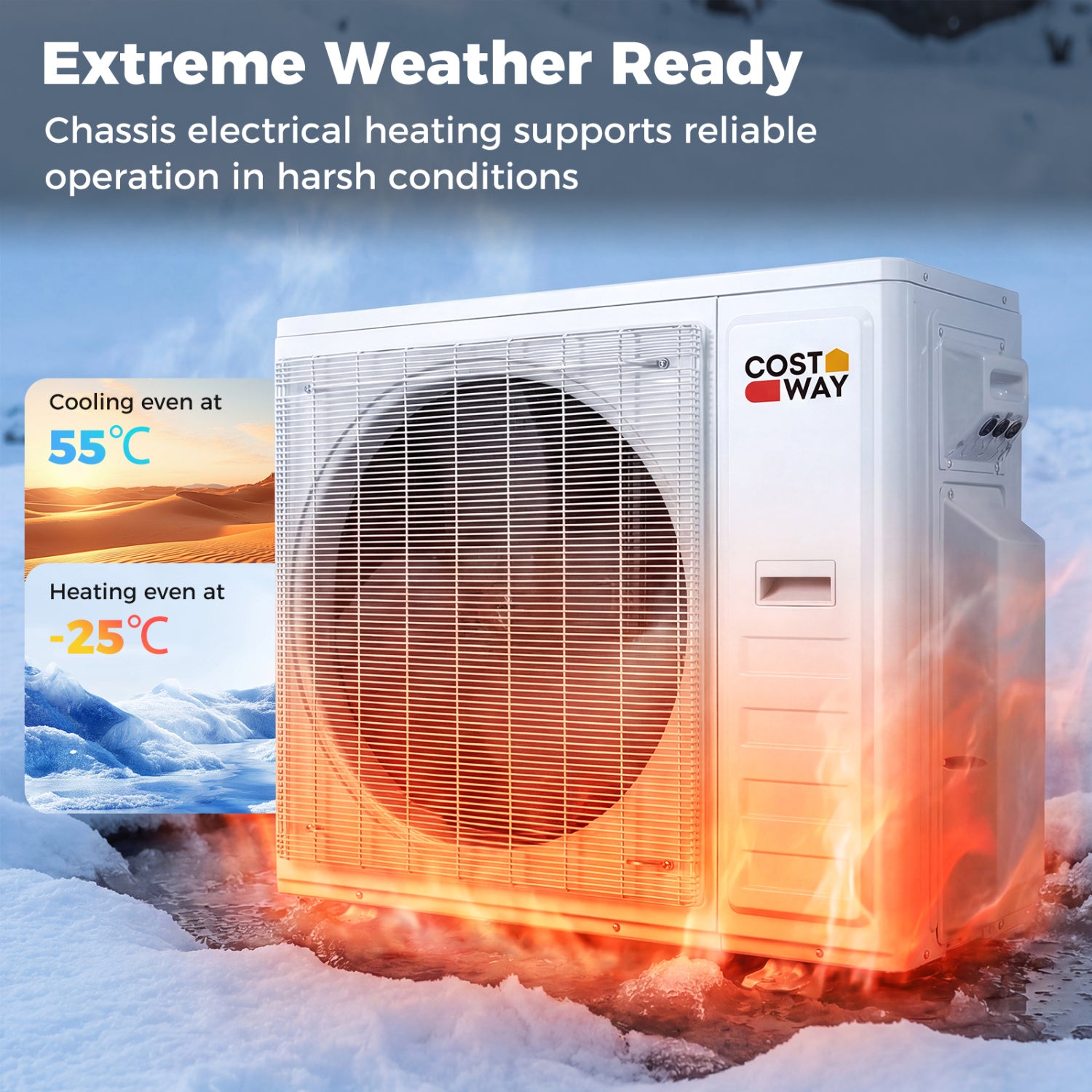

• Outdoor unit equipped with chassis electrical heating for reliable operation in harsh conditions.
• Cools even at 55℃ and heats even at -25℃.
• Wifi enabled and works with Alexa and Google assistant.
• Remote control for quick access.
• 7 modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, turbo.
• 24-hour timer and child lock.
• Operates quietly with noise as low as 28 dB.
• Self-clean function and washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

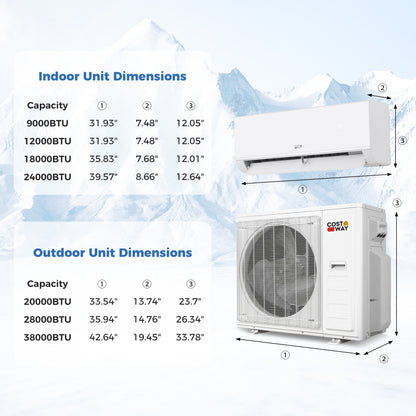

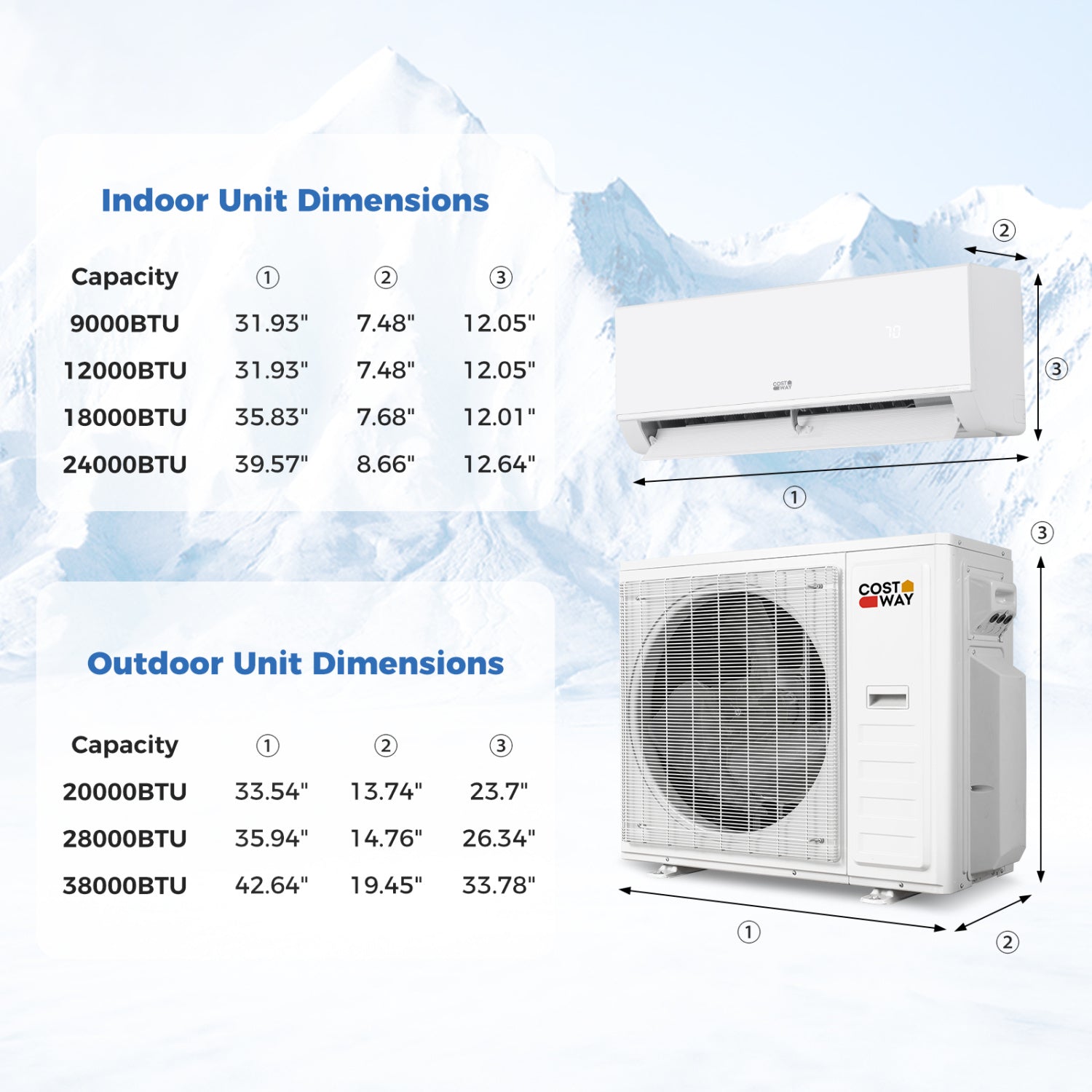

Weight & Dimensions:

• Outdoor Unit Dimensions for 20K: 33.54" x 13.74" x 23.7" (L x W x H) / 85.19 cm x 34.90 cm x 60.20 cm.
• Outdoor Unit Dimensions for 28K: 35.94" x 14.76" x 26.34" (L x W x H) / 91.29 cm x 37.49 cm x 66.90 cm.
• Outdoor Unit Dimensions for 38K: 42.64" x 19.45" x 33.78" (L x W x H) / 108.31 cm x 49.40 cm x 85.80 cm.
• Net Weight of 38K Outdoor Unit: 148.8 lbs / 67.5 kg.
• Net Weight of 9K Indoor Unit: 19.8 lbs / 9.0 kg.
• Net Weight of 12K Indoor Unit: 19.8 lbs / 9.0 kg.
• Net Weight of 18K Indoor Unit: 20.9 lbs / 9.5 kg.
• Net Weight of 24K Indoor Unit: 27.6 lbs / 12.5 kg.

Specifications:

• Multi Zone Combination: 3.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 ft.
• Coverage Area for 9k: 450 Sq.Ft.
• Coverage Area for 12k: 750 Sq.Ft.
• Coverage Area for 18k: 1250 Sq.Ft.
• Coverage Area for 24k: 1500 Sq.Ft.
• Dehumidification Capacity for 9k: 66 Pints/Day.
• Dehumidification Capacity for 12k: 81.2 Pints/Day.
• Dehumidification Capacity for 18k: 111.6 Pints/Day.
• Dehumidification Capacity for 24k: 131.9 Pints/Day.
• Maximum Air Flow Volume for 9k: 335 CFM.
• Maximum Air Flow Volume for 12k: 342 CFM.
• Maximum Air Flow Volume for 18k: 617 CFM.
• Maximum Air Flow Volume for 24k: 847 CFM.
• SEER2 for 20k: 23.
• SEER2 for 28k: 20.
• SEER2 for 38k: 20.
• HSPF2 for 20k: 9.5.
• HSPF2 for 28k: 9.5.
• HSPF2 for 38k: 9.5.
• Diameter of Liquid Pipe: 1/4".
• Diameter of Gas Pipe for 9k: 3/8".
• Diameter of Gas Pipe for 12k: 3/8".
• Diameter of Gas Pipe for 18k: 3/8".
• Diameter of Gas Pipe for 24k: 1/2".

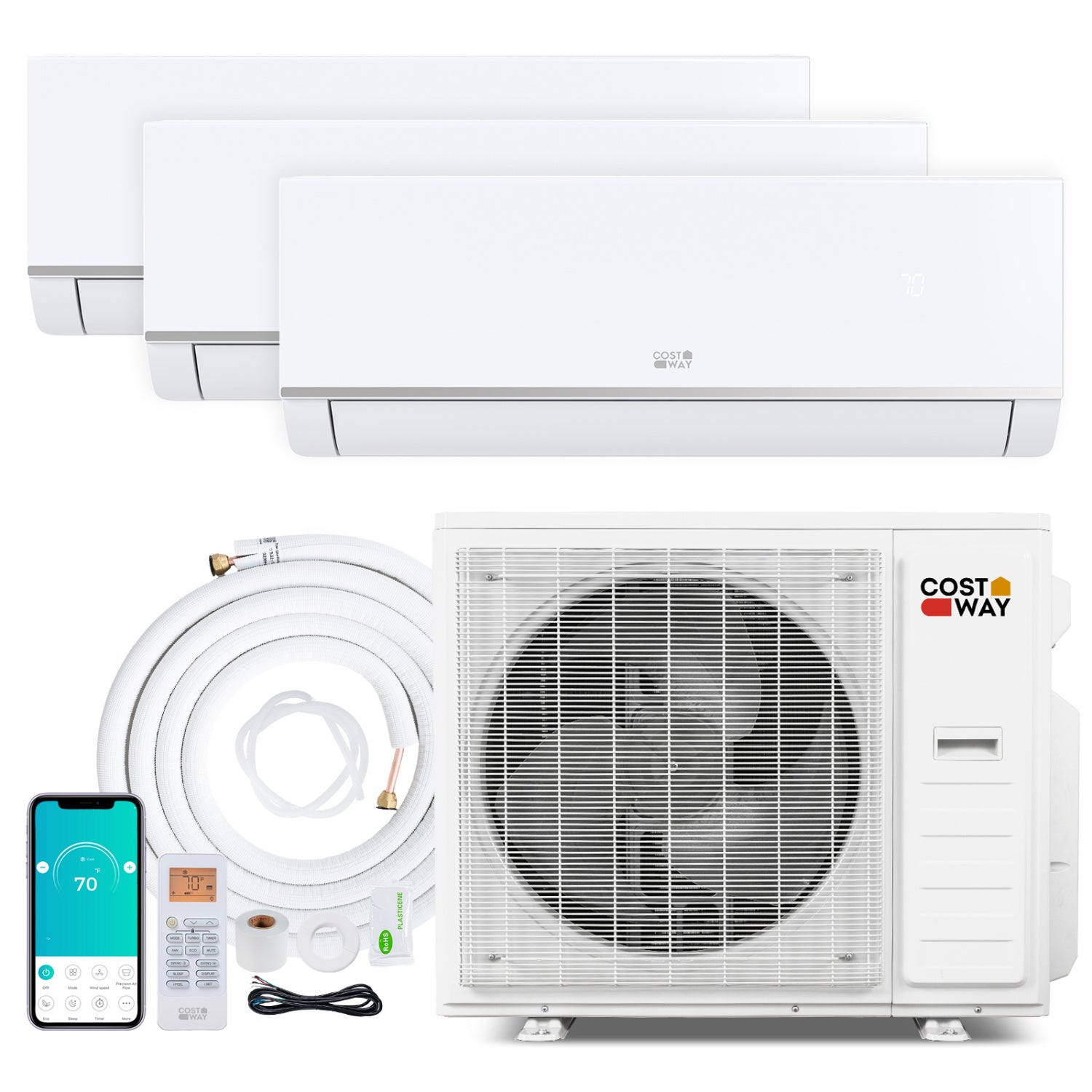

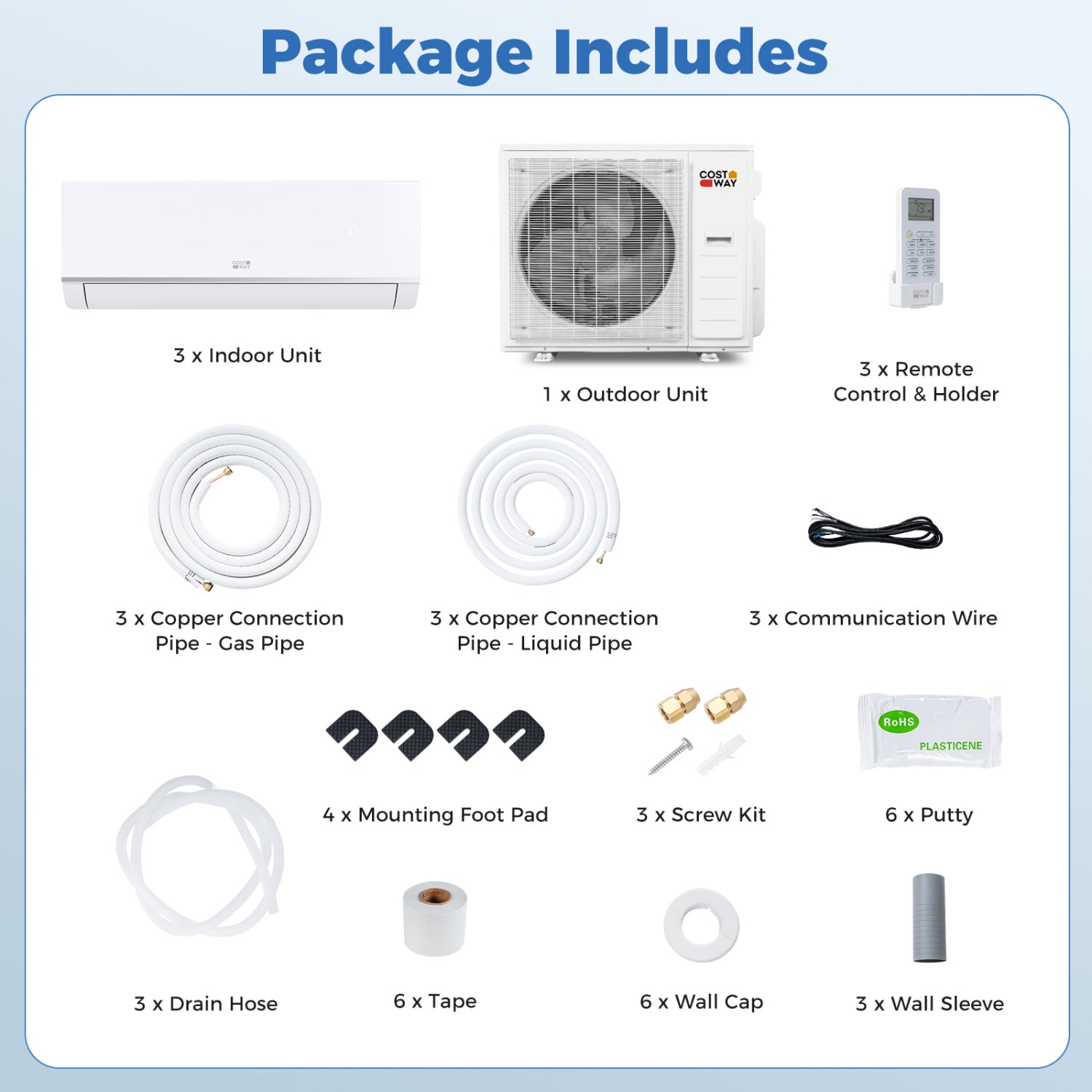

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control and Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.
