38000 BTU 3 Zone 20 SEER2 Mini Split AC With Heat Pump, 9K + 9K + 9K

Experience year-round comfort with this 3-zone mini split air conditioner and heat pump, delivering efficient heating and cooling for larger homes. Its 20 SEER2 rating and inverter technology ensure energy savings, while smart controls and quiet operation enhance daily convenience.

Overview:

• Provides whole-home comfort with multi-zone temperature control for tailored cooling and heating.
• Ideal for homeowners seeking energy-efficient, quiet climate control with smart features.
• Features a durable outdoor unit with chassis heating for reliable operation in extreme weather.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 3 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

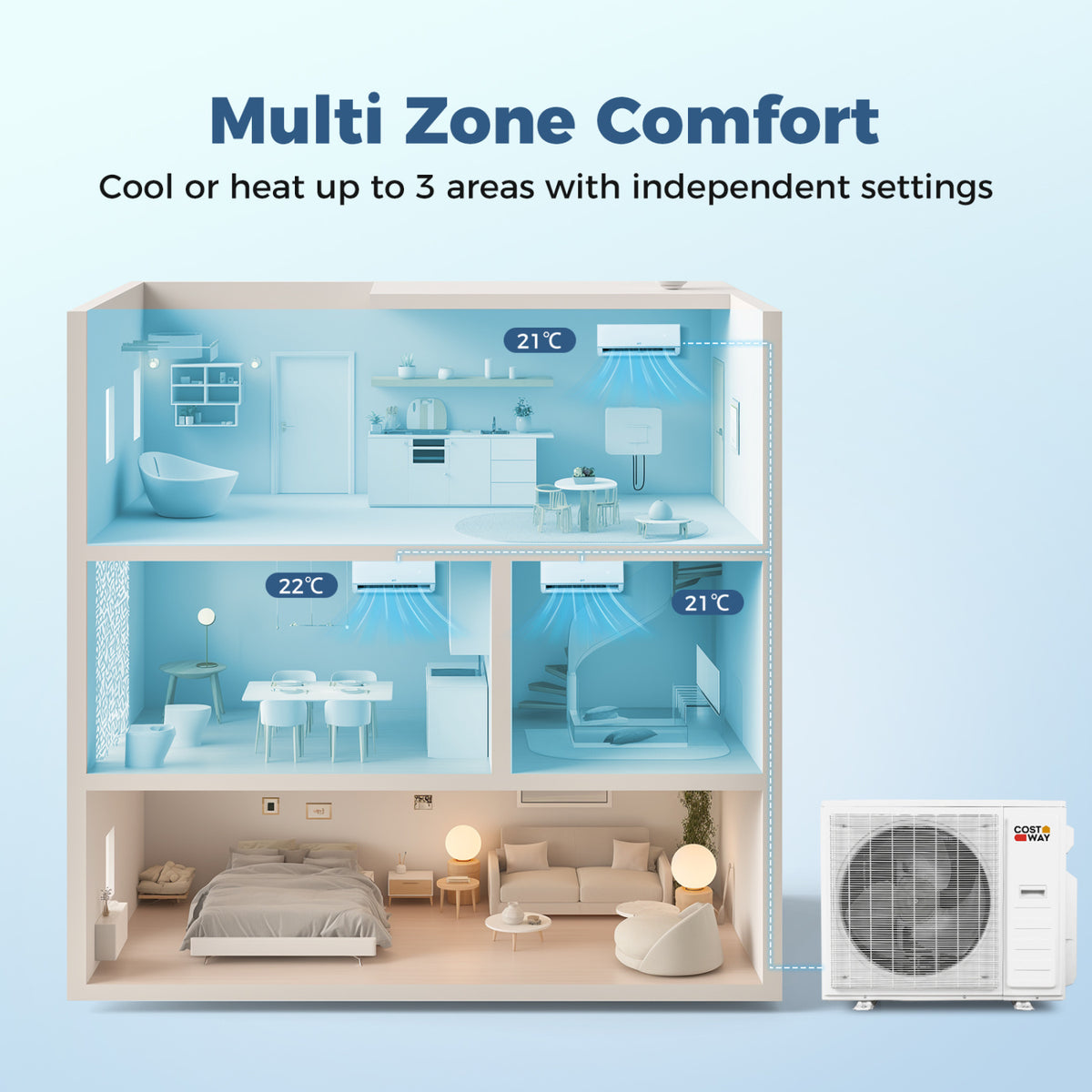

• 3-zone 38000 BTU mini split ac and heating system for room-by-room comfort in larger homes.
• Dual/tri/quad zone design allows tailored temperatures where needed.
• 4D swing spreads air more evenly for consistent climate control.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• 20 SEER2 rating provides powerful heating and cooling with energy-smart control.
• Advanced inverter technology reduces energy waste while maintaining stable temperatures.
• Outdoor unit equipped with chassis electrical heating for reliable operation in harsh conditions.
• Supports cooling at up to 55°C and heating at down to -25°C.
• Wifi enabled for compatibility with Alexa and Google Assistant, plus remote control access.
• 7 modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer and child lock for enhanced daily comfort and safety.
• Operates quietly with noise as low as 28 dB for minimal distraction.
• Self-clean function and washable filters simplify maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

Weight & Dimensions:

• Outdoor unit dimensions for 20K: 33.54 inches long x 13.74 inches wide x 23.7 inches high (85.19 cm x 34.9 cm x 60.2 cm).
• Outdoor unit dimensions for 28K: 35.94 inches long x 14.76 inches wide x 26.34 inches high (91.29 cm x 37.49 cm x 66.9 cm).
• Outdoor unit dimensions for 38K: 42.64 inches long x 19.45 inches wide x 33.78 inches high (108.31 cm x 49.4 cm x 85.8 cm).
• Net weight of 38K outdoor unit: 148.8 pounds (67.5 kg).
• Net weight of 9K indoor unit: 19.8 pounds (9 kg).
• Net weight of 12K indoor unit: 19.8 pounds (9 kg).
• Net weight of 18K indoor unit: 20.9 pounds (9.5 kg).
• Net weight of 24K indoor unit: 27.6 pounds (12.5 kg).
• Diameter of liquid pipe: 1/4 inch (0.64 cm).
• Diameter of gas pipe for 9K, 12K, and 18K: 3/8 inch (0.95 cm).
• Diameter of gas pipe for 24K: 1/2 inch (1.27 cm).

Specifications:

• Multi-zone combination: 3 zones.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature setting range: 16°C to 31°C (61°F to 88°F).
• Refrigerant: R32.
• Indoor unit noise level: 28 dB.
• Maximum remote control distance: 39.5 feet (12 meters).
• Coverage area for 9K: 450 square feet.
• Coverage area for 12K: 750 square feet.
• Coverage area for 18K: 1250 square feet.
• Coverage area for 24K: 1500 square feet.
• Dehumidification capacity for 9K: 66 pints per day.
• Dehumidification capacity for 12K: 81.2 pints per day.
• Dehumidification capacity for 18K: 111.6 pints per day.
• Dehumidification capacity for 24K: 131.9 pints per day.
• Maximum air flow volume for 9K: 335 CFM.
• Maximum air flow volume for 12K: 342 CFM.
• Maximum air flow volume for 18K: 617 CFM.
• Maximum air flow volume for 24K: 847 CFM.
• SEER2 for 20K: 23.
• SEER2 for 28K: 20.
• SEER2 for 38K: 20.
• HSPF2 for 20K, 28K, and 38K: 9.5.

Package Includes:

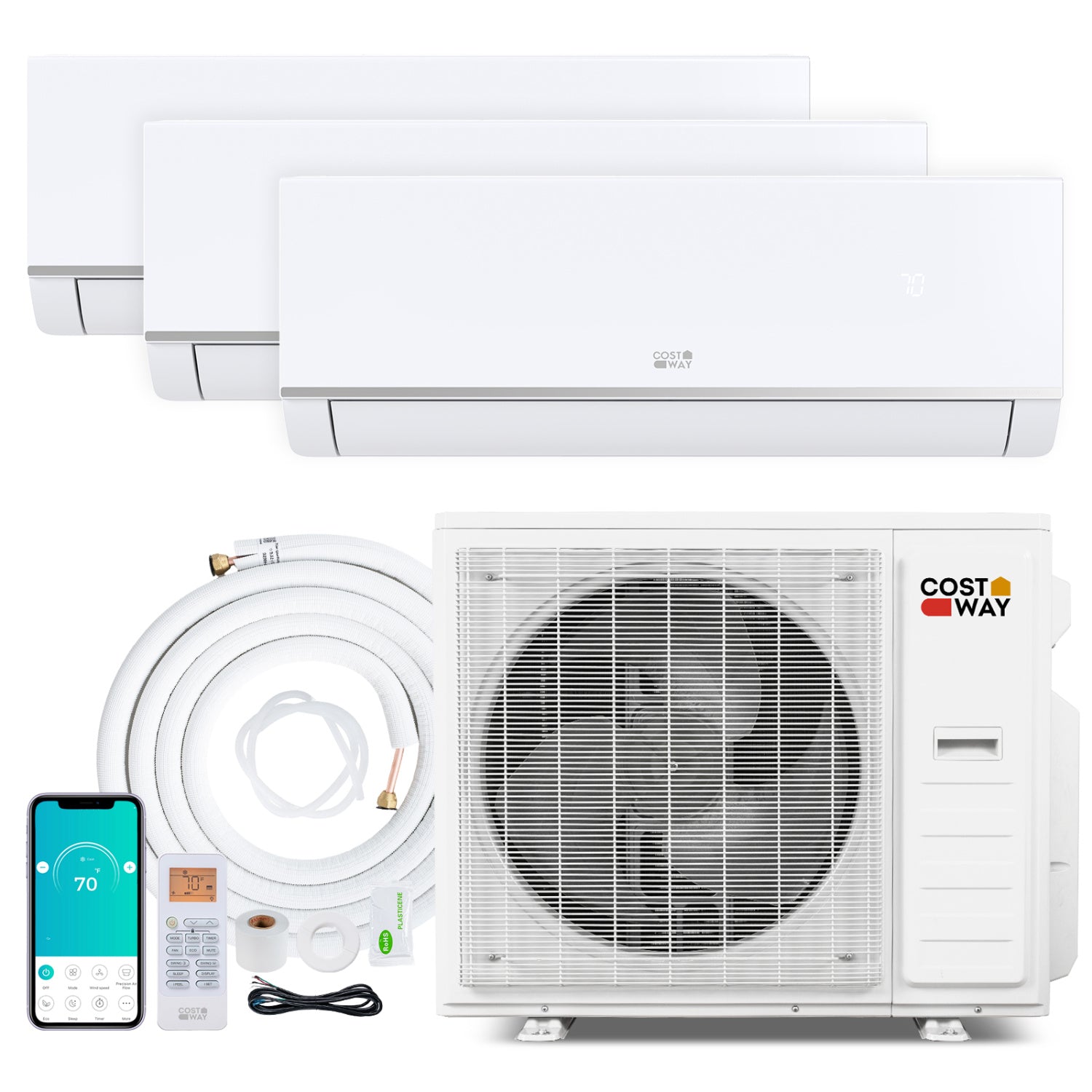

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control and Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.
