38000 BTU 4 Zone 20 SEER2 Mini Split AC With Heat Pump, 9K + 12K + 12K + 12K

Overview:

• Provides powerful whole-home cooling and heating for 4 zones with room-by-room temperature control.
• Ideal for larger homes, offering gentle airflow with 4D auto swing and golf ball dimple design to prevent direct blowing.
• Features smart control via phone, remote, or voice commands with Alexa and Google Assistant.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• 20 SEER2 and inverter technology ensure high energy efficiency and stable temperatures.
• Outdoor unit with chassis heating supports reliable operation in extreme conditions, cooling up to 55°C and heating down to -25°C.
• 7 operating modes and 8 fan speeds, including auto, cool, heat, dry, fan, ECO, and sleep modes.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation as low as 28 dB for a peaceful environment.
• Self-clean function and removable, washable filters for easy maintenance and fresher airflow.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

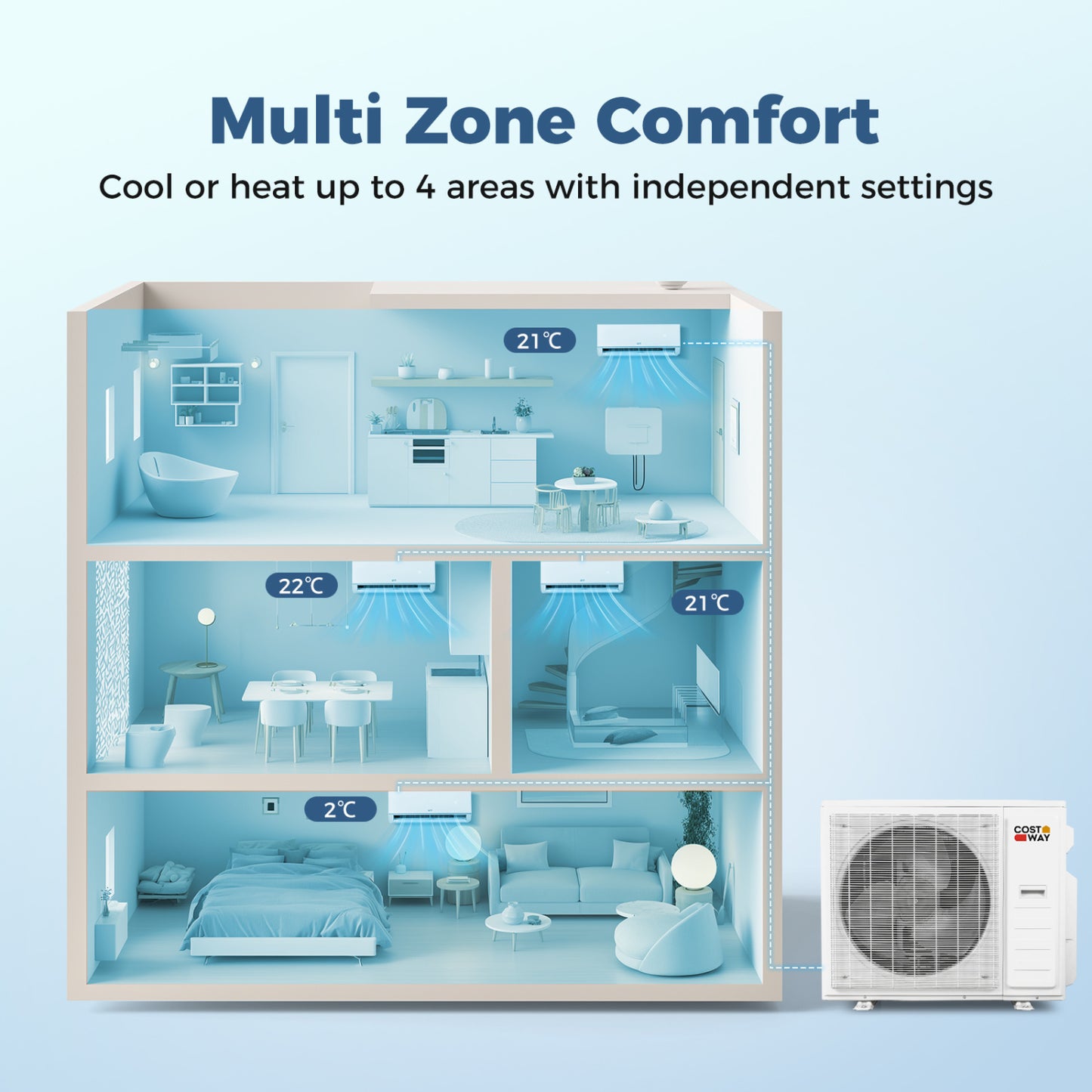

• Multi-zone comfort with 4 zones for room-by-room temperature control in larger homes.
• Dual/tri/quad zone design allows tailored temperatures where needed.
• 4D swing spreads air more evenly for consistent cooling and heating.
• Golf ball dimples design provides a gentle breeze and prevents direct blowing.
• 20 SEER2 rating for energy-smart control and powerful performance.
• Advanced inverter technology reduces energy waste and maintains stable set temperatures.
• Outdoor unit equipped with chassis electrical heating for reliable operation in harsh conditions.
• Operates in cooling up to 55°C and heating down to -25°C.
• Wi-Fi enabled for smart control with Alexa and Google Assistant.
• Remote control for quick access to settings.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduling and energy saving.
• Child lock feature to prevent accidental changes.
• Low noise operation as low as 28 dB for minimal distraction.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Note: Professional licensed HVAC technician installation is recommended.

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 31.93 inches x 7.48 inches x 12.05 inches (81.10 cm x 19.00 cm x 30.61 cm).
• Indoor Unit Dimensions (12K): 31.93 inches x 7.48 inches x 12.05 inches (81.10 cm x 19.00 cm x 30.61 cm).
• Indoor Unit Dimensions (18K): 35.83 inches x 7.68 inches x 12.01 inches (91.01 cm x 19.51 cm x 30.51 cm).
• Indoor Unit Dimensions (24K): 39.57 inches x 8.66 inches x 12.64 inches (100.51 cm x 22.00 cm x 32.11 cm).
• Outdoor Unit Dimensions (20K): 33.54 inches x 13.74 inches x 23.7 inches (85.19 cm x 34.90 cm x 60.20 cm).
• Outdoor Unit Dimensions (28K): 35.94 inches x 14.76 inches x 26.34 inches (91.29 cm x 37.49 cm x 66.90 cm).
• Outdoor Unit Dimensions (38K): 42.64 inches x 19.45 inches x 33.78 inches (108.31 cm x 49.40 cm x 85.80 cm).
• Net Weight of 9K Indoor Unit: 19.8 pounds (8.98 kg).
• Net Weight of 12K Indoor Unit: 19.8 pounds (8.98 kg).
• Net Weight of 18K Indoor Unit: 20.9 pounds (9.48 kg).
• Net Weight of 24K Indoor Unit: 27.6 pounds (12.52 kg).
• Net Weight of 18K Outdoor Unit: 70.5 pounds (31.98 kg).
• Net Weight of 27K Outdoor Unit: 94.8 pounds (43.00 kg).
• Net Weight of 36K Outdoor Unit: 148.8 pounds (67.49 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C to 31°C.
• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet.
• Coverage Area for 9K: 450 square feet.
• Coverage Area for 12K: 750 square feet.
• Coverage Area for 18K: 1250 square feet.
• Coverage Area for 24K: 1500 square feet.
• Dehumidification Capacity for 9K: 66 pints per day.
• Dehumidification Capacity for 12K: 81.2 pints per day.
• Dehumidification Capacity for 18K: 111.6 pints per day.
• Dehumidification Capacity for 24K: 131.9 pints per day.
• Maximum Air Flow Volume for 9K: 335 CFM.
• Maximum Air Flow Volume for 12K: 342 CFM.
• Maximum Air Flow Volume for 18K: 617 CFM.
• Maximum Air Flow Volume for 24K: 847 CFM.
• 20K SEER2: 23.
• 28K SEER2: 20.
• 38K SEER2: 20.
• 20K HSPF2: 9.5.
• 28K HSPF2: 9.5.
• 38K HSPF2: 9.5.

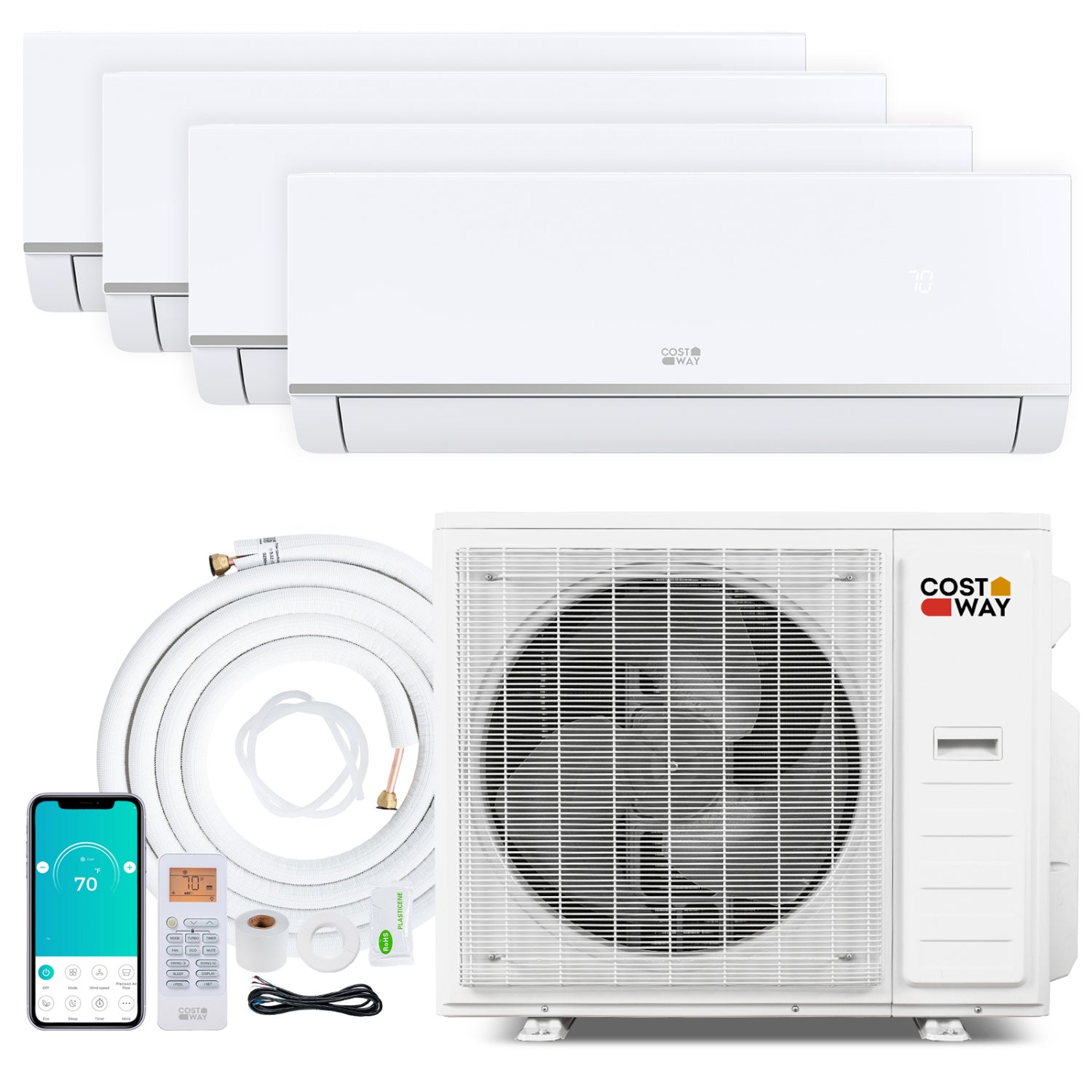

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 4 x Drain Hose.
• 4 x Remote Control & Holder.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 6 x User Guide.
