4 Zone Mini Split AC Heat Pump, 38000 BTU 20 SEER2, 9K + 9K + 9K + 9K

Experience year-round comfort with this 38000 BTU 4-zone mini split AC and heat pump system, featuring 20 SEER2 efficiency, inverter technology, and smart controls for whole-home climate management. Ideal for larger spaces, it provides quiet operation and easy maintenance.

Overview:

• Provides powerful whole-home cooling and heating across four zones for customizable room-by-room comfort.
• Designed for energy savings with a 20 SEER2 rating and inverter technology to reduce waste.
• Features smart control via phone, remote, or voice, with multiple modes and fan speeds for daily use.
• Includes low noise operation, self-clean function, and washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 4 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

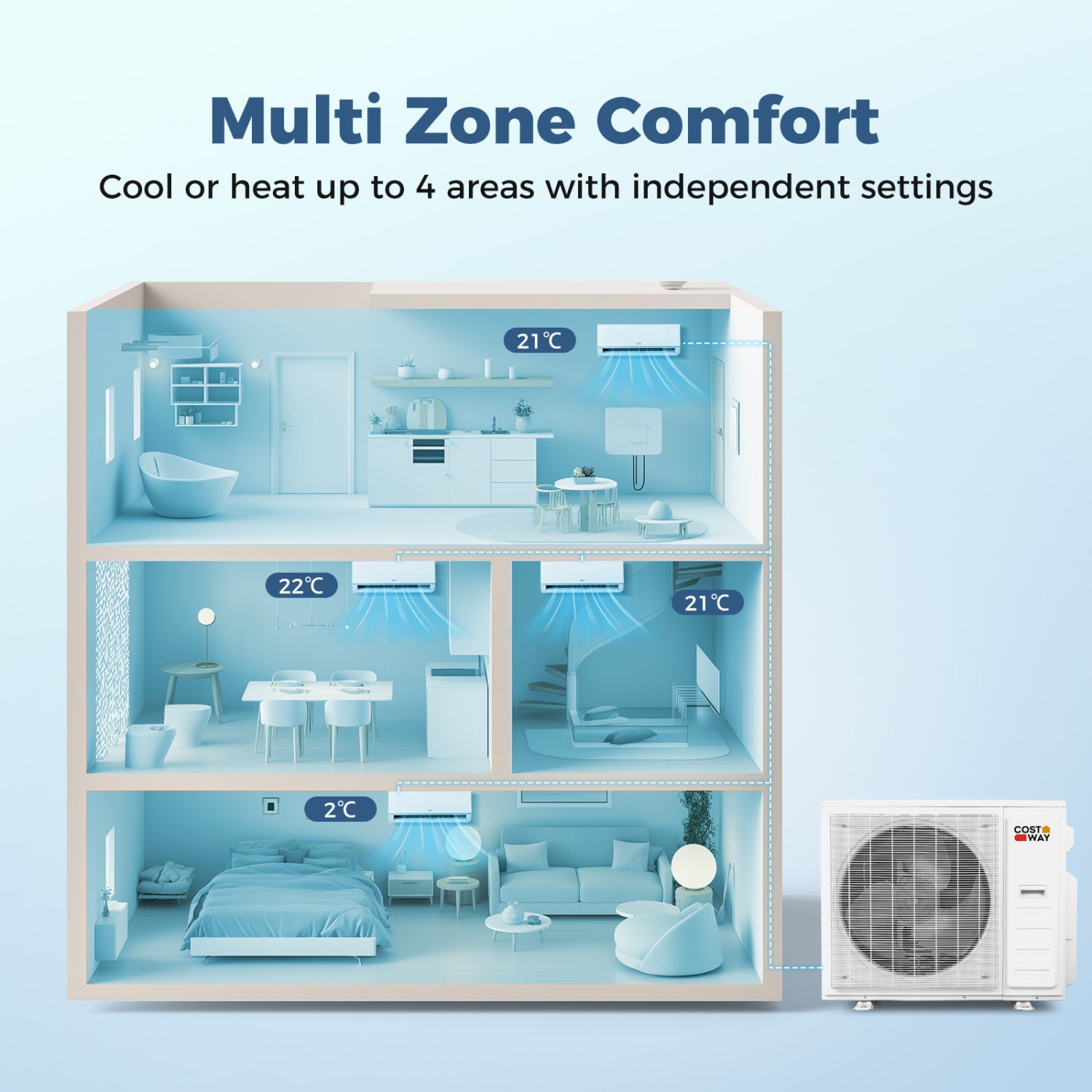

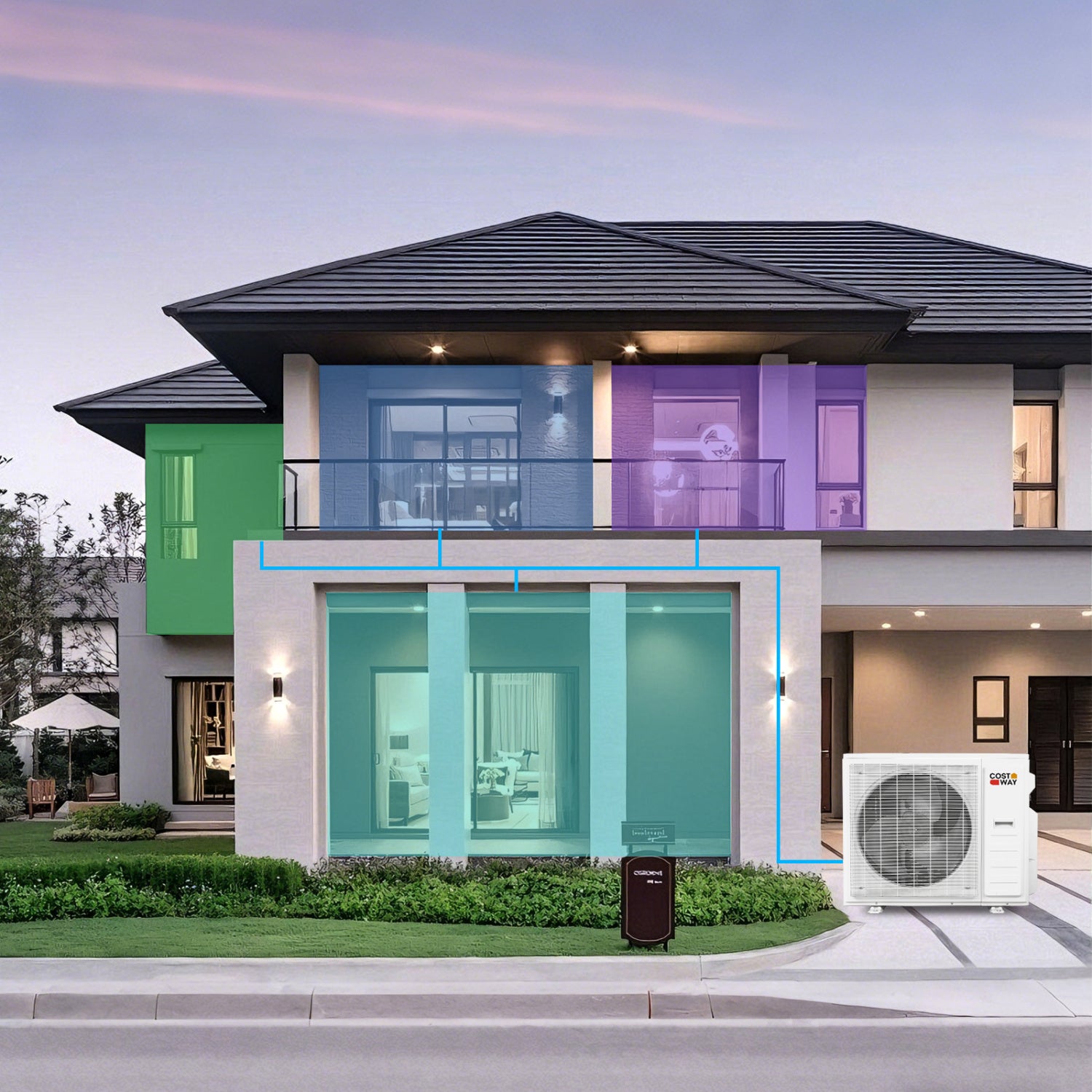

• Multi-zone comfort with 38000 BTU capacity for room-by-room temperature control in larger homes.
• Dual/tri/quad zone design allows tailored temperatures where needed.
• 4D swing spreads air more evenly for consistent climate distribution.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.

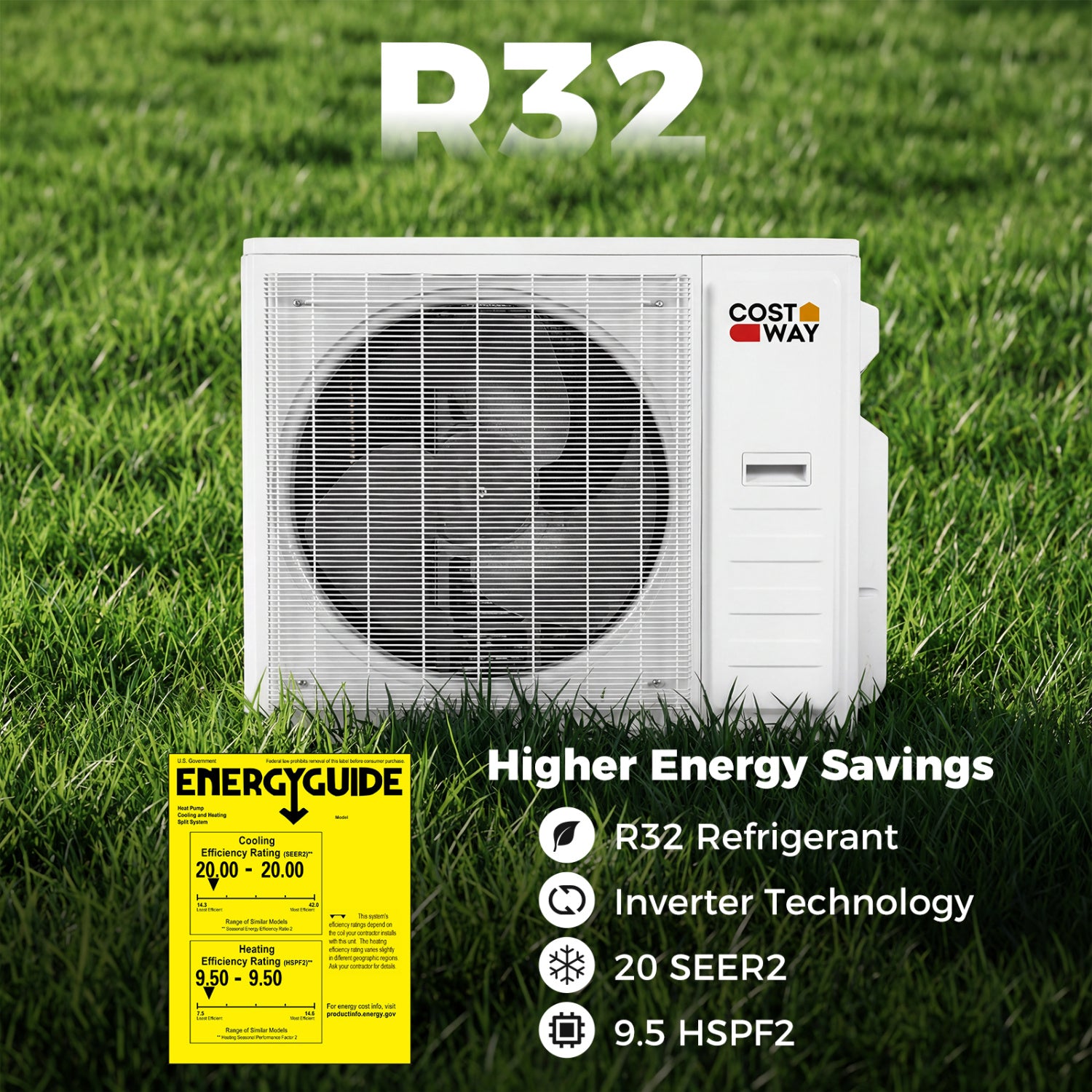

• Higher energy savings with a 20 SEER2 rating for efficient heating and cooling.
• Advanced inverter technology reduces energy waste and maintains stable set temperatures.
• Extreme weather readiness with chassis electrical heating in the outdoor unit.
• Reliable operation in harsh conditions, cooling up to 55°C and heating down to -25°C.
• Smart control compatibility with Alexa and Google Assistant, plus a remote control.

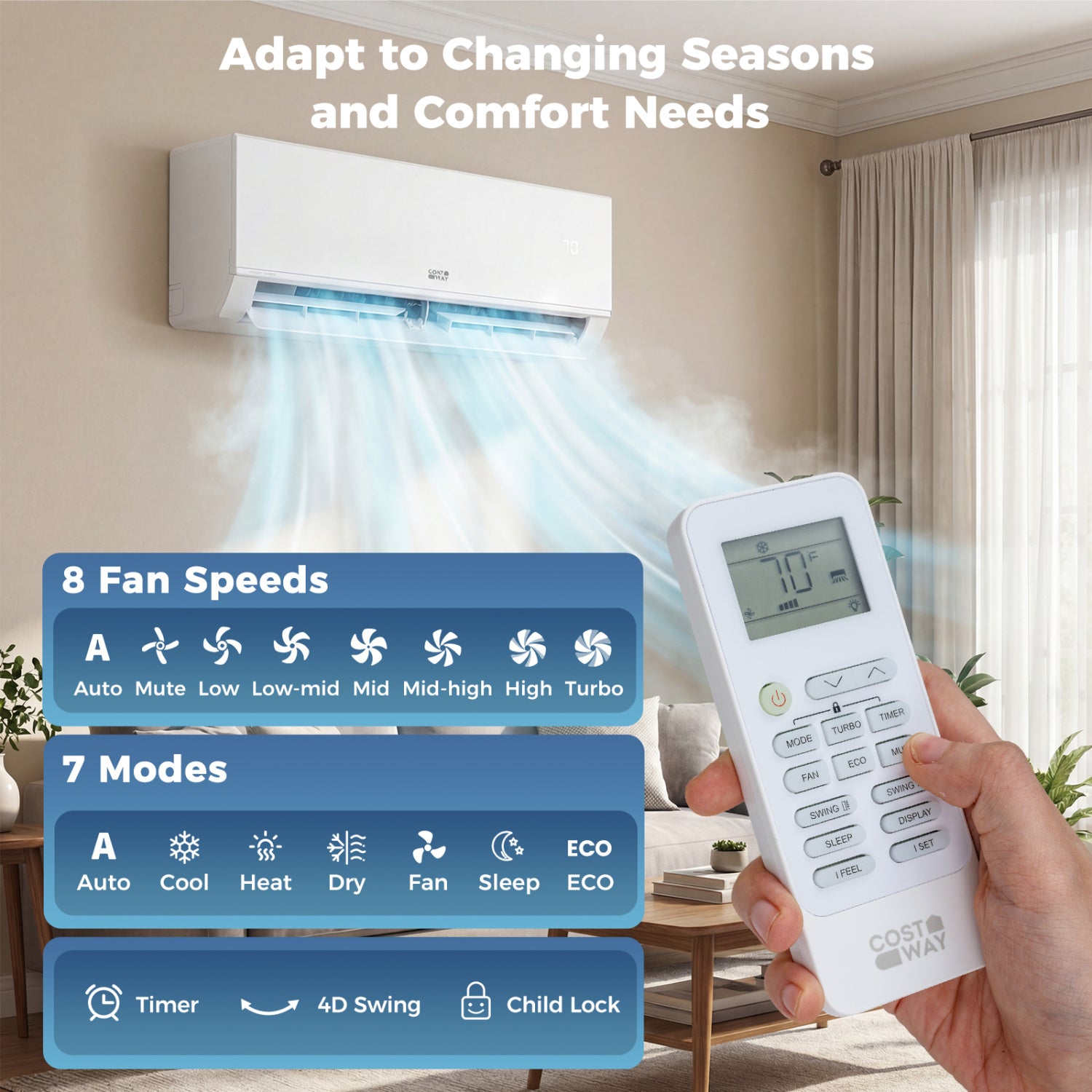

• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for convenient scheduling and energy management.
• Child lock feature to prevent accidental setting changes.
• Low noise operation as quiet as 28 dB for a peaceful environment.

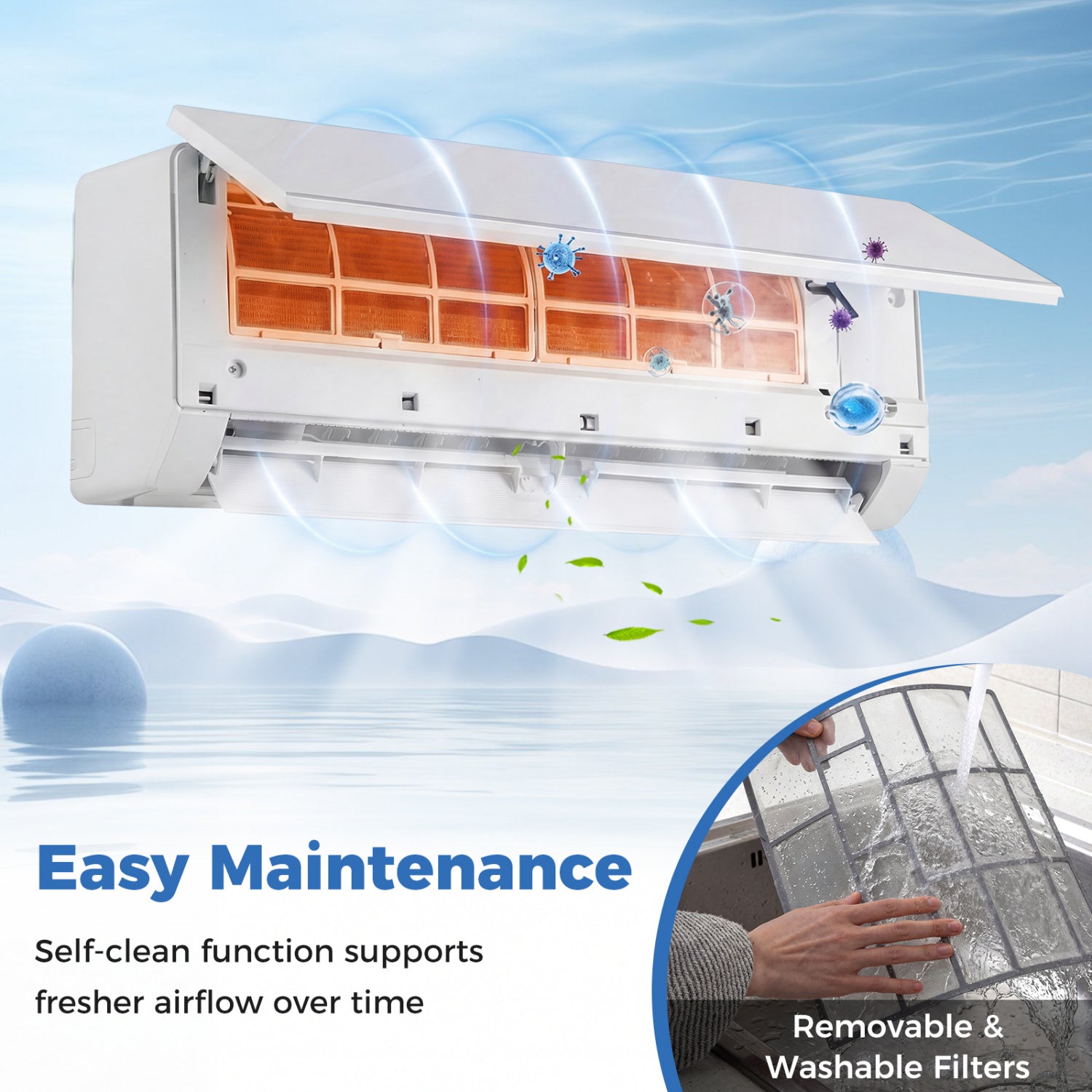

• Self-clean function maintains fresher airflow over time.
• Removable and washable filters simplify cleaning and maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

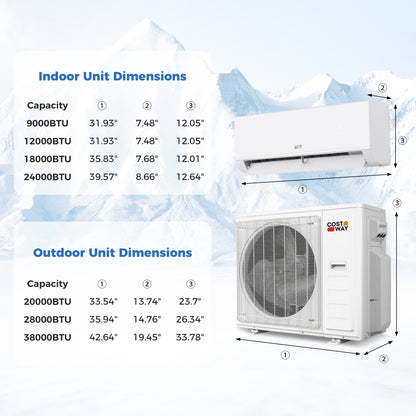

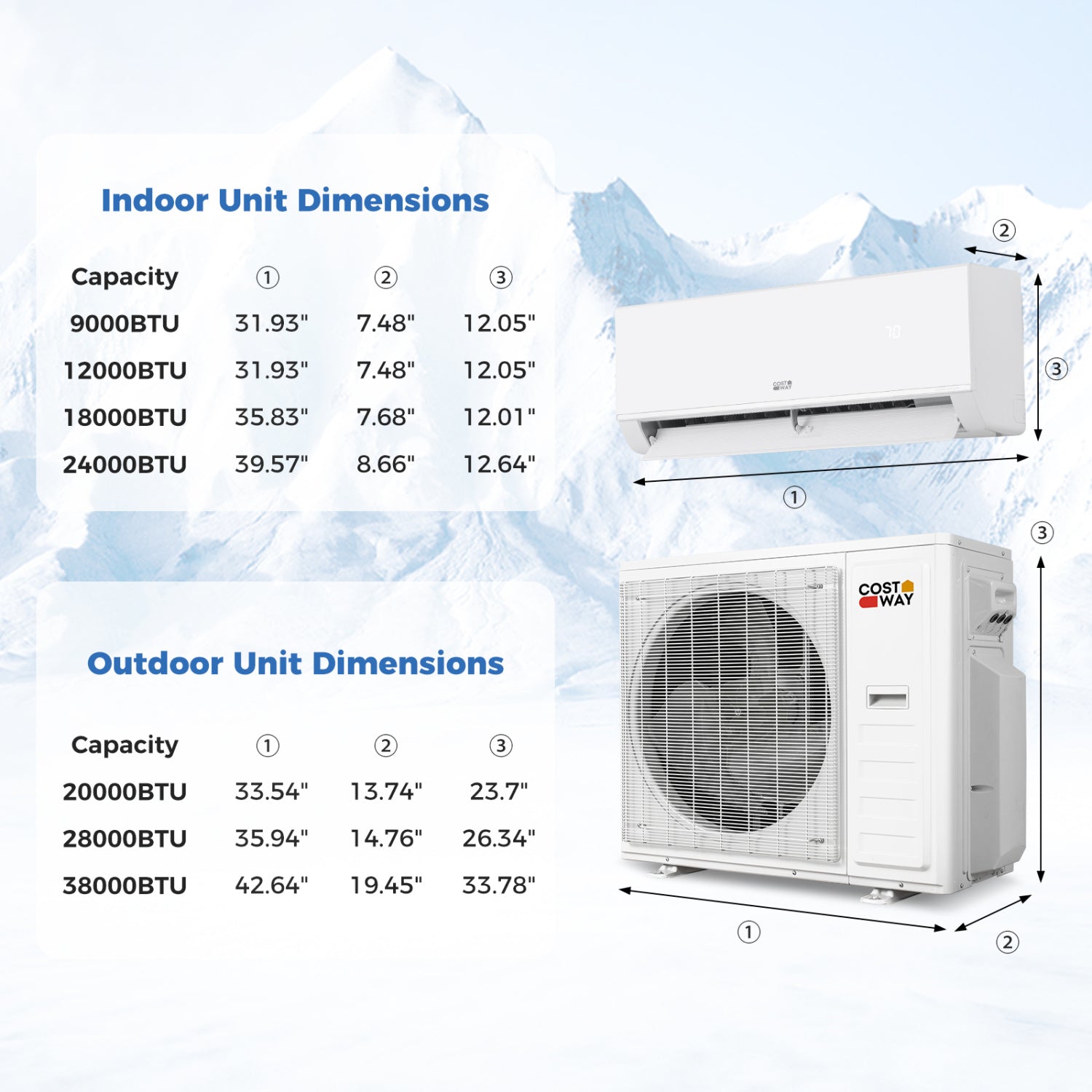

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 35.83 inches x 7.68 inches x 12.01 inches (91.0 cm x 19.5 cm x 30.5 cm).
• Indoor Unit Dimensions (24K): 39.57 inches x 8.66 inches x 12.64 inches (100.5 cm x 22.0 cm x 32.1 cm).
• Outdoor Unit Dimensions (20K): 33.54 inches x 13.74 inches x 23.7 inches (85.2 cm x 34.9 cm x 60.2 cm).
• Outdoor Unit Dimensions (28K): 35.94 inches x 14.76 inches x 26.34 inches (91.3 cm x 37.5 cm x 66.9 cm).
• Outdoor Unit Dimensions (38K): 42.64 inches x 19.45 inches x 33.78 inches (108.3 cm x 49.4 cm x 85.8 cm).
• Net Weight of 9K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 12K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 18K Indoor Unit: 20.9 pounds (9.5 kg).
• Net Weight of 24K Indoor Unit: 27.6 pounds (12.5 kg).
• Net Weight of 18K Outdoor Unit: 70.5 pounds (32.0 kg).
• Net Weight of 27K Outdoor Unit: 94.8 pounds (43.0 kg).
• Net Weight of 36K Outdoor Unit: 148.8 pounds (67.5 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Multi-zone combination: 4 zones.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature setting range: 16°C to 31°C (61°F to 88°F).
• Refrigerant: R32.
• Indoor unit noise level: 28 dB.
• Maximum remote control distance: 39.5 feet (12.0 meters).
• Coverage area for 9K: 450 square feet.
• Coverage area for 12K: 750 square feet.
• Coverage area for 18K: 1250 square feet.
• Coverage area for 24K: 1500 square feet.
• Dehumidification capacity for 9K: 66 pints per day.
• Dehumidification capacity for 12K: 81.2 pints per day.
• Dehumidification capacity for 18K: 111.6 pints per day.
• Dehumidification capacity for 24K: 131.9 pints per day.
• Maximum air flow volume for 9K: 335 CFM.
• Maximum air flow volume for 12K: 342 CFM.
• Maximum air flow volume for 18K: 617 CFM.
• Maximum air flow volume for 24K: 847 CFM.
• SEER2 rating for 20K: 23.
• SEER2 rating for 28K: 20.
• SEER2 rating for 38K: 20.
• HSPF2 rating for 20K: 9.5.
• HSPF2 rating for 28K: 9.5.
• HSPF2 rating for 38K: 9.5.

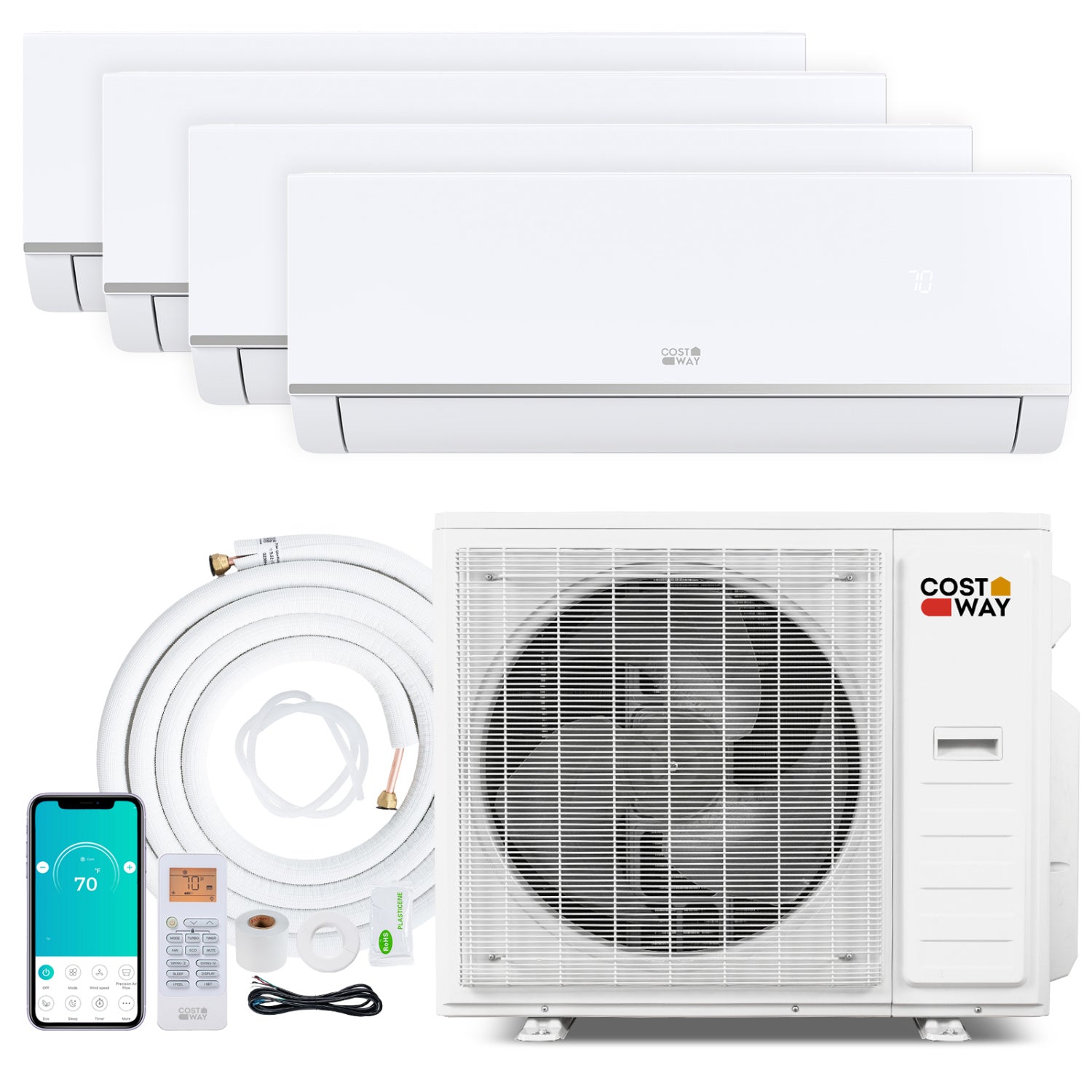

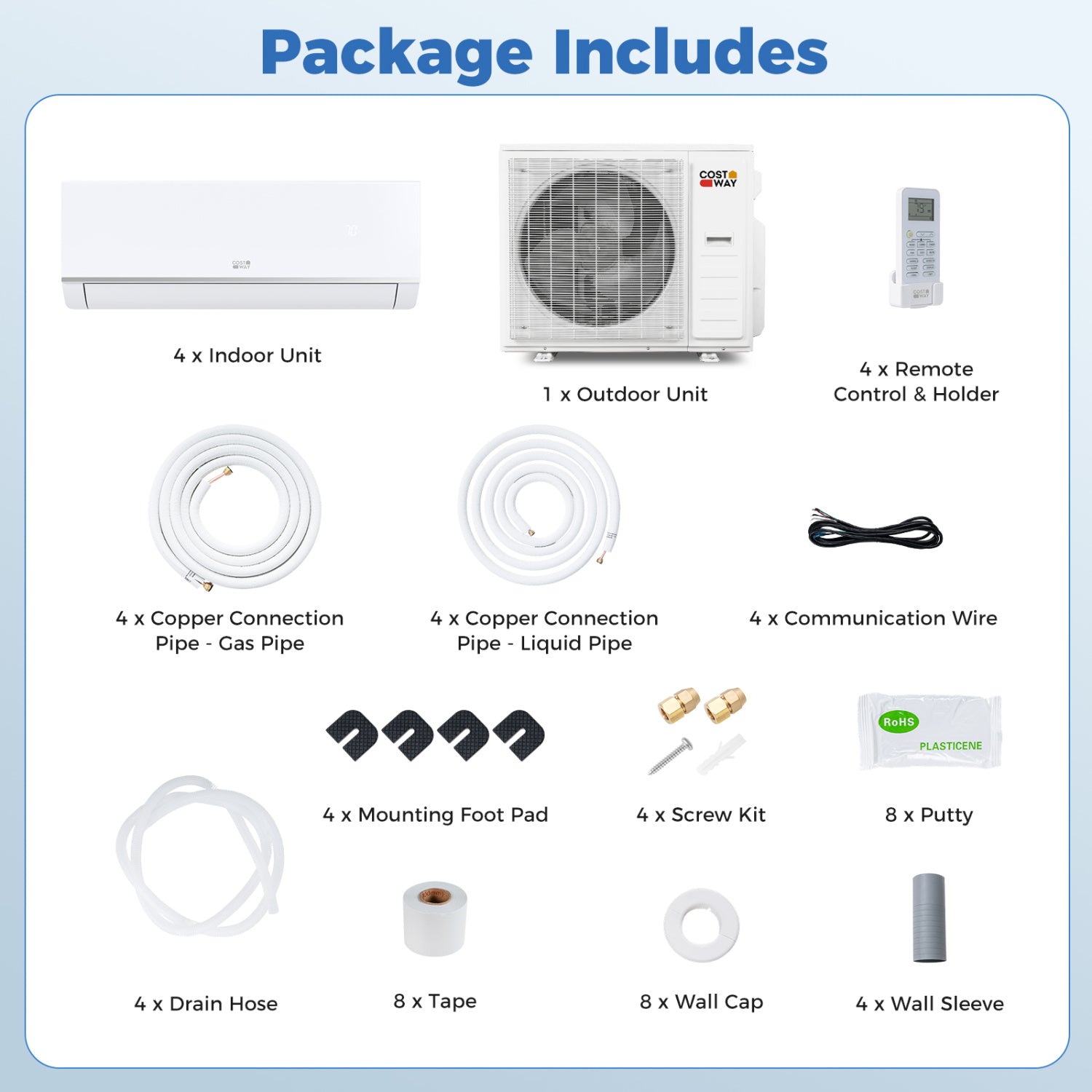

Package Includes:

• 1 x outdoor unit.
• 4 x indoor unit.
• 4 x copper connection pipe (gas pipe).
• 4 x copper connection pipe (liquid pipe).
• 4 x communication wire.
• 4 x drain hose.
• 4 x remote control and holder.
• 4 x wall sleeve.
• 8 x wall cap.
• 8 x tape.
• 8 x putty.
• 4 x screw kit.
• 4 x mounting foot pad.
• 6 x user guide.

Package quantity: 6 boxes.
