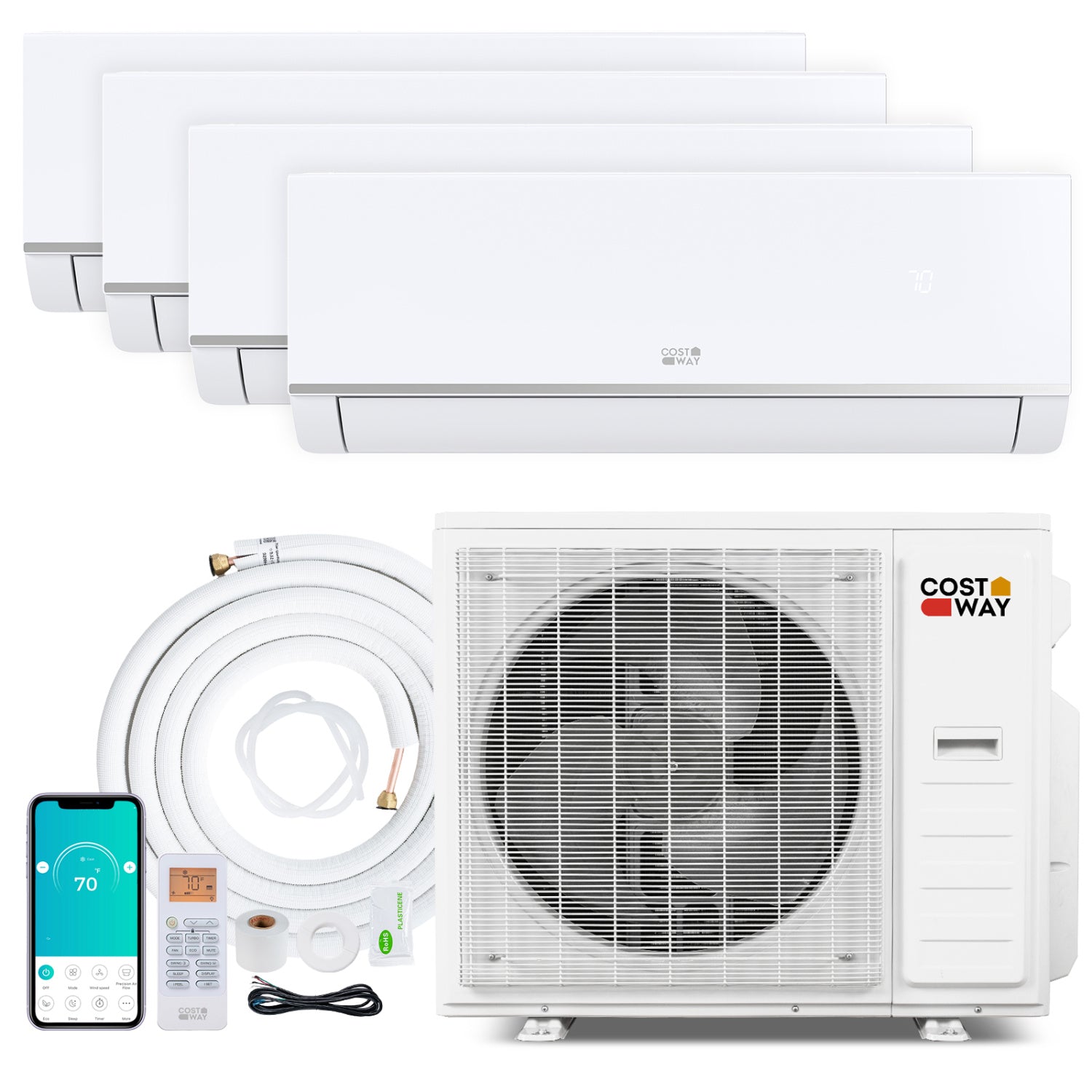

38000 BTU 4 Zone Mini Split AC, Heat Pump, 9K + 9K + 9K + 12K

Experience year-round comfort with this 38000 BTU 4-zone mini split AC and heat pump system, featuring 20 SEER2 efficiency, inverter technology, and smart Wi-Fi control for whole-home climate management. Ideal for larger spaces, it delivers powerful heating and cooling with quiet operation and easy maintenance.

Overview:

• Provides all-season comfort with powerful cooling and heating for up to 4 zones, perfect for larger homes.
• Features 20 SEER2 rating and inverter technology for high energy efficiency and stable temperature control.
• Includes smart Wi-Fi control compatible with Alexa and Google Assistant, plus a remote for convenient access.
• Designed with a 4D auto swing and golf ball dimples for gentle, even air distribution without direct blowing.
• Equipped with chassis heating for reliable operation in extreme temperatures, cooling up to 55°C and heating down to -25°C.
• Offers low noise operation as quiet as 28 dB, self-clean function, and washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

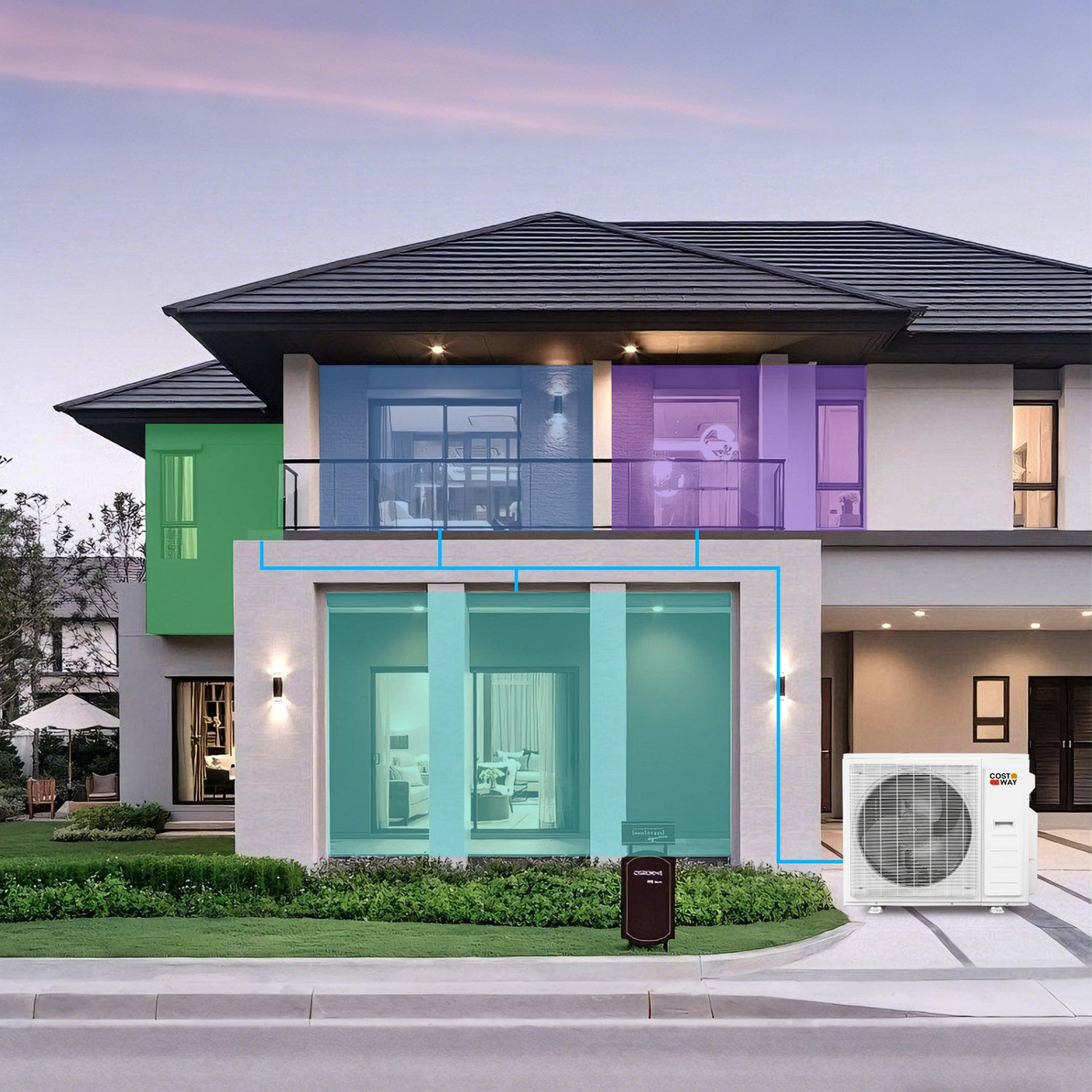

• Powerful whole-home cooling and heating for 4 zones with room-by-room temperature control.
• 20 SEER2 and inverter technology ensure high energy efficiency and reduced energy waste.
• Outdoor unit with chassis heating for reliable cold-weather operation in harsh conditions.
• Choose from 7 operating modes and 8 fan speeds for customized comfort.
• Easily control from your phone, remote, or voice commands via Alexa and Google Assistant.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment with minimal disruption.

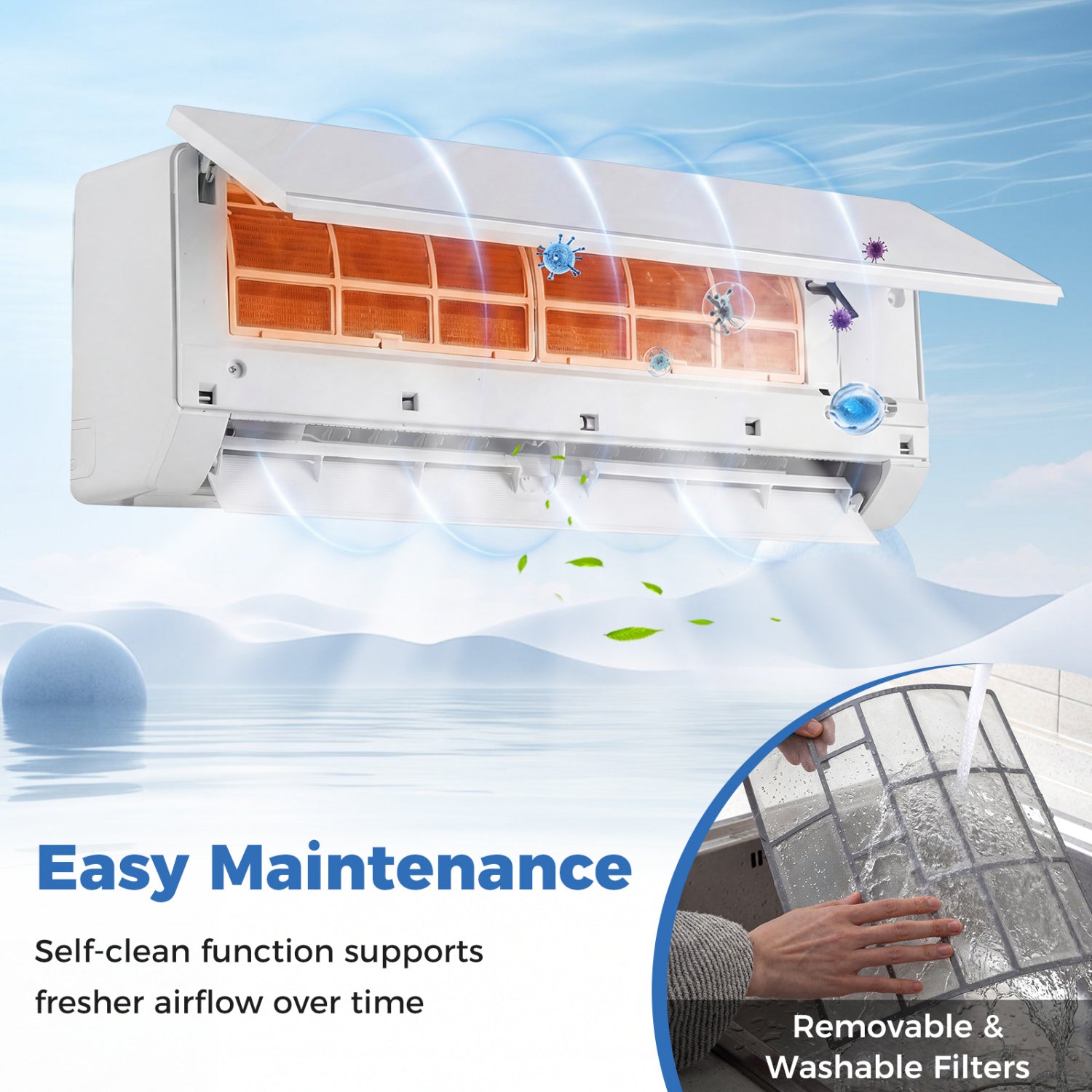

• Self-clean function supports fresher airflow over time for improved air quality.
• Removable and washable filters for simple cleaning and maintenance.
• Child lock prevents accidental setting changes for added safety.
• 4D auto swing offers more even air distribution for consistent comfort.

Features:

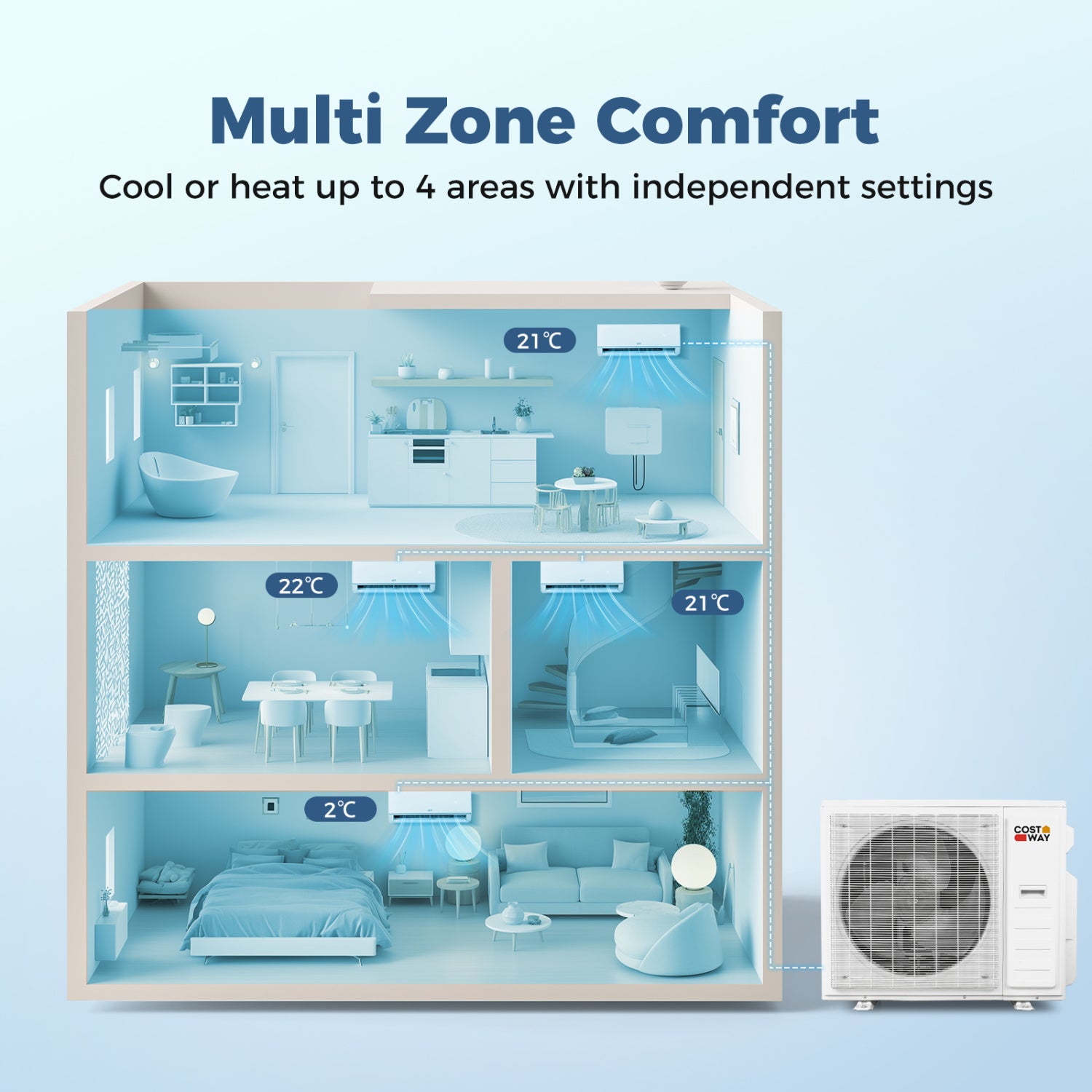

• Multi-zone comfort with 4 zones for room-by-room temperature control in larger homes.
• Dual/tri/quad zone design allows tailored temperatures where needed.
• 4D swing spreads air more evenly for consistent cooling and heating.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• 20 SEER2 rating provides powerful heating and cooling with energy-smart control.
• Advanced inverter technology helps reduce energy waste while keeping set temperatures stable.

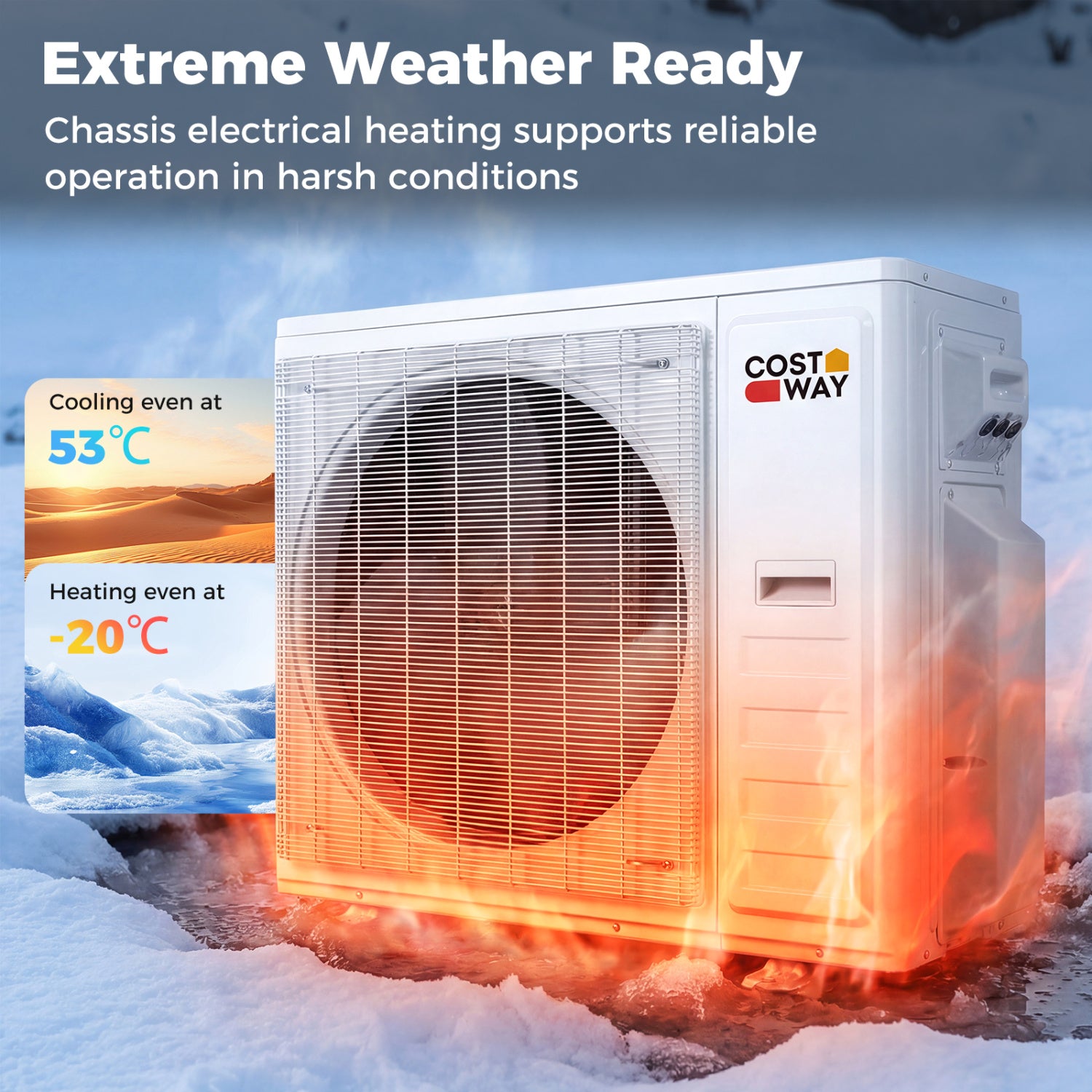

• Outdoor unit equipped with chassis electrical heating for reliable operation in extreme weather.
• Supports cooling even at 55°C and heating even at -25°C.
• Wi-Fi enabled for smart control with Alexa and Google Assistant compatibility.
• Includes remote control for quick access and convenience.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for easy scheduling and energy saving.
• Child lock feature prevents accidental setting changes.
• Operates quietly with noise as low as 28 dB for minimal disruption.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning and maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

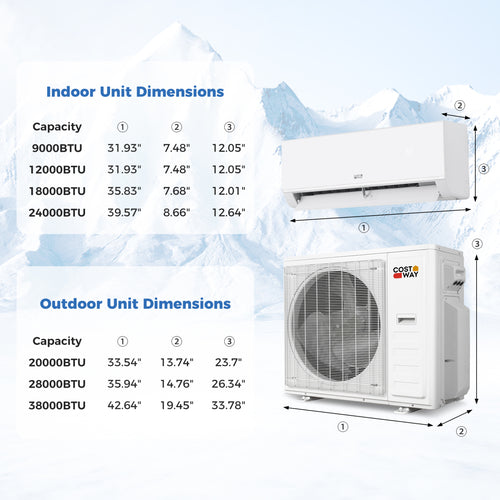

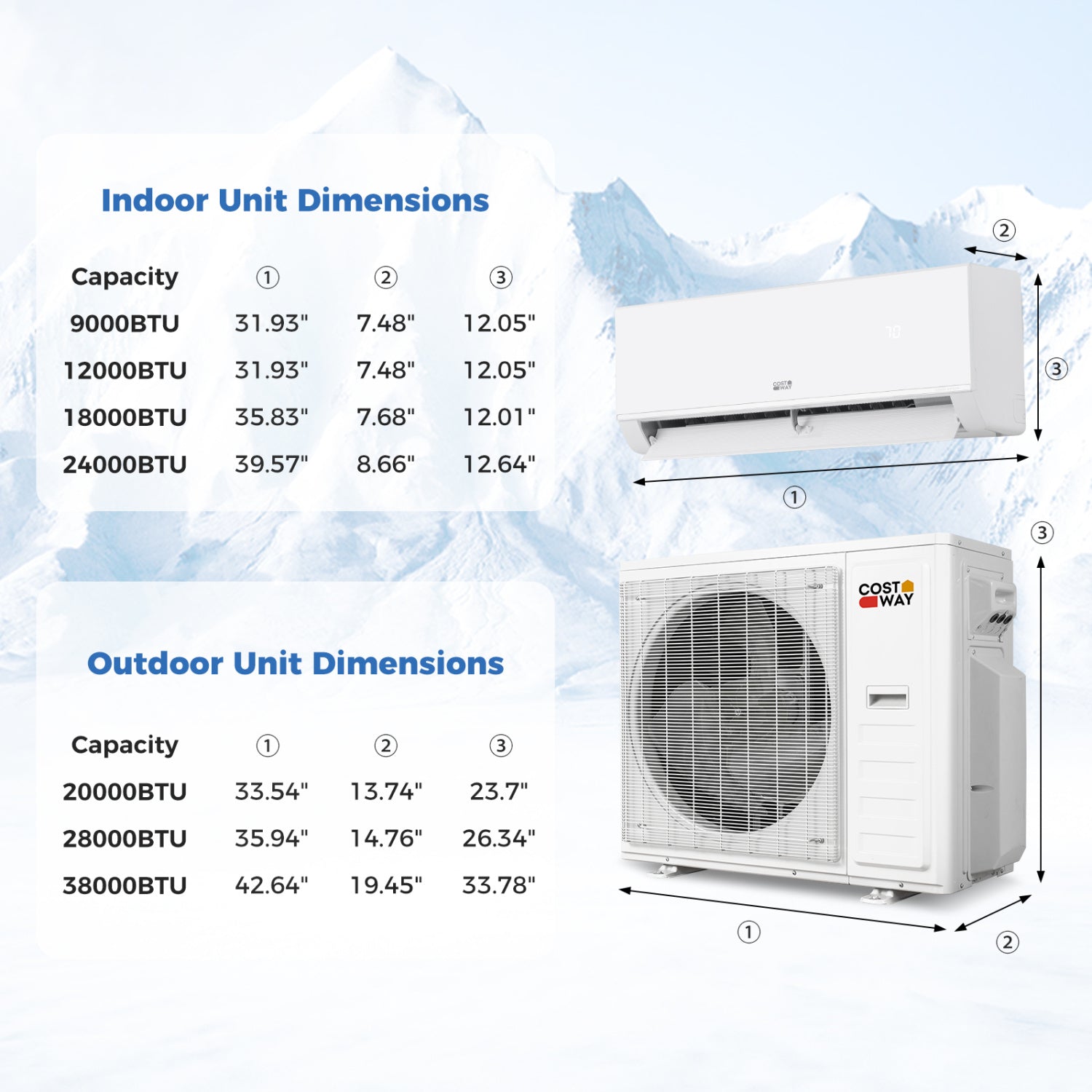

Weight & Dimensions:

• Indoor Unit Dimensions: 9K: 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions: 12K: 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions: 18K: 35.83 inches x 7.68 inches x 12.01 inches (91.0 cm x 19.5 cm x 30.5 cm).
• Indoor Unit Dimensions: 24K: 39.57 inches x 8.66 inches x 12.64 inches (100.5 cm x 22.0 cm x 32.1 cm).
• Outdoor Unit Dimensions: 20K: 33.54 inches x 13.74 inches x 23.7 inches (85.2 cm x 34.9 cm x 60.2 cm).
• Outdoor Unit Dimensions: 28K: 35.94 inches x 14.76 inches x 26.34 inches (91.3 cm x 37.5 cm x 66.9 cm).
• Outdoor Unit Dimensions: 38K: 42.64 inches x 19.45 inches x 33.78 inches (108.3 cm x 49.4 cm x 85.8 cm).
• Net Weight of 9K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 12K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 18K Indoor Unit: 20.9 pounds (9.5 kg).
• Net Weight of 24K Indoor Unit: 27.6 pounds (12.5 kg).
• Net Weight of 18K Outdoor Unit: 70.5 pounds (32.0 kg).
• Net Weight of 27K Outdoor Unit: 94.8 pounds (43.0 kg).
• Net Weight of 36K Outdoor Unit: 148.8 pounds (67.5 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe for 9K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 12K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 18K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 24K: 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 4 zones.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C to 31°C.
• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet (12.0 meters).
• Coverage Area for 9K: 450 square feet.
• Coverage Area for 12K: 750 square feet.
• Coverage Area for 18K: 1250 square feet.
• Coverage Area for 24K: 1500 square feet.
• Dehumidification Capacity for 9K: 66 pints per day.
• Dehumidification Capacity for 12K: 81.2 pints per day.
• Dehumidification Capacity for 18K: 111.6 pints per day.
• Dehumidification Capacity for 24K: 131.9 pints per day.
• Maximum Air Flow Volume for 9K: 335 CFM.
• Maximum Air Flow Volume for 12K: 342 CFM.
• Maximum Air Flow Volume for 18K: 617 CFM.
• Maximum Air Flow Volume for 24K: 847 CFM.

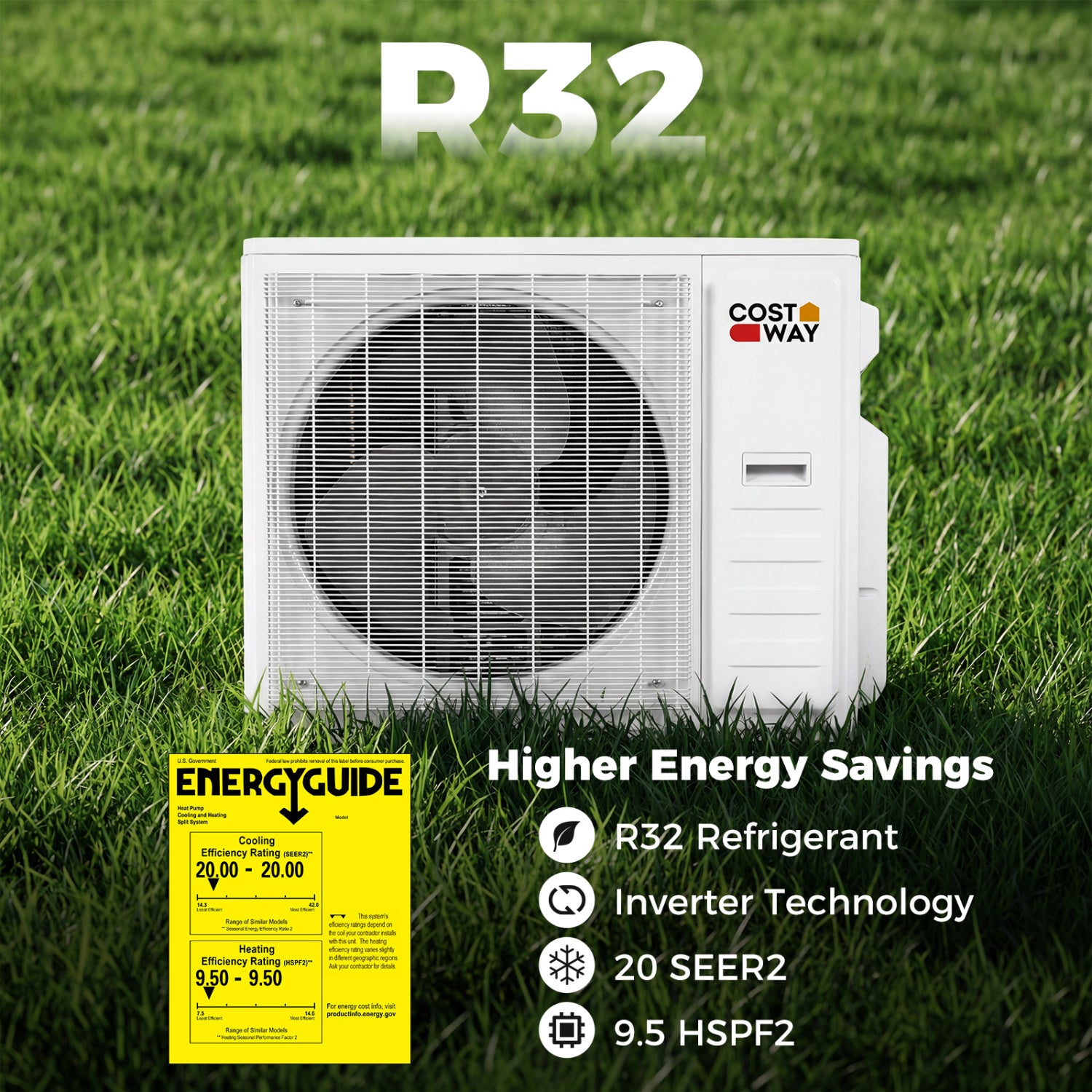

• 20K SEER2: 23.
• 28K SEER2: 20.
• 38K SEER2: 20.
• 20K HSPF2: 9.5.
• 28K HSPF2: 9.5.
• 38K HSPF2: 9.5.

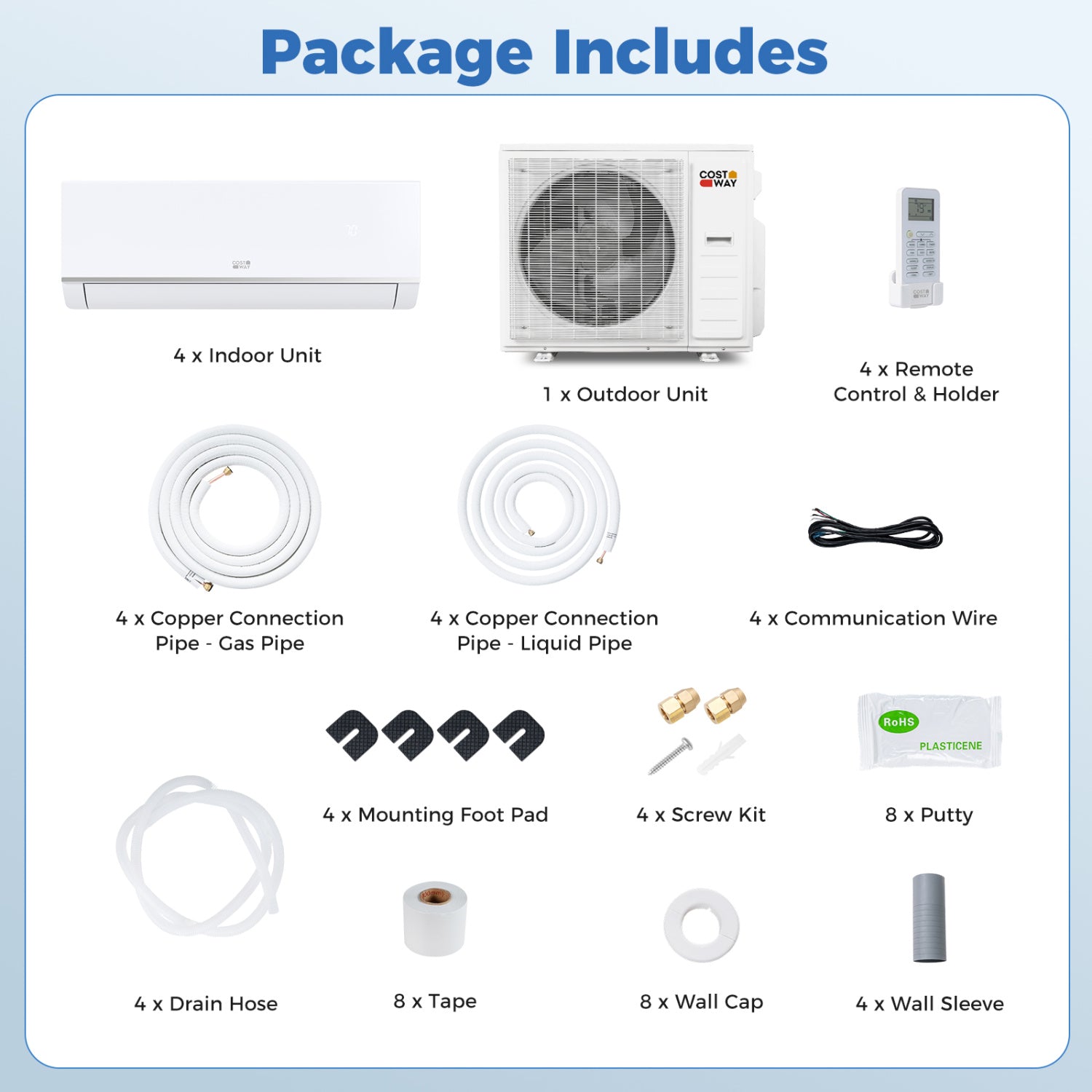

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 4 x Drain Hose.
• 4 x Remote Control and Holder.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 6 x User Guide.
