Mini Split AC Heat Pump, 38000 BTU, 2 Zone, 20 SEER2, 12K + 24K

Experience year-round comfort with this 2-zone 38000 BTU mini split air conditioner and heat pump, featuring 20 SEER2 efficiency, inverter technology, and smart controls for whole-home cooling and heating. Ideal for larger spaces, it offers quiet operation, easy maintenance, and reliable performance in extreme temperatures.

Overview:

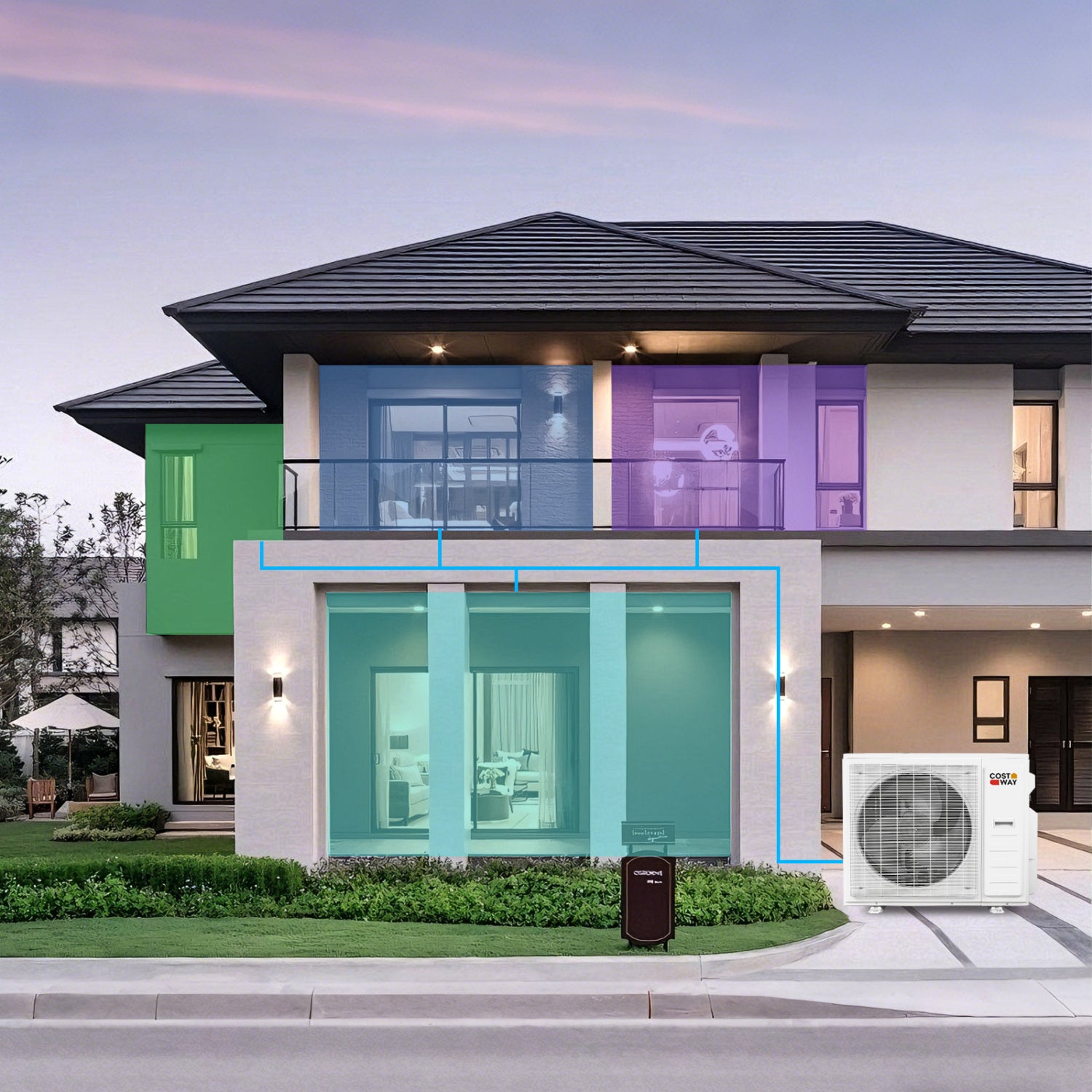

• Provides room-by-room comfort for larger homes with a 2-zone design.
• Offers powerful cooling and heating with high energy efficiency.
• Features smart control via phone, remote, or voice commands.
• Includes low noise operation and easy maintenance with washable filters.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 2 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

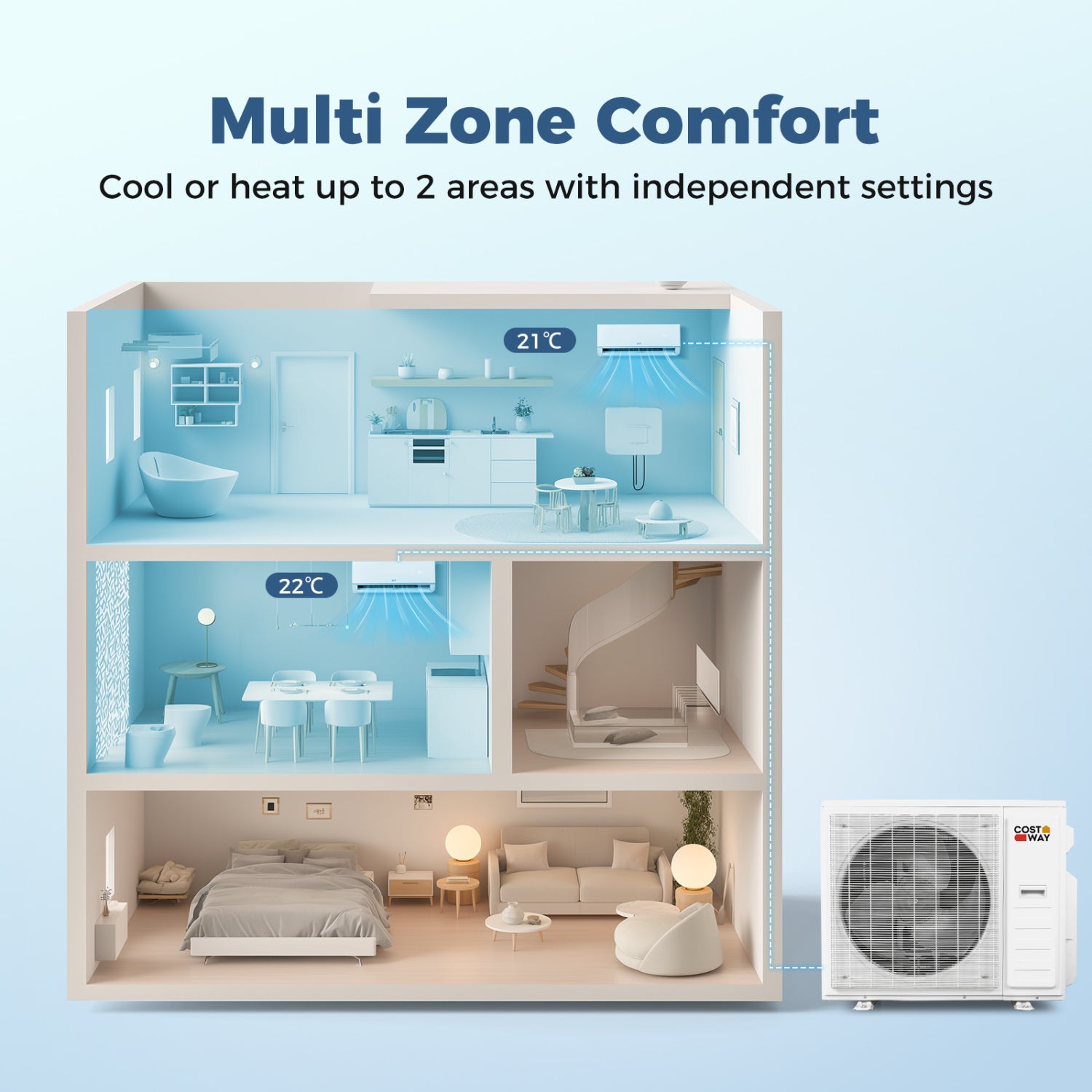

• Multi-zone comfort with 2-zone design for room-by-room temperature control.
• Gentle airflow with 4D swing for even distribution and golf ball dimples design to prevent direct blowing.

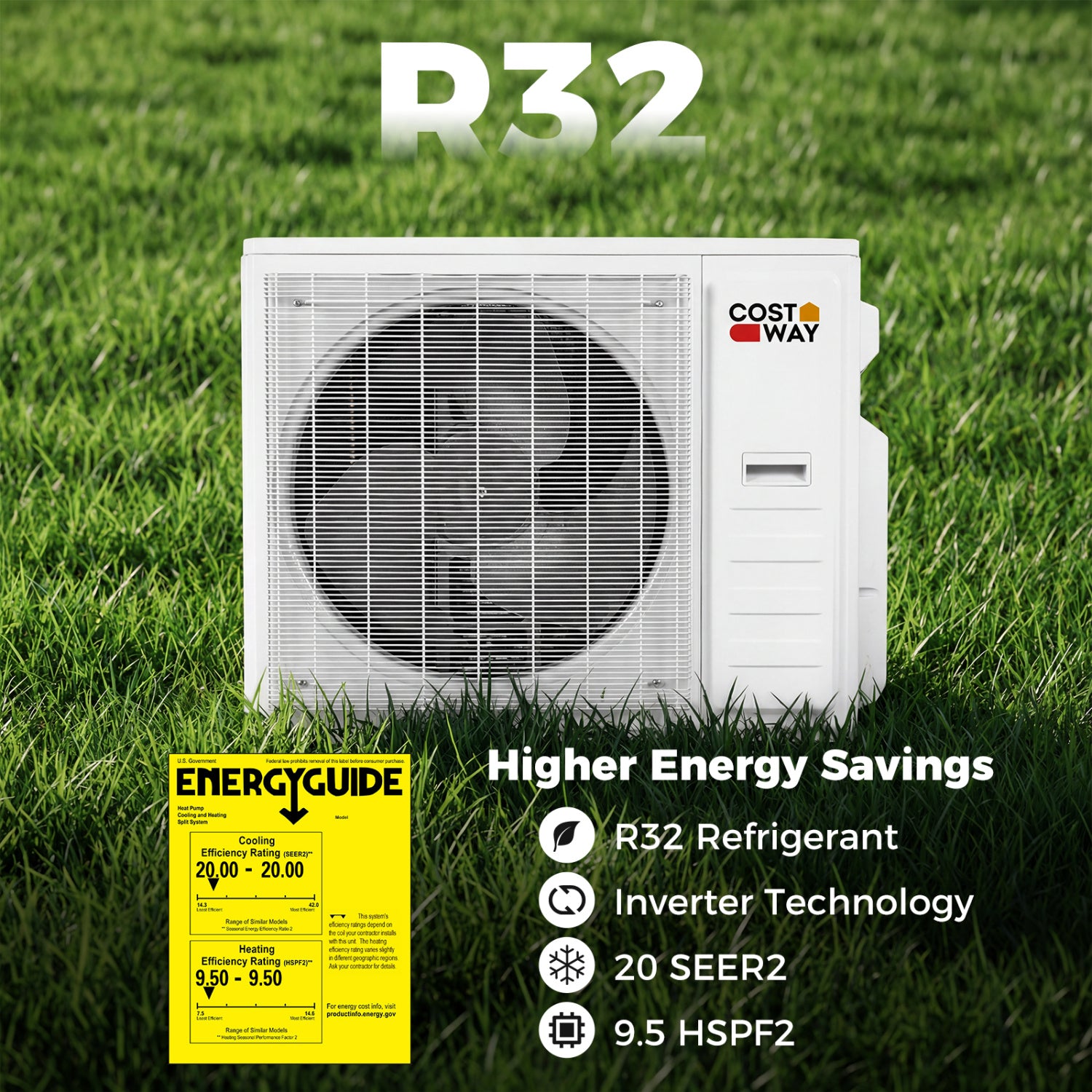

• Higher energy savings with 20 SEER2 rating and advanced inverter technology.

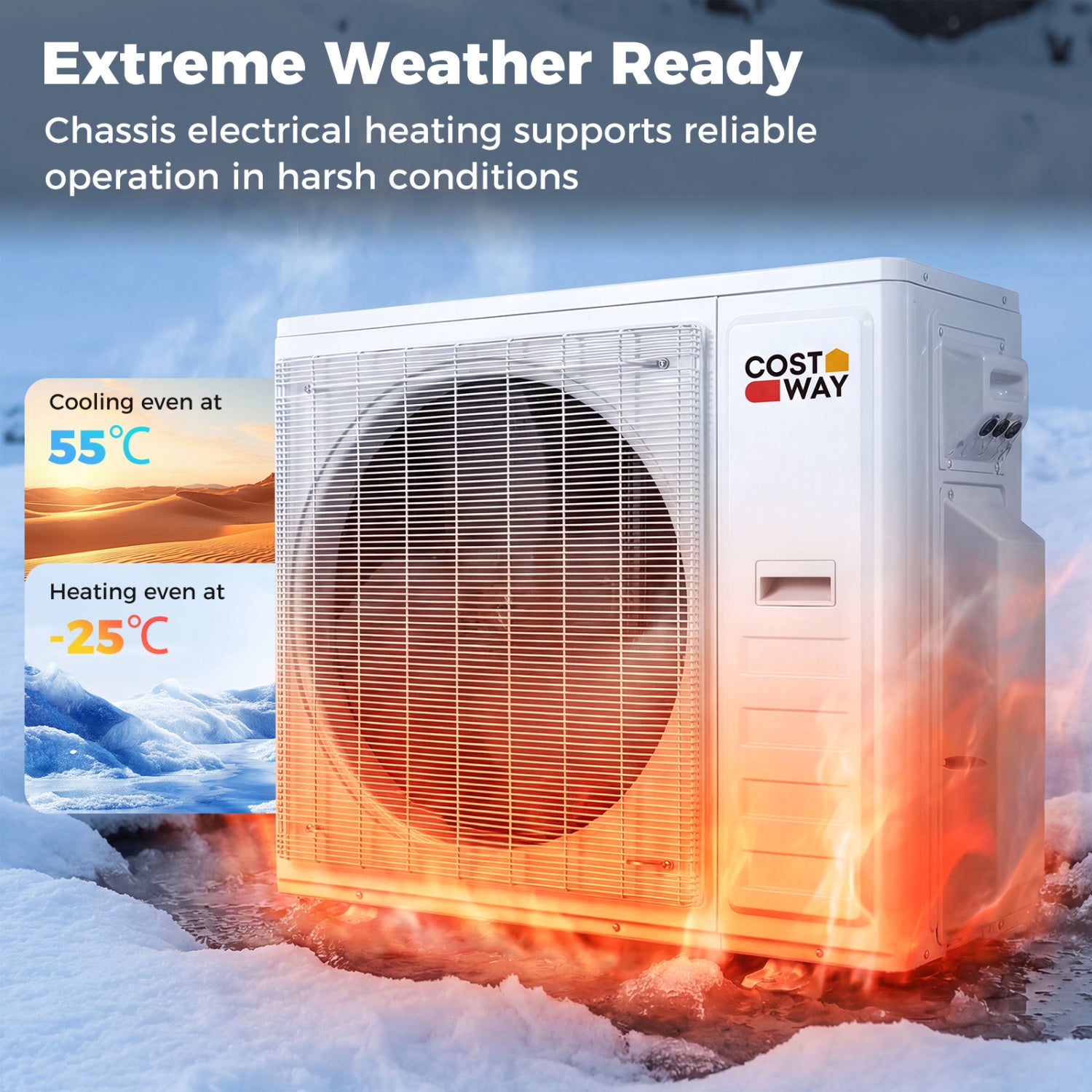

• Extreme weather ready with outdoor unit chassis electrical heating for operation from -25℃ to 55℃.
• Smart control via WiFi, compatible with Alexa and Google Assistant, plus remote control.

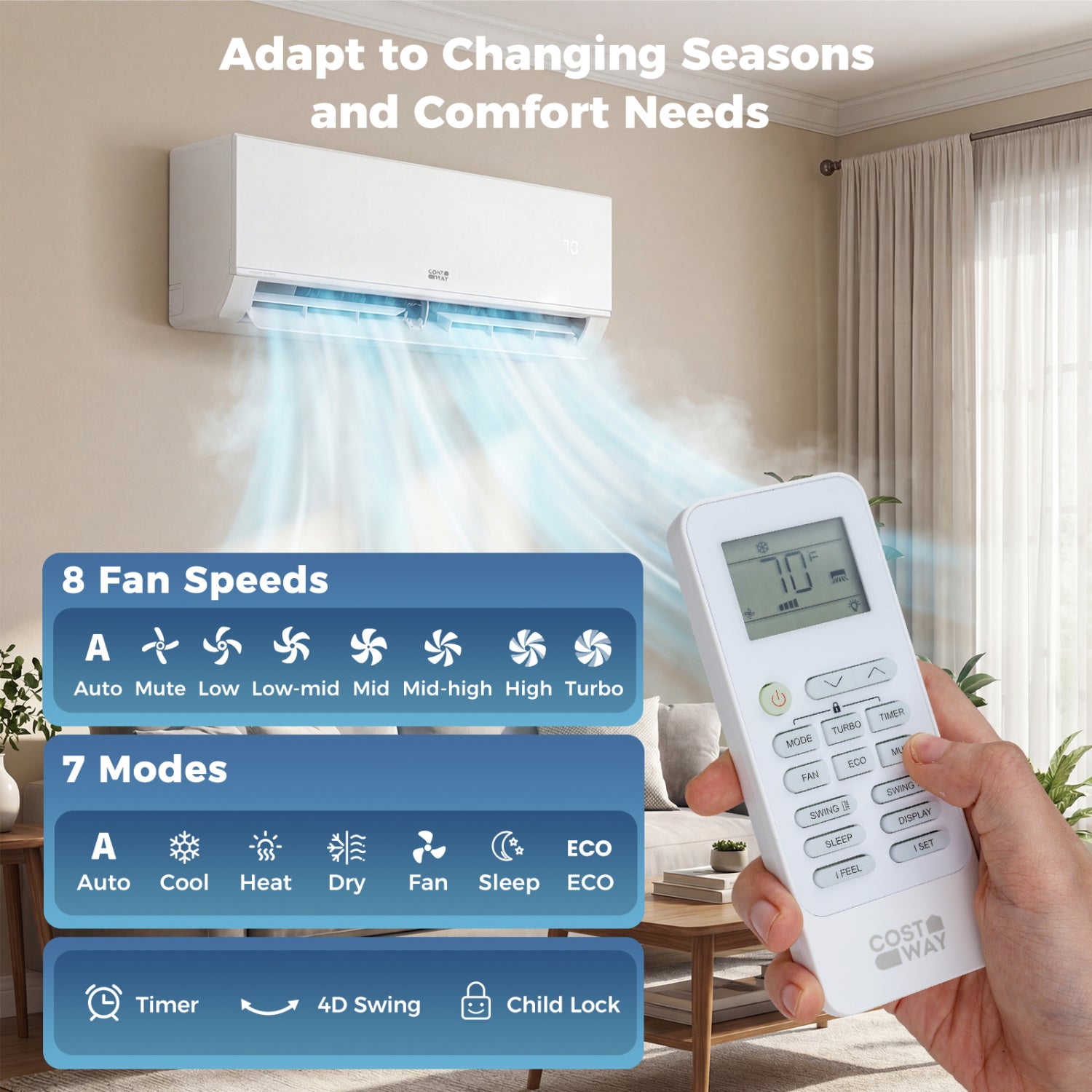

• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduling and energy efficiency.
• Child lock to prevent accidental changes.
• Low noise operation as low as 28 dB for a peaceful environment.
• Easy maintenance with self-clean function and washable filters.
• Note: Professional licensed HVAC technician installation is recommended.

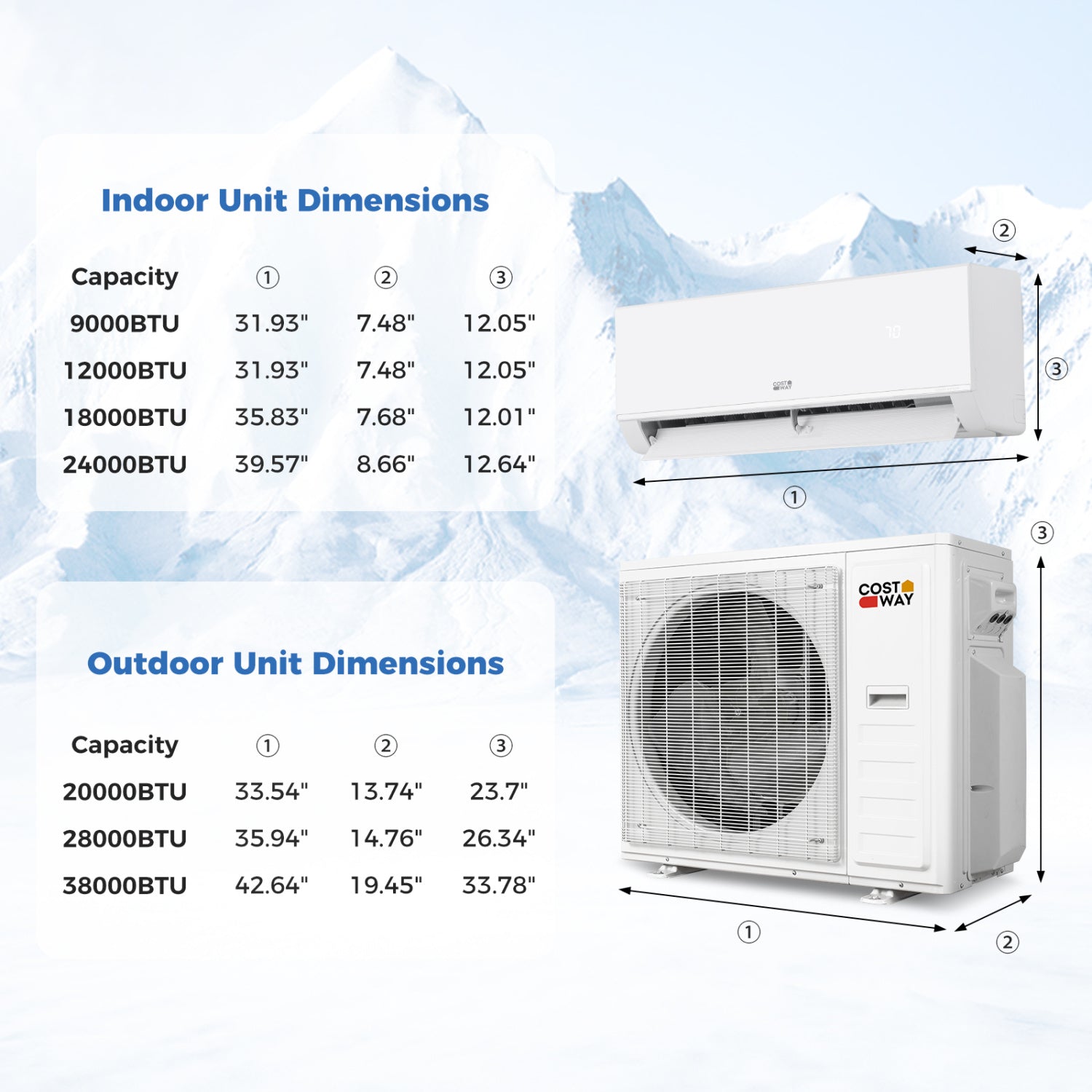

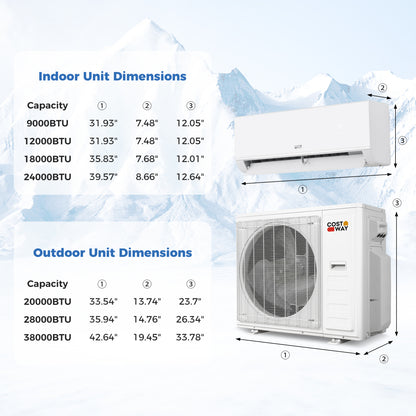

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 31.93 inches x 7.48 inches x 12.05 inches (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 35.83 inches x 7.68 inches x 12.01 inches (91.0 cm x 19.5 cm x 30.5 cm).
• Indoor Unit Dimensions (24K): 39.57 inches x 8.66 inches x 12.64 inches (100.5 cm x 22.0 cm x 32.1 cm).
• Outdoor Unit Dimensions (20K): 33.54 inches x 13.74 inches x 23.7 inches (85.2 cm x 34.9 cm x 60.2 cm).
• Outdoor Unit Dimensions (28K): 35.94 inches x 14.76 inches x 26.34 inches (91.3 cm x 37.5 cm x 66.9 cm).
• Outdoor Unit Dimensions (38K): 42.64 inches x 19.45 inches x 33.78 inches (108.3 cm x 49.4 cm x 85.8 cm).
• Net Weight of 38K Outdoor Unit: 148.8 pounds (67.5 kg).
• Net Weight of 9K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 12K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 18K Indoor Unit: 20.9 pounds (9.5 kg).
• Net Weight of 24K Indoor Unit: 27.6 pounds (12.5 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K, 12K, 18K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 2.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet (12.0 meters).
• Coverage Area (9K): 450 Sq.Ft (41.8 Sq.M).
• Coverage Area (12K): 750 Sq.Ft (69.7 Sq.M).
• Coverage Area (18K): 1250 Sq.Ft (116.1 Sq.M).
• Coverage Area (24K): 1500 Sq.Ft (139.4 Sq.M).
• Dehumidification Capacity (9K): 66 Pints/Day (31.2 Liters/Day).
• Dehumidification Capacity (12K): 81.2 Pints/Day (38.4 Liters/Day).
• Dehumidification Capacity (18K): 111.6 Pints/Day (52.8 Liters/Day).
• Dehumidification Capacity (24K): 131.9 Pints/Day (62.4 Liters/Day).
• Maximum Air Flow Volume (9K): 335 CFM (9.5 CMM).
• Maximum Air Flow Volume (12K): 342 CFM (9.7 CMM).
• Maximum Air Flow Volume (18K): 617 CFM (17.5 CMM).
• Maximum Air Flow Volume (24K): 847 CFM (24.0 CMM).
• SEER2 (20K): 23.
• SEER2 (28K): 20.
• SEER2 (38K): 20.
• HSPF2 (20K, 28K, 38K): 9.5.

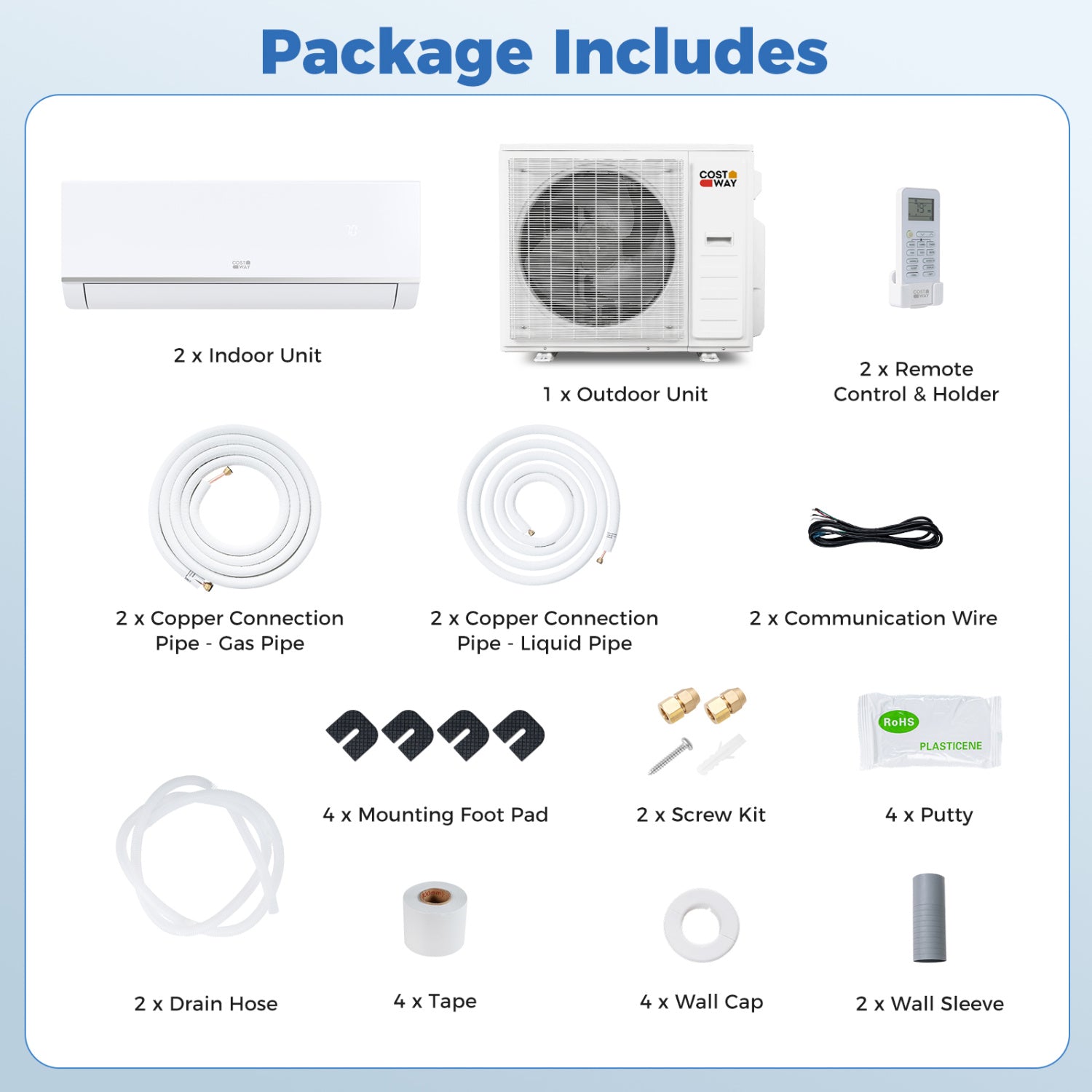

Package Includes:

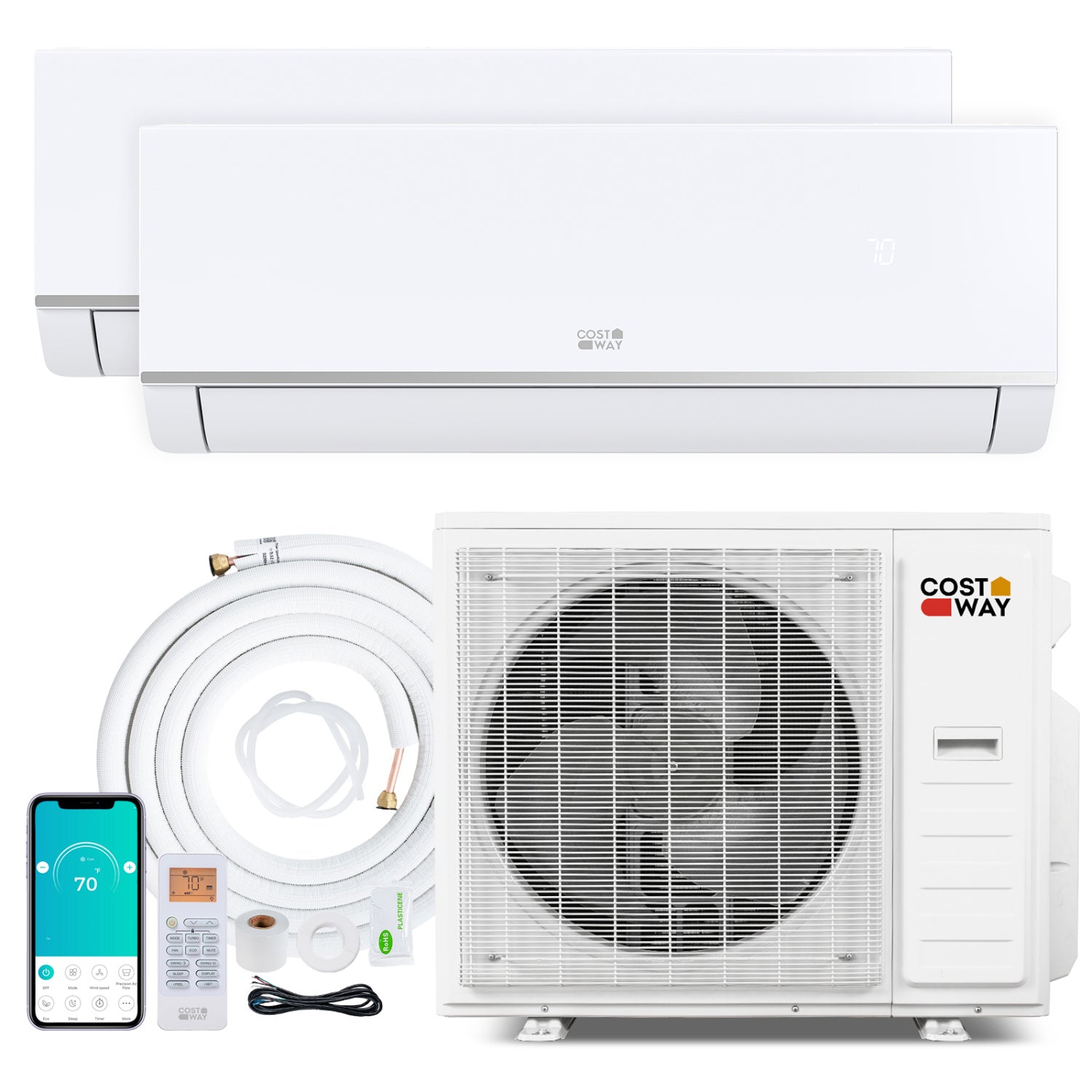

• 1 x Outdoor Unit.
• 2 x Indoor Unit.
• 2 x Copper Connection Pipe - Gas Pipe.
• 2 x Copper Connection Pipe - Liquid Pipe.
• 2 x Communication Wire.
• 2 x Drain Hose.
• 2 x Remote Control & Holder.
• 2 x Wall Sleeve.
• 4 x Wall Cap.
• 4 x Tape.
• 4 x Putty.
• 2 x Screw Kit.
• 4 x Mounting Foot Pad.
• 4 x User Guide.

Package Quantity: 4 boxes.
