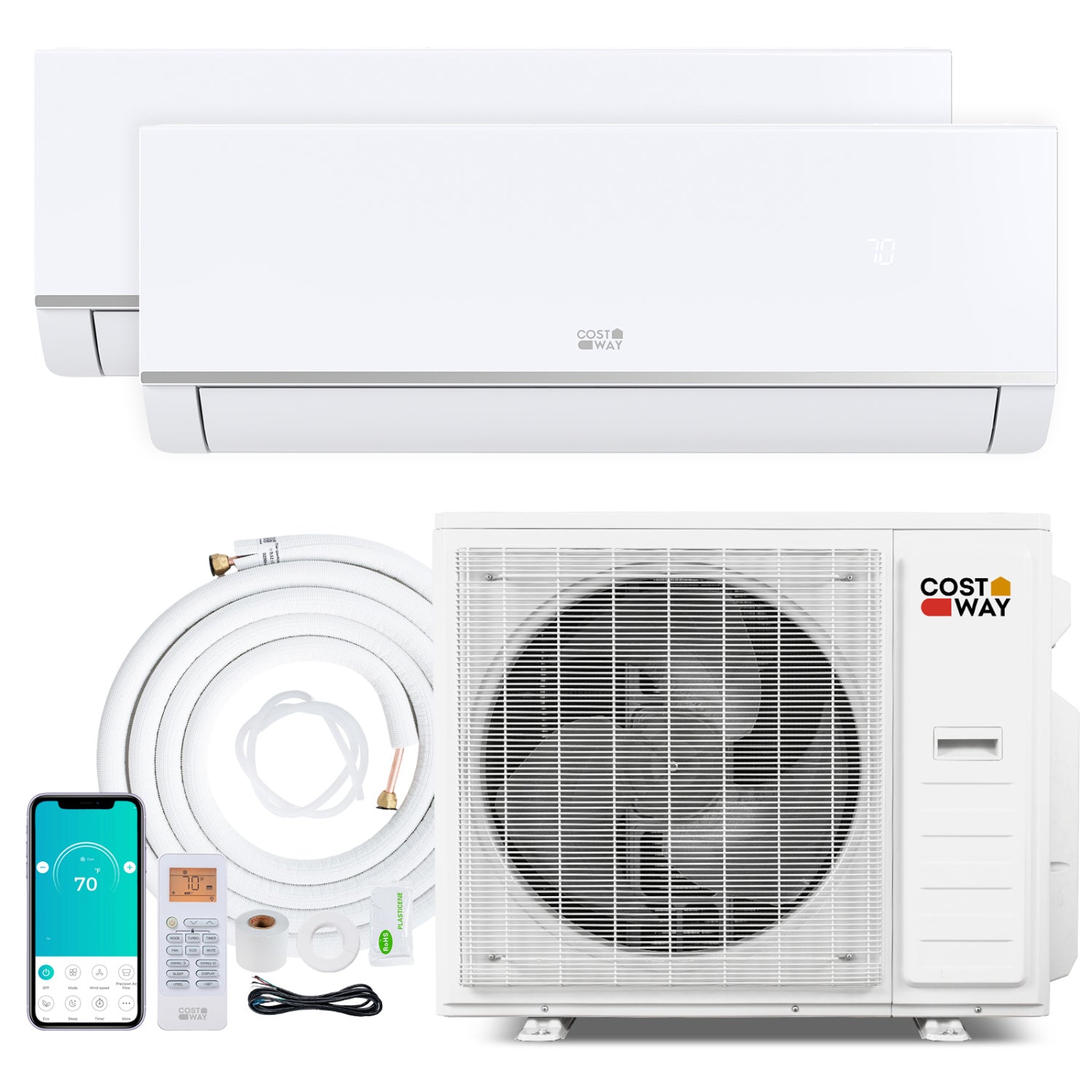

Mini Split AC Heat Pump, 38000 BTU, 2 Zone, 20 SEER2, 24K + 24K

Overview:

• Provides all-season comfort with powerful cooling and heating for two zones in larger homes.
• Features advanced inverter technology and a 20 SEER2 rating for high energy efficiency and stable temperature control.
• Offers smart control via Wi-Fi, voice commands (Alexa, Google Assistant), and a remote, with multiple operating modes and fan speeds.
• Designed for quiet operation (as low as 28 dB) and easy maintenance with self-clean and washable filters.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

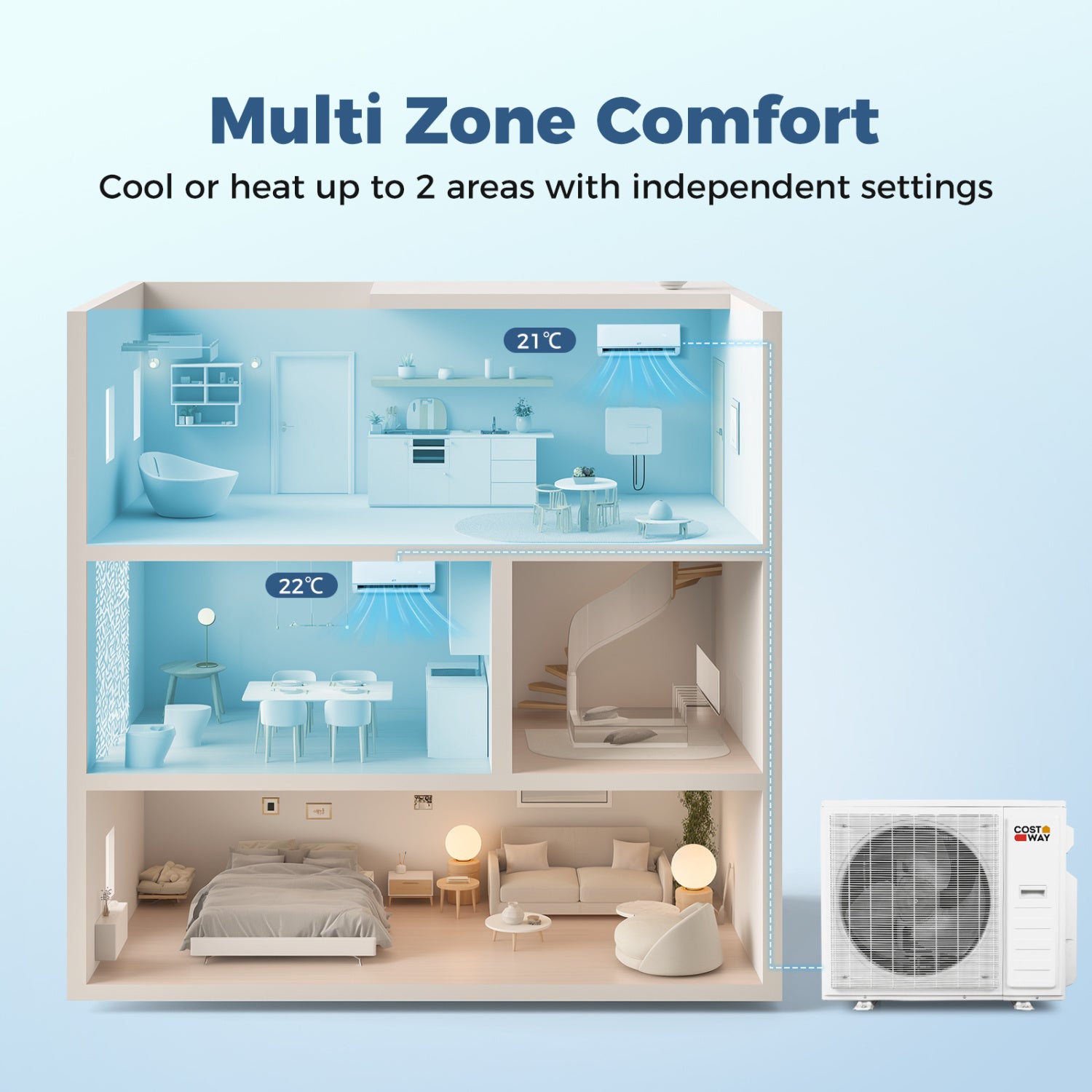

• Powerful whole-home cooling and heating for 2 zones with customizable room-by-room comfort.
• 20 SEER2 and inverter technology ensure high energy efficiency and reduced energy waste.
• Outdoor unit with chassis heating for reliable operation in harsh conditions (cooling at 55°C, heating at -25°C).
• Choose from 7 operating modes (auto, cool, heat, dry, fan, ECO, sleep) and 8 fan speeds for personalized comfort.
• Easily control from your phone, remote, or voice commands via Alexa and Google Assistant.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation (as low as 28 dB) ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution with a gentle breeze design.

Features:

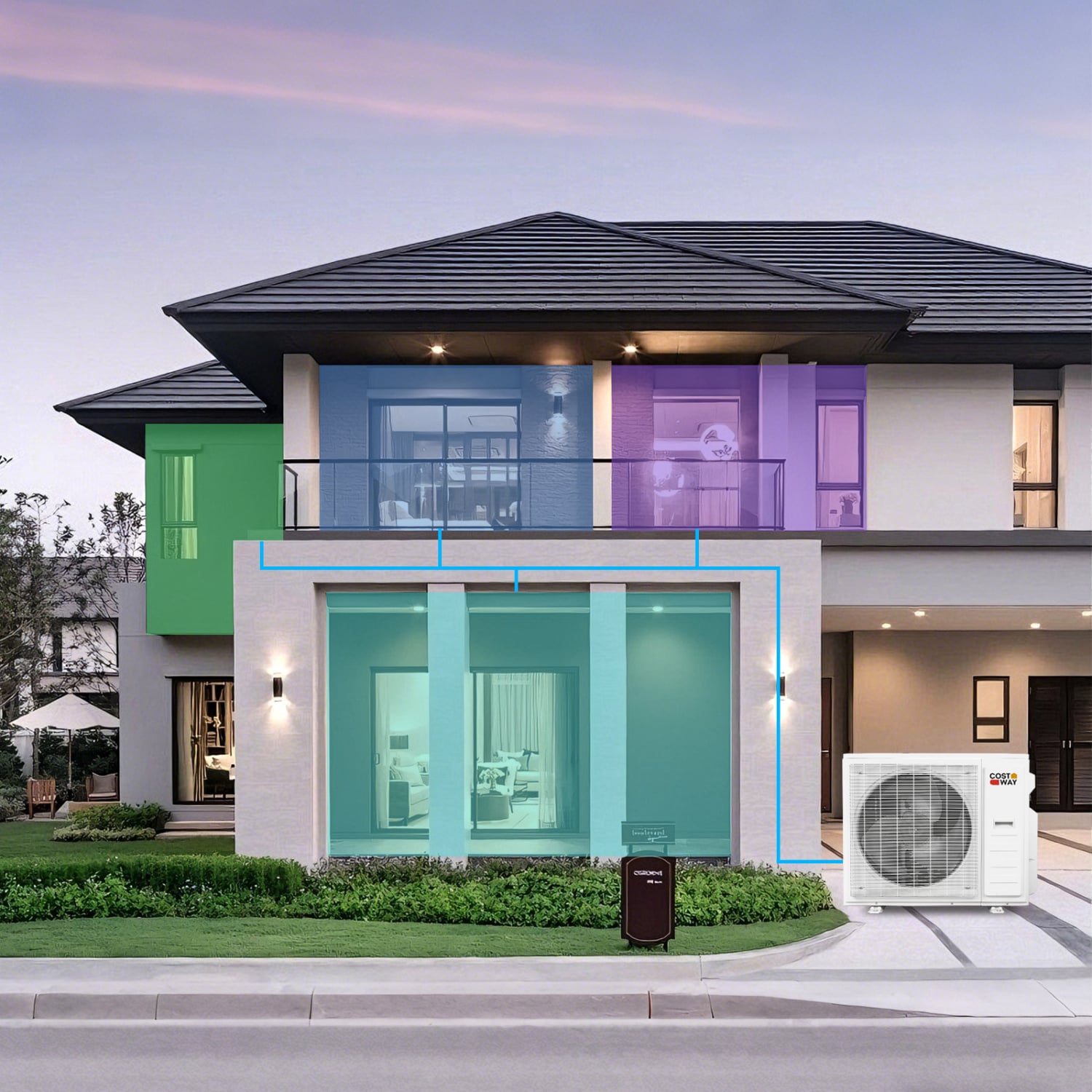

• 2-zone 38000 BTU mini split air conditioner and heating system for room-by-room comfort in larger homes.
• Dual/tri/quad zone design allows tailored temperatures where needed.
• 4D swing spreads air more evenly for consistent cooling and heating.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• 20 SEER2 rating provides powerful heating and cooling with energy-smart control.
• Advanced inverter technology helps reduce energy waste while keeping set temperatures stable.

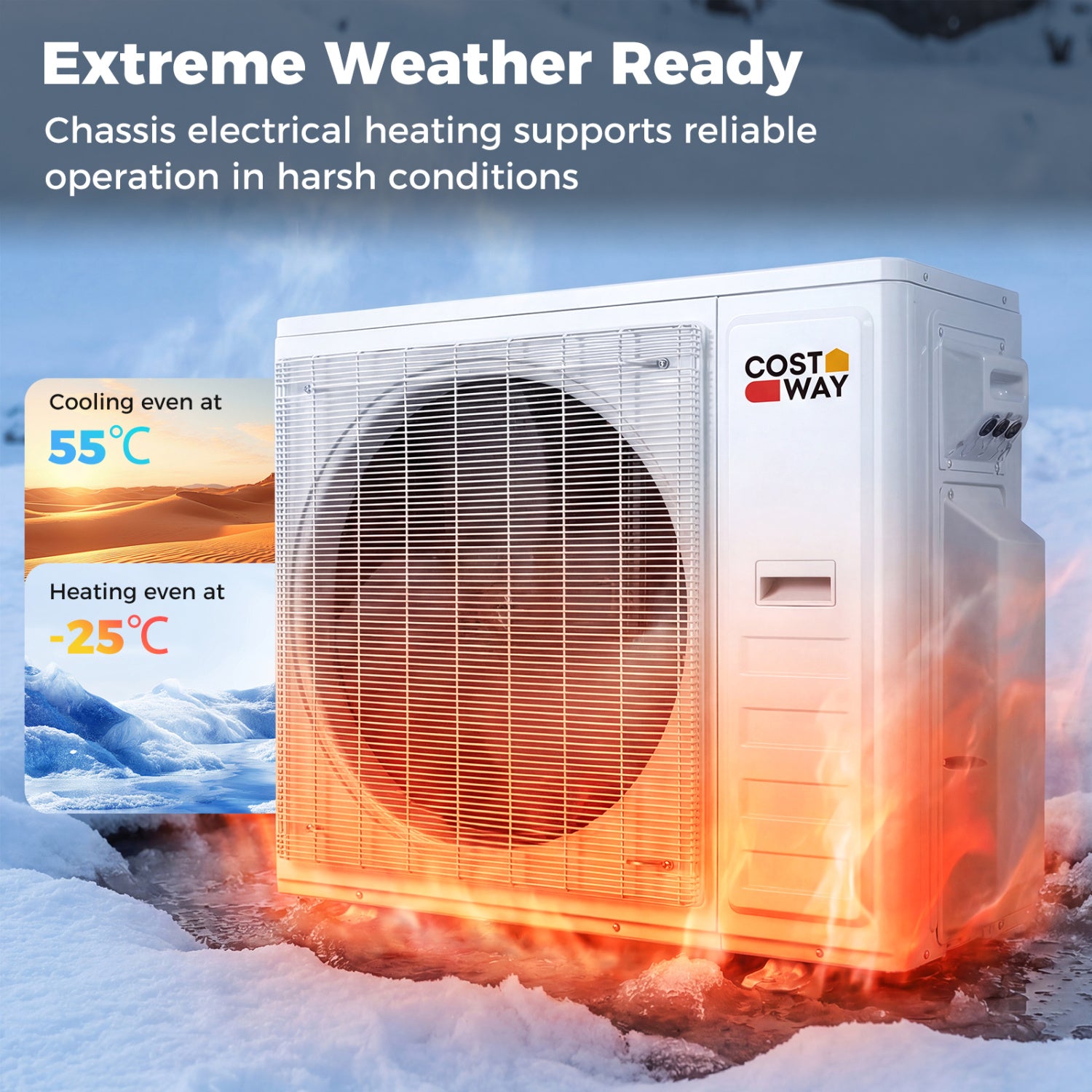

• Outdoor unit equipped with chassis electrical heating for reliable operation in extreme conditions.
• Supports cooling even at 55°C and heating even at -25°C.
• Wi-Fi enabled for smart control with Alexa and Google Assistant compatibility.
• Includes a remote control for quick access.

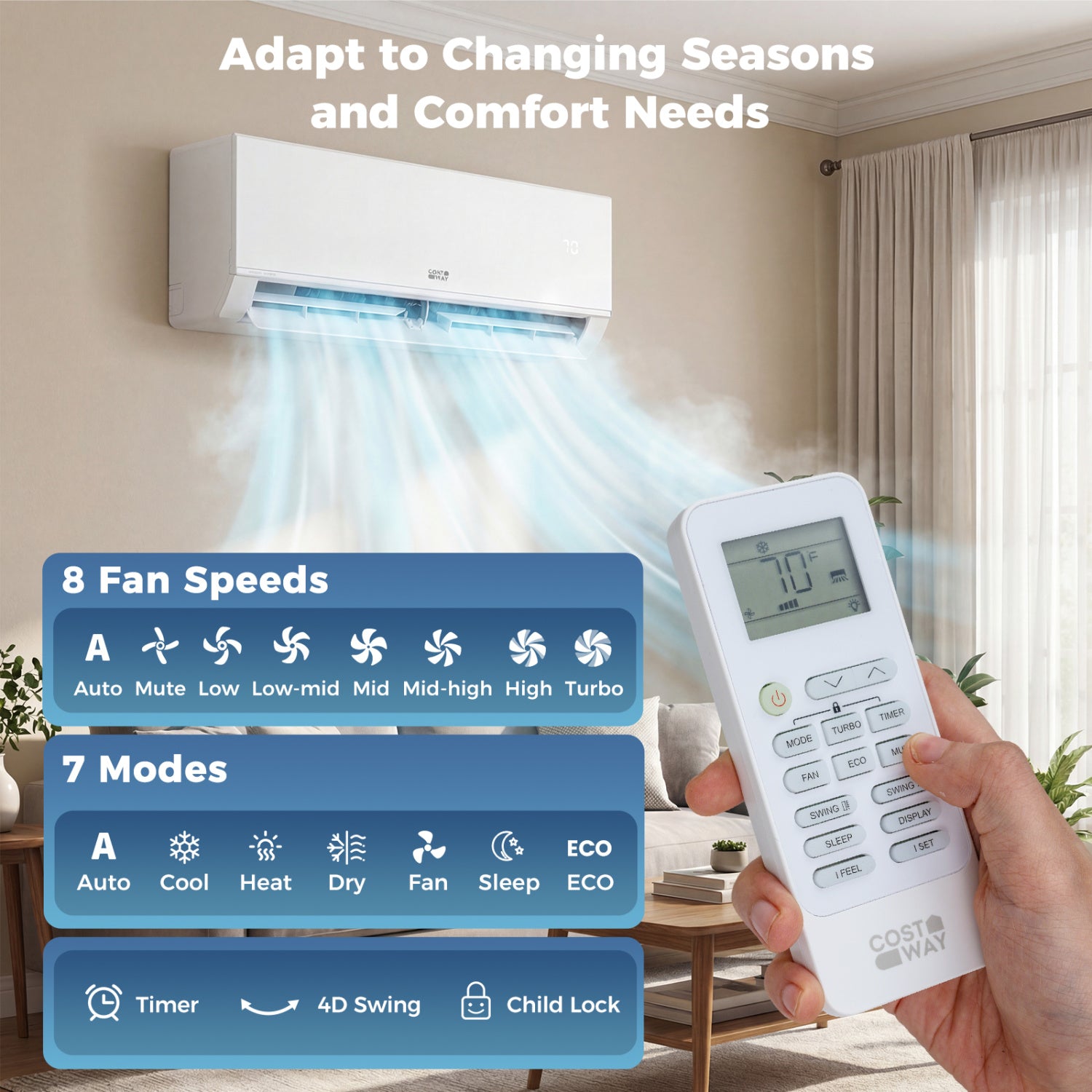

• 7 operating modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, turbo.
• 24-hour timer for easy daily use and smart energy saving.
• Child lock prevents accidental setting changes.
• Operates quietly with minimal noise as low as 28 dB.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

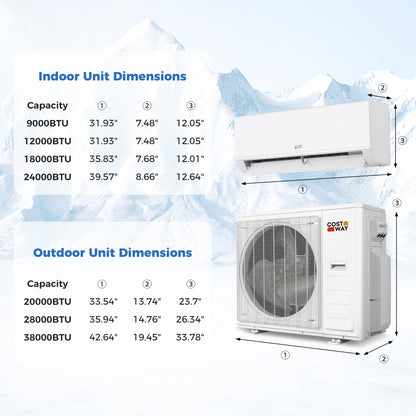

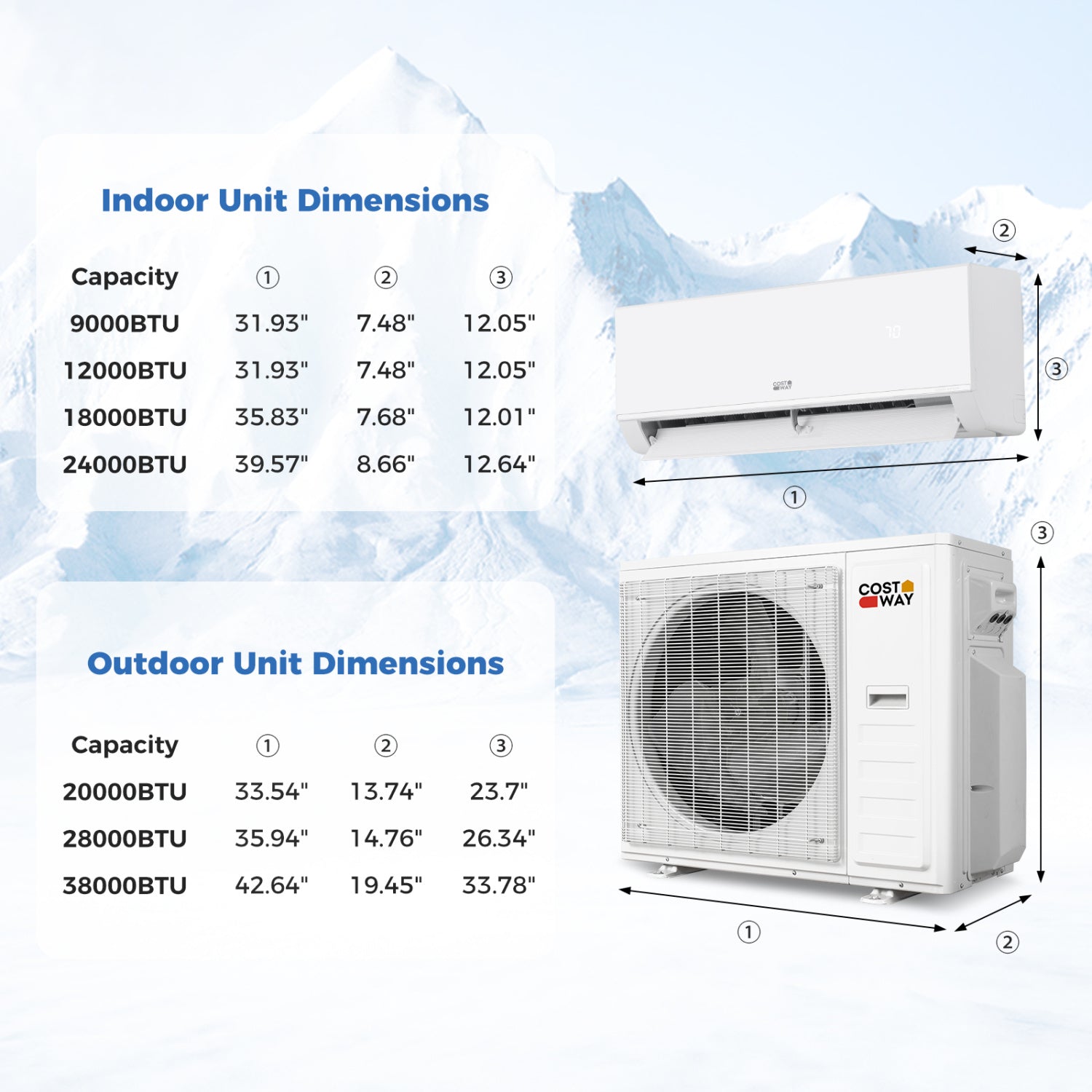

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 31.93 inches (L) x 7.48 inches (W) x 12.05 inches (H) / 81.1 cm (L) x 19.0 cm (W) x 30.6 cm (H).
• Indoor Unit Dimensions (12K): 31.93 inches (L) x 7.48 inches (W) x 12.05 inches (H) / 81.1 cm (L) x 19.0 cm (W) x 30.6 cm (H).
• Indoor Unit Dimensions (18K): 35.83 inches (L) x 7.68 inches (W) x 12.01 inches (H) / 91.0 cm (L) x 19.5 cm (W) x 30.5 cm (H).
• Indoor Unit Dimensions (24K): 39.57 inches (L) x 8.66 inches (W) x 12.64 inches (H) / 100.5 cm (L) x 22.0 cm (W) x 32.1 cm (H).
• Outdoor Unit Dimensions (20K): 33.54 inches (L) x 13.74 inches (W) x 23.7 inches (H) / 85.2 cm (L) x 34.9 cm (W) x 60.2 cm (H).
• Outdoor Unit Dimensions (28K): 35.94 inches (L) x 14.76 inches (W) x 26.34 inches (H) / 91.3 cm (L) x 37.5 cm (W) x 66.9 cm (H).
• Outdoor Unit Dimensions (38K): 42.64 inches (L) x 19.45 inches (W) x 33.78 inches (H) / 108.3 cm (L) x 49.4 cm (W) x 85.8 cm (H).
• Net Weight of 38K Outdoor Unit: 148.8 pounds / 67.5 kilograms.
• Net Weight of 9K Indoor Unit: 19.8 pounds / 9.0 kilograms.
• Net Weight of 12K Indoor Unit: 19.8 pounds / 9.0 kilograms.
• Net Weight of 18K Indoor Unit: 20.9 pounds / 9.5 kilograms.
• Net Weight of 24K Indoor Unit: 27.6 pounds / 12.5 kilograms.
• Diameter of Liquid Pipe: 1/4 inch / 0.64 cm.
• Diameter of Gas Pipe (9K, 12K, 18K): 3/8 inch / 0.95 cm.
• Diameter of Gas Pipe (24K): 1/2 inch / 1.27 cm.

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 2.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C to 31°C (approximately 61°F to 88°F).

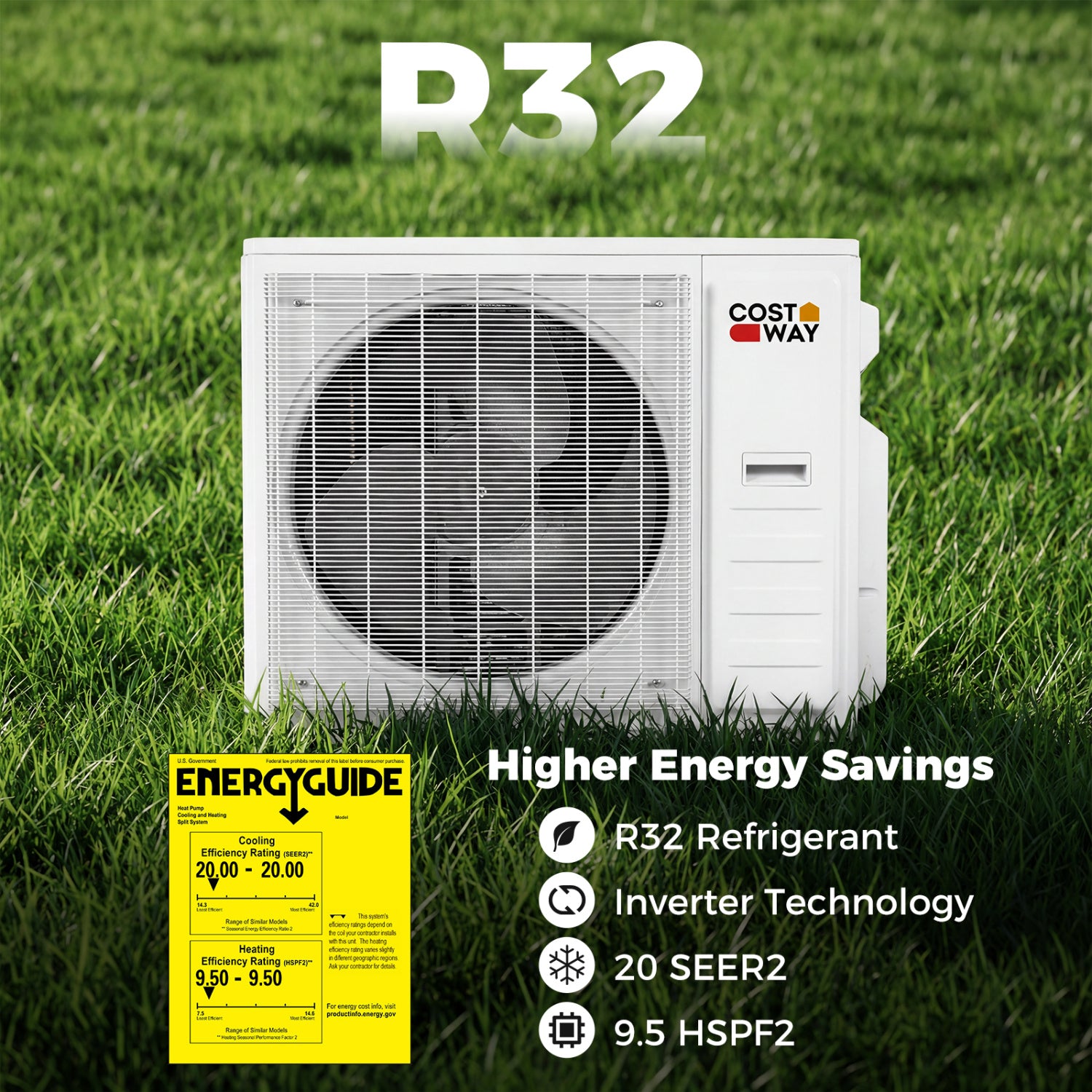

• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet / 12.0 meters.
• Coverage Area (9K): 450 square feet.
• Coverage Area (12K): 750 square feet.
• Coverage Area (18K): 1250 square feet.
• Coverage Area (24K): 1500 square feet.
• Dehumidification Capacity (9K): 66 pints per day.
• Dehumidification Capacity (12K): 81.2 pints per day.
• Dehumidification Capacity (18K): 111.6 pints per day.
• Dehumidification Capacity (24K): 131.9 pints per day.
• Maximum Air Flow Volume (9K): 335 CFM.
• Maximum Air Flow Volume (12K): 342 CFM.
• Maximum Air Flow Volume (18K): 617 CFM.
• Maximum Air Flow Volume (24K): 847 CFM.
• SEER2 (20K): 23.
• SEER2 (28K): 20.
• SEER2 (38K): 20.
• HSPF2 (20K, 28K, 38K): 9.5.

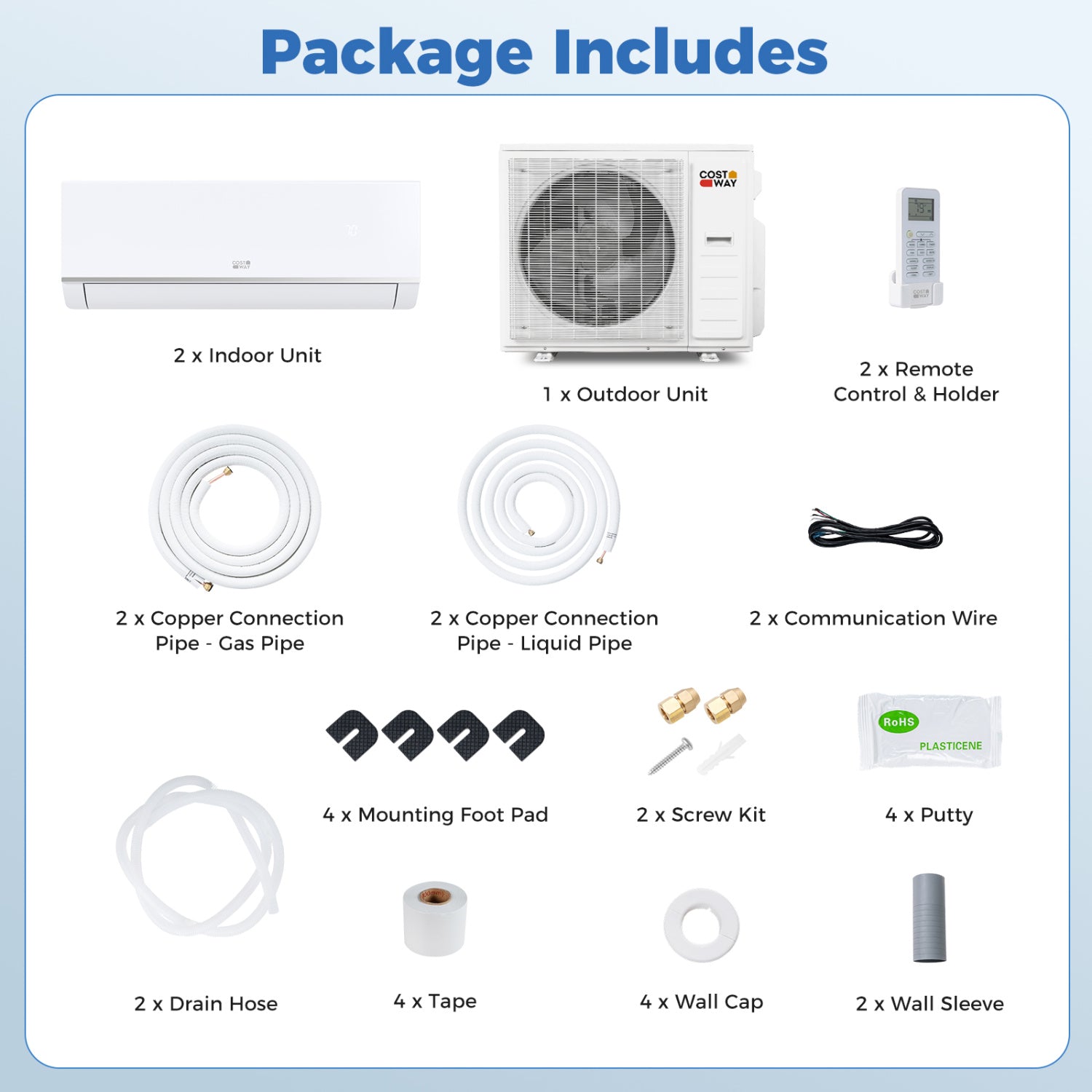

Package Includes:

• 1 x Outdoor Unit.
• 2 x Indoor Unit.
• 2 x Copper Connection Pipe - Gas Pipe.
• 2 x Copper Connection Pipe - Liquid Pipe.
• 2 x Communication Wire.
• 2 x Drain Hose.
• 2 x Remote Control & Holder.
• 2 x Wall Sleeve.
• 4 x Wall Cap.
• 4 x Tape.
• 4 x Putty.
• 2 x Screw Kit.
• 4 x Mounting Foot Pad.
• 4 x User Guide.
