3 Zone 22.5 SEER2 Mini Split AC, 9K + 12K + 18K, White

Overview:

• Offers all-season comfort with fast cooling and heating for three independent zones, perfect for room-by-room climate control in larger homes.
• Designed for adults, parents, and homeowners seeking energy-efficient, smart-controlled air conditioning and heating solutions.
• Features advanced inverter technology, R454B refrigerant for lower environmental impact, and chassis electrical heating for consistent performance in tough weather.
• Note: Installation by a professional technician is recommended for optimal setup and safety.

Highlights:

• Fast cooling and heating for three independent zones with 4D swing for even air distribution.
• High energy efficiency with inverter technology and R454B refrigerant, certified by Energy Star.
• Smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant compatibility.
• Quiet operation as low as 30 dB, sleep mode, screen off function, and child lock for added convenience.
• Self-clean function and removable, washable filter for easy maintenance and fresher airflow.
• 24-hour timer for effortless scheduling and energy savings, with seven operating modes and eight fan speeds.
• Chassis electrical heating ensures dependable performance in ambient temperatures from -25℃ to 55℃.

Features:

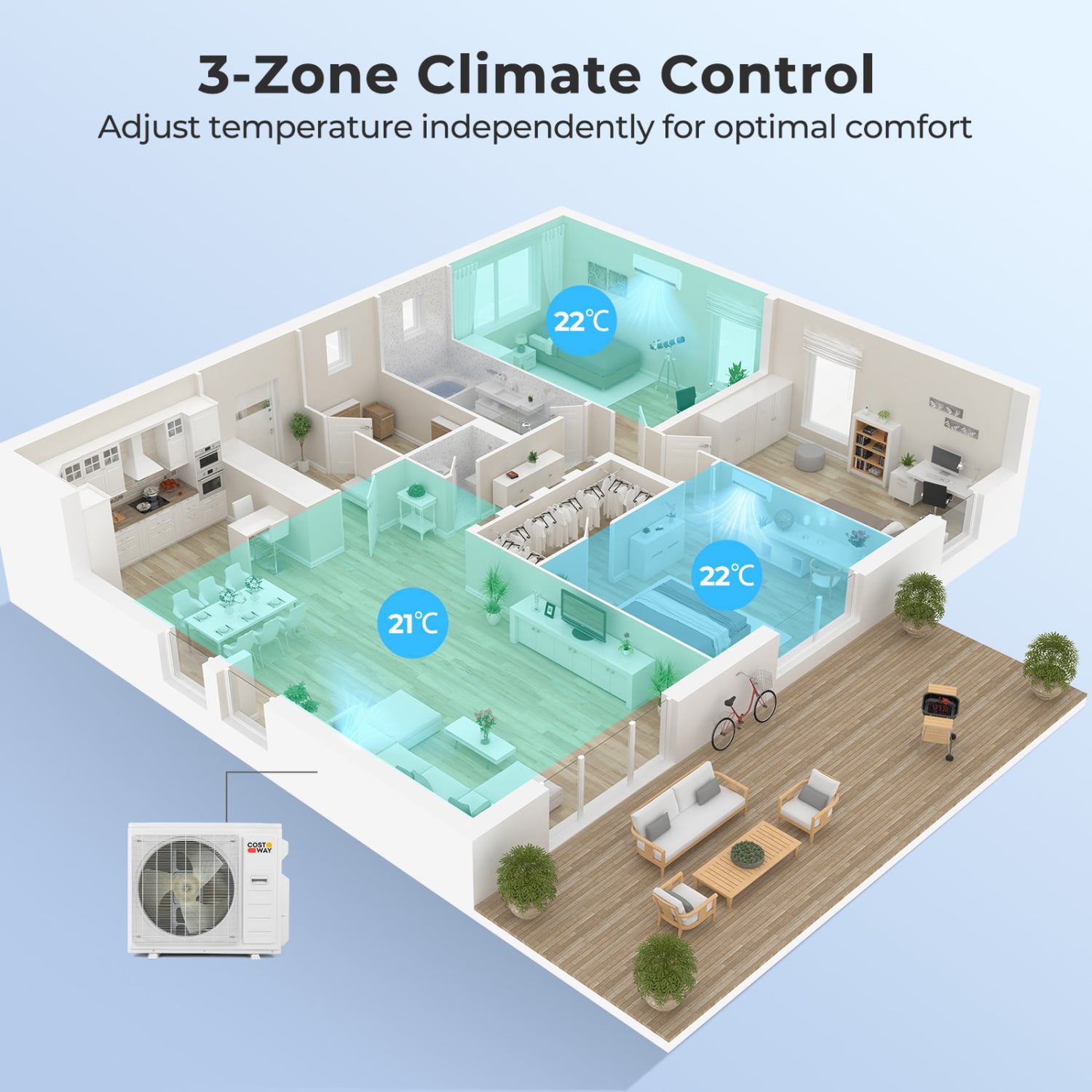

• 3-zone climate control for room-by-room comfort in larger homes, allowing independent temperature adjustments.
• 4D auto swing helps distribute airflow more evenly for added comfort.

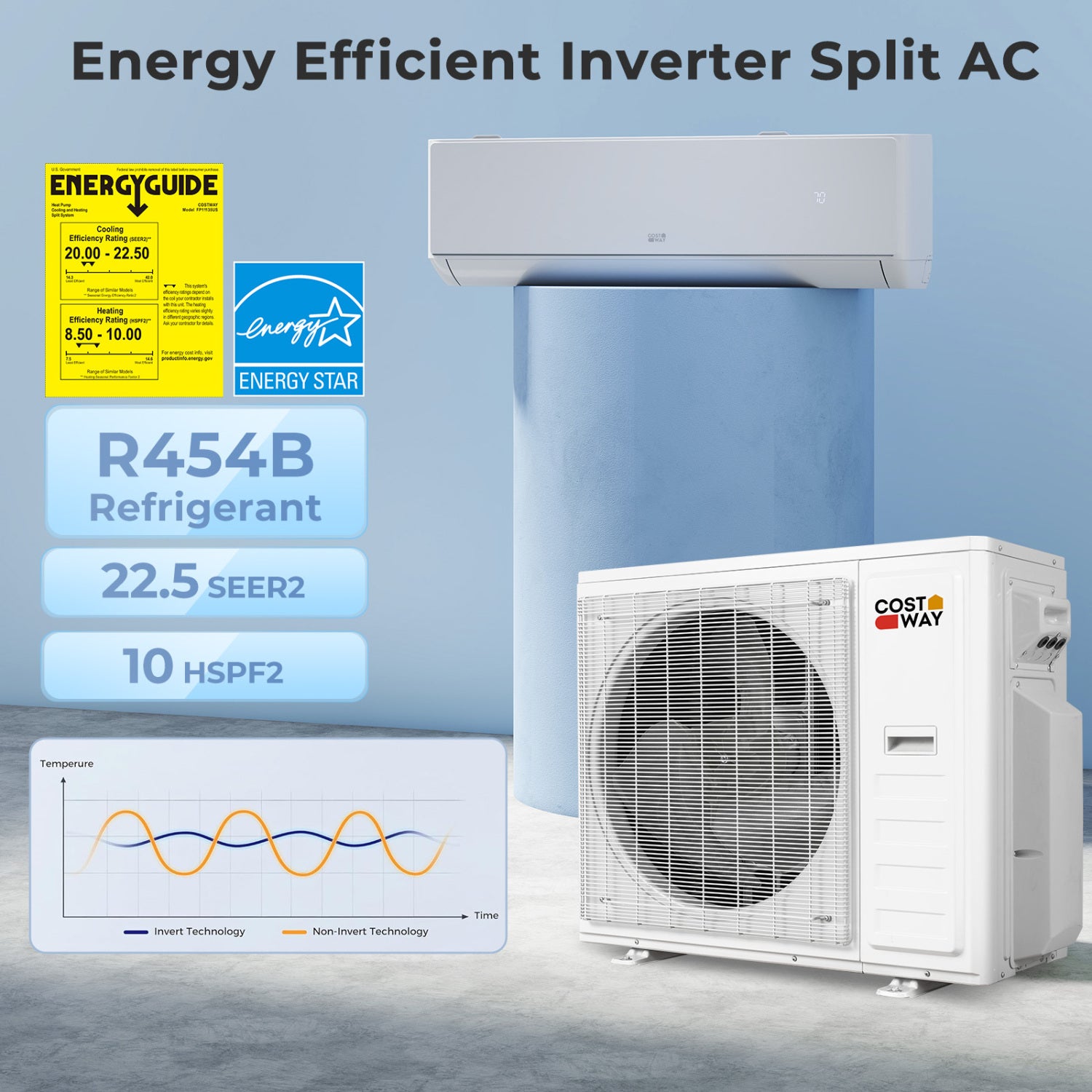

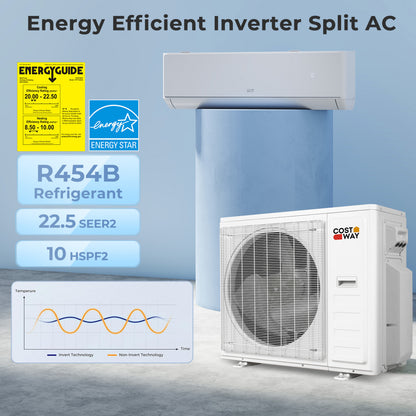

• Energy-efficient performance rated up to 22.5 SEER2, using R454B refrigerant with lower global warming potential.
• Advanced inverter technology minimizes energy waste and maintains steady set temperatures.
• WiFi-enabled for smart control, compatible with Alexa and Google Assistant, and includes a remote control.
• Seven operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• Eight fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduling and energy savings.
• Child lock prevents accidental changes to settings.
• Quiet operation with sound levels as low as 30 dB for peaceful environments.
• Self-clean function maintains fresher airflow over time.
• Removable and washable filter for easy cleaning.

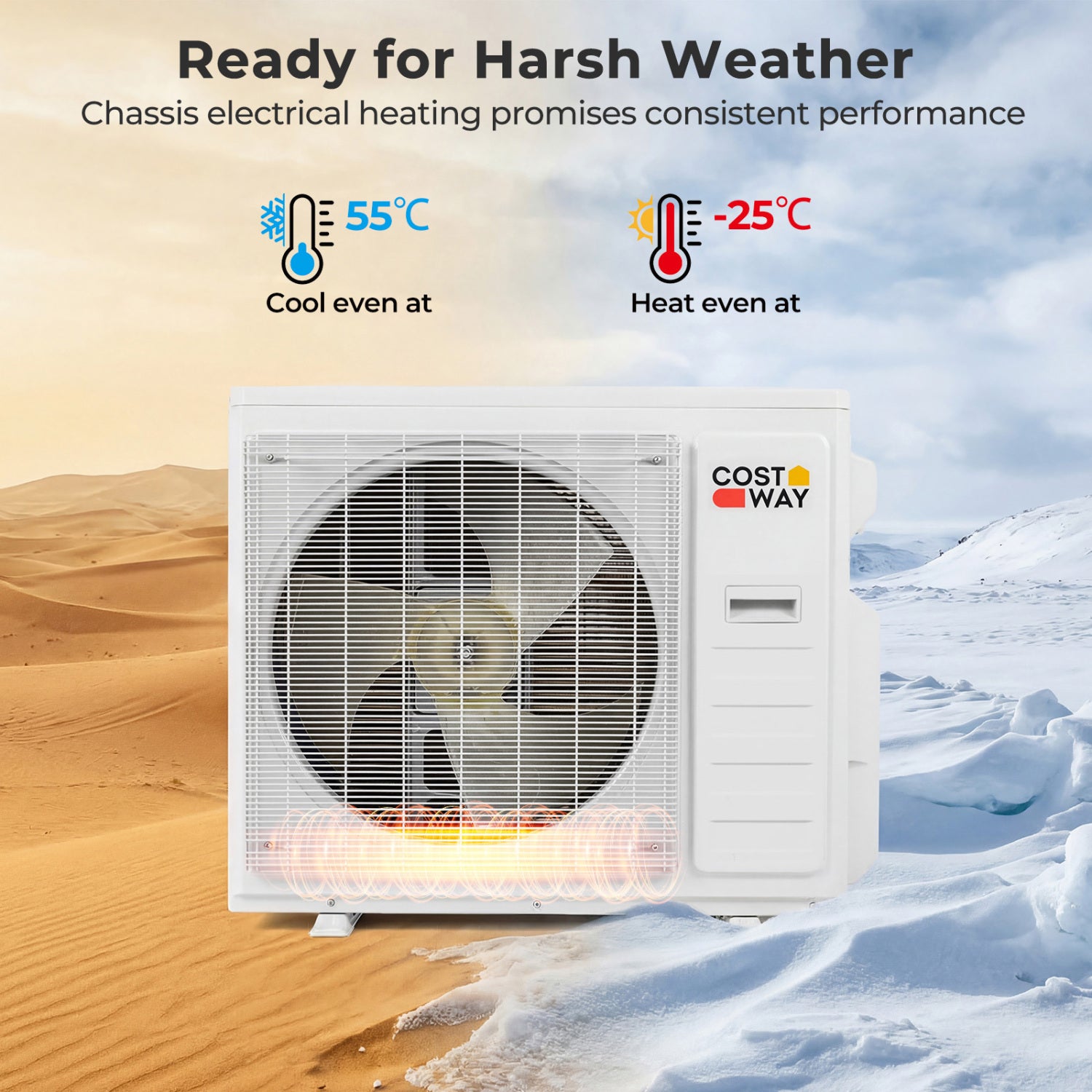

• Chassis electrical heating system ensures dependable performance in harsh weather, cooling up to 55℃ and heating down to -25℃.
• Note: Installation by a professional technician is recommended for safety and optimal function.

Weight & Dimensions:

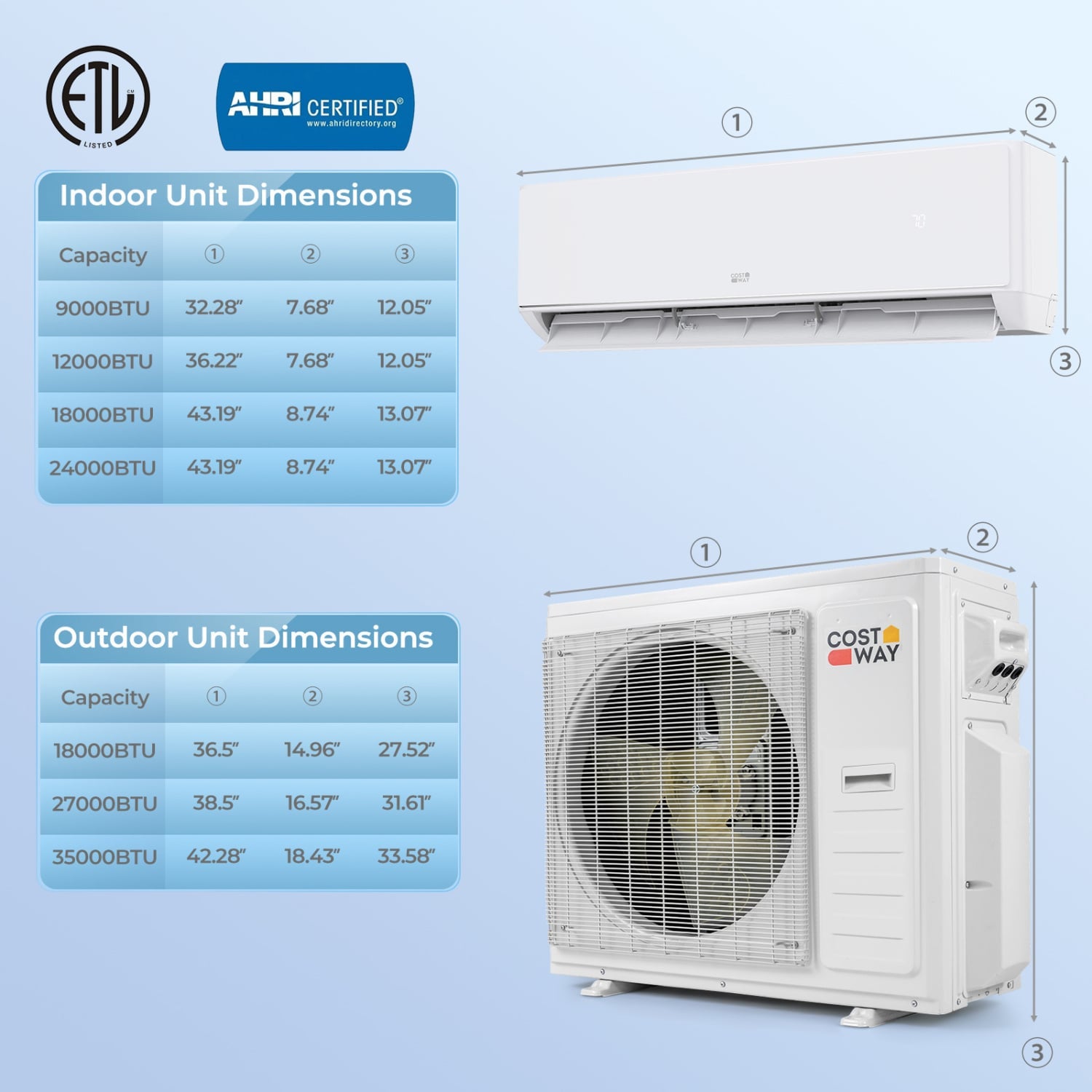

• Indoor Unit Dimensions (9K): 32.28 inches long x 7.68 inches wide x 12.05 inches high (82.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22 inches long x 7.68 inches wide x 12.05 inches high (92.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19 inches long x 8.74 inches wide x 13.07 inches high (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19 inches long x 8.74 inches wide x 13.07 inches high (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches long x 14.96 inches wide x 27.52 inches high (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches long x 16.57 inches wide x 31.61 inches high (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches long x 18.43 inches wide x 33.58 inches high (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 20.7 pounds (9.4 kg).
• Net Weight of Indoor Unit (12K): 24.3 pounds (11.0 kg).
• Net Weight of Indoor Unit (18K): 30.9 pounds (14.0 kg).
• Net Weight of Indoor Unit (24K): 30.9 pounds (14.0 kg).
• Net Weight of Outdoor Unit (18K): 92.6 pounds (42.0 kg).
• Net Weight of Outdoor Unit (27K): 119 pounds (54.0 kg).
• Net Weight of Outdoor Unit (35K): 145.5 pounds (66.0 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2 inch (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8 inch (1.59 cm).

Specifications:

• Color: White for a clean, modern look.
• Material: Constructed from cold-rolled steel sheet, copper, and aluminum for durability.
• Multi Zone Combination: Supports 3 zones for independent climate control.
• Voltage: 208-230V for standard residential use.
• Frequency: 60Hz compatible with North American electrical systems.
• Temperature Setting Range: 60℉ to 88℉ (16℃ to 31℃) for precise comfort adjustments.
• Refrigerant: R454B for efficient heating and cooling with lower global warming potential.
• Indoor Unit Noise Level: As low as 30 dB for quiet operation.
• Maximum Remote Control Distance: 39.5 feet (12.0 meters) for convenient adjustments.
• Coverage Area (9K): 450 square feet (41.8 square meters).
• Coverage Area (12K): 750 square feet (69.7 square meters).
• Coverage Area (18K): 1250 square feet (116.1 square meters).
• Coverage Area (24K): 1500 square feet (139.4 square meters).
• Dehumidification Capacity (9K): 55.8 pints per day (26.4 liters per day).
• Dehumidification Capacity (12K): 81.2 pints per day (38.4 liters per day).
• Dehumidification Capacity (18K): 111.6 pints per day (52.8 liters per day).
• Dehumidification Capacity (24K): 131.9 pints per day (62.4 liters per day).
• Maximum Air Flow Volume (9K): 326 CFM (554 m³/h).
• Maximum Air Flow Volume (12K): 500 CFM (554 m³/h).
• Maximum Air Flow Volume (18K): 735 CFM (554 m³/h).
• Maximum Air Flow Volume (24K): 735 CFM (554 m³/h).
• SEER2 Rating (18K): 24 for high energy efficiency.
• SEER2 Rating (27K): 24 for high energy efficiency.
• SEER2 Rating (35K): 22.5 for high energy efficiency.
• HSPF2 Rating (18K): 10.5 for efficient heating performance.
• HSPF2 Rating (27K): 10.5 for efficient heating performance.
• HSPF2 Rating (35K): 10 for efficient heating performance.
• Certified by Energy Star for energy savings and environmental responsibility.

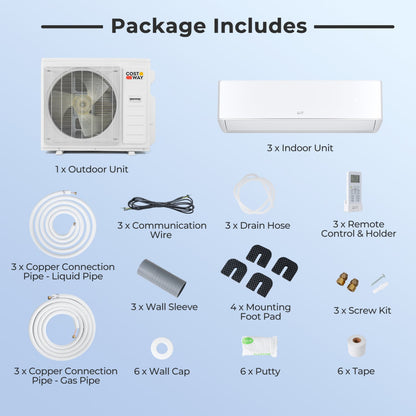

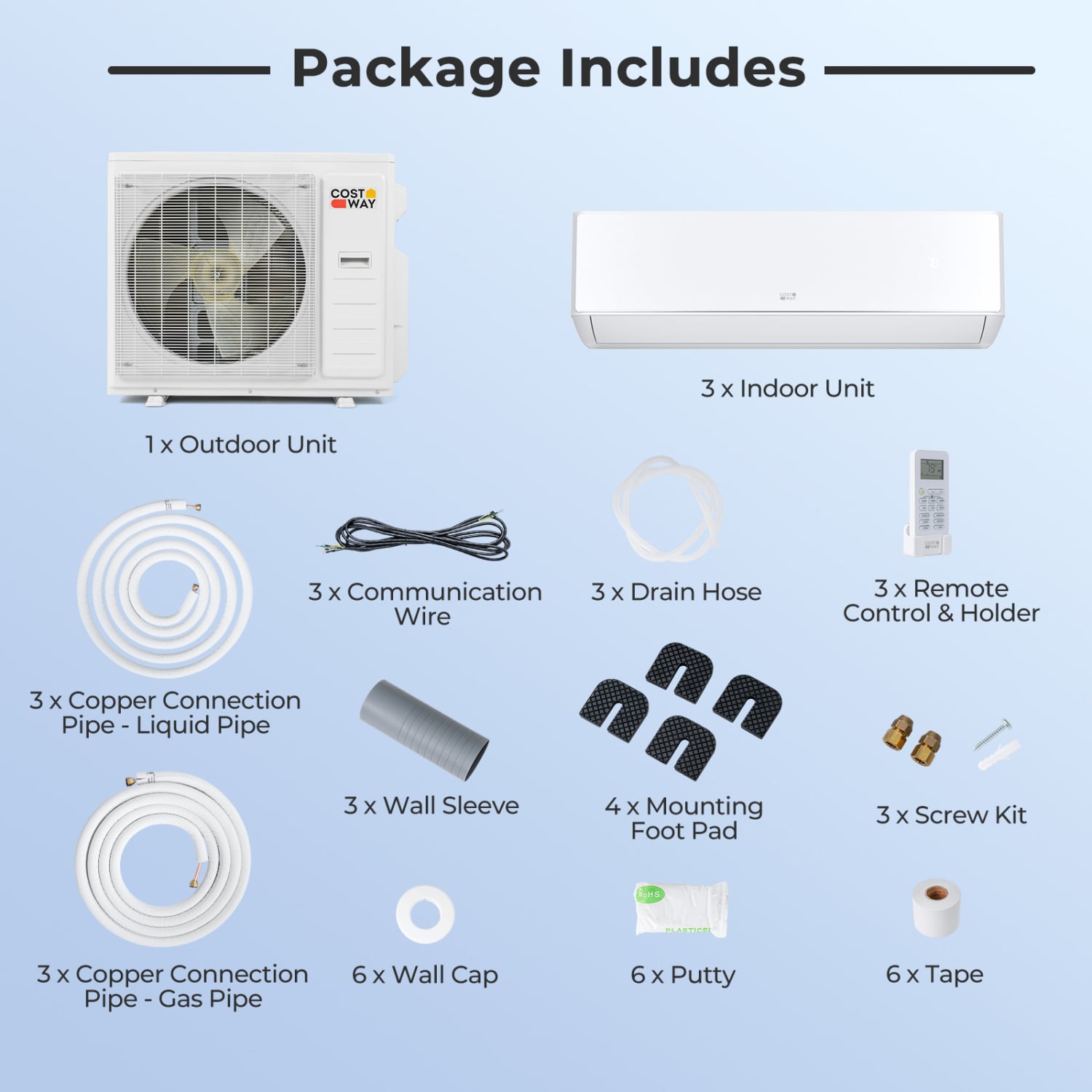

Package Includes:

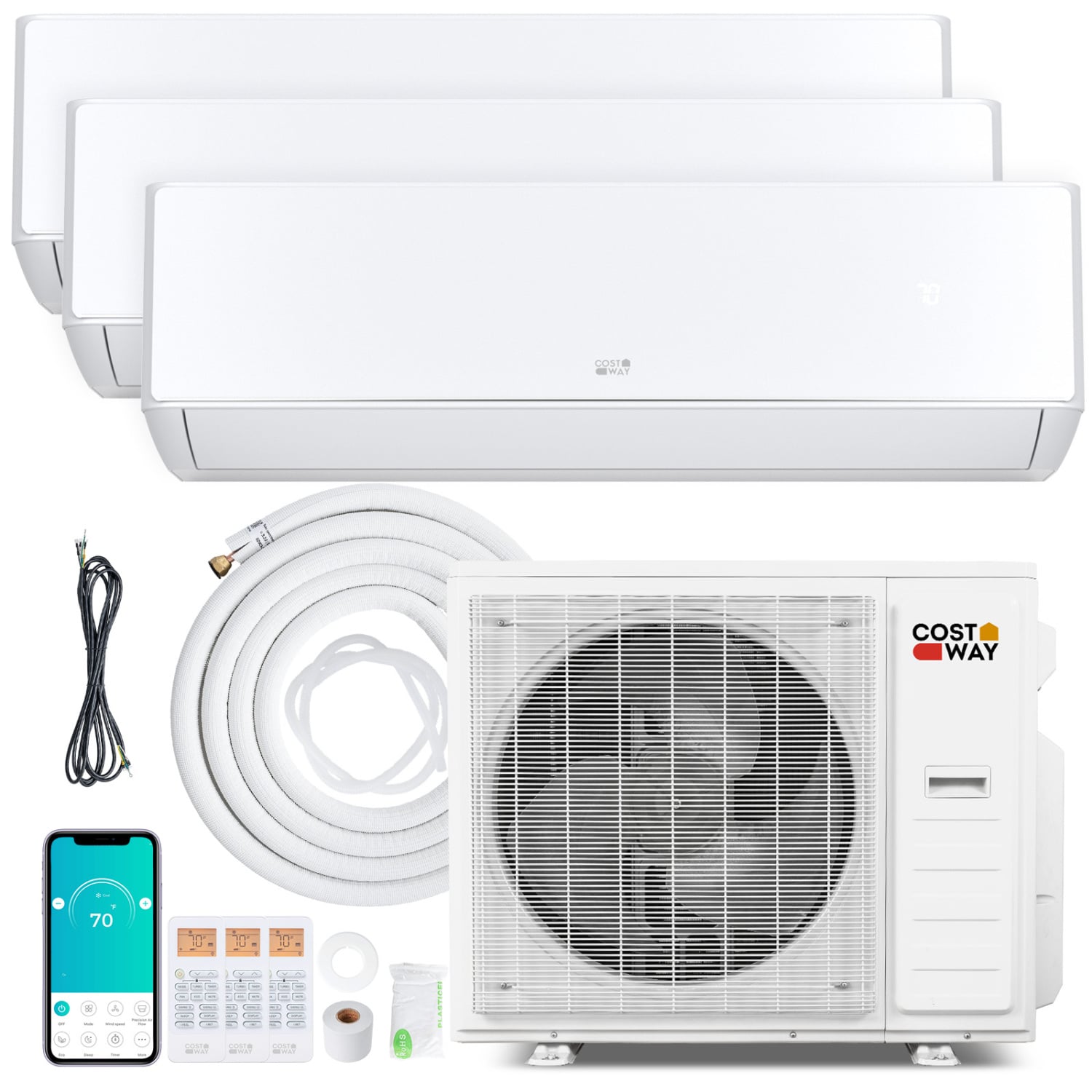

• 1 x Outdoor Unit for exterior installation.
• 3 x Indoor Unit for multi-zone climate control.
• 3 x Copper Connection Pipe - Gas Pipe for refrigerant flow.
• 3 x Copper Connection Pipe - Liquid Pipe for refrigerant flow.
• 3 x Communication Wire for connectivity between units.
• 3 x Drain Hose for moisture removal.
• 3 x Remote Control & Holder for convenient adjustments.
• 3 x Wall Sleeve for secure mounting.
• 6 x Wall Cap for finishing installation.
• 6 x Tape for sealing connections.
• 6 x Putty for sealing gaps.
• 3 x Screw Kit for assembly.
• 4 x Mounting Foot Pad for stable outdoor unit placement.
• 7 x User Guide for setup and operation instructions.
