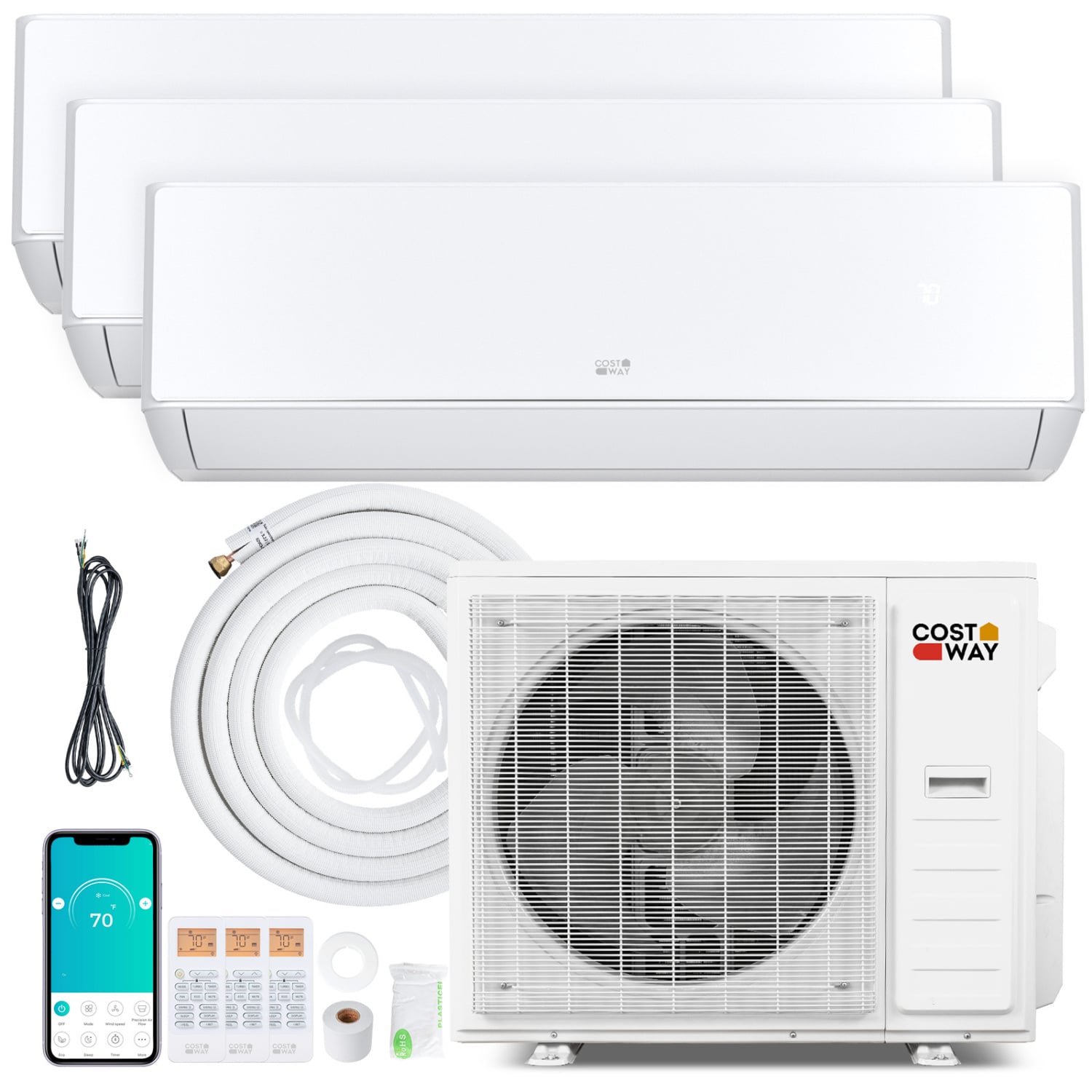

Mini Split AC, 35000 BTU, 3 Zone, 22.5 SEER2, Heat Pump, 9K + 12K + 12K, White

Overview:

• Provides fast cooling and heating for three independent zones, ideal for room-by-room comfort in larger spaces.
• Offers versatile operation with 7 modes and 8 fan speeds to suit various comfort needs and preferences.

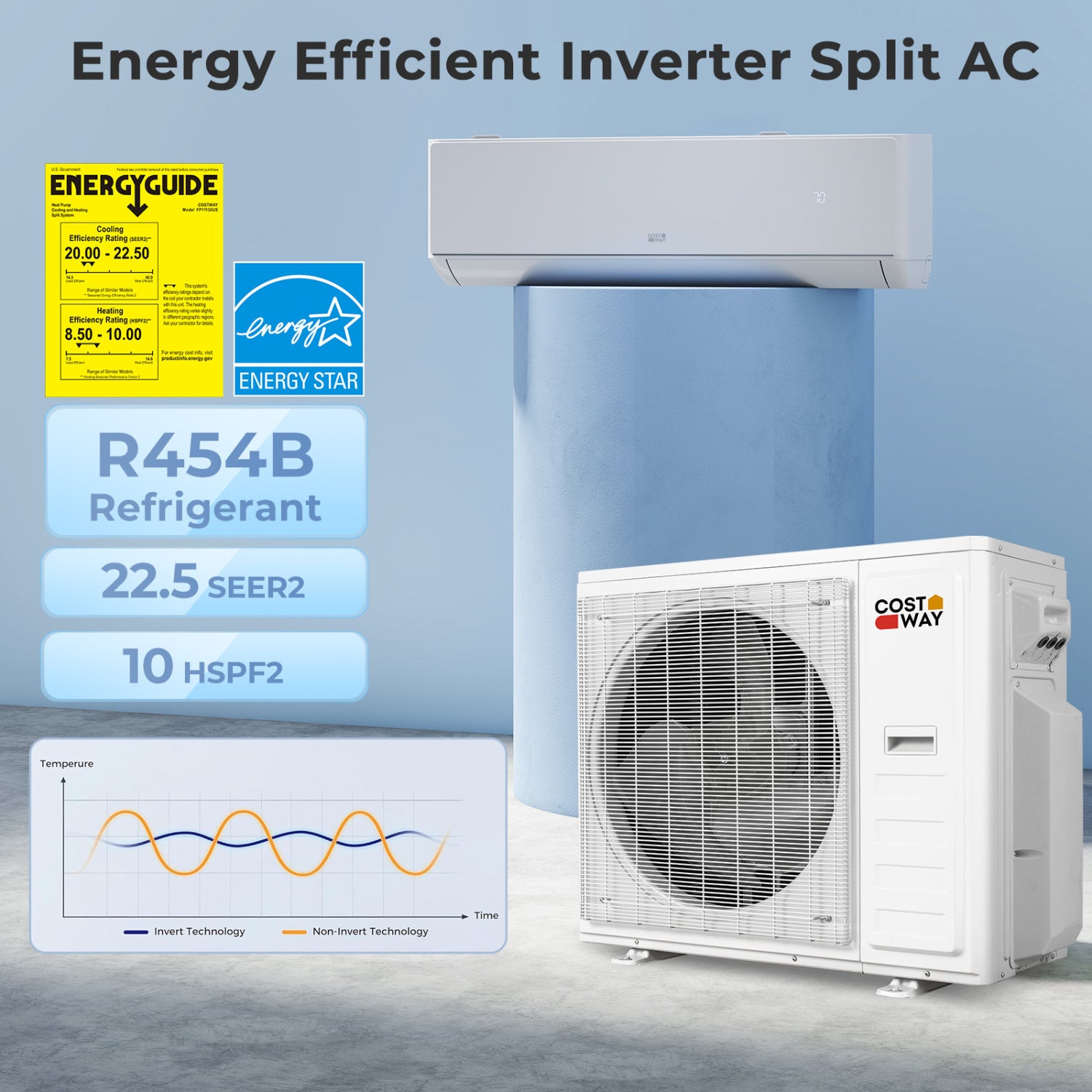

• Ensures energy-efficient performance with advanced inverter technology and R454B refrigerant, certified by Energy Star.
• Features smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant compatibility.
• Designed for quiet operation as low as 30 dB, with a sleep mode and screen-off function for peaceful environments.
• Includes maintenance-friendly features like a removable, washable filter and a self-clean function for fresher airflow.

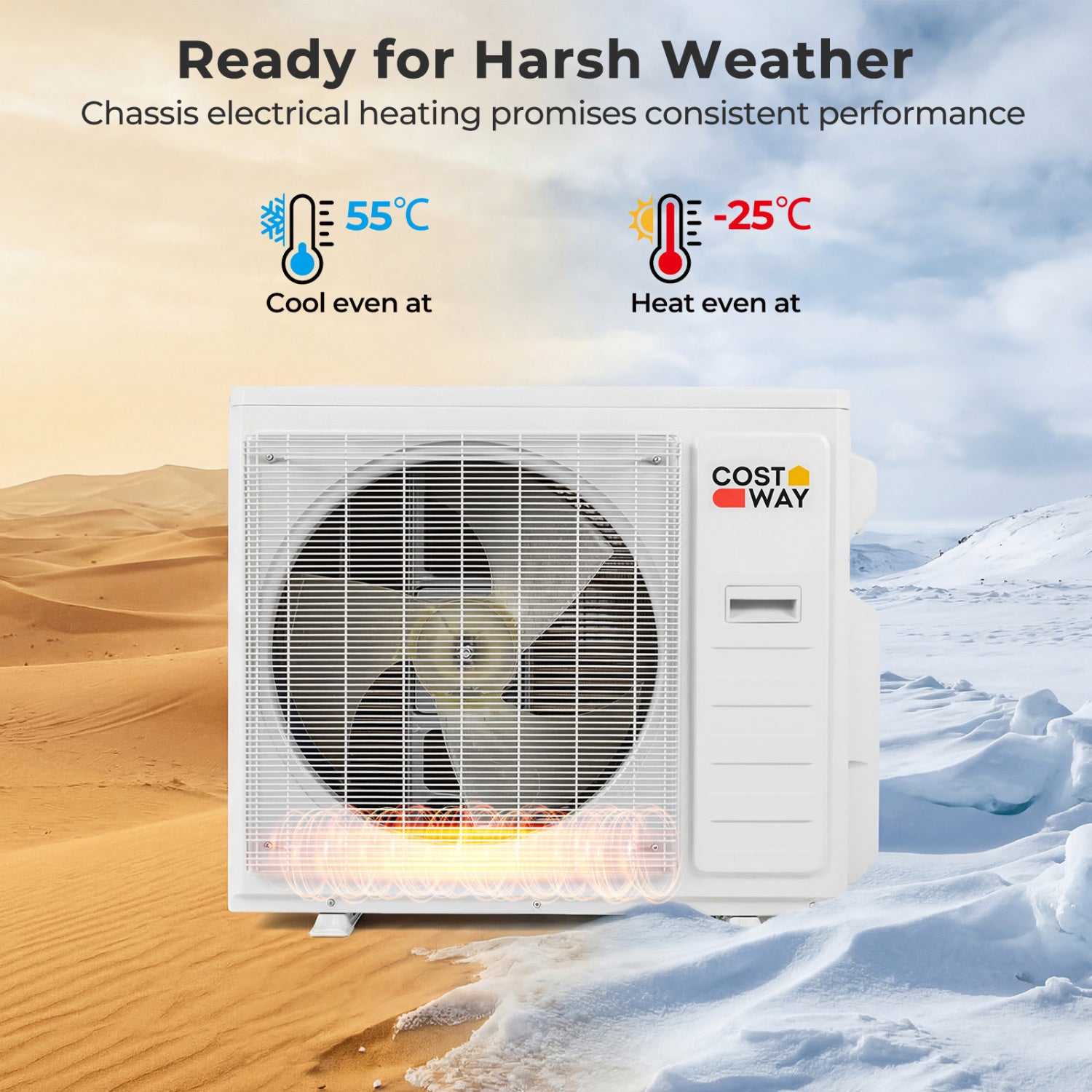

• Equipped with a chassis electrical heating system for reliable performance in harsh weather, cooling up to 55°C and heating down to -25°C.
• Note: Professional installation by a qualified technician is recommended for optimal safety and performance.

Highlights:

• Multi-zone climate control for three independent areas with 4D auto swing for even air distribution.
• High energy efficiency with up to 22.5 SEER2 rating and inverter technology to minimize energy waste.
• Smart and flexible control options including WiFi, voice commands, remote, and a 24-hour timer for scheduling.
• Quiet operation with low sound levels, perfect for bedrooms, offices, or any space requiring minimal noise.
• Easy maintenance with self-clean function and washable filter to ensure cleaner air and reduce upkeep.
• Child lock feature to prevent accidental changes to settings, enhancing safety and convenience.
• Reliable performance in extreme temperatures, ensuring comfort in both hot summers and cold winters.
• Certified by Energy Star, promoting energy savings and environmental responsibility.

Features:

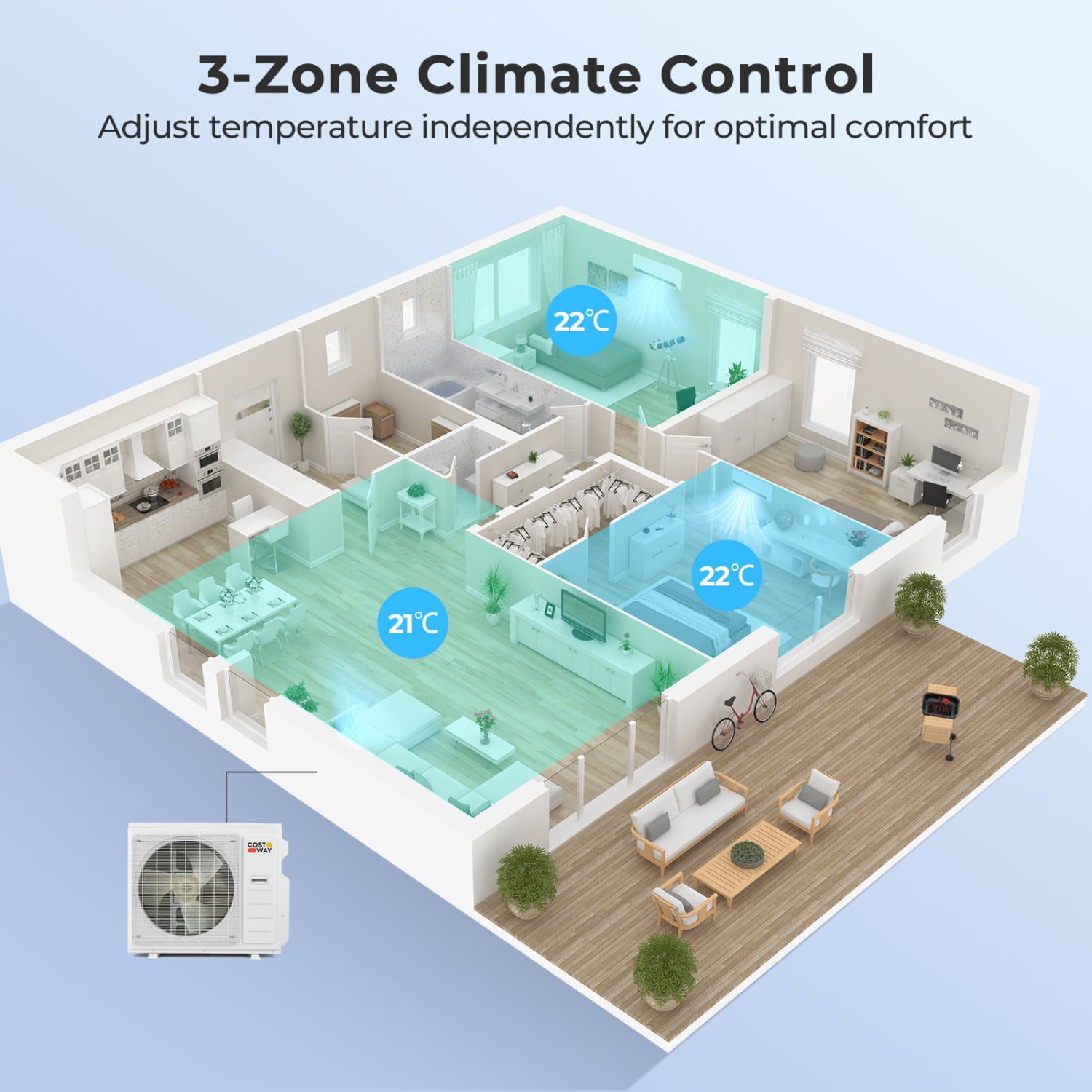

• 3-zone climate control for independent temperature adjustment in each area.
• 35000 BTU capacity for effective cooling and heating in larger homes.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Inverter technology for energy-efficient performance and steady temperature maintenance.
• R454B refrigerant with lower global warming potential.
• Chassis electrical heating system for consistent operation in tough weather.
• WiFi-enabled for smart control via smartphone app.
• Compatible with Alexa and Google Assistant for voice command operation.
• Includes a remote control for convenient adjustments.
• 4D auto swing function for even air distribution throughout the room.
• Sleep mode for quiet, comfortable nights.
• Screen-off function to reduce light disturbance.
• 24-hour timer for easy scheduling and energy savings.
• Child lock to prevent accidental setting changes.
• Self-clean function to maintain fresher airflow over time.
• Removable and washable filter for easy cleaning and maintenance.
• Quiet operation with indoor unit noise levels as low as 30 dB.
• Note: Professional installation by a technician is recommended for safety and optimal performance.

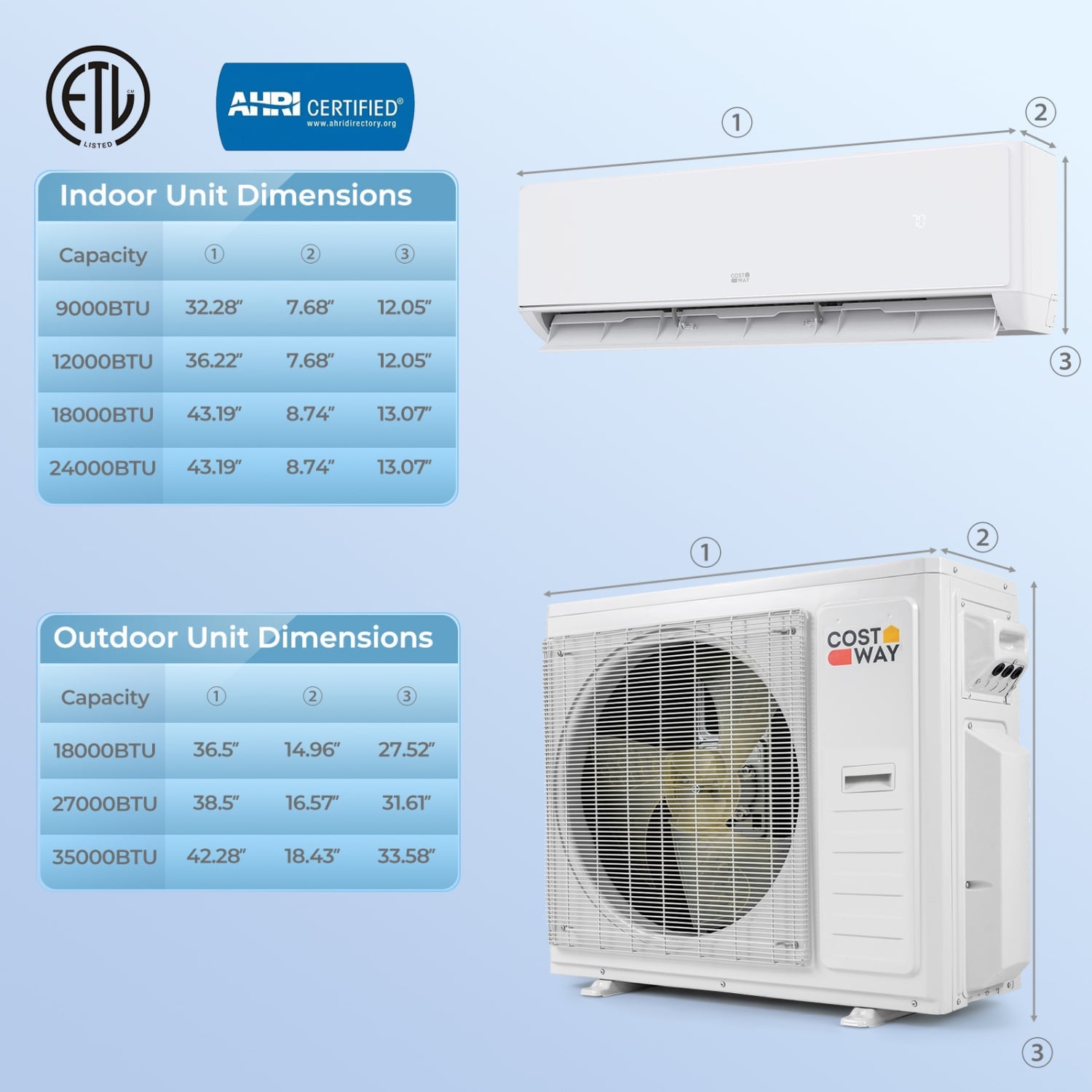

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28 inches long x 7.68 inches wide x 12.05 inches high (82.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22 inches long x 7.68 inches wide x 12.05 inches high (92.0 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19 inches long x 8.74 inches wide x 13.07 inches high (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19 inches long x 8.74 inches wide x 13.07 inches high (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches long x 14.96 inches wide x 27.52 inches high (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches long x 16.57 inches wide x 31.61 inches high (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches long x 18.43 inches wide x 33.58 inches high (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 20.7 pounds (9.4 kg).
• Net Weight of Indoor Unit (12K): 24.3 pounds (11.0 kg).
• Net Weight of Indoor Unit (18K): 30.9 pounds (14.0 kg).
• Net Weight of Indoor Unit (24K): 30.9 pounds (14.0 kg).
• Net Weight of Outdoor Unit (18K): 92.6 pounds (42.0 kg).
• Net Weight of Outdoor Unit (27K): 119 pounds (54.0 kg).
• Net Weight of Outdoor Unit (35K): 145.5 pounds (66.0 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2 inch (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8 inch (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, and aluminum.
• Multi-zone combination: 3 zones.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature setting range: 60°F to 88°F (16°C to 31°C).
• Refrigerant: R454B.
• Indoor unit noise level: 30 dB.
• Maximum remote control distance: 39.5 feet (12.0 meters).
• Coverage area for 9K unit: 450 square feet (41.8 square meters).
• Coverage area for 12K unit: 750 square feet (69.7 square meters).
• Coverage area for 18K unit: 1250 square feet (116.1 square meters).
• Coverage area for 24K unit: 1500 square feet (139.4 square meters).
• Dehumidification capacity for 9K unit: 55.8 pints per day (26.4 liters per day).
• Dehumidification capacity for 12K unit: 81.2 pints per day (38.4 liters per day).
• Dehumidification capacity for 18K unit: 111.6 pints per day (52.8 liters per day).
• Dehumidification capacity for 24K unit: 131.9 pints per day (62.4 liters per day).
• Maximum air flow volume for 9K unit: 326 CFM (554 m³/h).
• Maximum air flow volume for 12K unit: 500 CFM (554 m³/h).
• Maximum air flow volume for 18K unit: 735 CFM (554 m³/h).
• Maximum air flow volume for 24K unit: 735 CFM (554 m³/h).
• SEER2 rating for 18K unit: 24.
• SEER2 rating for 27K unit: 24.
• SEER2 rating for 35K unit: 22.5.
• HSPF2 rating for 18K unit: 10.5.
• HSPF2 rating for 27K unit: 10.5.
• HSPF2 rating for 35K unit: 10.
• Certified by Energy Star for energy efficiency.
• Note: Professional installation is recommended for optimal performance and safety.

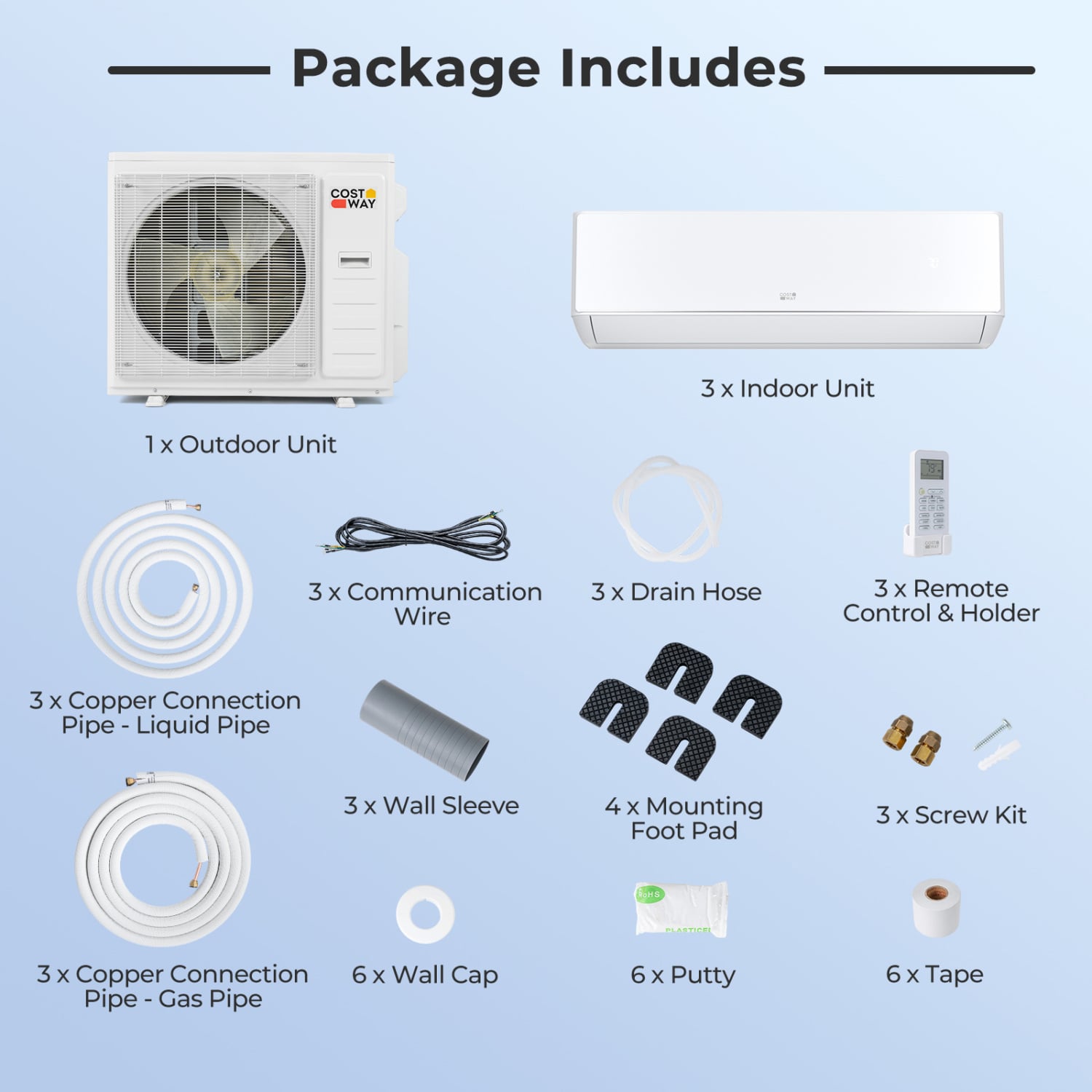

Package Includes:

• 1 x outdoor unit.
• 3 x indoor unit.
• 3 x copper connection pipe for gas.
• 3 x copper connection pipe for liquid.
• 3 x communication wire.
• 3 x drain hose.
• 3 x remote control and holder.
• 3 x wall sleeve.
• 6 x wall cap.
• 6 x tape.
• 6 x putty.
• 3 x screw kit.
• 4 x mounting foot pad.
• 7 x user guide.
