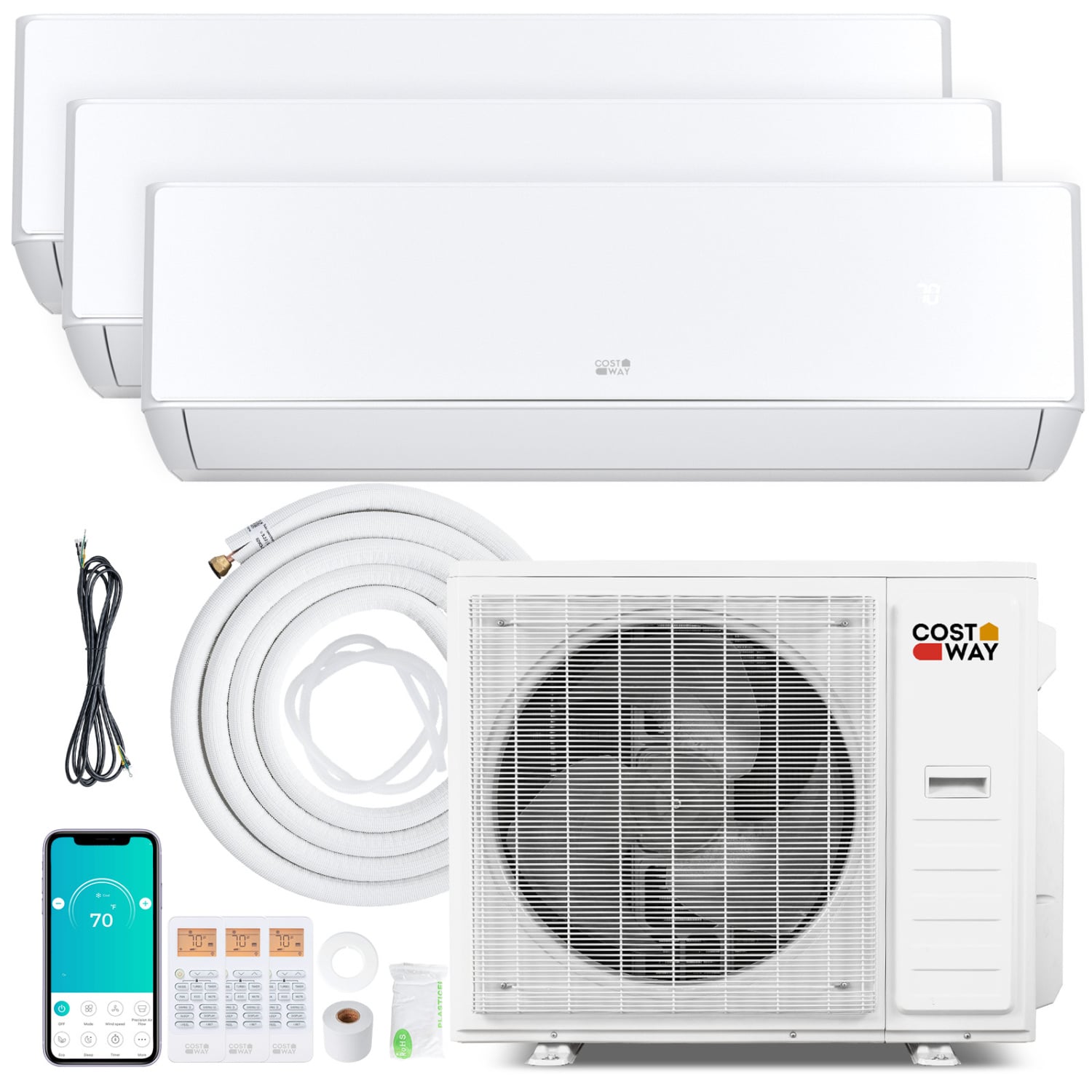

Mini Split AC With Heat Pump, 9K + 9K + 12K, 35000 BTU, 22.5 SEER2, White

Overview:

• Provides fast cooling and heating across 3 independent zones for personalized comfort in larger homes.
• Ideal for homeowners seeking energy-efficient, multi-room climate control with smart technology integration.
• Features advanced inverter technology and R454B refrigerant for high efficiency and lower environmental impact.
• Note: Professional installation by a qualified technician is recommended for optimal performance and safety.

Highlights:

• Fast cooling and heating for 3 independent zones with room-by-room temperature adjustment.
• High energy efficiency with inverter technology, R454B refrigerant, and Energy Star certification.
• Smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant compatibility.
• Quiet operation as low as 30 dB, perfect for peaceful sleep or focused work environments.
• 7 operating modes and 8 fan speeds to suit diverse comfort needs throughout the year.
• 24-hour timer for effortless scheduling and energy savings with child lock for safety.
• 4D swing ensures even air distribution, enhancing overall comfort in any room.
• Self-clean function and removable, washable filter maintain fresher airflow and simplify maintenance.
• Chassis electrical heating ensures consistent performance in harsh weather, cooling up to 55℃ and heating down to -25℃.
• Sleep mode and screen off function promote restful nights without disruptions.

Features:

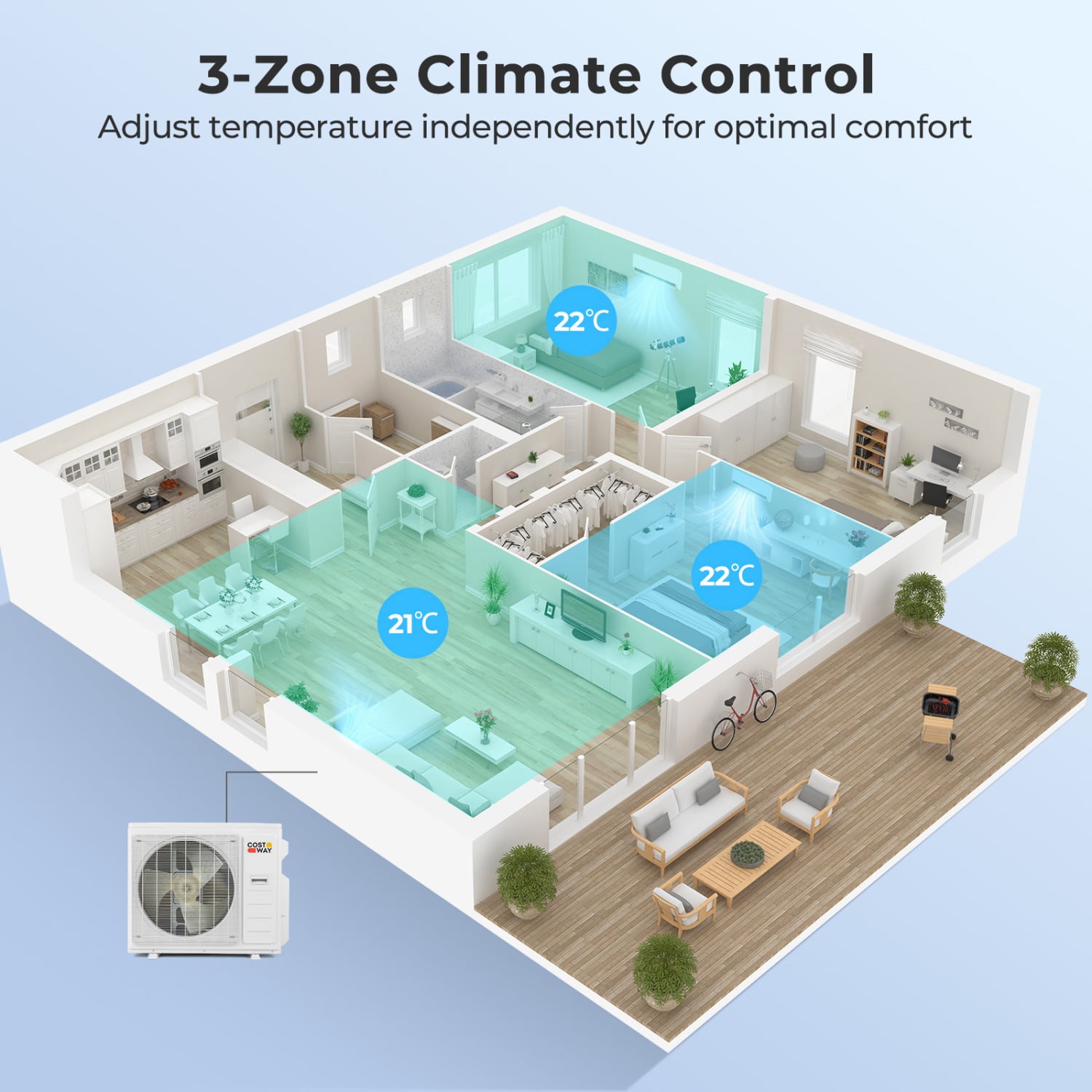

• 3-zone climate control for independent temperature adjustment in multiple rooms.
• 35000 BTU capacity for efficient cooling and heating in larger homes.

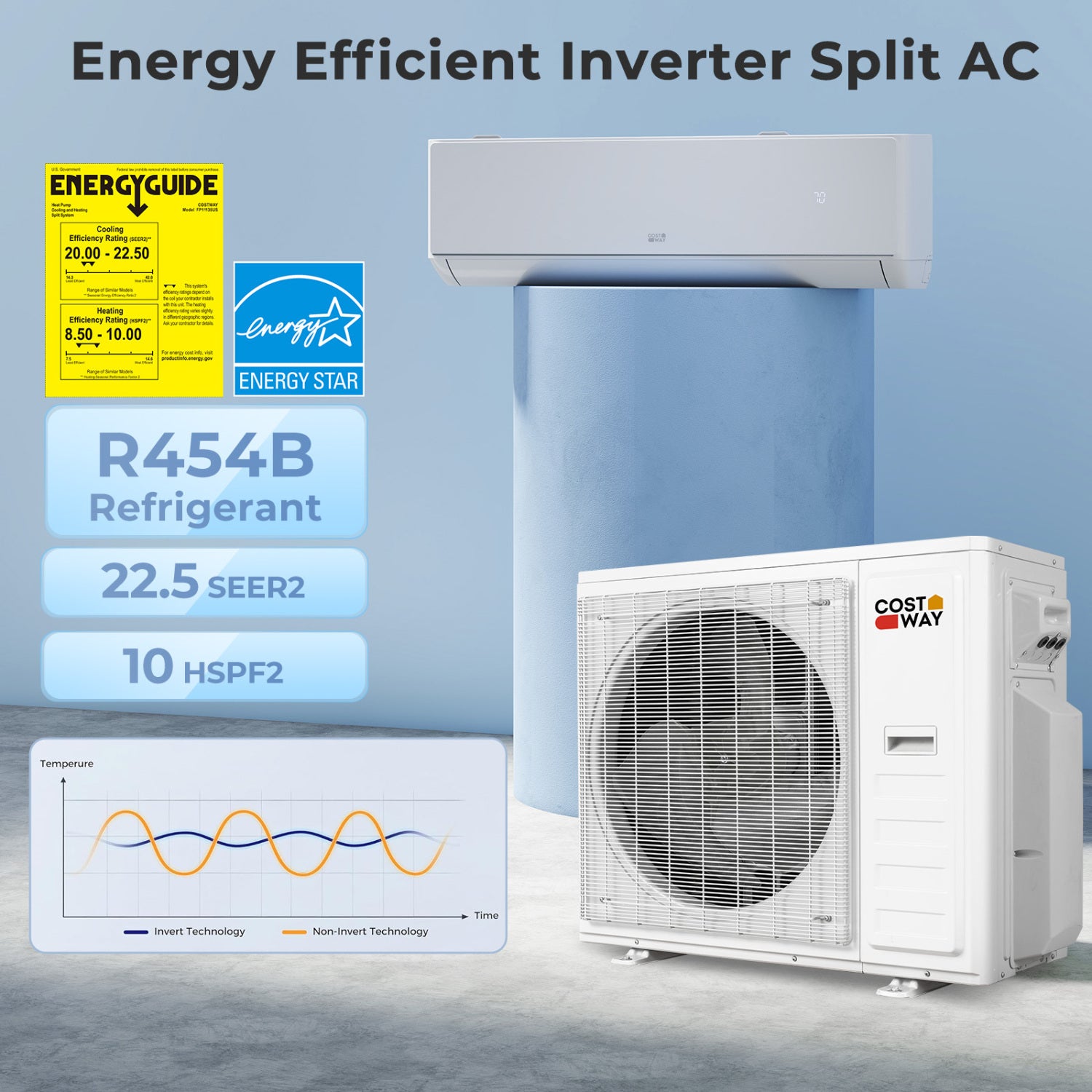

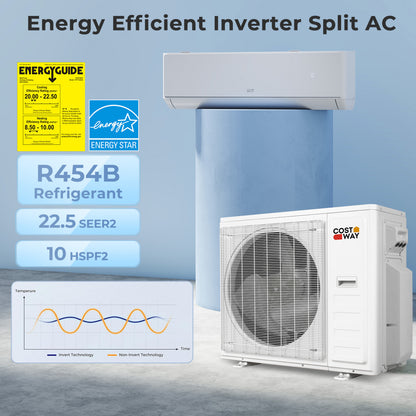

• Energy-efficient performance with up to 22.5 SEER2 rating and Energy Star certification.
• Uses R454B refrigerant for lower global warming potential and efficient operation.
• Advanced inverter technology minimizes energy waste and maintains steady temperatures.
• WiFi-enabled for smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduling and energy savings.
• Child lock prevents accidental changes to settings.
• 4D auto swing distributes airflow evenly for enhanced comfort.
• Quiet operation with indoor unit noise levels as low as 30 dB.
• Self-clean function maintains fresher airflow over time.
• Removable and washable filter for easy cleaning and maintenance.

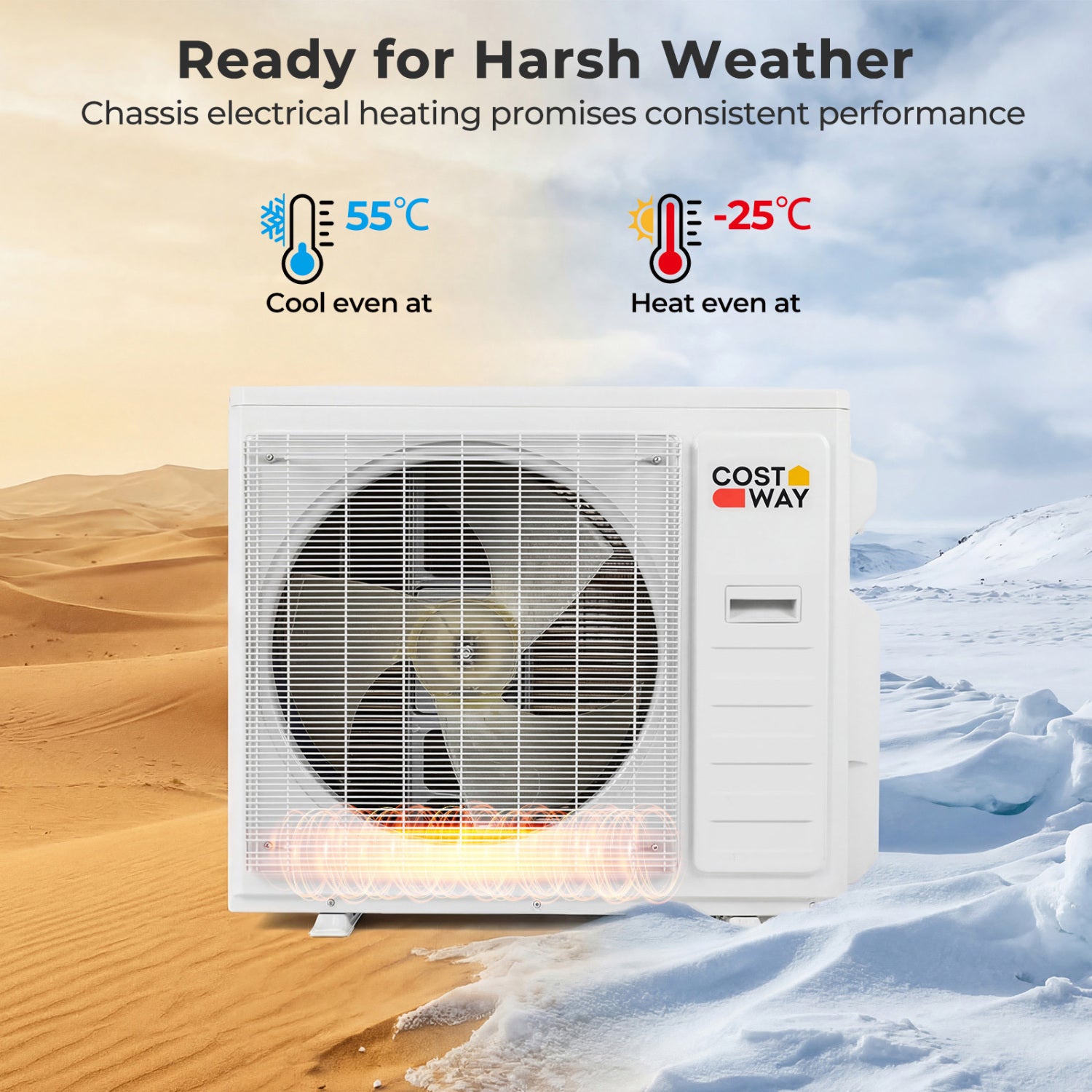

• Chassis electrical heating system ensures dependable performance in tough weather conditions.
• Cooling capability in ambient temperatures up to 55℃ and heating down to -25℃.
• Note: Installation by a professional technician is recommended for safety and optimal function.

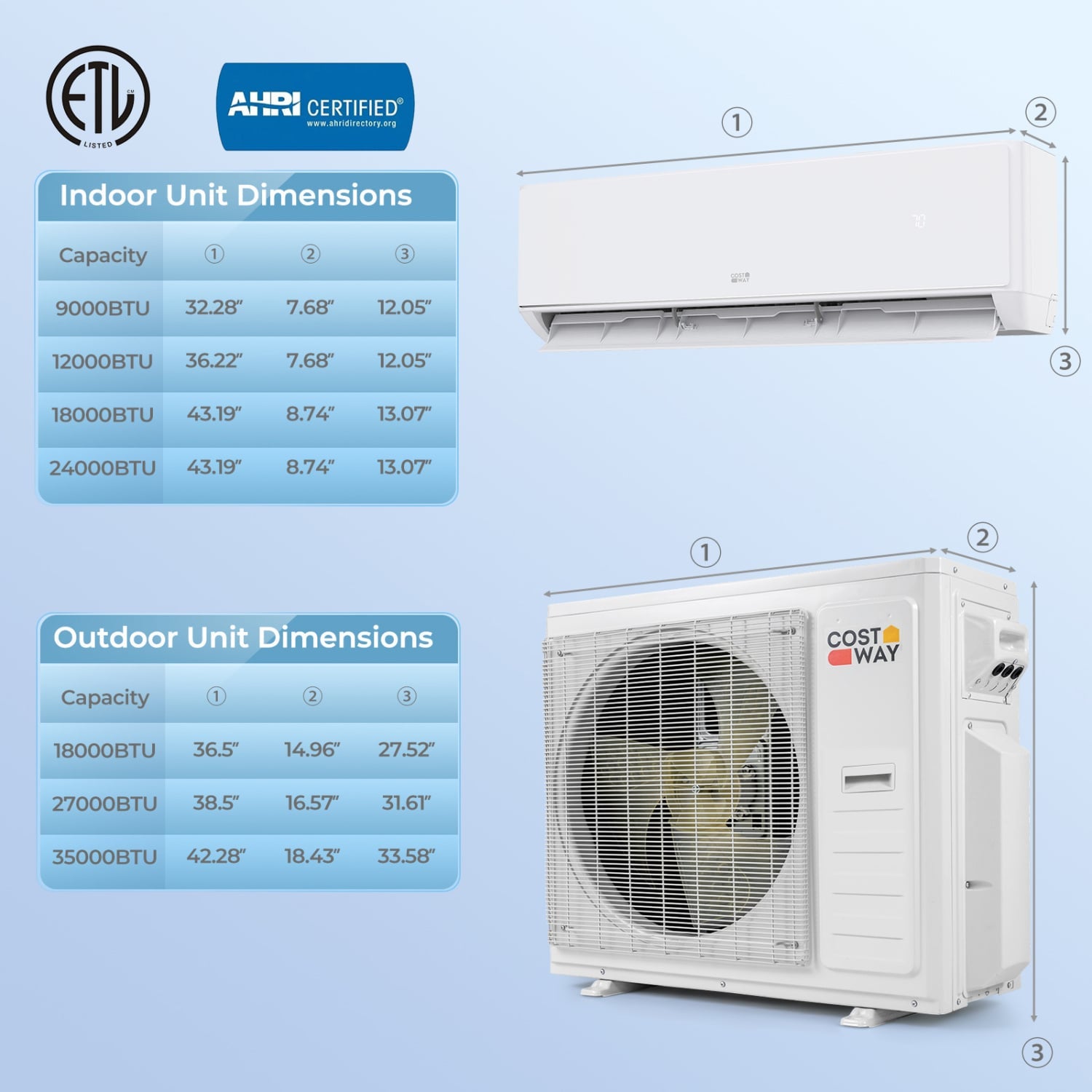

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 20.7 lbs (9.4 kg).
• Net Weight of Indoor Unit (12K): 24.3 lbs (11 kg).
• Net Weight of Indoor Unit (18K): 30.9 lbs (14 kg).
• Net Weight of Indoor Unit (24K): 30.9 lbs (14 kg).
• Net Weight of Outdoor Unit (18K): 92.6 lbs (42 kg).
• Net Weight of Outdoor Unit (27K): 119 lbs (54 kg).
• Net Weight of Outdoor Unit (35K): 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 3.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 60℉~88℉ (16℃~31℃).
• Refrigerant: R454B.
• Indoor Unit Noise Level: 30 dB.
• Max Remote Control Distance: 39.5 ft (12 m).
• Coverage Area (9K): 450 Sq.Ft (41.8 m²).
• Coverage Area (12K): 750 Sq.Ft (69.7 m²).
• Coverage Area (18K): 1250 Sq.Ft (116.1 m²).
• Coverage Area (24K): 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity (9K): 55.8 Pints/Day (26.4 L/Day).
• Dehumidification Capacity (12K): 81.2 Pints/Day (38.4 L/Day).
• Dehumidification Capacity (18K): 111.6 Pints/Day (52.8 L/Day).
• Dehumidification Capacity (24K): 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume (9K): 326 CFM/554 m³/h.
• Maximum Air Flow Volume (12K): 500 CFM/554 m³/h.
• Maximum Air Flow Volume (18K): 735 CFM/554 m³/h.
• Maximum Air Flow Volume (24K): 735 CFM/554 m³/h.
• SEER2 Rating (18K): 24.
• SEER2 Rating (27K): 24.
• SEER2 Rating (35K): 22.5.
• HSPF2 Rating (18K): 10.5.
• HSPF2 Rating (27K): 10.5.
• HSPF2 Rating (35K): 10.

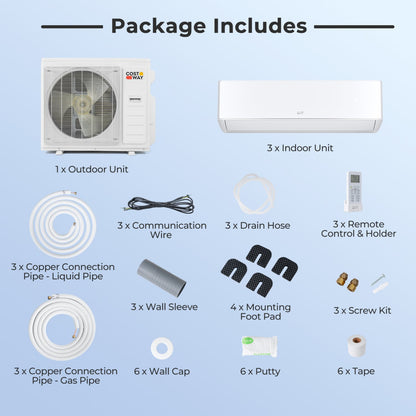

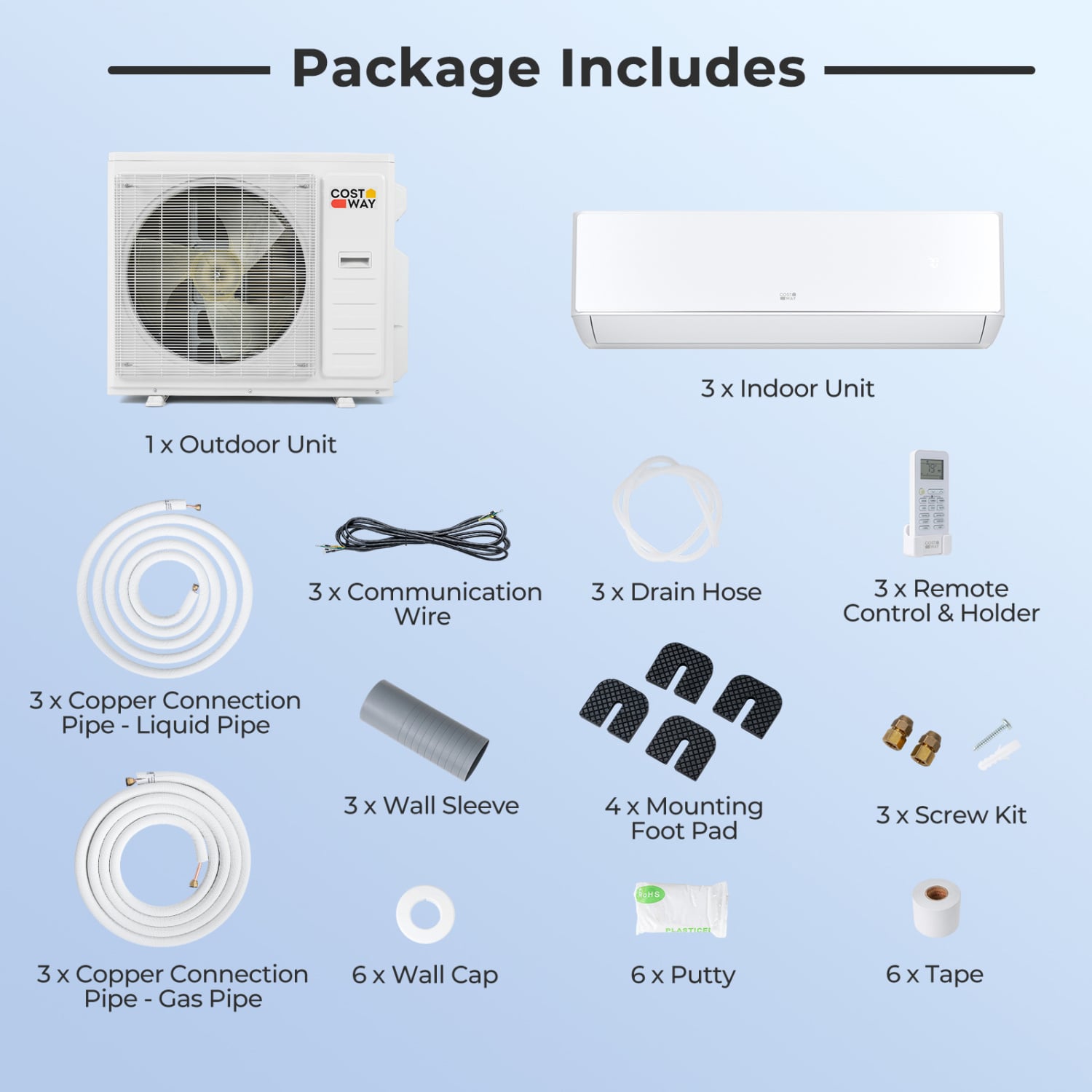

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control & Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 7 x User Guide.
