Mini Split AC Heat Pump, 35000 BTU, 3 Zone, 22.5 SEER2, 12K + 18K + 18K, White

Experience year-round comfort with this 35000 BTU 3-zone mini split air conditioner and heater, featuring WiFi smart control, Energy Star certification, and inverter technology for efficient, quiet operation in homes up to 1500 sq ft.

Overview:

• Provides fast cooling and heating for three independent zones with room-by-room temperature control.
• Ideal for larger homes, offering efficient performance with advanced features like self-cleaning and washable filters.
• Unique aspects include compatibility with Alexa and Google Assistant, 4D swing for even air distribution, and chassis electrical heating for harsh weather.
• Special note: Professional installation is recommended for optimal performance and safety.

Highlights:

• Fast cooling and heating for three independent zones.
• Seven operating modes and eight fan speeds to suit comfort needs.
• High energy efficiency with inverter technology and R454B refrigerant.
• Chassis electrical heating ensures consistent performance in tough conditions.
• Convenient control via smartphone app, remote, or voice commands.
• Sleep mode for peaceful nights with a screen off function.
• 24-hour timer for effortless scheduling and energy savings.
• 4D swing ensures even air distribution for added comfort.
• Removable and washable filter for easy cleaning.
• Self-clean function maintains fresher airflow over time.
• Child lock prevents accidental changes to settings.
• Certified by Energy Star for efficiency.

Features:

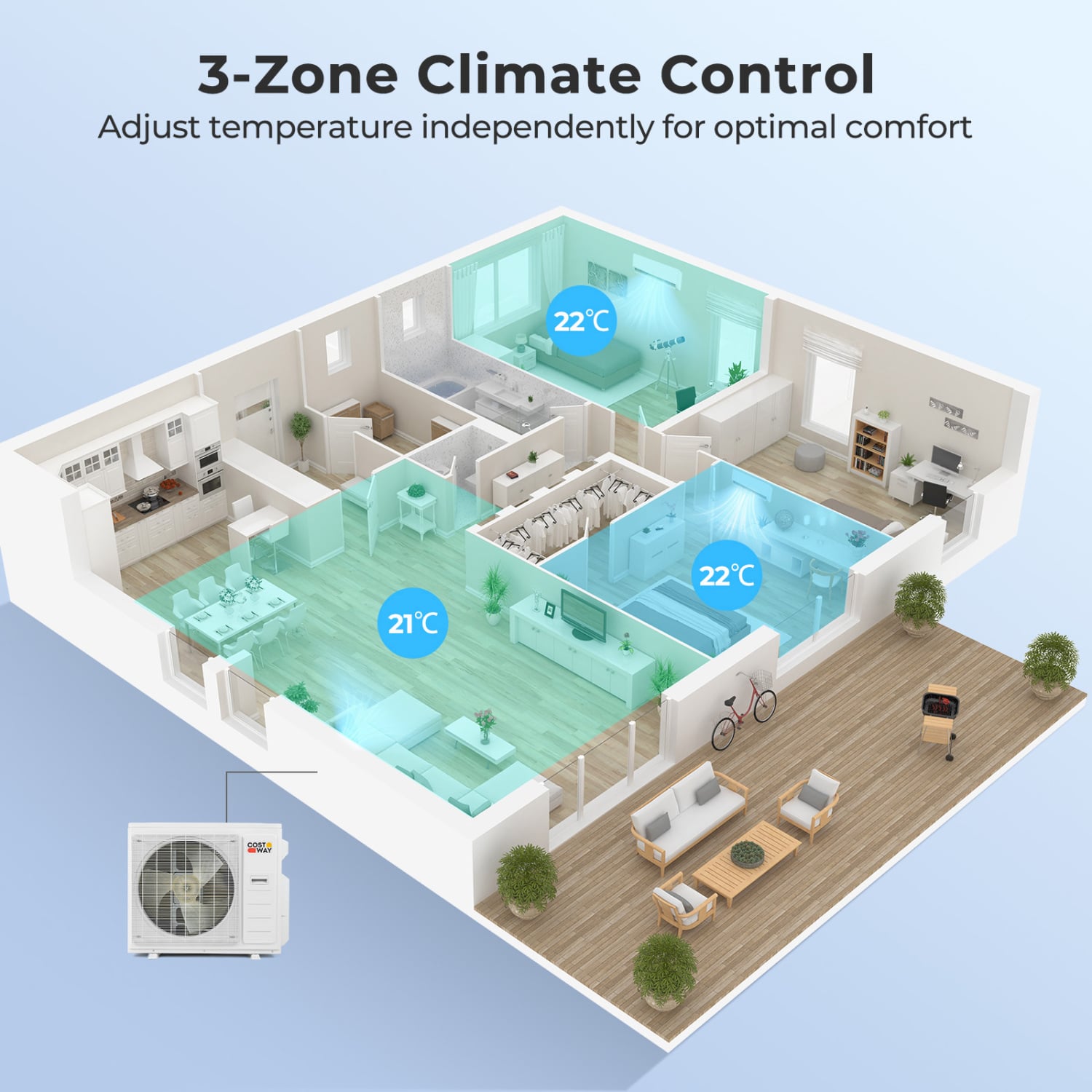

• 3-zone climate control for room-by-room comfort in larger homes.
• Multi-zone design allows independent temperature adjustment.
• 4D auto swing helps distribute airflow more evenly.

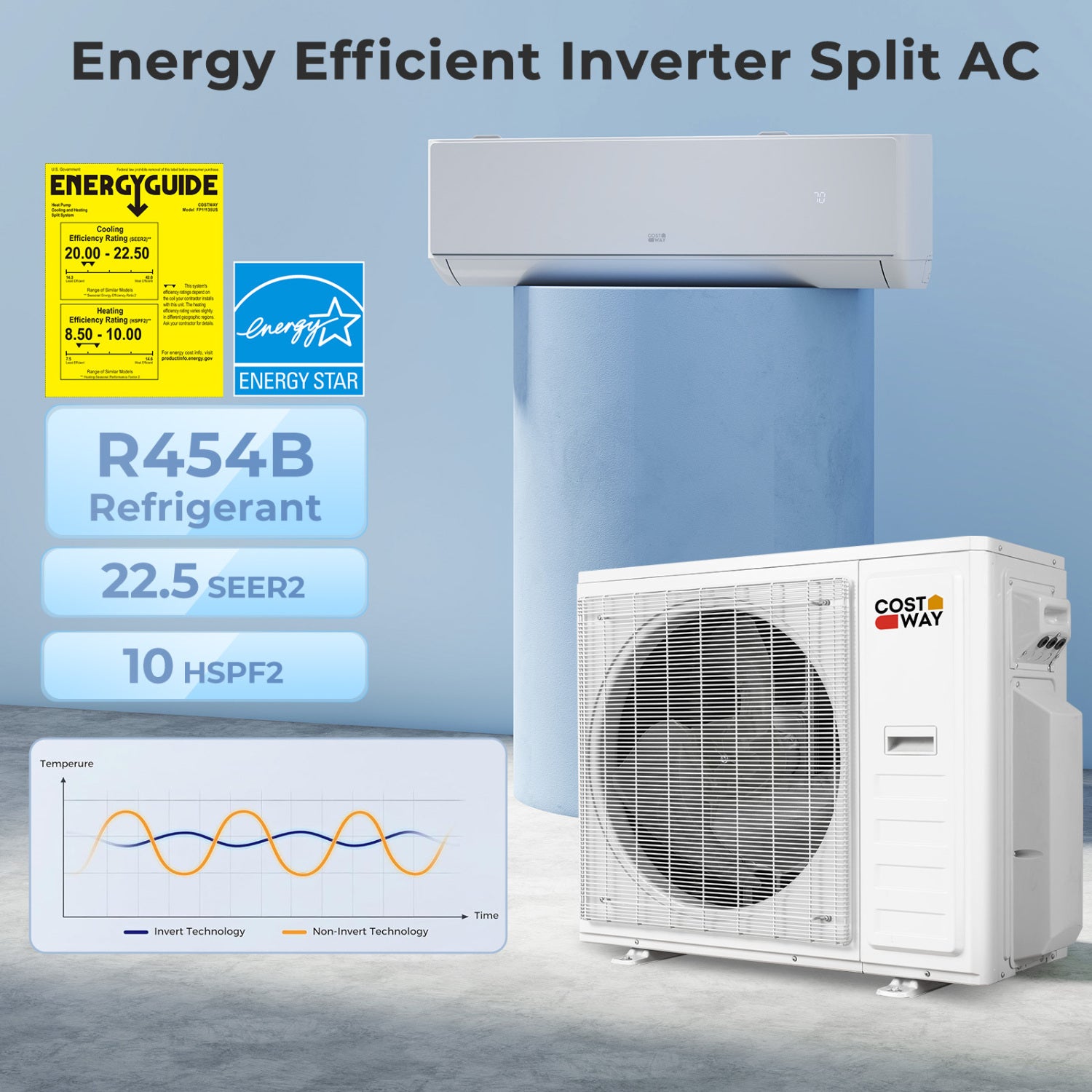

• Energy-efficient performance rated up to 22.5 SEER2.
• Uses R454B refrigerant for efficient heating and cooling with lower global warming potential.
• Advanced inverter technology minimizes energy waste and maintains steady temperatures.

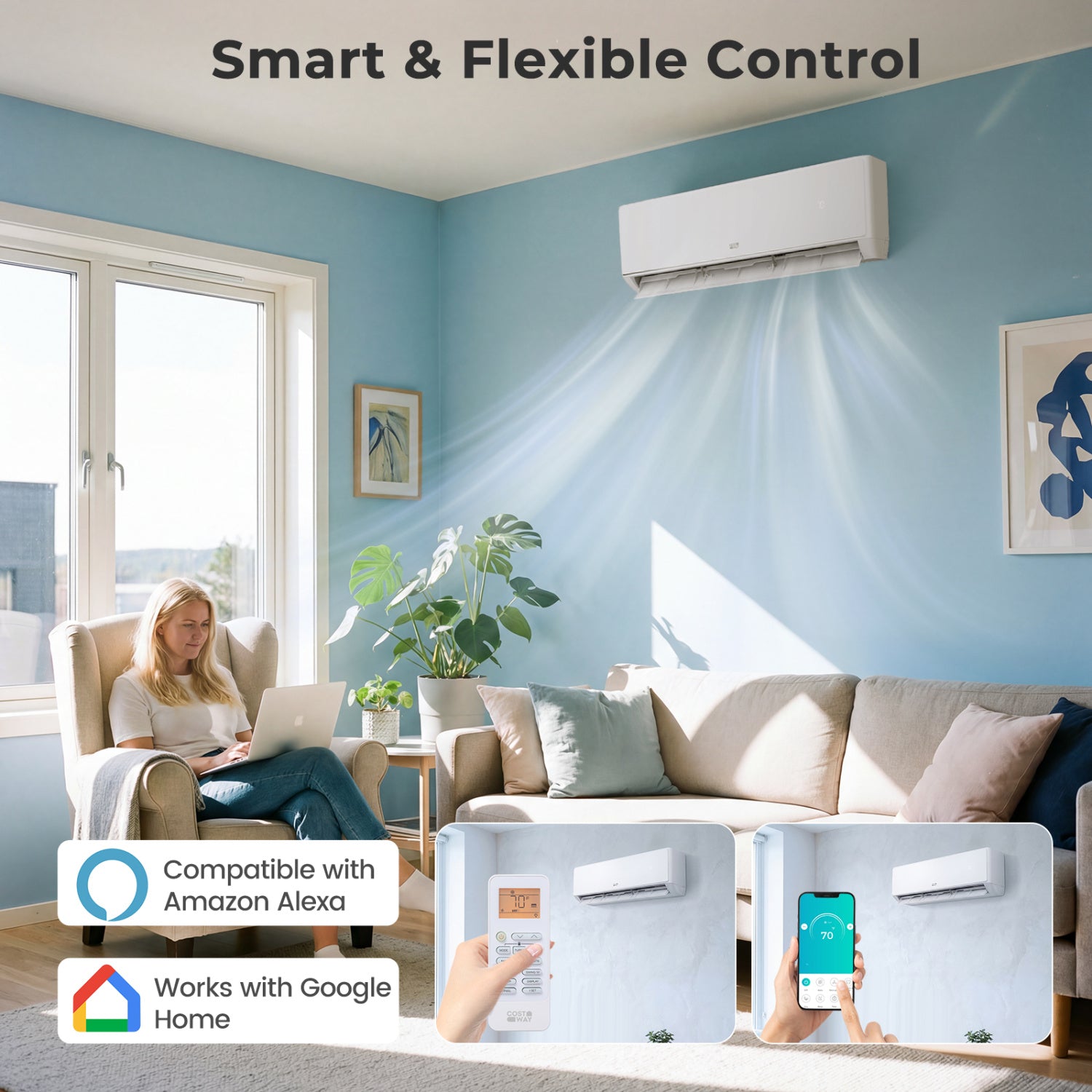

• WiFi-enabled for smart control compatibility with Alexa and Google Assistant.
• Includes a remote control for fast adjustments.

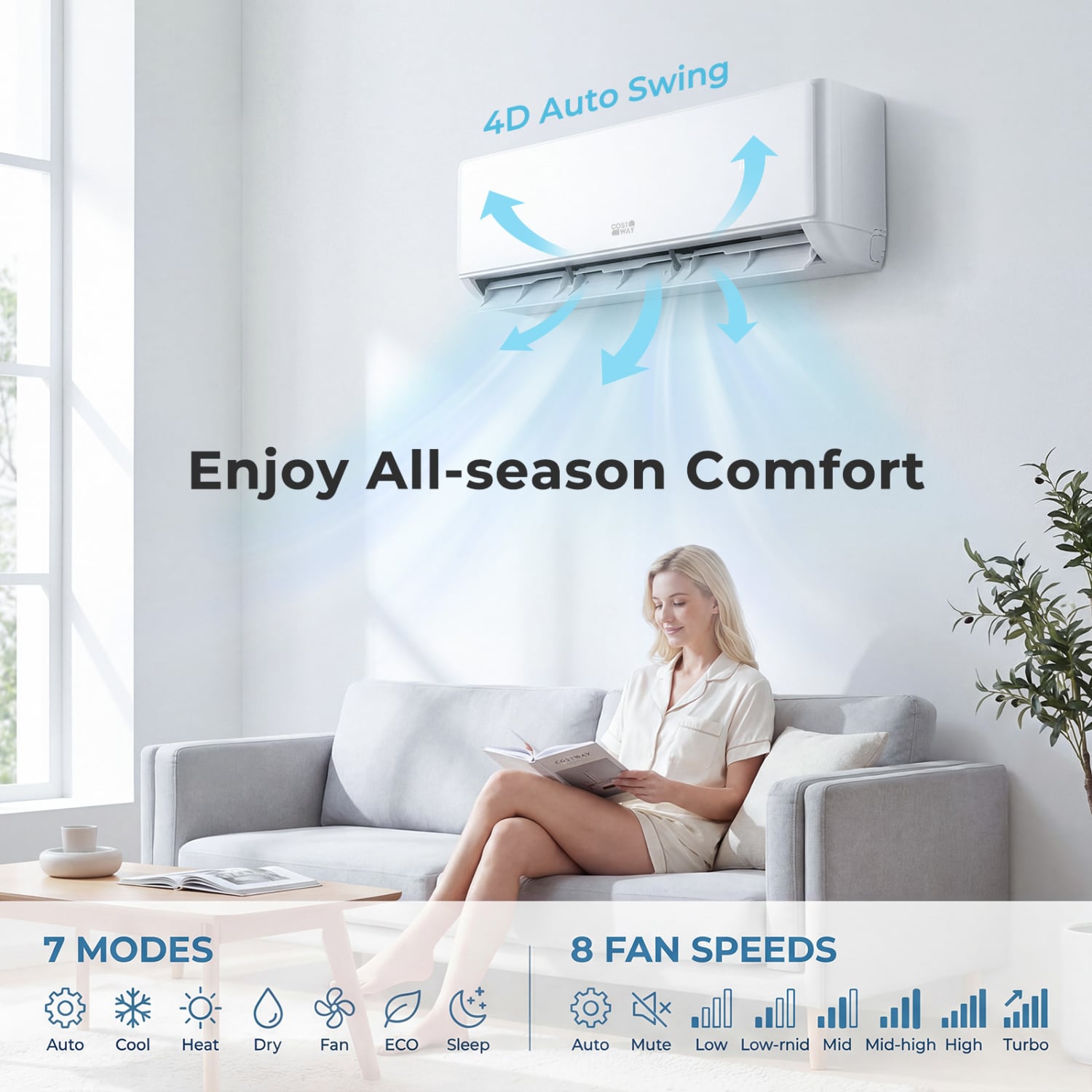

• Seven operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• Eight fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduling.
• Child lock for everyday convenience.

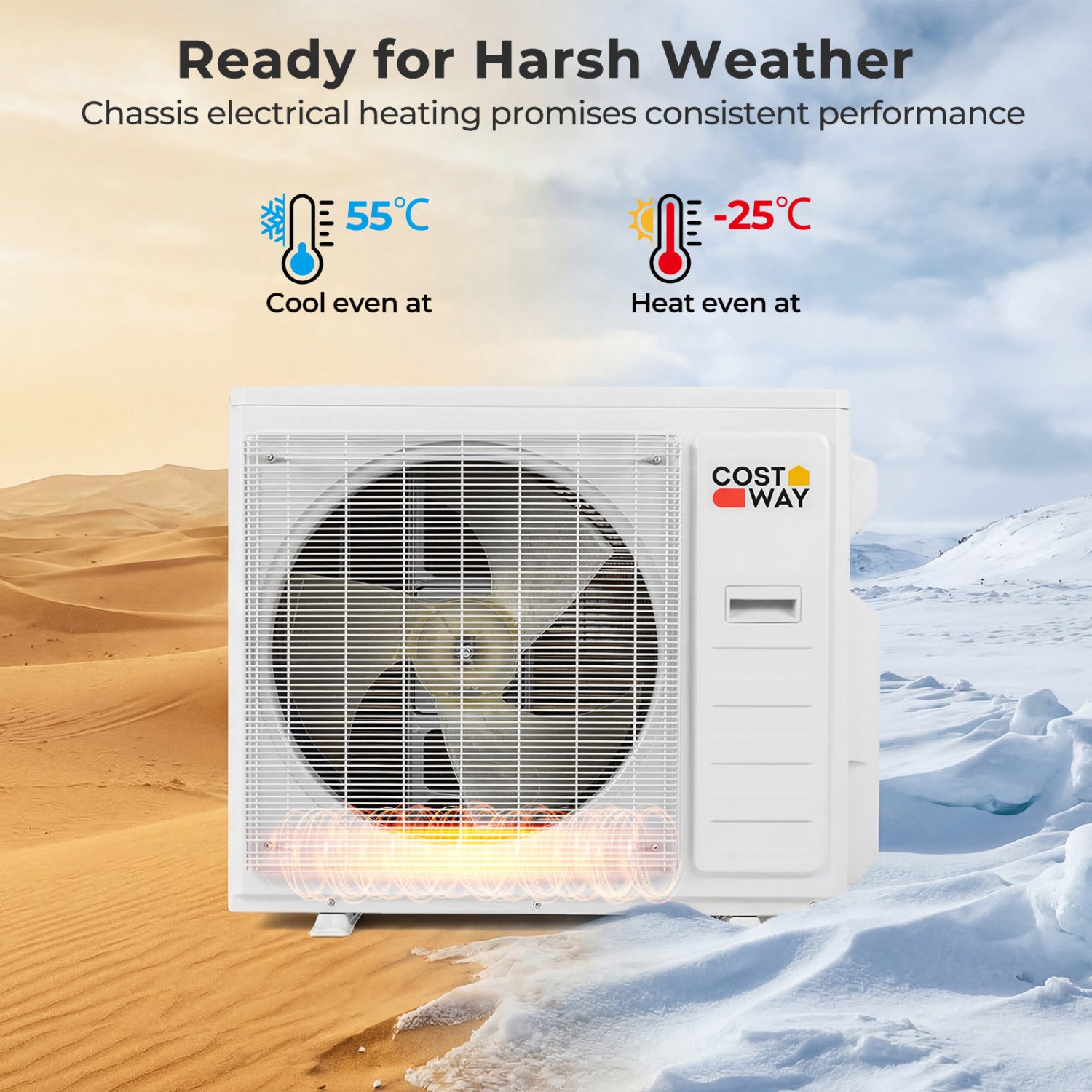

• Chassis electrical heating system ensures dependable performance in harsh weather.
• Cools in ambient temperatures up to 55°C and heats down to -25°C.

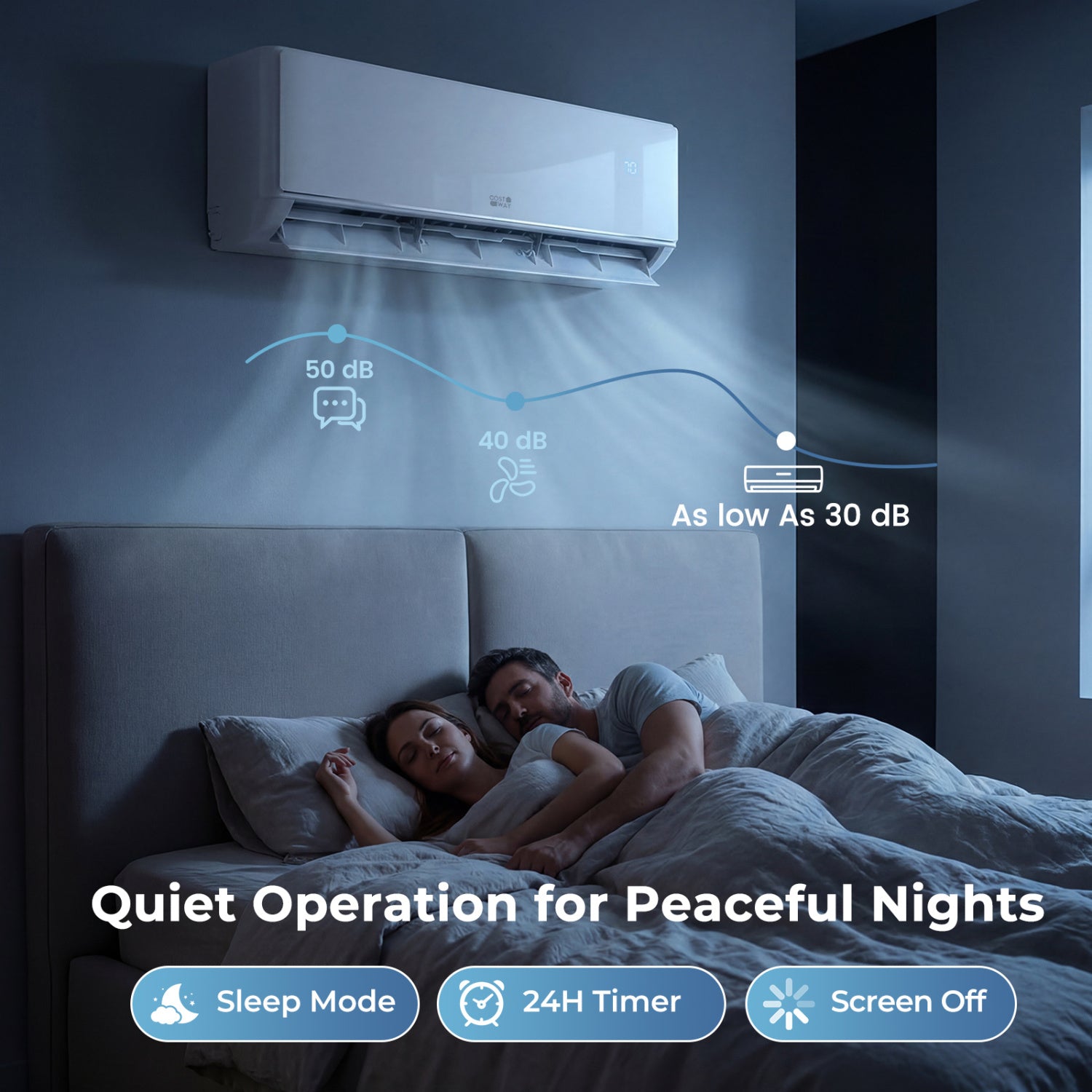

• Quiet operation with sound levels as low as 30 dB.
• Self-clean function and washable filter allow for cleaner air and easier maintenance.
• Special note: Installation by a professional technician is recommended.

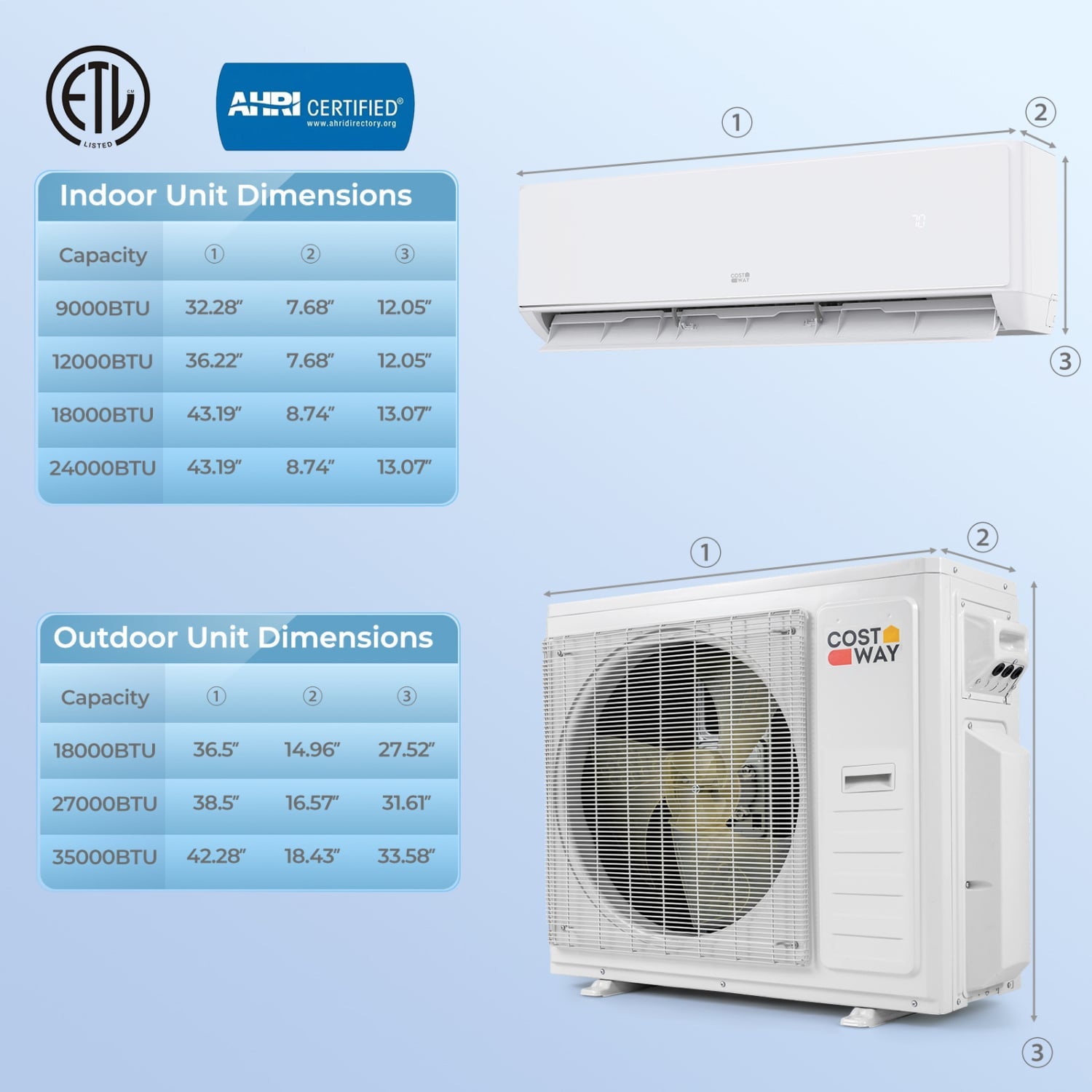

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).
• Net Weight of 9K Indoor Unit: 20.7 lbs (9.4 kg).
• Net Weight of 12K Indoor Unit: 24.3 lbs (11 kg).
• Net Weight of 18K Indoor Unit: 30.9 lbs (14 kg).
• Net Weight of 24K Indoor Unit: 30.9 lbs (14 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66 kg).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Multi-zone combination: 3 zones.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature setting range: 60°F to 88°F (16°C to 31°C).
• Refrigerant: R454B.
• Indoor unit noise level: 30 dB.
• Maximum remote control distance: 39.5 ft (12 m).
• Coverage area for 9K: 450 sq ft (41.8 sq m).
• Coverage area for 12K: 750 sq ft (69.7 sq m).
• Coverage area for 18K: 1250 sq ft (116.1 sq m).
• Coverage area for 24K: 1500 sq ft (139.4 sq m).
• Dehumidification capacity for 9K: 55.8 pints per day (26.5 liters per day).
• Dehumidification capacity for 12K: 81.2 pints per day (38.6 liters per day).
• Dehumidification capacity for 18K: 111.6 pints per day (53 liters per day).
• Dehumidification capacity for 24K: 131.9 pints per day (62.6 liters per day).
• Maximum air flow volume for 9K: 326 CFM (554 m³/h).
• Maximum air flow volume for 12K: 500 CFM (554 m³/h).
• Maximum air flow volume for 18K: 735 CFM (554 m³/h).
• Maximum air flow volume for 24K: 735 CFM (554 m³/h).
• SEER2 rating for 18K: 24.
• SEER2 rating for 27K: 24.
• SEER2 rating for 35K: 22.5.
• HSPF2 rating for 18K: 10.5.
• HSPF2 rating for 27K: 10.5.
• HSPF2 rating for 35K: 10.
• Energy Star certified for efficiency.

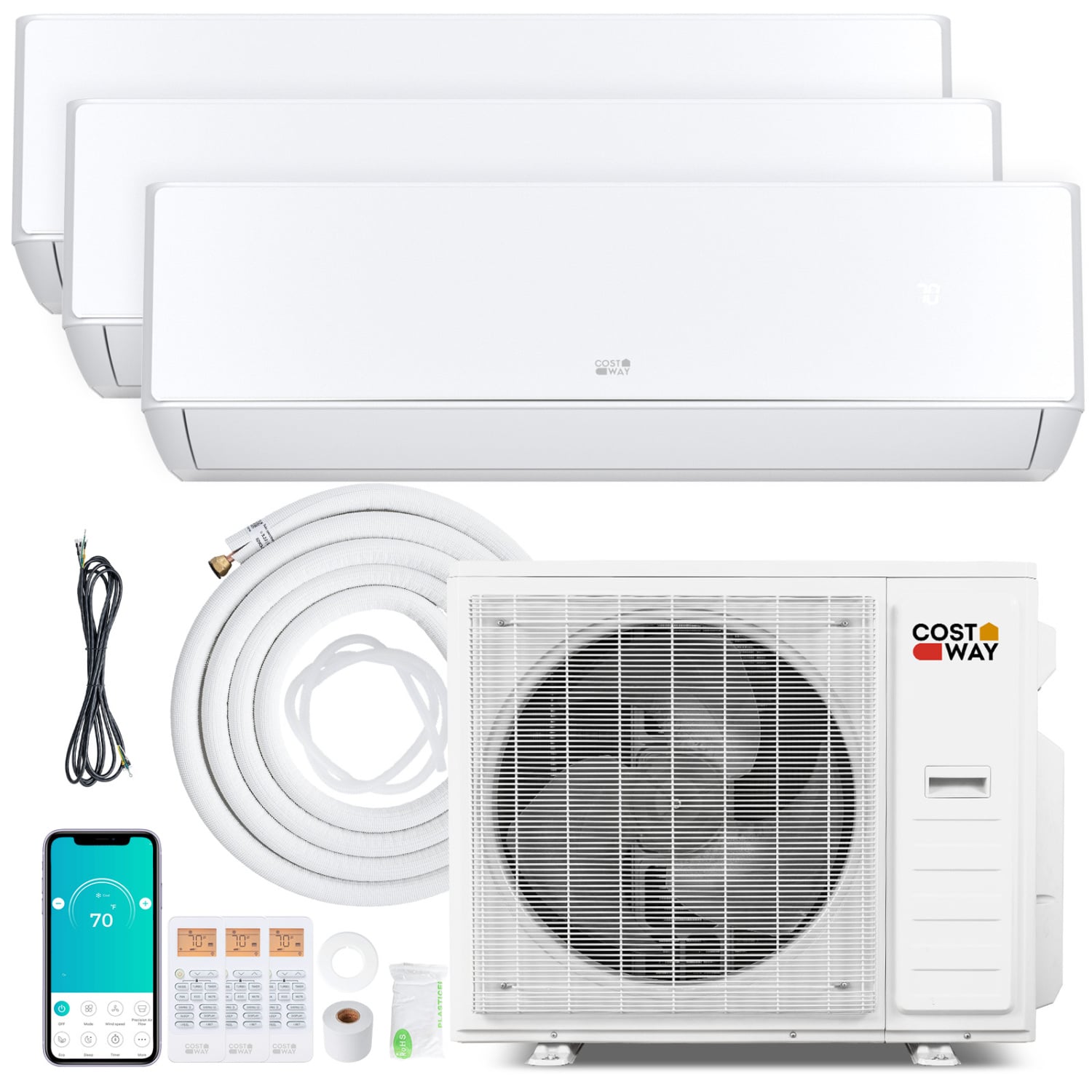

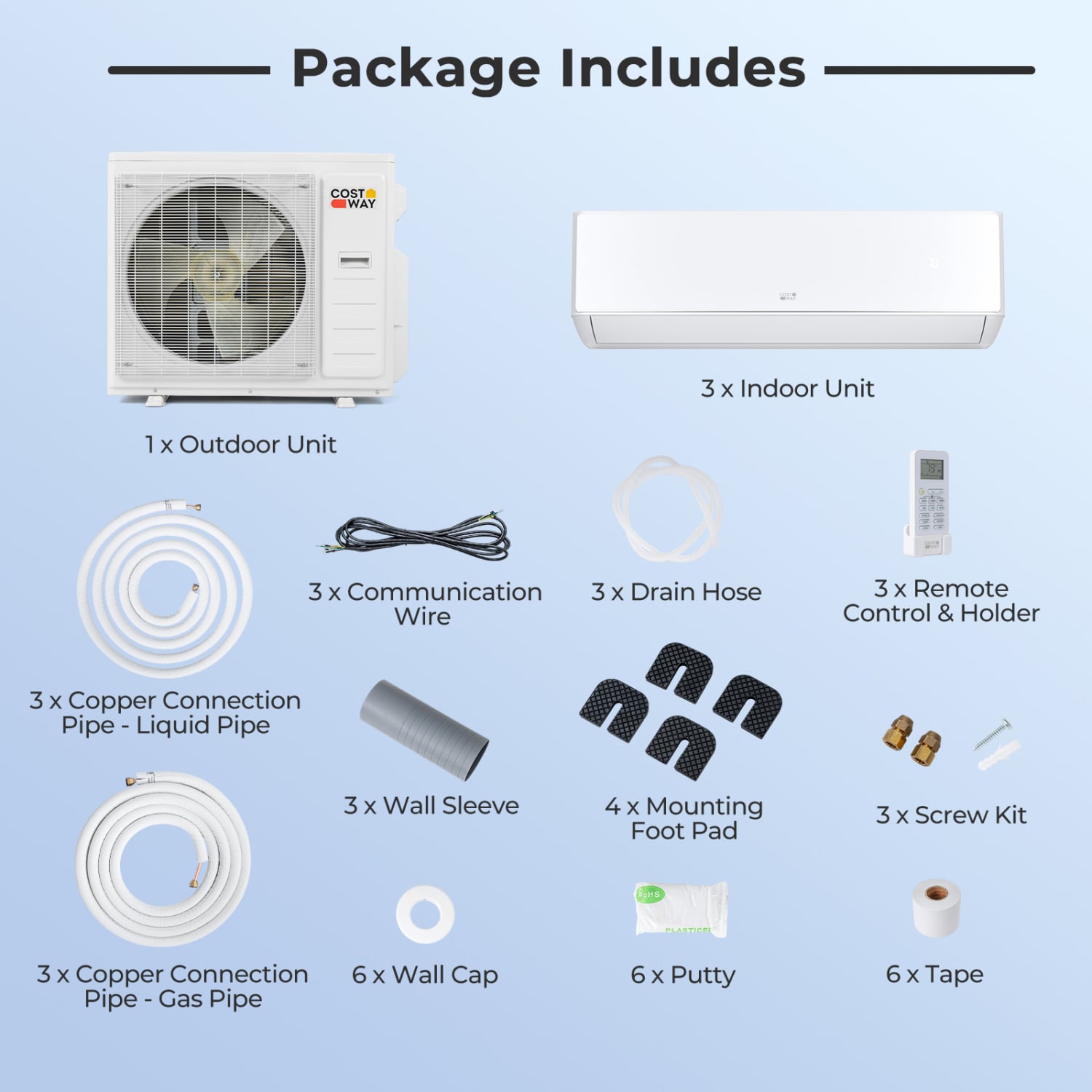

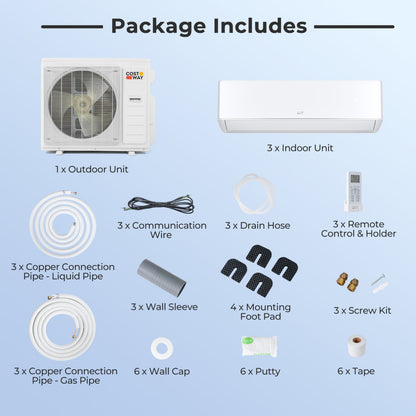

Package Includes:

• 1 x outdoor unit.
• 3 x indoor unit.
• 3 x copper connection pipe for gas.
• 3 x copper connection pipe for liquid.
• 3 x communication wire.
• 3 x drain hose.
• 3 x remote control and holder.
• 3 x wall sleeve.
• 6 x wall cap.
• 6 x tape.
• 6 x putty.
• 3 x screw kit.
• 4 x mounting foot pad.
• 7 x user guide.

Package quantity: 1.
