Mini Split AC Heat Pump, 38000 BTU, 2 Zone, 20 SEER2, 18K + 18K

Overview:

• Provides all-season comfort with cooling and heating for two zones in larger homes.
• Features advanced inverter technology and a 20 SEER2 rating for energy savings.
• Includes smart control options like Wi-Fi, Alexa, and Google Assistant compatibility.
• Designed for low noise operation and easy maintenance with self-clean and washable filters.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

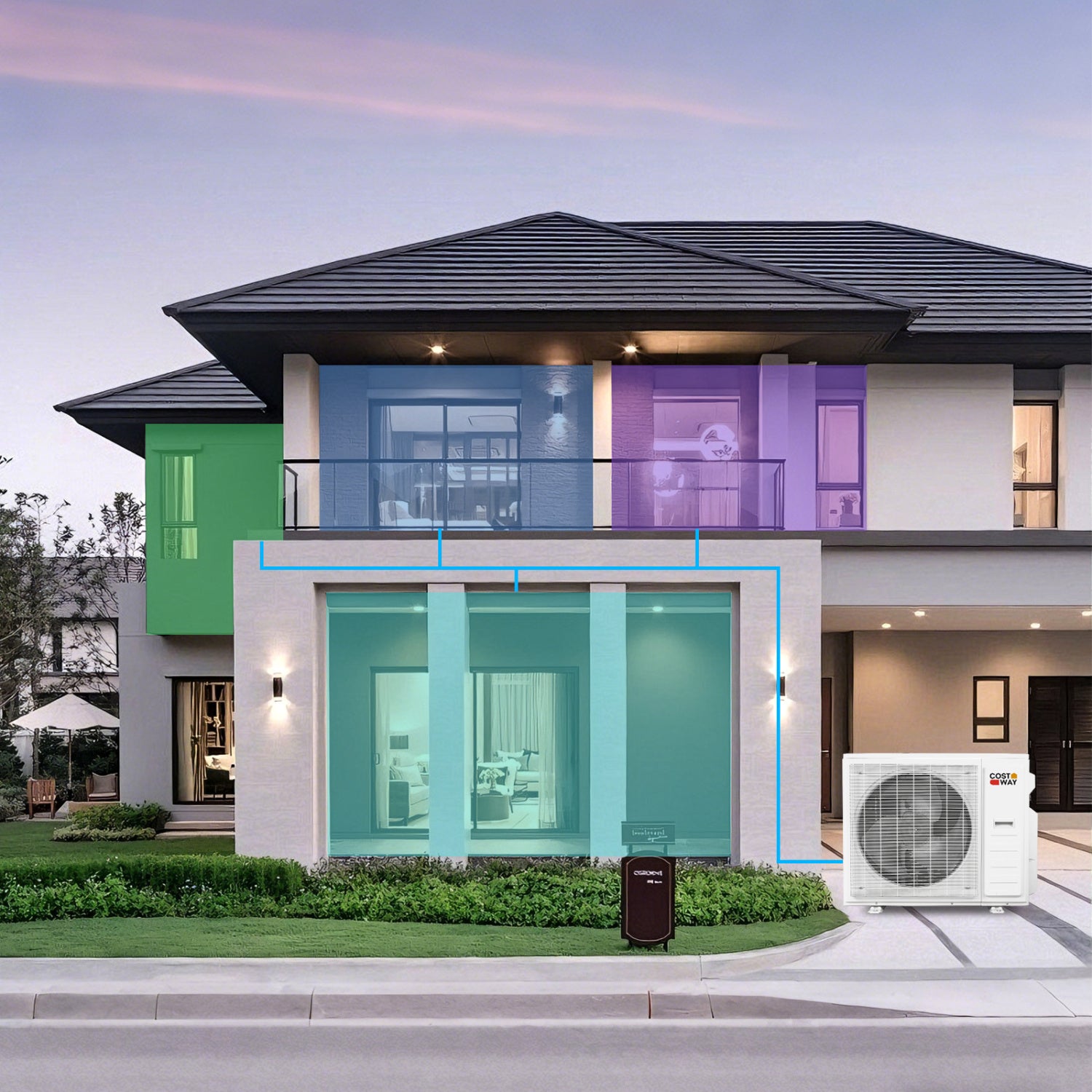

• Powerful whole-home cooling and heating for 2 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

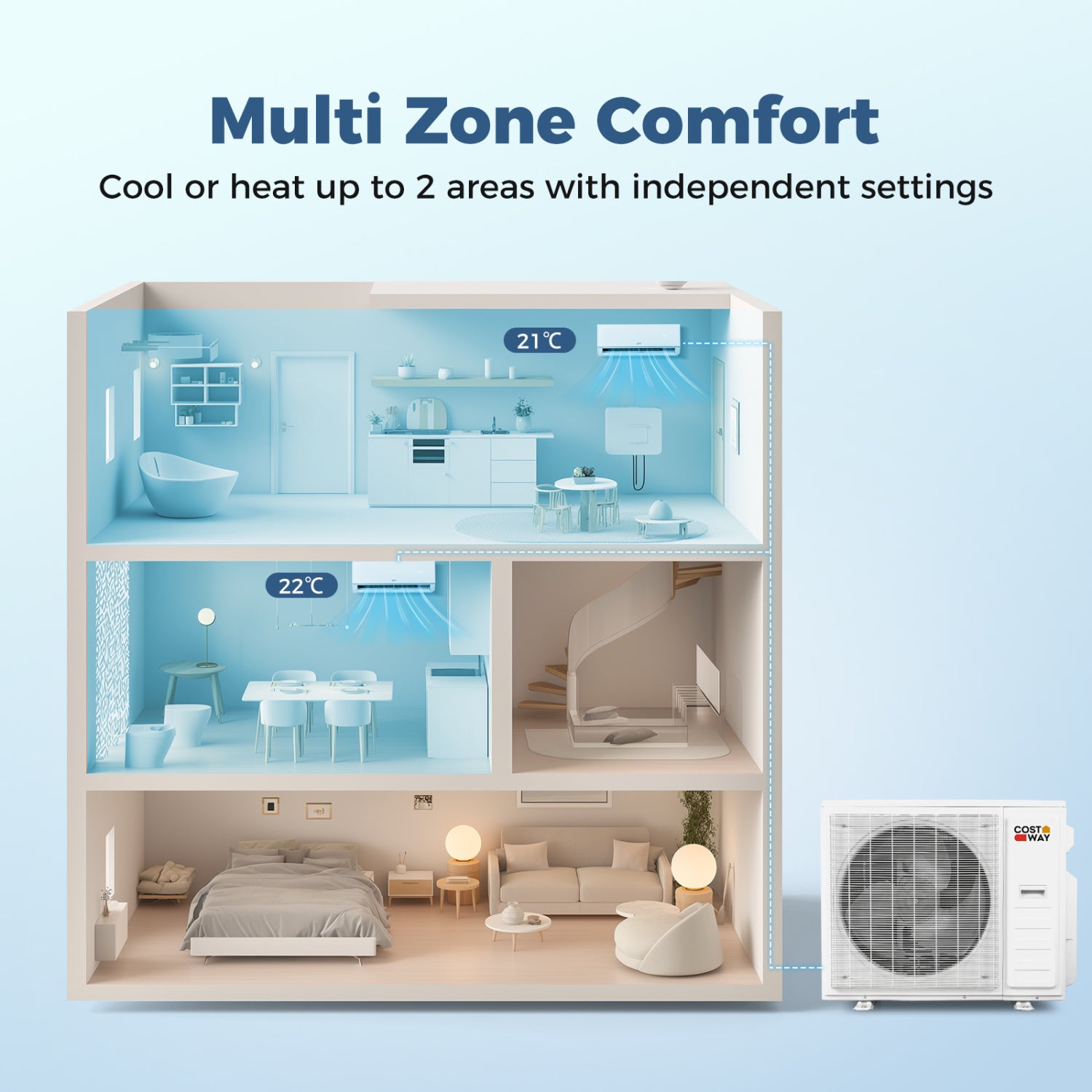

• Multi-zone comfort with 2 zones and 38000 BTU capacity for room-by-room temperature control.
• 4D swing for even air distribution and golf ball dimples design for gentle breeze.
• 20 SEER2 rating for energy-efficient cooling and heating.
• Advanced inverter technology reduces energy waste and maintains stable temperatures.

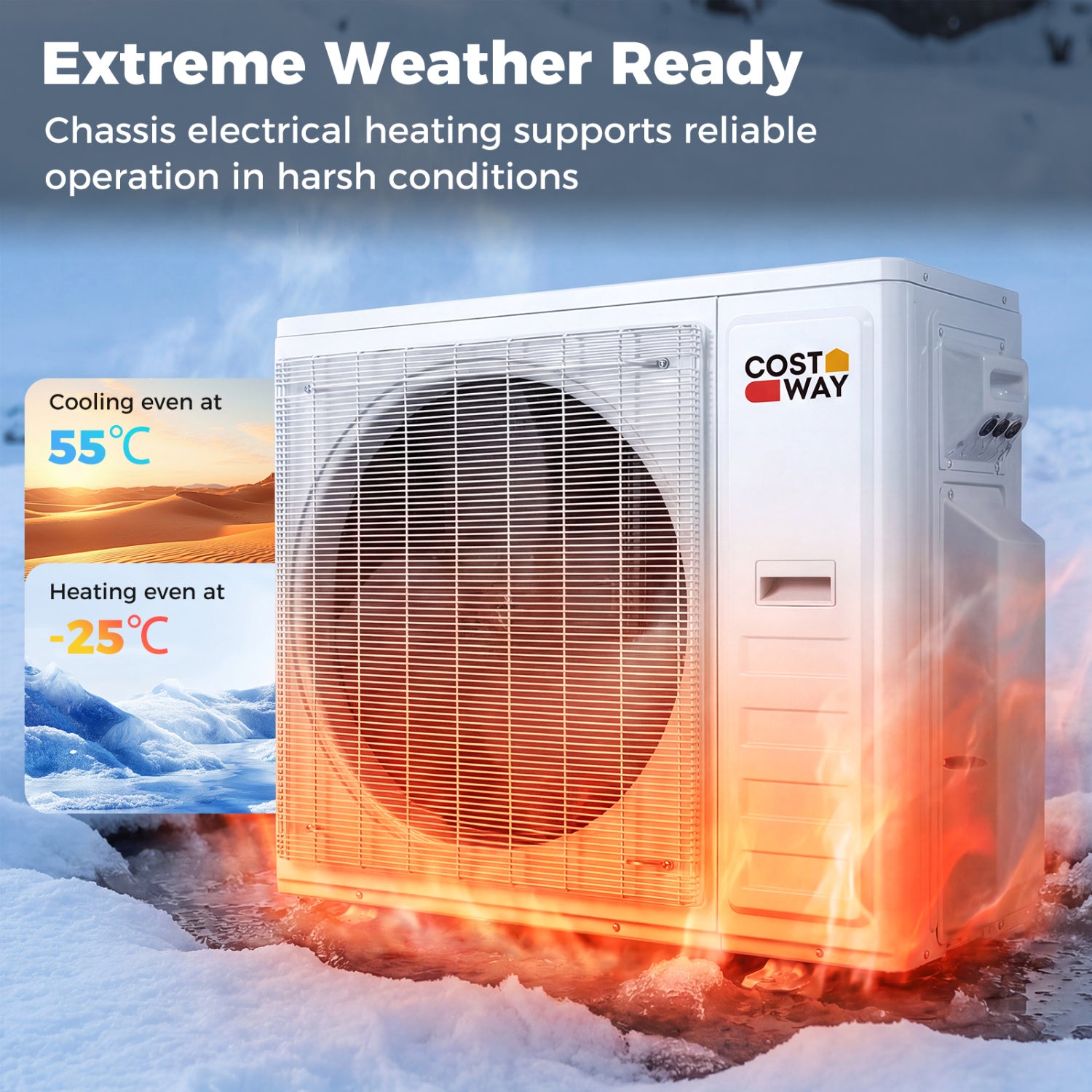

• Outdoor unit with chassis electrical heating for operation in extreme conditions (cooling at 55°C, heating at -25°C).
• Wi-Fi enabled with Alexa and Google Assistant compatibility, plus remote control.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, turbo.
• 24-hour timer for scheduling and energy saving.
• Child lock to prevent accidental changes.
• Low noise operation as low as 28 dB for quiet comfort.
• Self-clean function for fresher airflow.
• Removable and washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

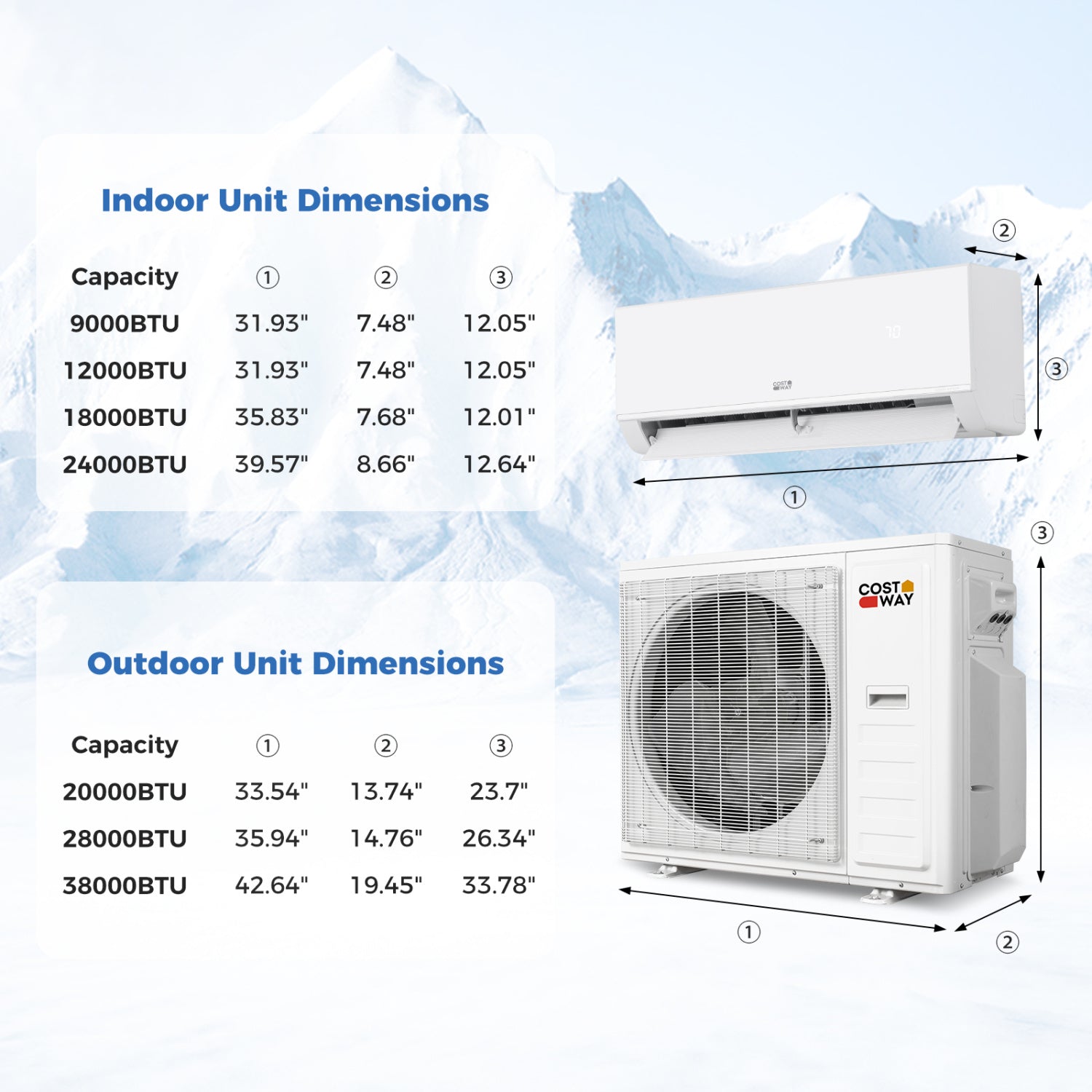

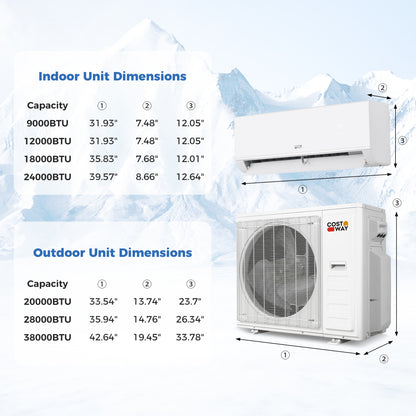

Weight & Dimensions:

• Indoor Unit 9K: 31.93 inches long x 7.48 inches wide x 12.05 inches high (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit 12K: 31.93 inches long x 7.48 inches wide x 12.05 inches high (81.1 cm x 19.0 cm x 30.6 cm).
• Indoor Unit 18K: 35.83 inches long x 7.68 inches wide x 12.01 inches high (91.0 cm x 19.5 cm x 30.5 cm).
• Indoor Unit 24K: 39.57 inches long x 8.66 inches wide x 12.64 inches high (100.5 cm x 22.0 cm x 32.1 cm).
• Outdoor Unit 20K: 33.54 inches long x 13.74 inches wide x 23.7 inches high (85.2 cm x 34.9 cm x 60.2 cm).
• Outdoor Unit 28K: 35.94 inches long x 14.76 inches wide x 26.34 inches high (91.3 cm x 37.5 cm x 66.9 cm).
• Outdoor Unit 38K: 42.64 inches long x 19.45 inches wide x 33.78 inches high (108.3 cm x 49.4 cm x 85.8 cm).
• Net Weight of 38K Outdoor Unit: 148.8 pounds (67.5 kg).
• Net Weight of 9K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 12K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 18K Indoor Unit: 20.9 pounds (9.5 kg).
• Net Weight of 24K Indoor Unit: 27.6 pounds (12.5 kg).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Multi-zone combination: 2 zones.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature setting range: 16°C to 31°C.

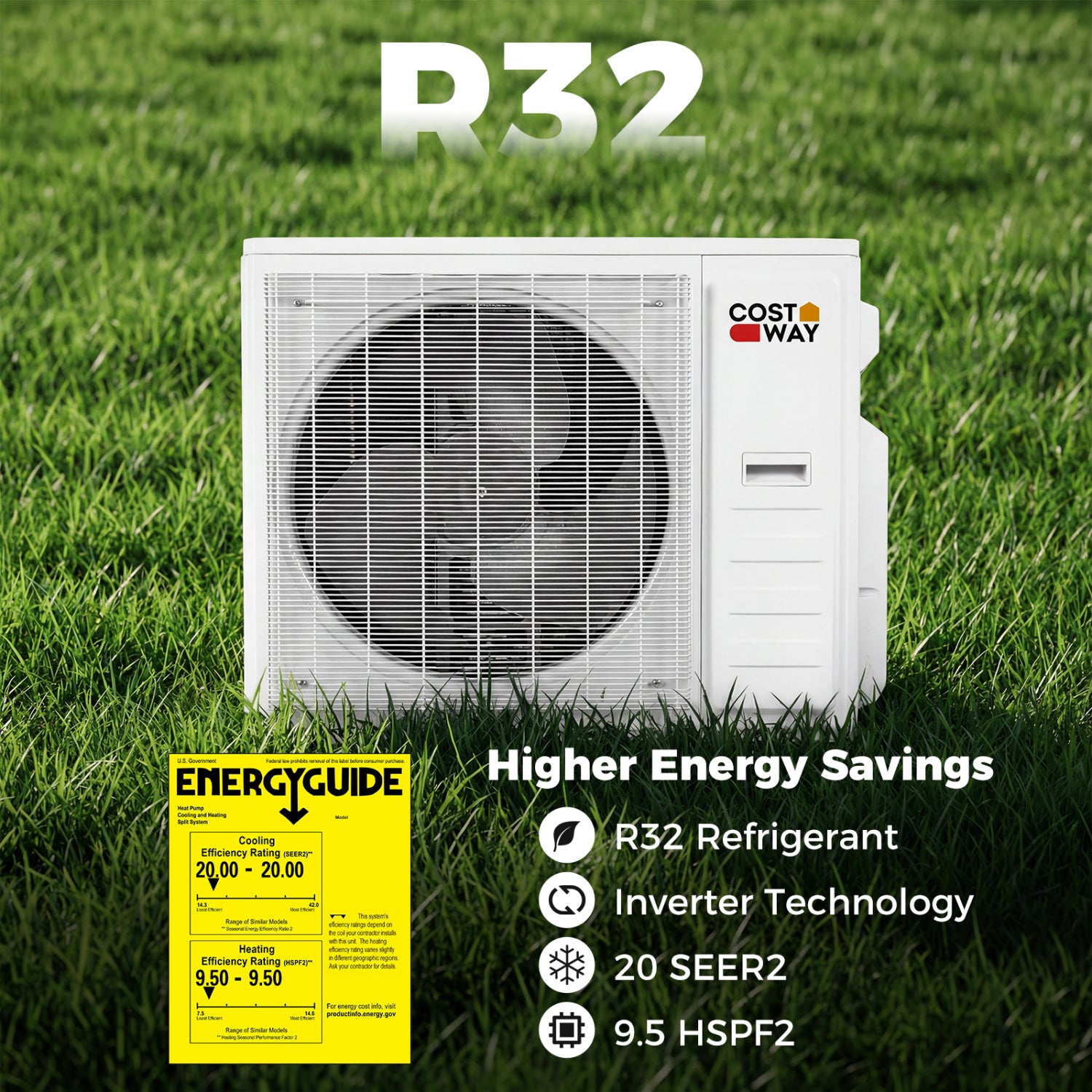

• Refrigerant: R32.
• Indoor unit noise level: 28 dB.
• Maximum remote control distance: 39.5 feet.
• Coverage area: 9K for 450 sq.ft, 12K for 750 sq.ft, 18K for 1250 sq.ft, 24K for 1500 sq.ft.
• Dehumidification capacity: 9K at 66 pints/day, 12K at 81.2 pints/day, 18K at 111.6 pints/day, 24K at 131.9 pints/day.
• Maximum air flow volume: 9K at 335 CFM, 12K at 342 CFM, 18K at 617 CFM, 24K at 847 CFM.
• SEER2: 20K at 23, 28K at 20, 38K at 20.
• HSPF2: 20K at 9.5, 28K at 9.5, 38K at 9.5.
• Diameter of liquid pipe: 1/4 inch.
• Diameter of gas pipe: 9K at 3/8 inch, 12K at 3/8 inch, 18K at 3/8 inch, 24K at 1/2 inch.

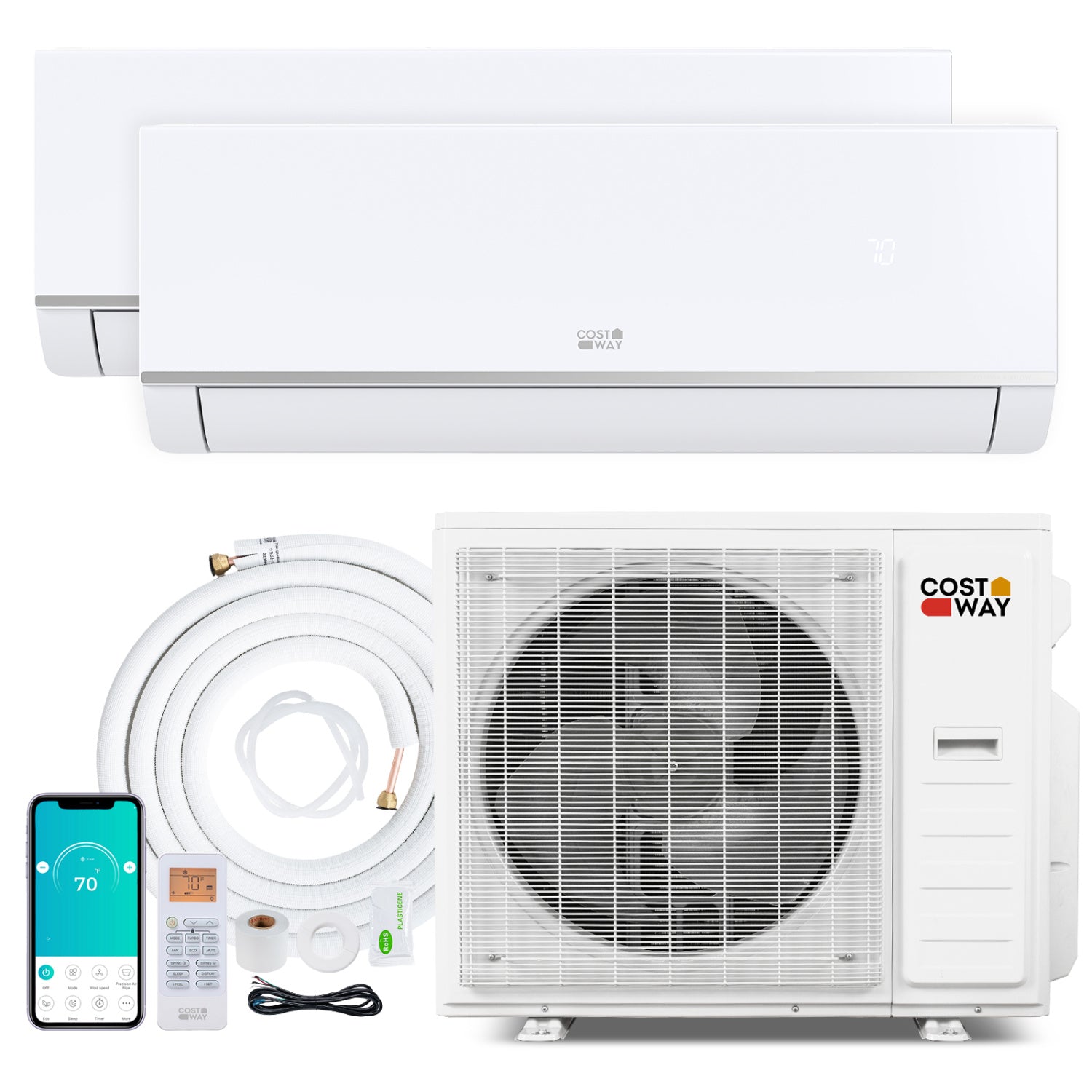

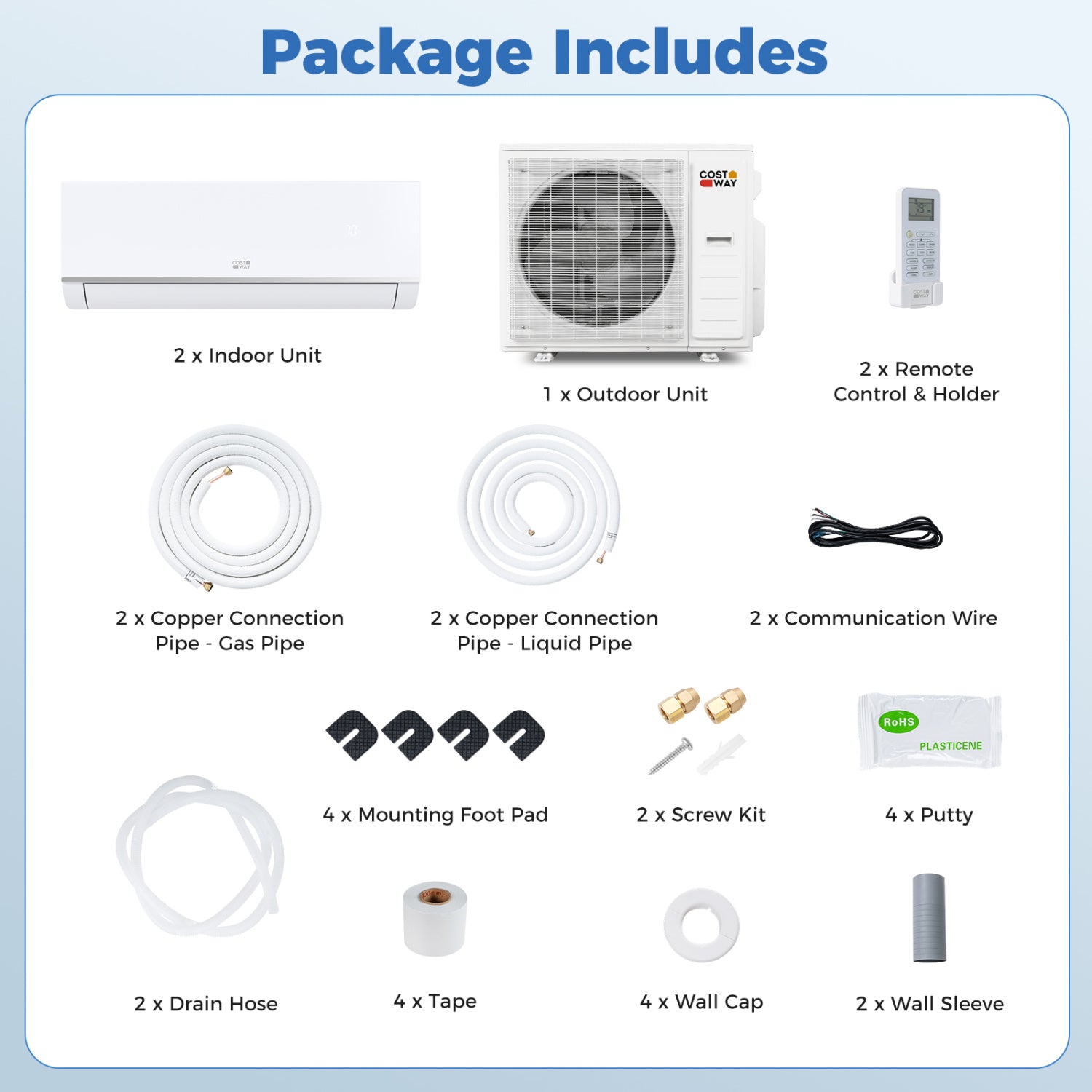

Package Includes:

• 1 x outdoor unit.
• 2 x indoor unit.
• 2 x copper connection pipe - gas pipe.
• 2 x copper connection pipe - liquid pipe.
• 2 x communication wire.
• 2 x drain hose.
• 2 x remote control and holder.
• 2 x wall sleeve.
• 4 x wall cap.
• 4 x tape.
• 4 x putty.
• 2 x screw kit.
• 4 x mounting foot pad.
• 4 x user guide.
